Palomat 5 (Maximum number of pallets 25/700 kg)
Palomat 5 (Maximum number of pallets 25/700 kg)
Palomat 5 (Maximum number of pallets 25/700 kg)
Palomat 5 (Maximum number of pallets 25/700 kg)
Palomat 5 (Maximum number of pallets 25/700 kg)
Palomat 5 (Maximum number of pallets 25/700 kg)
500 kg
500 kg

Description

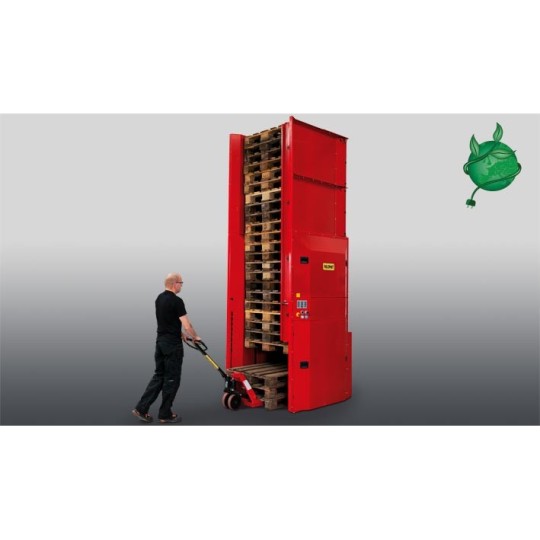

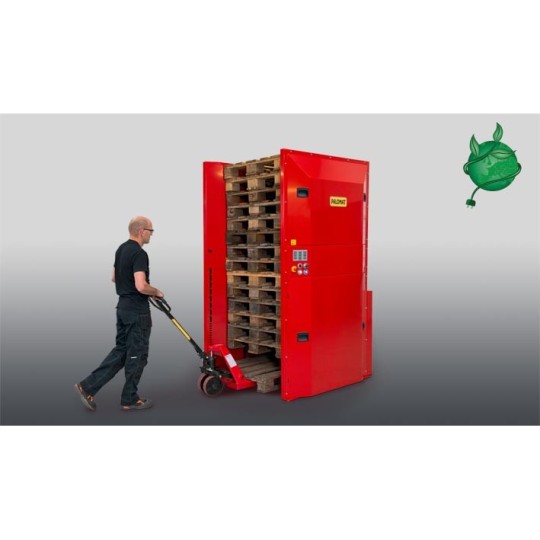

The Palomat 5 is completely AC operated.

Choose a Palomat 5 if you plan to both stack and destack more than one pallet at a time – up to 5 together  and wish to use only electricity as the power source.

You can place it anywhere with an available AC 230V outlet. This will immediately give you efficient and more  flexible pallet handling – if your pallet flow changes, it is easy to reposition the Palomat to a new location.

Pallets can be inserted and picked up using a hand pallet truck, electric stacker or a full-size forklift truck. All pallets are handled at floor level.

Capacity
500 kg
Energy
220-240 VAC / 50 Hz
Standby consumption
23 W
Consumption during operation
700 W (at max. load of 700 kg)
Noise level
70 dB(A)
Max. fuse
16 A D01
Steering
Siemens S7-1200
Palomat model
P5
Quantity of pallets
25

Palomat 5 (Maximum number of pallets 25/700 kg)

Semi-automatic stacking and destacking

  • Stacks and unloads 1-5 pallets
  • Maximum number of pallets 25/700 kg
  • Incl. 25 pallets safety frame that is required when handling more than 15 pallets

€17,000.00
Tax excluded
170101
Status: On Backorder

Delivery: within 6-7 weeks
