Palomat ½ Pallets
Palomat ½ Pallets
Palomat ½ Pallets
Palomat ½ Pallets

Description

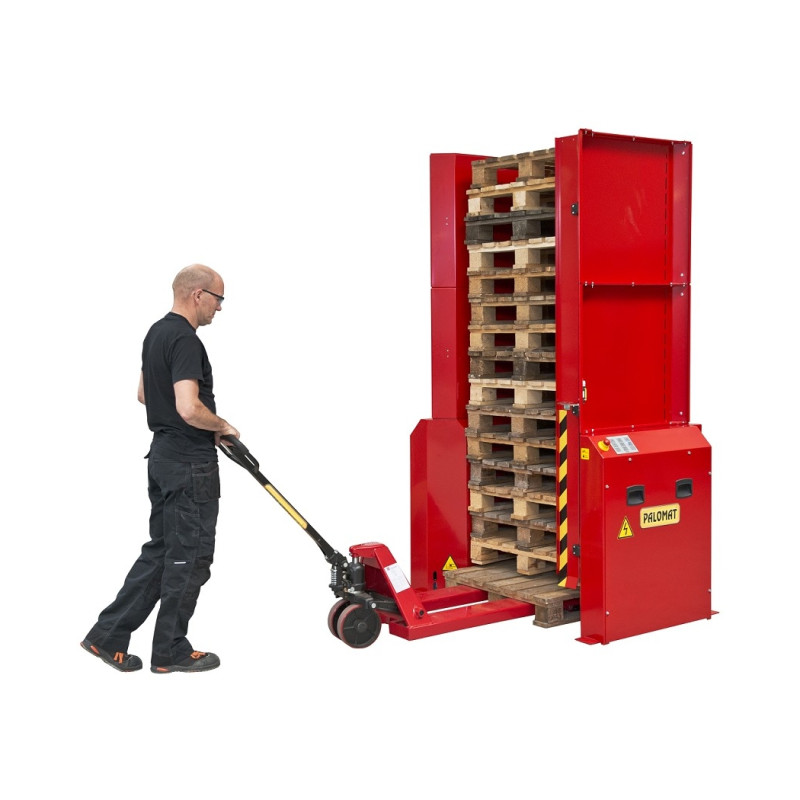

Insert or remove the pallets using a hand pallet truck, electric stacker, or a forklift truck. The PALOMAT® ½ Pallets detects the ½-pallets via photo sensors after which they are fully automatic stacked or destacked one by one at floor level.

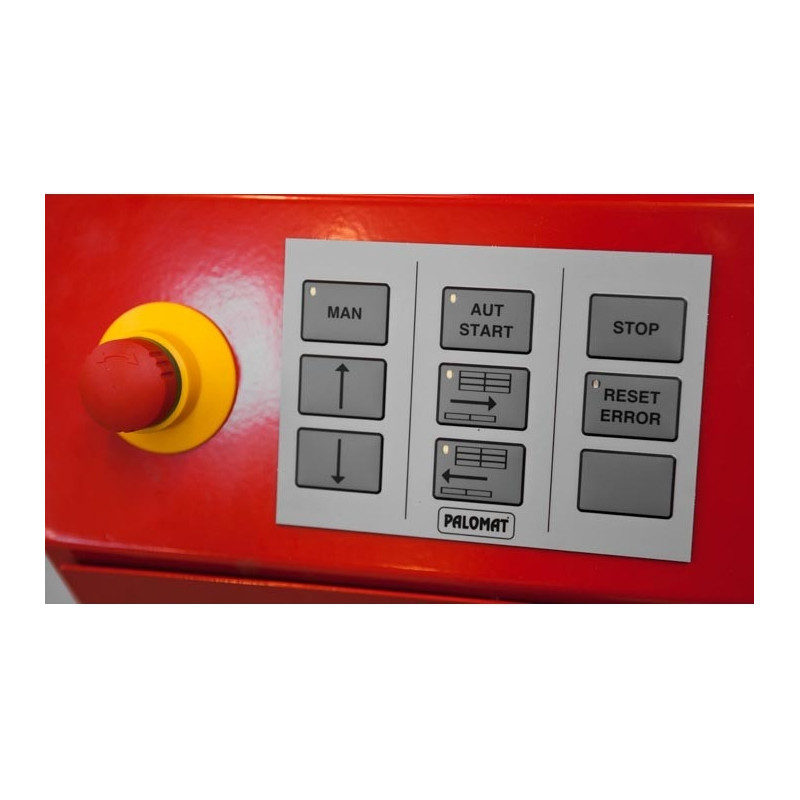

When selecting destacking, a stack of no more than 15 ½-pallets will be inserted in the PALOMAT®, after which the pallets are fully automatic destacked one by one. When selecting stacking, the pallets are inserted one by one, after which the pallets are fully automatic stacked to no more than 15 ½-pallets. The entire stack can subsequently be removed. PALOMAT® ½ Pallets is is only operated manually using the touch panel to change between stacking and destacking.

The PALOMAT® can handle all 4-way pallets in wood, plastic and metal no matter what the length, width or height.

We can customise the PALOMAT® to exactly match the pallet size you use.

Energy
220-240 VAC / 50 Hz
Standby consumption
23 W
Consumption during operation
550 W (at max. load of 500 kg)
Noise level
70 dB(A)
Max. fuse
16 A D01
Steering
Siemens S7-1200
Palomat model
½ Pallets​
Quantity of pallets
15
  • NEW

    • Palomat ½ Pallets

    Fully automatic stacking and destacking

    • Loads and unloads one halp pallet at a time (600x800 mm)
    • Maximum number of pallets 15/500kg
    • Greenline Version: AC operated

    €12,650.00
    Tax excluded
    152050
    Status: On Backorder
