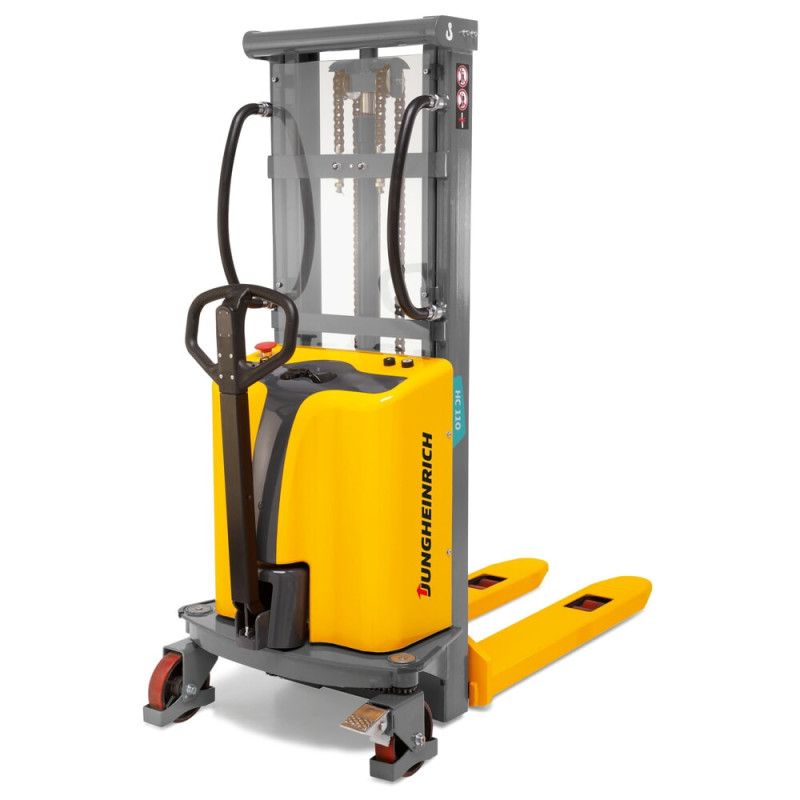

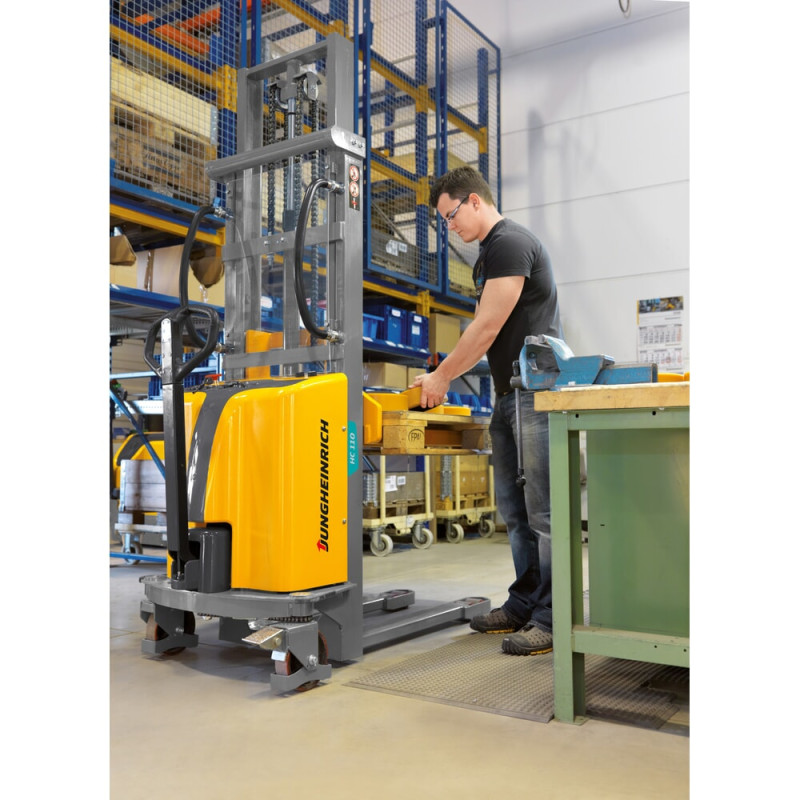

The Jungheinrich HC 110 electric high-lift stacker truck with single mast combines lifting with manual movement – ideal for occasional stacking and retrieving as well as for use as a mobile work bench. The electro-hydraulic lift motor with 1.5 kW output enables fast lifting of loads, while the tiller guidance allows precise and safe manual manoeuvring. Thanks to the maintenance-free battery, integrated charger and robust construction, this semi-electric hand stacker is particularly economical and practical. The HC 110 is the ideal solution for anyone seeking flexibility and functionality in a compact design.

• Manual transport of up to 1000 kg for cost-effective applications
• Lift height of up to 2500 mm with two-stage telescopic mast
• Electro-hydraulic lift control for precise positioning
• 1.5 kW lift motor for fast lifting operations
• Maintenance-free lead-gel battery with discharge indicator
• Integrated high-frequency charger with charge status indicator
• Guide handles for easy manoeuvring
• Long tiller ensures a safe distance between the operator and truck
• Steering castors with integrated foot protection
• Mechanical foot brake for secure parking on any surface

Compact design for efficient working: the Jungheinrich HC 110 electric high-lift stacker truck with two-stage telescopic mast

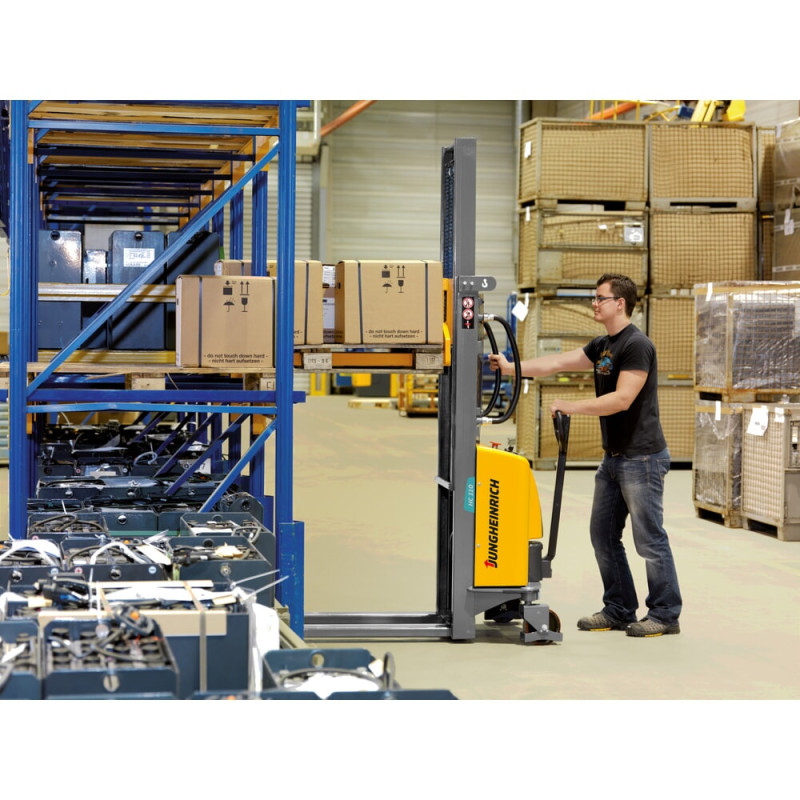

The semi-electric Jungheinrich HC 110 electric high-lift stacker truck with two-stage telescopic mast was designed for flexible use in warehouses, workshops and shipping. With its 1.5 kW lift motor, it lifts loads quickly and reliably up to 3,000 mm.

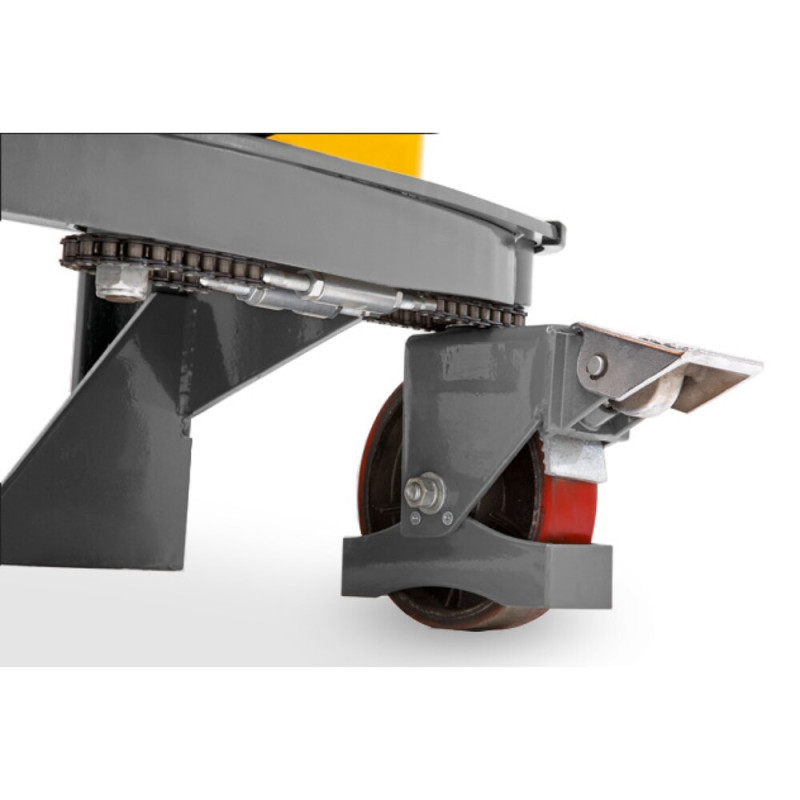

Electro-hydraulic control allows precise adjustment of the fork height. Manual movement is facilitated by guide handles, a long tiller and forced guidance of the steering castors via a connecting chain. Additionally, a transparent Plexiglas protective screen between the steel frames provides enhanced safety and a clear view in the direction of travel.

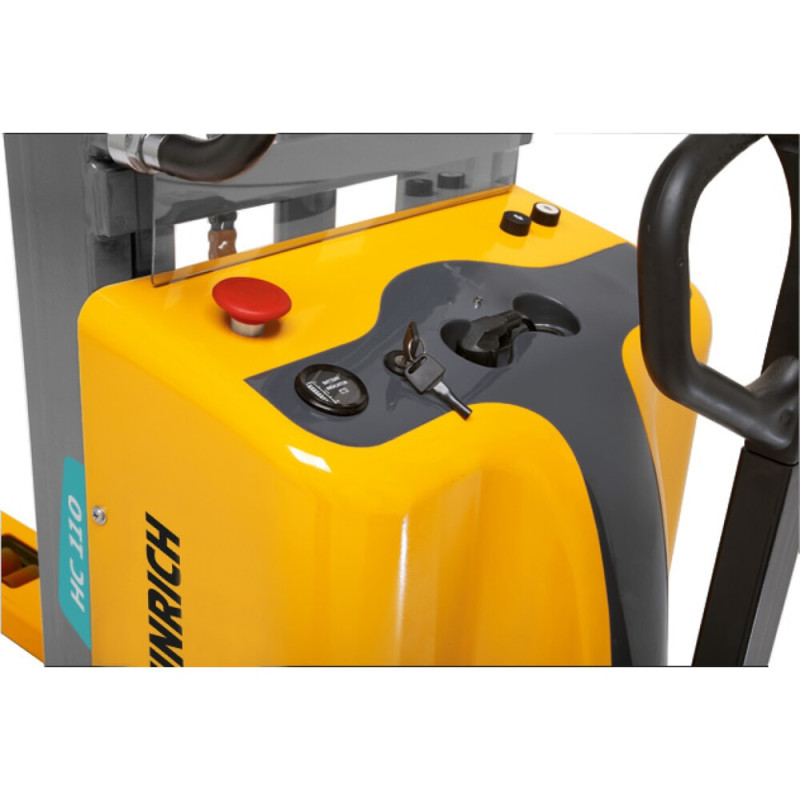

In everyday use, the HC 110 impresses with high availability: The maintenance-free lead-gel battery requires no water refilling and is easily charged via the integrated high-frequency charger at any standard 230 V socket. The current charge level can be read at any time on the charge status and battery discharge indicators.

The HC 110 also satisfies daily safety requirements: A mechanical foot parking brake ensures maximum stability during lifting operations, while the steering castors are additionally equipped with foot protection.

The Jungheinrich HC 110 with two-stage telescopic mast is a reliable, versatile and economical solution for anyone looking to improve efficiency and safety in warehouse processes.
