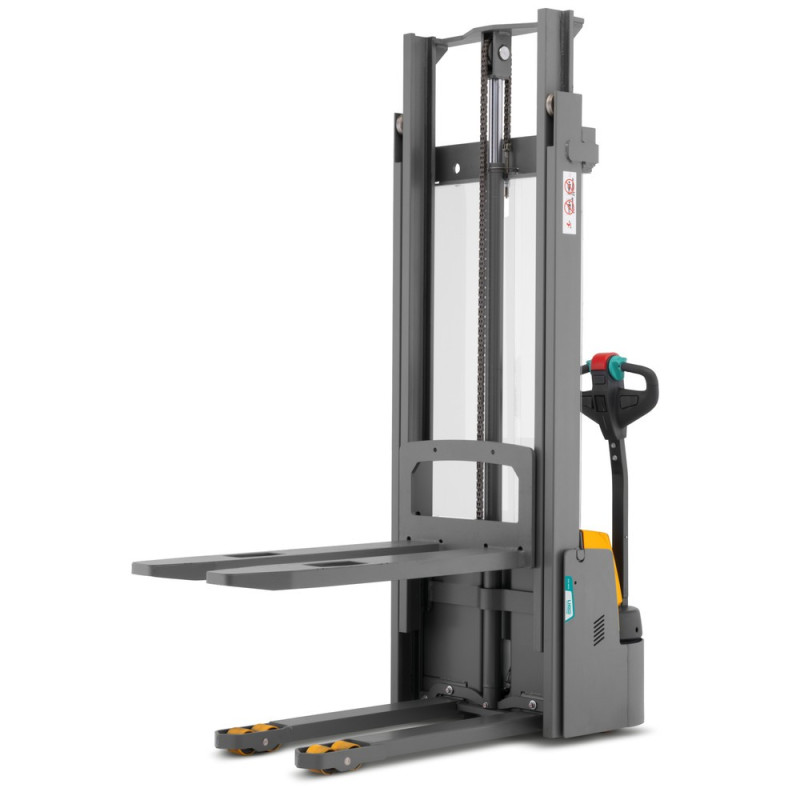

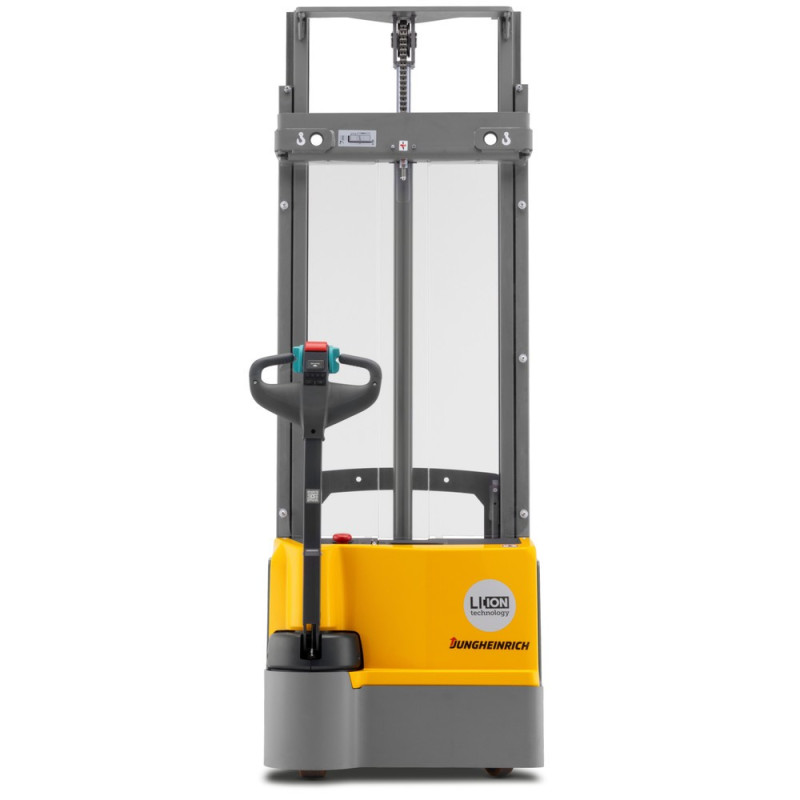

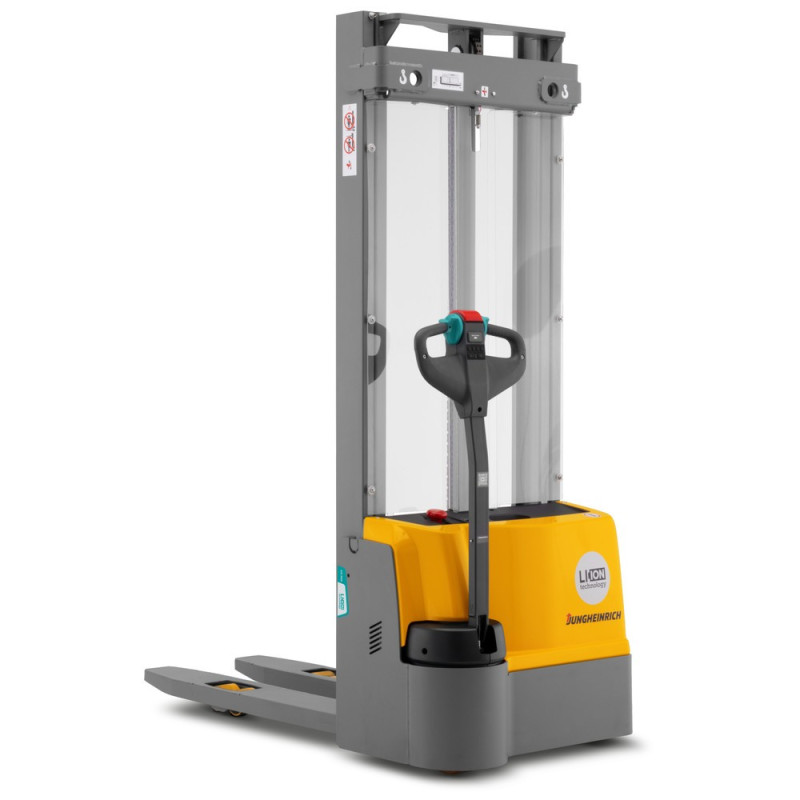

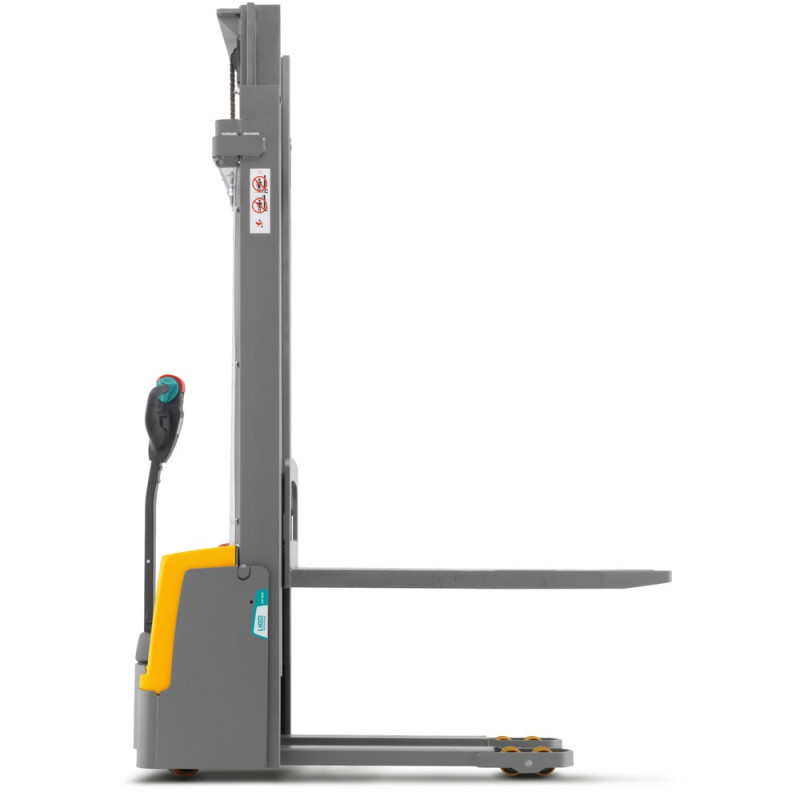

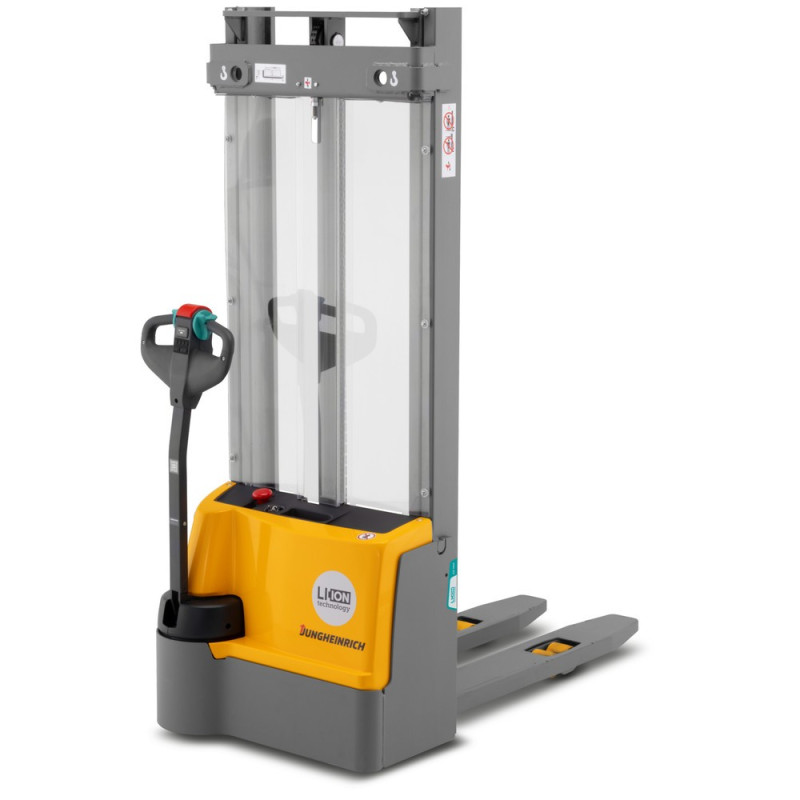

Jungheinrich EJC M10 ZT electric stacker truck – two-stage telescopic mast 2900 mm, lithium-ion
Jungheinrich EJC M10 ZT electric stacker truck – two-stage telescopic mast 2900 mm, lithium-ion
Jungheinrich EJC M10 ZT electric stacker truck – two-stage telescopic mast 2900 mm, lithium-ion
Jungheinrich EJC M10 ZT electric stacker truck – two-stage telescopic mast 2900 mm, lithium-ion
Jungheinrich EJC M10 ZT electric stacker truck – two-stage telescopic mast 2900 mm, lithium-ion
Jungheinrich EJC M10 ZT electric stacker truck – two-stage telescopic mast 2900 mm, lithium-ion
Jungheinrich EJC M10 ZT electric stacker truck – two-stage telescopic mast 2900 mm, lithium-ion
Jungheinrich EJC M10 ZT electric stacker truck – two-stage telescopic mast 2900 mm, lithium-ion
Jungheinrich EJC M10 ZT electric stacker truck – two-stage telescopic mast 2900 mm, lithium-ion
Jungheinrich EJC M10 ZT electric stacker truck – two-stage telescopic mast 2900 mm, lithium-ion
Jungheinrich EJC M10 ZT electric stacker truck – two-stage telescopic mast 2900 mm, lithium-ion
Jungheinrich EJC M10 ZT electric stacker truck – two-stage telescopic mast 2900 mm, lithium-ion
1000 kg
1000 kg
1150 mm
1150 mm
85 - 2900 mm
85 - 2900 mm

Description

A worthwhile investment: The EJC M10 ZT with two-stage telescopic mast is the entry-level model in Jungheinrich's range of electric stacker trucks with lithium-ion technology. The electric stacker truck assists you with light-duty stacking work at heights of up to 3,300 mm and is ideal for in-house transport across short distances with loads of up to 1,000 kg. You also benefit from the many advantages offered by the innovative lithium-ion technology, which impresses with its constant performance levels, short charging times and long service life.

  • 2900 mm lift height
  • Powerful, maintenance-free lithium-ion battery
  • On-board charger for easy rapid and intermediate charging
  • Efficient and economical 3-phase AC drive motor
  • Intelligent automatic shut-off when not used for 30 minutes
  • Quick and agile, even in confined spaces
  • Make the switch to impressive lithium-ion technology today

The EJC M10 ZT with two-stage telescopic mast is the entry-level model in the range of Jungheinrich electric stacker trucks with lithium-ion technology and boasts pro-level Jungheinrich quality for utmost reliability. The electric stacker truck was developed specifically for small and medium-sized companies performing occasional low-intensity transport and storage tasks. The electric stacker truck is the perfect solution for simple internal transport of goods weighing up to 1,000 kg as well as stacking and retrieving of light goods at heights of up to 3,300 mm. From warehouses to workshops, the efficient and agile electric stacker truck offers maximum flexibility for a wide range of applications. It can also serve as a lift table or workbench, and is an effective order picking solution.

In addition to the electric drive, you can also reap the many benefits of lithium-ion technology. Enjoy the consistently high power levels and impressive performance delivered by the lithium-ion battery. Rapid and intermediate charging of the battery is possible without memory effect, thereby ensuring maximum availability and flexibility at all times. Thanks to the on-board charger, the battery can be easily recharged via any 230 V socket. The lithium-ion batteries are also characterised by their low energy consumption and long service life, and they are entirely maintenance-free.

The electric stacker truck impresses with additional smart energy solutions. The powerful and economical 3-phase AC technology of the maintenance-free drive motor reduces your operating costs and maximises the speed and cost efficiency of your stock turnover. Efficient energy management is also supported by the regenerative brake, which enables effective energy recovery when the travel speed is reduced. The intelligent automatic shut-off protects the battery, with the truck switching off automatically when not used for 30 minutes.

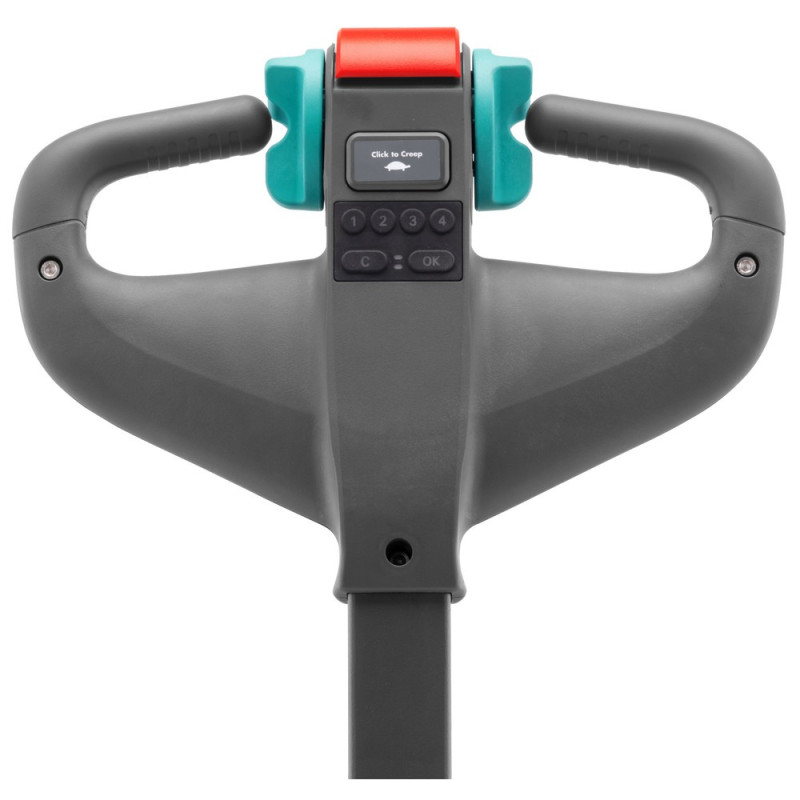

The electric stacker truck boasts an intuitive operating concept. All functions are conveniently controlled via the ergonomic tiller handle, which can be operated with either hand – even when wearing gloves. Important instruments, such as the battery charge indicator, hour meter, emergency disconnect switch and key are positioned centrally in your direct field of view.

Thanks to a wide range of safety features, the EJC M10 ZT also serves as a safe, ergonomic working aid for inexperienced operators. The low-mounted tiller greatly reduces the amount of effort required for steering. The minimal ground clearance of just 30 mm and the fully encased housing provide optimum protection against foot injuries. Thanks to its compact dimensions and short headlength, the electric stacker truck is extremely agile, and this ensures safe and simple manoeuvring in confined spaces with the tiller raised and crawl speed button depressed. The low frame height and optimum visibility through the mast mean that even smaller operators have a clear view of the fork tips at all times.

The EJC M10 ZT is equipped with a double telescopic mast. The ZT or duplex mast is a two-stage model, in which the fork carriage and inner mast move simultaneously at a ratio of 2:1 – i.e. raising the forks by 600 mm results in the mast being extended by 300 mm. A particularly beneficial feature of the EJC M10 ZT is that it is quite small in size relative to its high lift height, a fact that makes it ideal for low ceiling heights.

Enjoy the many benefits of this entry-level model in the range of Jungheinrich electric stacker trucks with lithium-ion technology. Purchase the EJC M10 ZT from our shop with your required lift height.

Capacity
1000 kg
Manufacturer
Jungheinrich
Model
EJC M10 ZT
In stock
Yes
Fork length
1150 mm
Turning radius
1270 mm
Steering wheel diameter
230 mm
Aisle width
2103 mm
Steering wheel width
65 mm
Control panel
Two-handed
Fork width
172 mm
Charger
Built-in
Drive
Electric
Net weight incl. battery
616 kg
Overall length
1685 mm
Overall width
800 mm
Lift speed with / without load
0,12 / 0,22 m/s
Brake
Electromagnetic
Battery voltage / nominal capacity
25.6 / 50 V/Ah
Battery weight
52 kg
Fork height
55 mm
Operation mode
Pedestrian
Fork roller material
Polyurethane (PU)
Steering wheel material
Polyurethane (PU)
Fork roller equipment
Tandem
Lift
2900 mm
Lift range
85 - 2900 mm
Battery type
Lithium-ion
Tiller RAL colour
RAL 7016 anthracite grey
Lift motor output
2.2 kW
Fork roller diameter
80 mm
Fork roller width
70 mm
Tiller surface
Power-coated
Tiller Height
1190 mm
Chassis surface
Power-coated
Height of mast (lowered)
1915 mm
Extended mast height
3330 mm
Noise level as per EN 12053 (operator's ear)
66 dB(A)
Type of driving control system
AC SpeedControl
Ground clearance
30 mm
Automatic shut-off without insert
30 min
Spare wheel diameter
100 mm
Gradeability
5 %
Mast type
Duplex telescopic mast (ZT)
  • ONLY ONE LEFT
  • Jungheinrich EJC M10 ZT electric stacker truck – two-stage telescopic mast 2900 mm, lithium-ion

    Efficient and agile – makes light work of stacking loads weighing up to 1000 kg

    • 2900 mm lift height
    • Powerful, maintenance-free lithium-ion battery
    • On-board charger for easy rapid and intermediate charging

    €4,595.00
    €4,305.74 You Save €289.26
    Tax excluded
    Limited offer until: 2026/03/01 Days remaining: 37
    51984715
    Status: In stock

    Delivery: within 2-3 working days
