1200 kg
1200 kg
1150 mm
1150 mm
86 - 2900 mm
86 - 2900 mm

Description

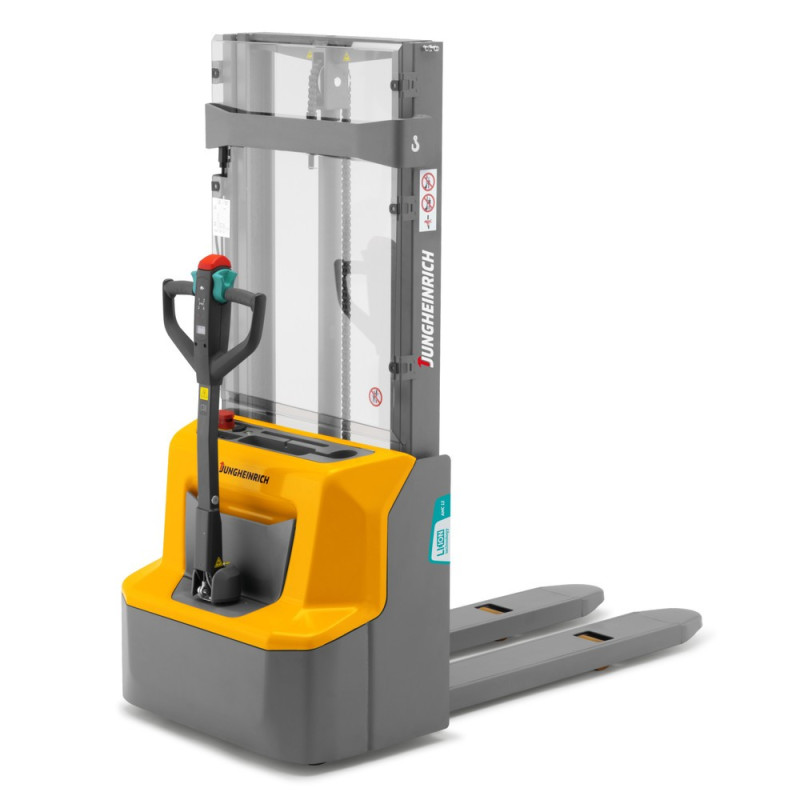

The Jungheinrich AMC 12 electric stacker truck – lithium-ion is Jungheinrich's entry-level model in the electric high-lift truck segment with lithium-ion technology. The lithium-ion truck with 1200 kg load capacity has a two-stage telescopic mast and is available in 4 lift heights ranging up to 2900 mm. This versatile tool assists you in light-duty applications involving internal pallet handling across short distances. The maintenance-free lithium-ion battery with integrated charger impresses with its constant performance levels, short charging times and long service life, thereby ensuring maximum availability and flexibility.

  • 1200 kg load capacity
  • 2900 mm lift height
  • Maintenance-free lithium-ion battery
  • On-board charger for flexible application
  • Compact design for confined warehouse environments
  • Slim mast profiles for optimum visibility
  • curveCONTROL ensures safe cornering
  • PIN code access and slow travel button
  • Visual support for reading the residual load capacity
  • USB interfaces for charging external devices
  • Efficient lithium-ion technology for maximum flexibility

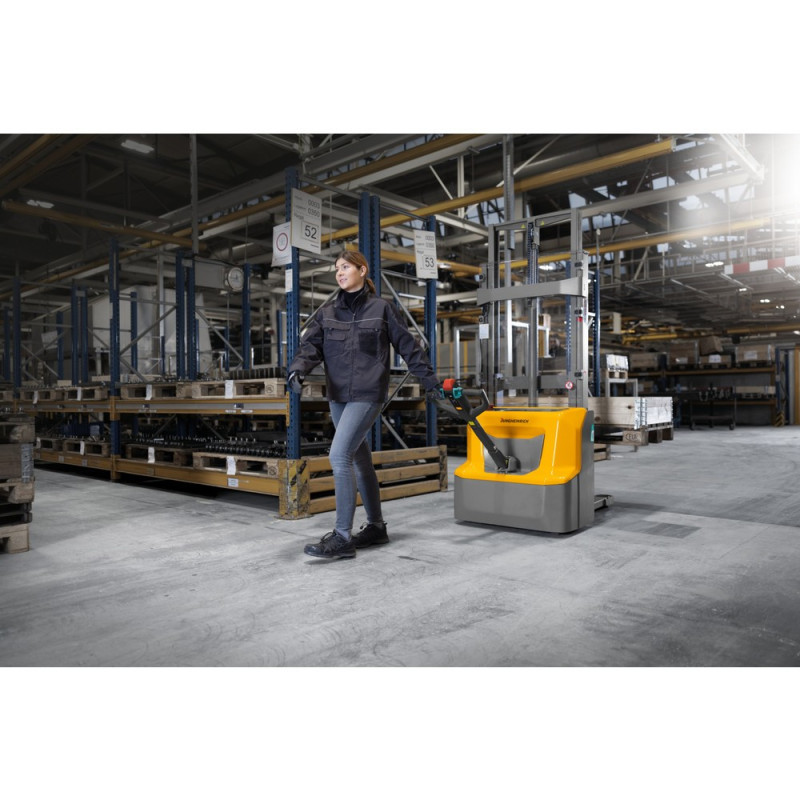

With the AMC 12, Jungheinrich offers an effective entry point into its range of electric high-lift truck trucks with lithium-ion technology. The reliable electric stacker truck was designed for light-duty in-house use, making it the perfect entry-level solution for small and medium-sized companies. Be it for transporting loads weighing up to 1200 kg over short distances, for efficient storage and retrieval of pallets at heights of up to 2900 mm or as a mobile workbench for simple and ergonomic order picking – the versatile AMC 12 is the perfect tool for the job. The flexible and agile electric stacker truck is equipped with a two-stage telescopic mast and is available in 4 lift heights.

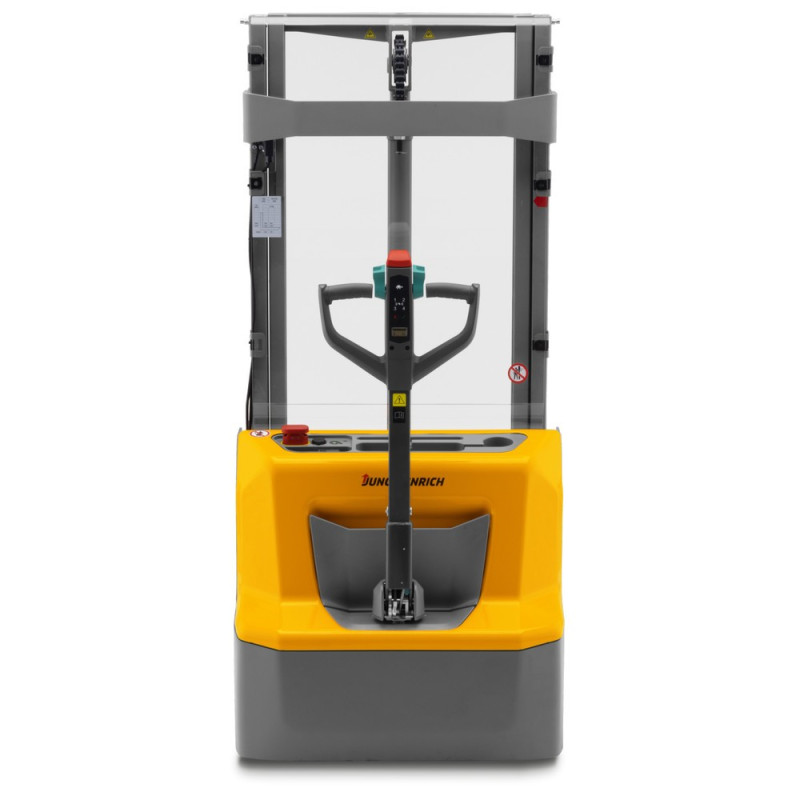

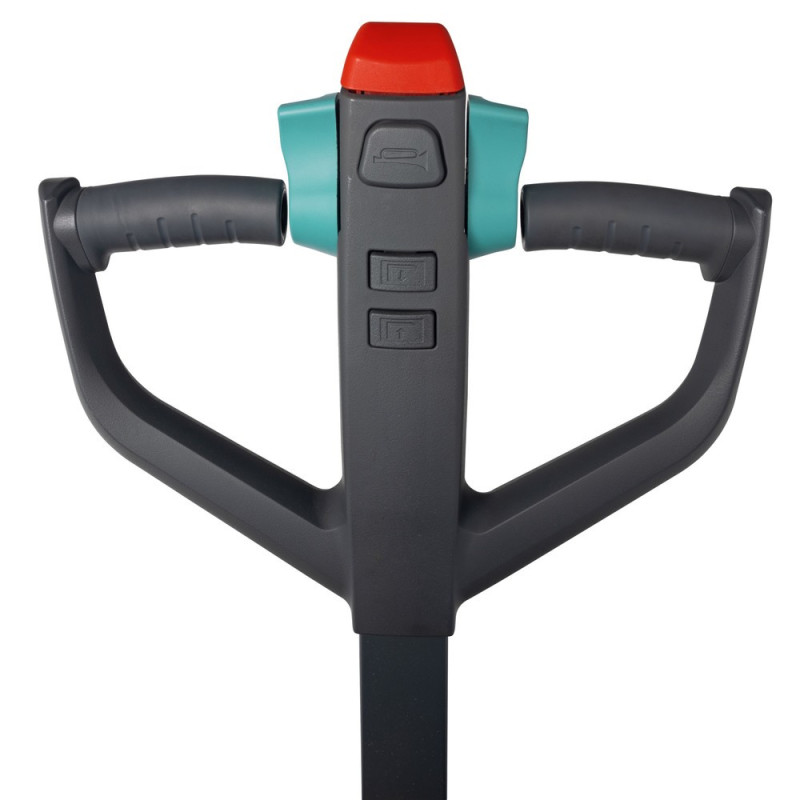

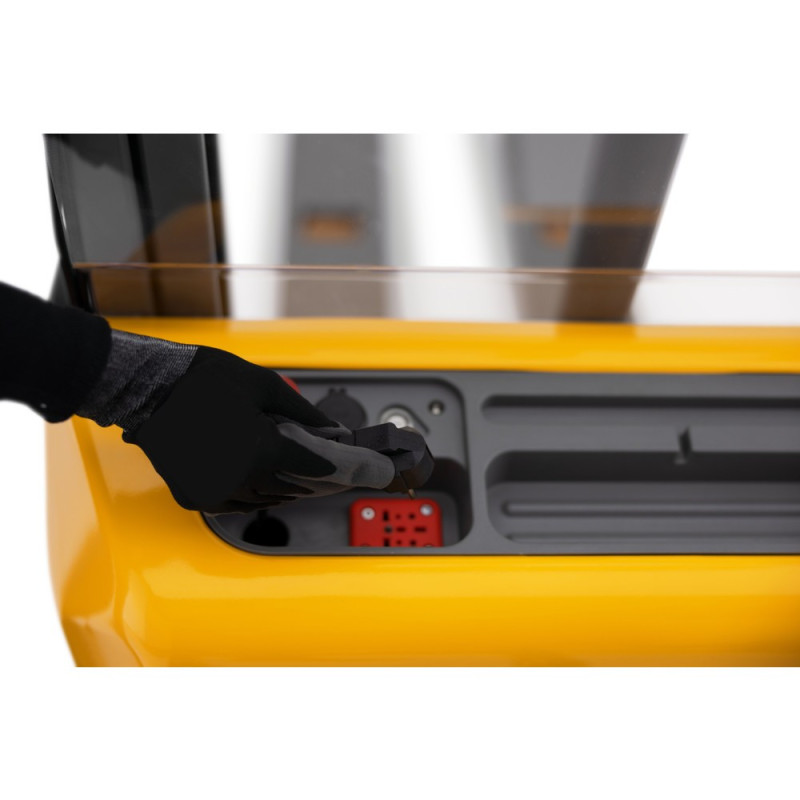

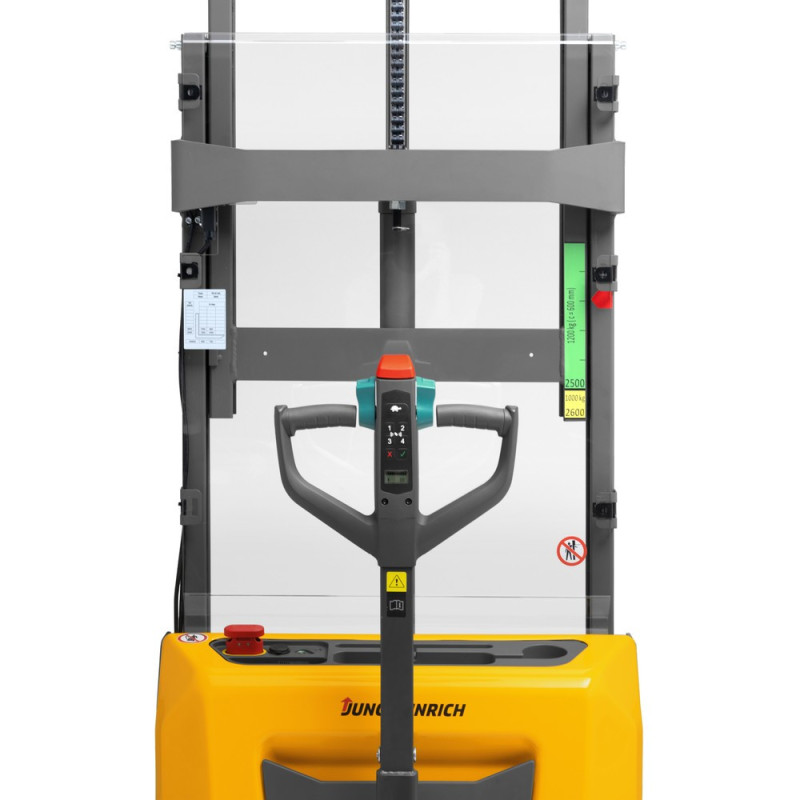

The AMC 12 electric stacker truck impresses with its ergonomic operation and ease of use. You control all electric travel, lifting and lowering functions via the intuitive multifunction tiller handle, which can be operated with either hand. The collision safety switch ensures effective collision protection. The display integrated in the tiller keeps you up to date on all relevant truck status information, such as the battery charge level. PIN code access provides reliable protection against unauthorised use. The emergency disconnect switch and integrated charger are positioned centrally on the chassis along with a storage compartment and USB interfaces for charging external devices.

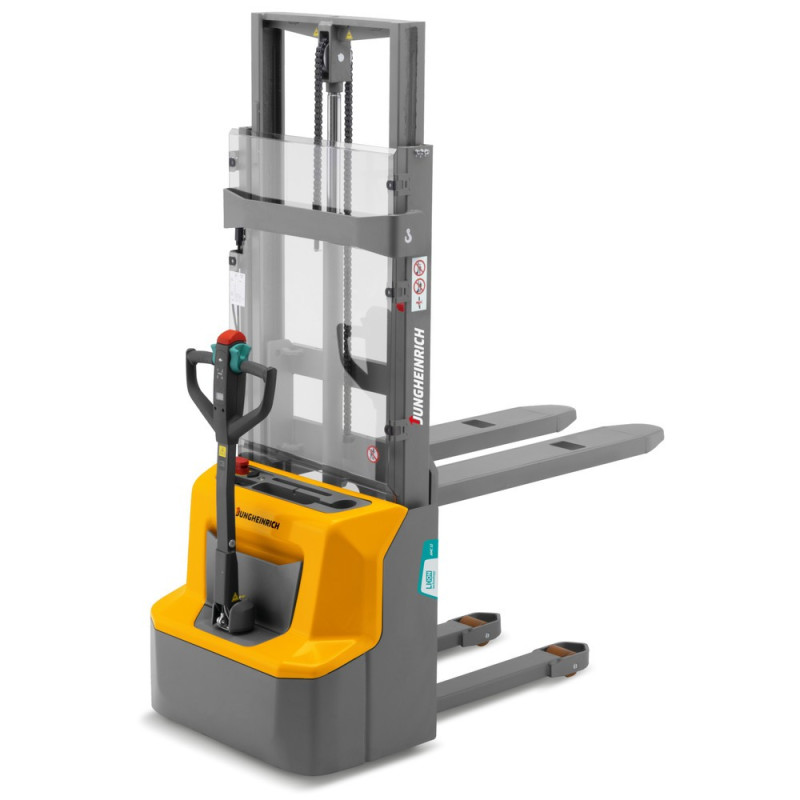

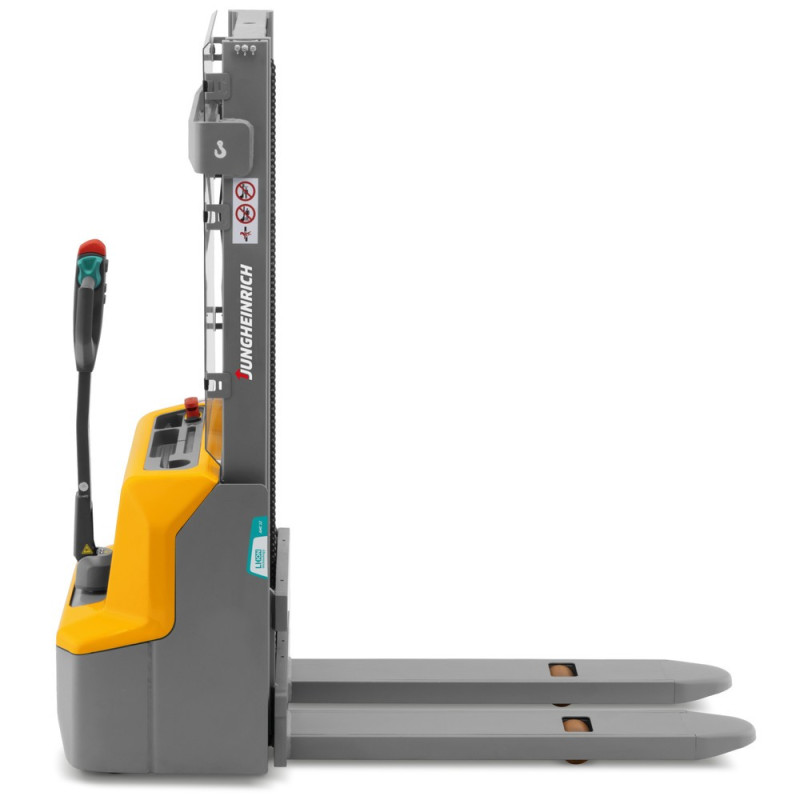

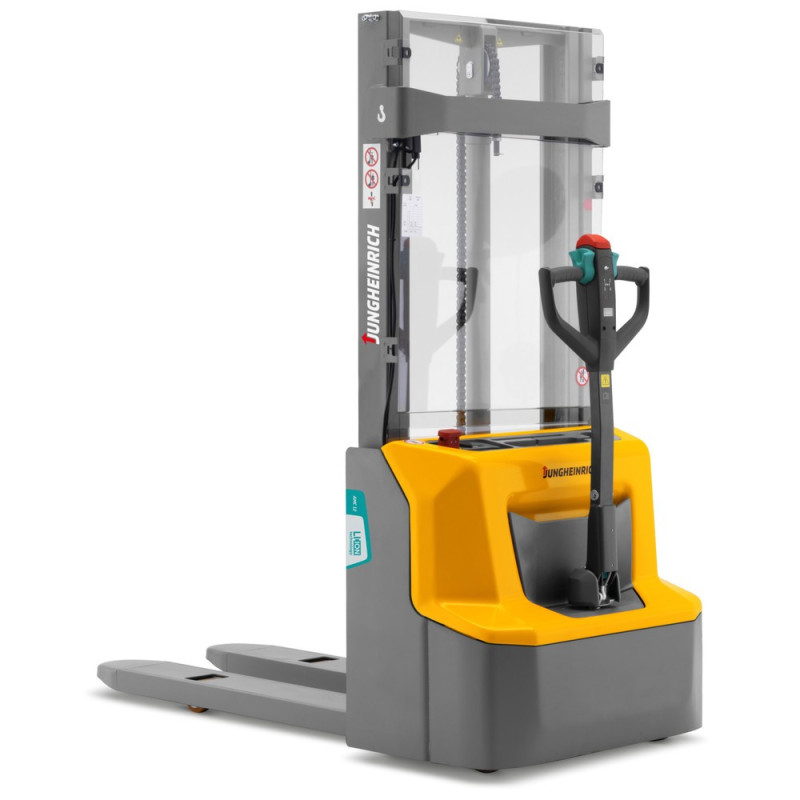

The AMC 12 creates the perfect conditions for safe working. Thanks to the slim mast profiles and compact design with low chassis, you always have optimum visibility through the mast, thus providing you with a clear view of the fork tips and the transported load. The Plexiglas panel in front of the mast prevents you from reaching through accidentally. The drive unit is fully enclosed in steel which, along with the ground clearance of just 24 mm, ensures effective protection against foot injuries.

Due to its compact design, small turning circle and low net weight, the AMC 12 is also ideal for use in confined spaces such as lifts and mezzanines. And if things get really tight, you can manoeuvre the electric truck with maximum safety and precision in slow travel mode with the tiller in an upright position. Safety is further enhanced by the curveCONTROL function, which automatically reduces the travel speed when cornering. A coloured marking attached to the mast provides visual support when reading the change in residual capacity in relation to the lift height, thereby preventing incorrect operation.

With the AMC 12 electric stacker truck, you benefit from all the advantages of lithium-ion technology: The maintenance-free lithium-ion battery impresses with its constant performance levels and long service life. Short charging times and, in particular, fast intermediate charging without memory effect ensure optimum availability of the electric forklift truck. The integrated charger offers maximum flexibility by allowing you to easily recharge the truck at any 230-V socket. A display keeps you up to date on the charging progress.

All Jungheinrich electric stacker trucks are backed up by our outstanding Jungheinrich service. With more than 3000 service engineers worldwide, we guarantee a partner in your vicinity at all times along with an optimum spare parts supply.

The Jungheinrich AMC 12 electric stacker truck – lithium-ion serves as an efficient solution for storing and retrieving goods at heights of up to 2900 mm. Order the versatile electric stacker truck with 1200 kg load capacity from our shop in your required lift height.

Capacity
1200 kg
Manufacturer
Jungheinrich
Model
AMC 12
Fork length
1150 mm
Turning radius
1350 mm
Aisle width
2197 mm
Fork width
180 mm
Charger
Built-in
Lowering speed with/without cargo
0,13 / 0,11 m/s
Drive
Electric
Net weight incl. battery
565 kg
Overall length
1710 mm
Overall width
800 mm
Lift speed with / without load
0,11 / 0,16 m/s
Brake
Electromagnetic
Battery voltage / nominal capacity
24 / 60 V/Ah
Battery weight
19 kg
Fork height
60 mm
Fork roller material
Polyurethane (PU)
Steering wheel material
Polyurethane (PU)
Fork roller equipment
Single
Load centre
600 mm
Lift
2814 mm
Face of forks length
560 mm
Lift range
86 - 2900 mm
Battery type
Lithium-ion
Lift motor output
2.2 kW
Fork roller diameter
84 mm
Fork roller width
93 mm
Tiller surface
Power-coated
Tiller Height
1150 mm
Chassis surface
Power-coated
Route
Short distance
Ground clearance
24 mm
Drive motor power
0.65 kW
Spare wheel diameter
100 mm
Fork support width
570 mm
Max. gradeability laden/unladen
5 / 10 %
Mast type
Two-stage telescopic mast (ZT)
Temperature range
5 - 40 °C
Battery charging time
2.5 h
Operating hours
700 h/Jahr
Travel speed with / without load
4.2 / 4.5 km/h
Mast height
1930 - 3337 mm
  • Jungheinrich AMC 12 electric stacker truck – two-stage telescopic mast 2900 mm, lithium-ion

    Ideal for efficient stacking and retrieving of pallets at heights of up to 2900 mm

    • 1200 kg load capacity
    • 2900 mm lift height
    • Maintenance-free lithium-ion battery

    €4,422.00
    Tax excluded
    52348268
    Status: On Backorder

    Delivery: within 2-4 weeks
