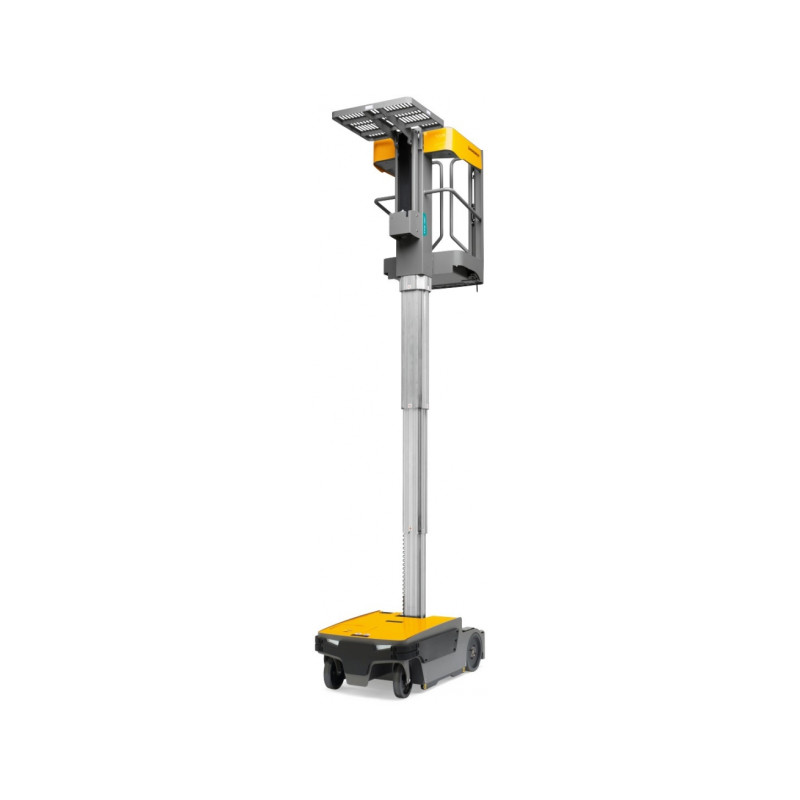

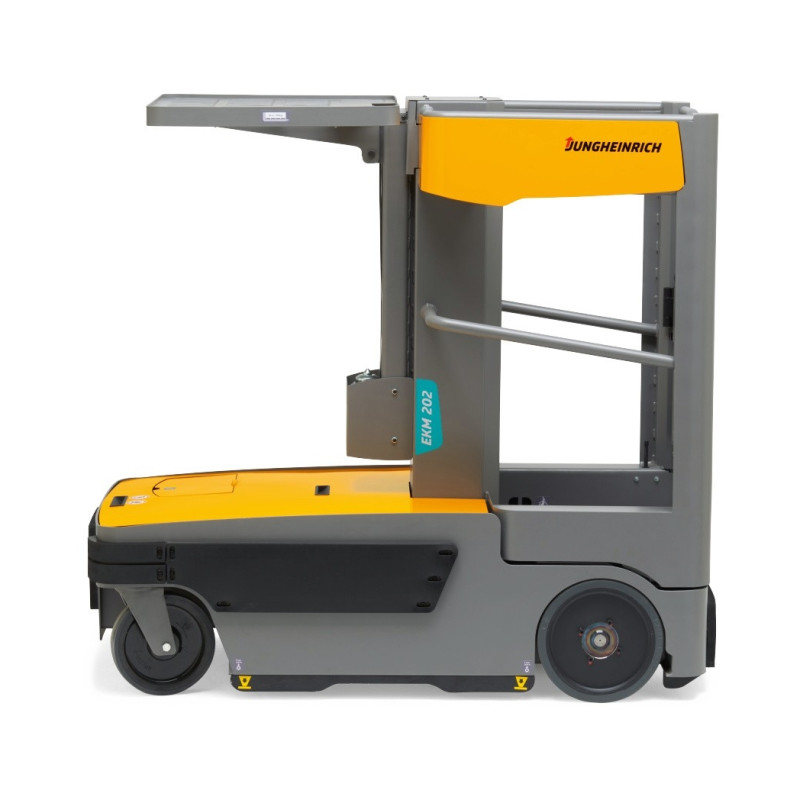

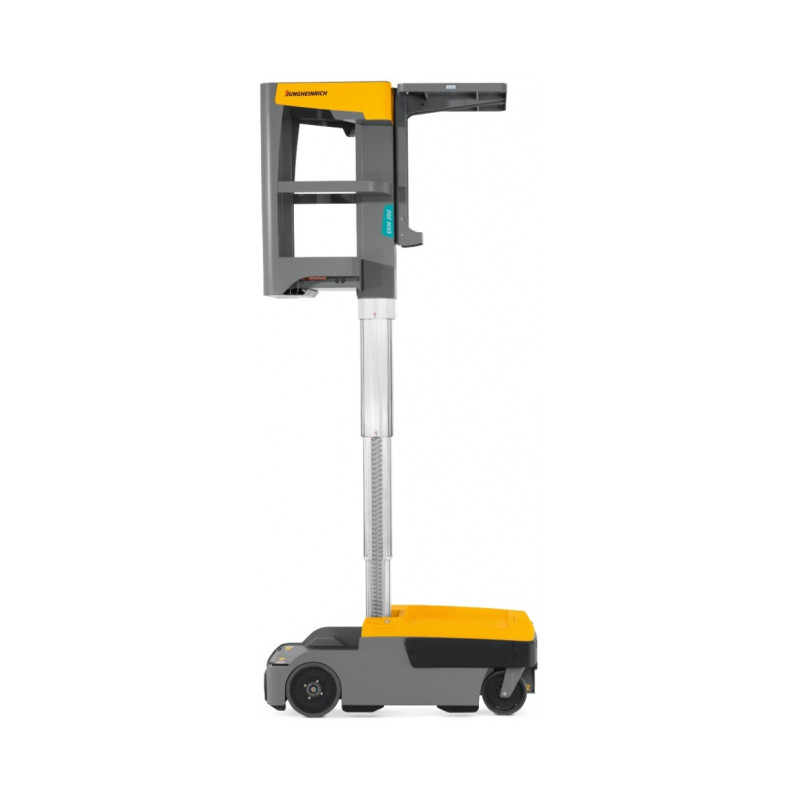

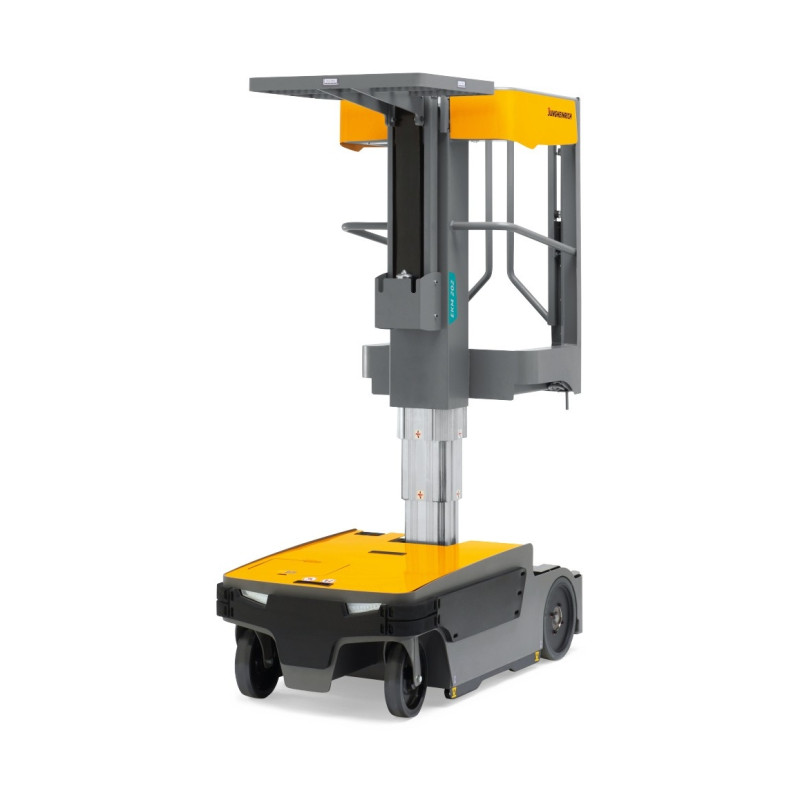

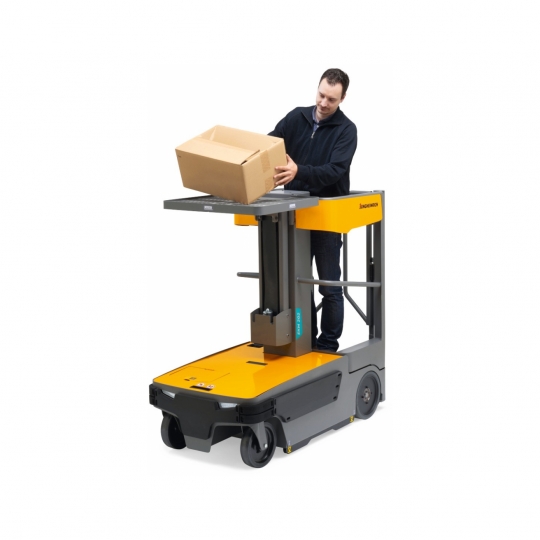

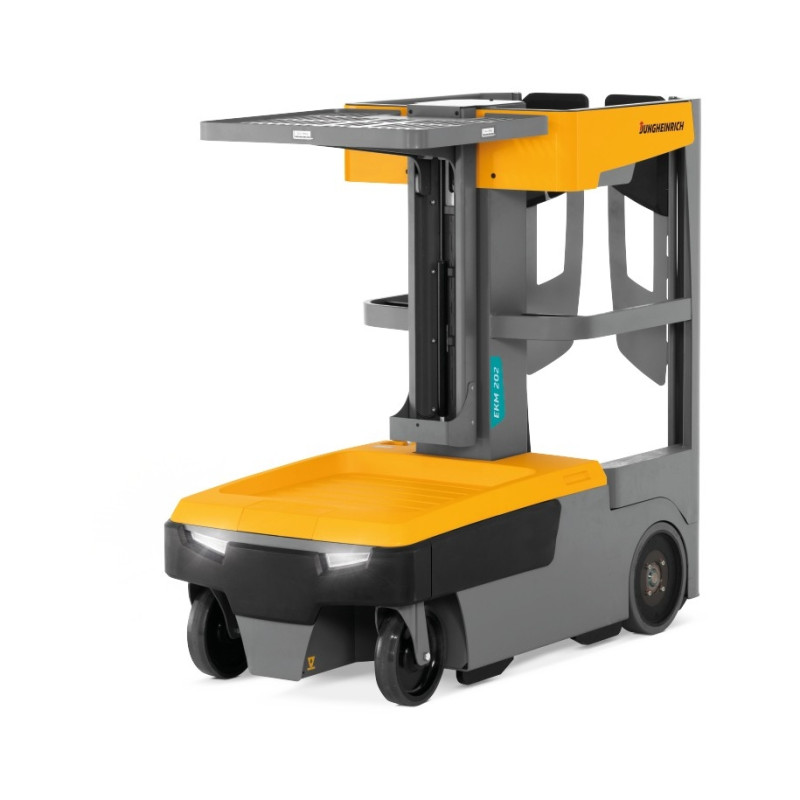

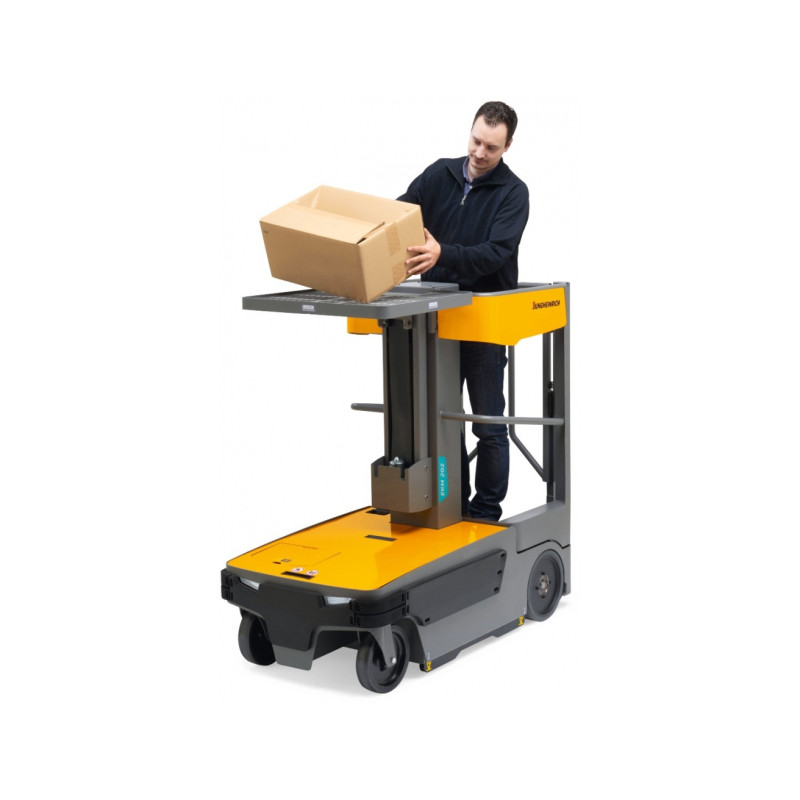

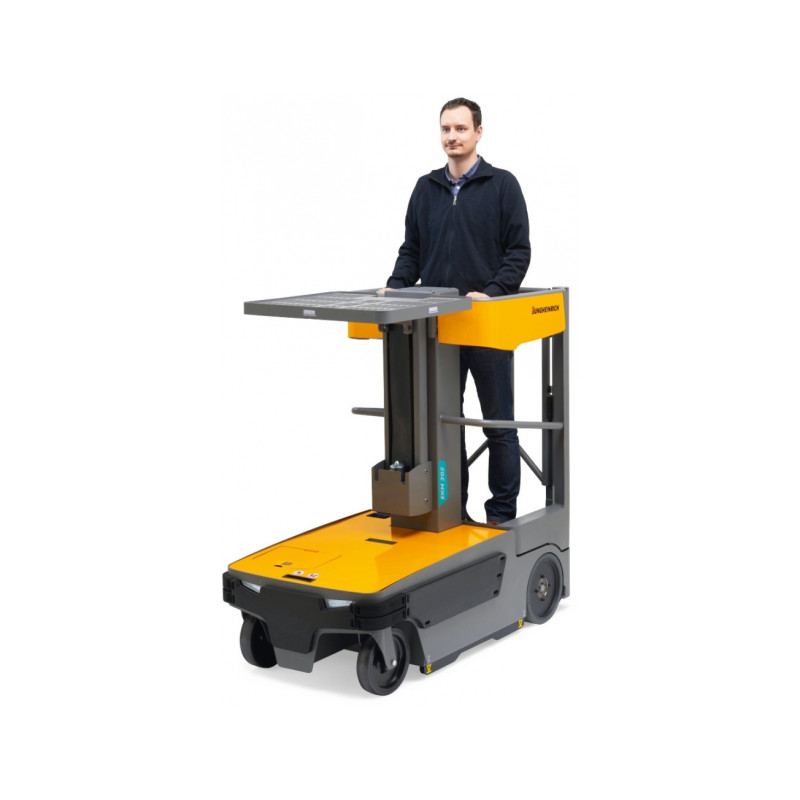

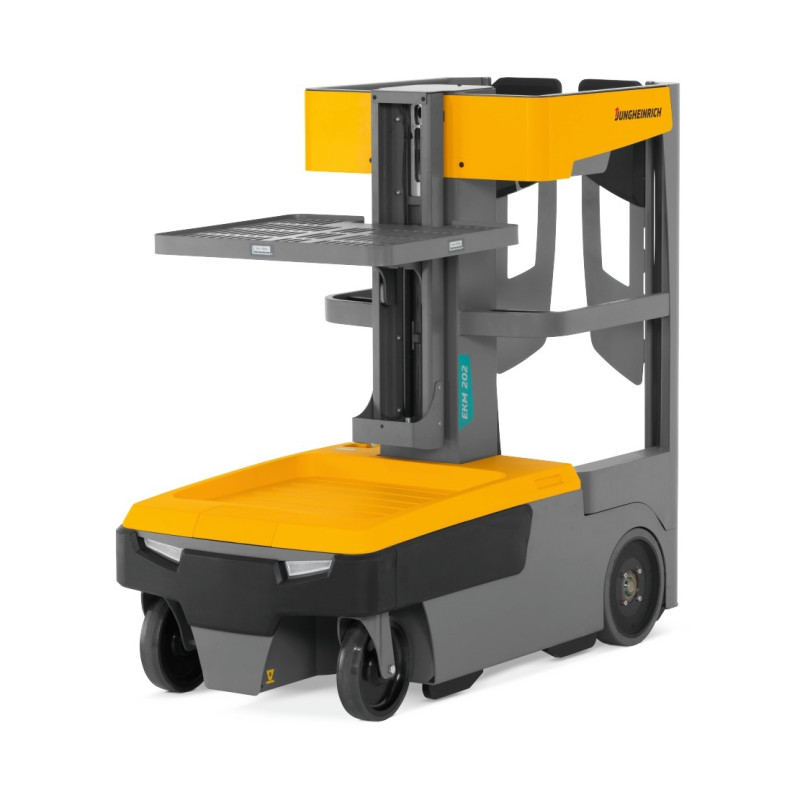

Jungheinrich EKM 202 small parts order picker

215 kg

Description

With the EKM 202 small parts order picker, the ladder is a thing of the past. It safely and reliably transports you to the required location, where it can be extended to an order picking height of 5314 mm and loaded with goods weighing up to 100 kg.

2.2 kW lift motor 192 Ah battery, maintenance-free
On-board charger with spiral cable for any 230 V socket

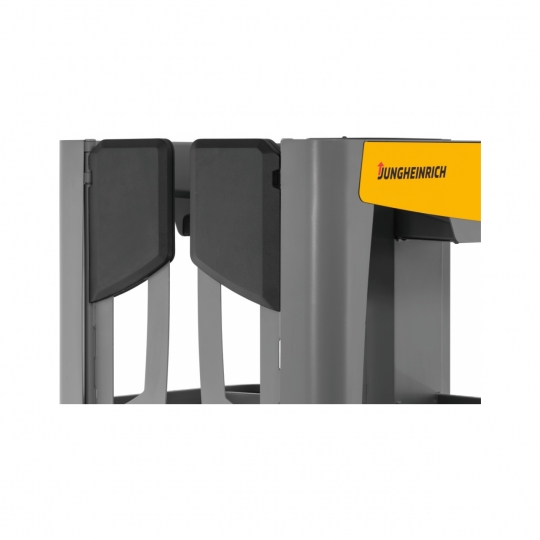

Doors close automatically

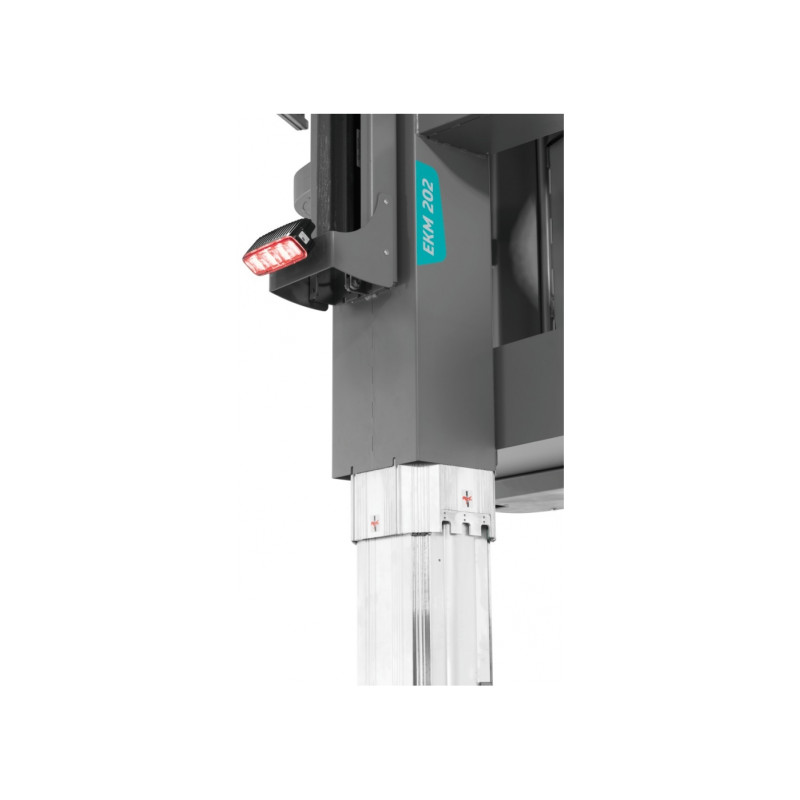

Robust steel frame and stable mast

Passenger lift, ladder and transport facility all in one

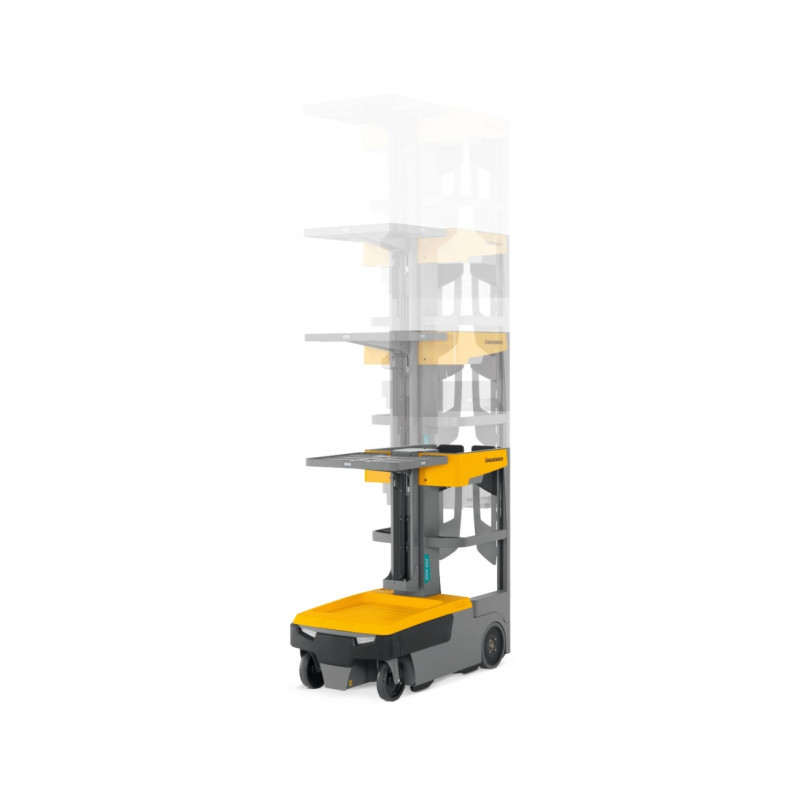

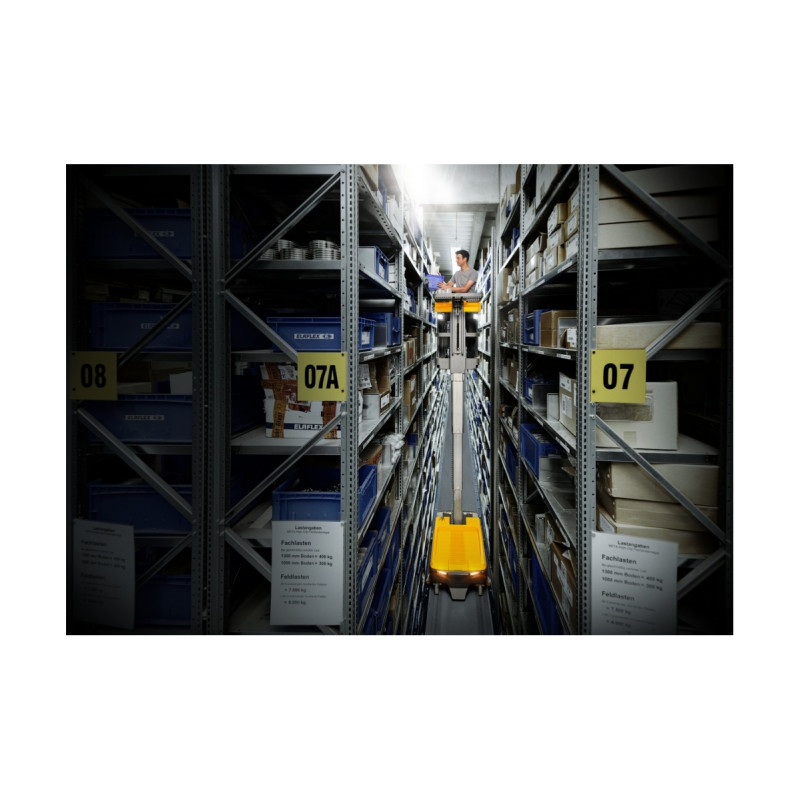

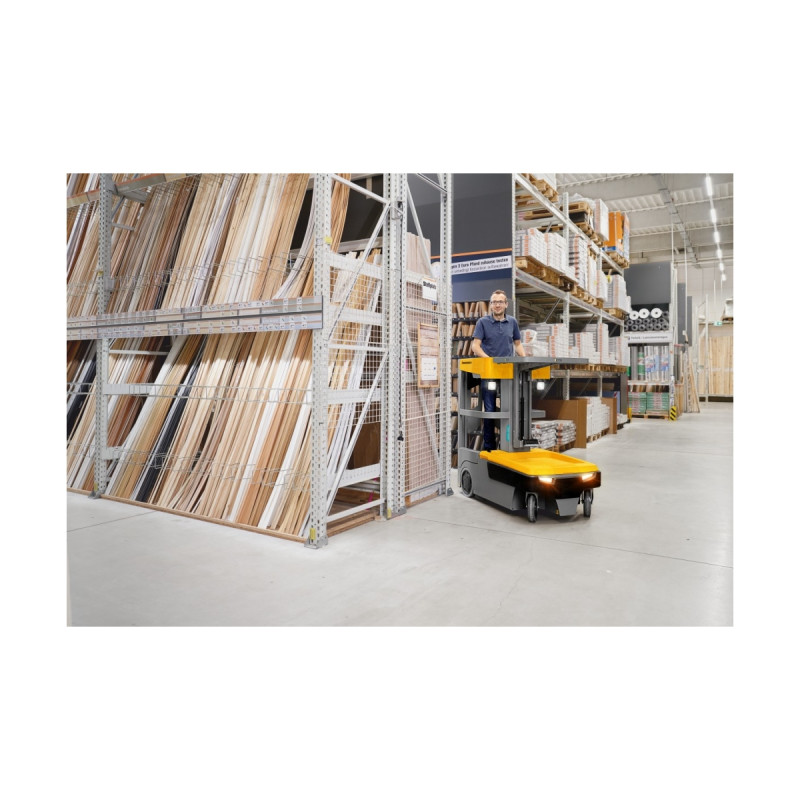

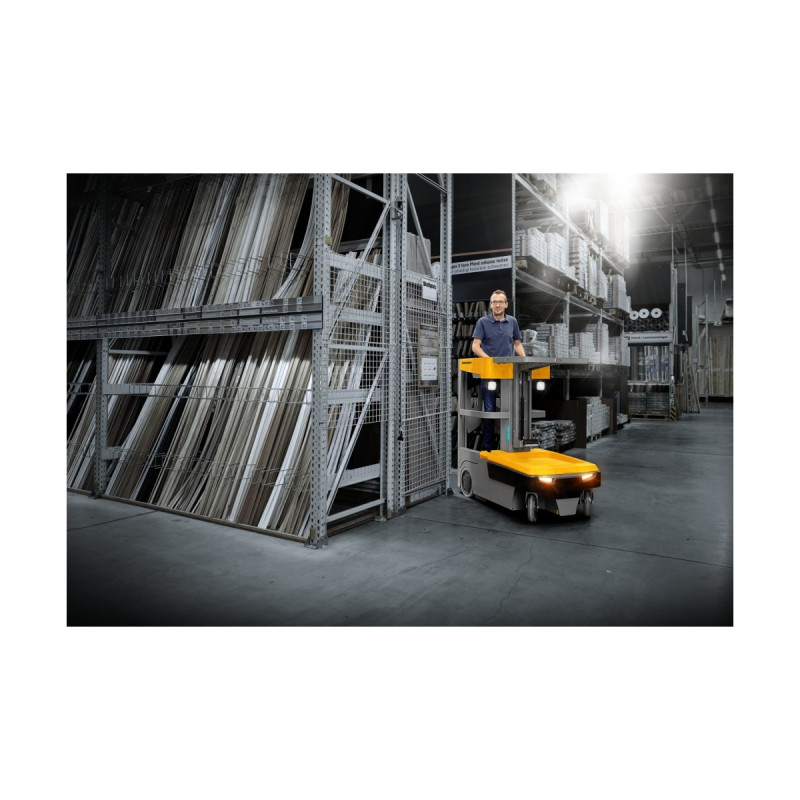

Enclosed in a robust steel frame, the EKM 202 small parts order picker from Jungheinrich not only impresses with its superior quality, but also with its superb flexibility. The EKM 202 is ideal for performing classic order picking duties in warehouses. However, due to its compact size with a width of just 760 mm, it is also suitable for smaller spaces such as stores. Thanks to the robust mast with an order picking height of 5300 mm, maintenance work on ceilings is just as easily accomplished as order picking activities on the third rack level.

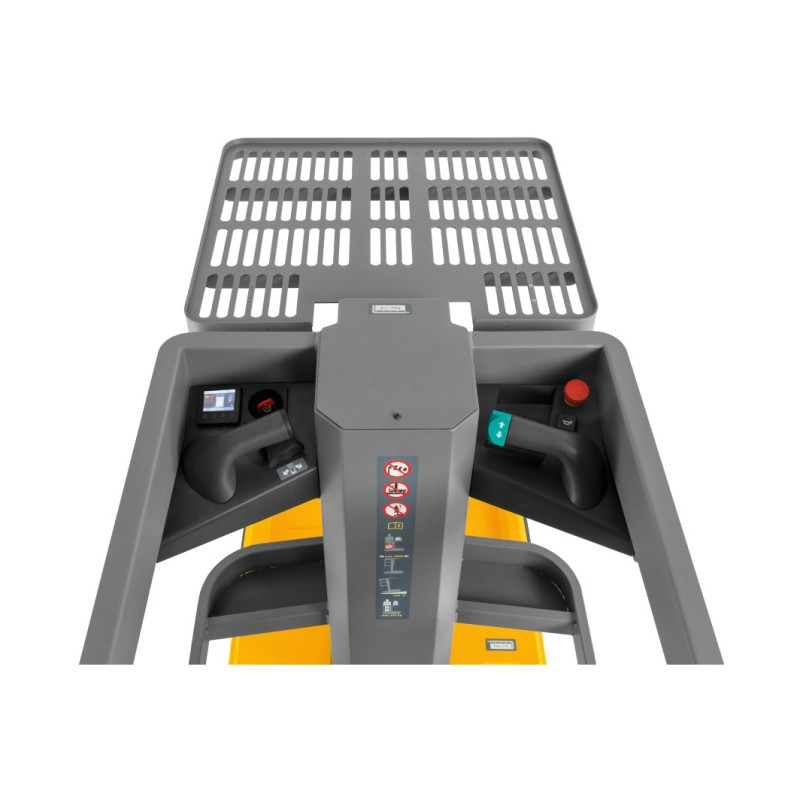

Capacitive sensors are fitted for mandatory two-hand operation. This control method is not only intuitive, but also safe since the operator cannot reach outside the truck. The Jungheinrich EKM 202 small parts order picker is easily controlled via the convenient, ergonomic steering knob as well as a travel switch with thumb operation. A defined zero position ensures safe and simple reversing and straight-ahead travel. The 2.2 kW lift motor raises the order picker reliably to the correct height, even while in motion. This allows you to move directly towards the relevant products on the rack. The doors close automatically ensuring that the operator area is secure before lifting can commence. For additional safety, you can opt for a model with automatic locking. In this case, the doors cannot be opened until the order picker is fully lowered.

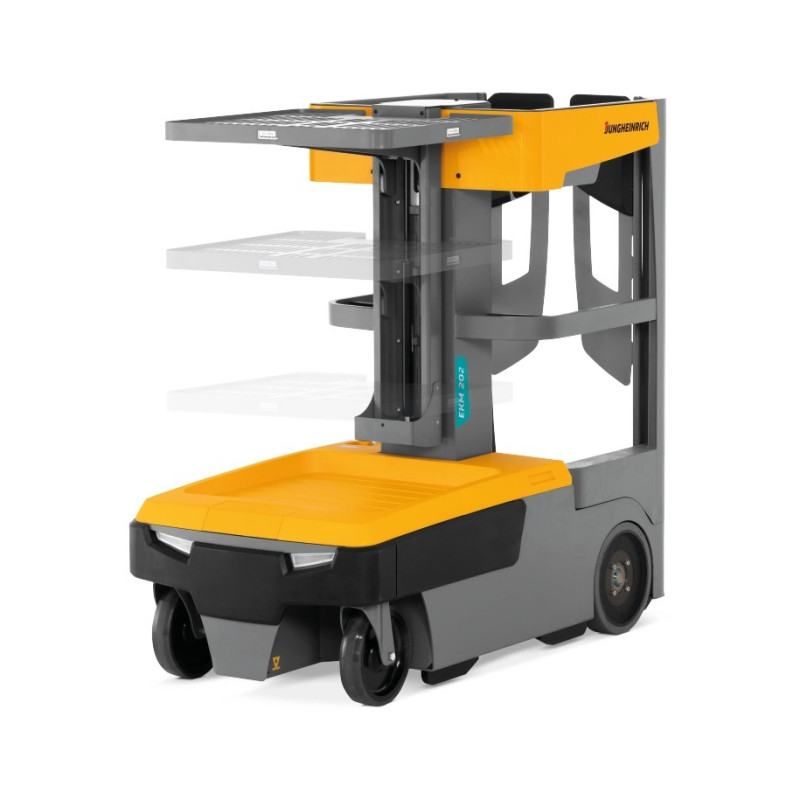

The EKM 202 features a total capacity of 235 kg, distributed across the platform and storage tray. The storage tray can hold up to 100 kg and features slotted holes to provide a clear view. When supporting several or larger items, it can be adjusted in height so that the operator once again has an unobstructed view. We offer the small parts order picker in different versions. In addition to the base model, we also offer the EKM 202 with an electrically adjustable platform, automatic door locking, flashing lights and warning sounds, or only with the adjustable platform and automatic door locking.

Purchase the Jungheinrich EKM 202 small parts order picker from our shop and benefit from enhanced safety and greater productivity while reducing the strain on your employees.

Product Details

Capacity: 215 kg
Manufacturer: Jungheinrich
Model: EKM 202
Turning radius: 1250 mm
Lowering speed with/without cargo: 0,21 / 0,21 m/s
Drive: Electric
Overall width: 750 mm
Lift speed with / without load: 0,25 / 0,25 m/s
Battery voltage / nominal capacity: 24 / 192 V/Ah
Battery weight: 120 kg
Lift: 3000 mm
Battery type: Lead gel battery
Lift motor output: 2.2 kW
Height of mast (lowered): 1410 mm
Extended mast height: 4426 mm
Drive motor power: 1.0 kW
Depth: 1520 mm
Maximum work height: 5,31 m
Maximum Capacity: 215 kg
Measurements: 75x152 cm; H: 141 cm
Weight of the machine: 615 kg
Standard colouring: Grey and yellow

Jungheinrich EKM 202 small parts order picker

The convenient solution for rapid and safe working at height

2.2 kW lift motor
192 Ah battery, maintenance-free
On-board charger with spiral cable for any 230 V socket

Select article

€14,371.00

Tax excluded

Reference: 199557-GAA

Status: On Backorder
