50 kg (60 for sporadic use)
50 kg (60 for sporadic use)

Description

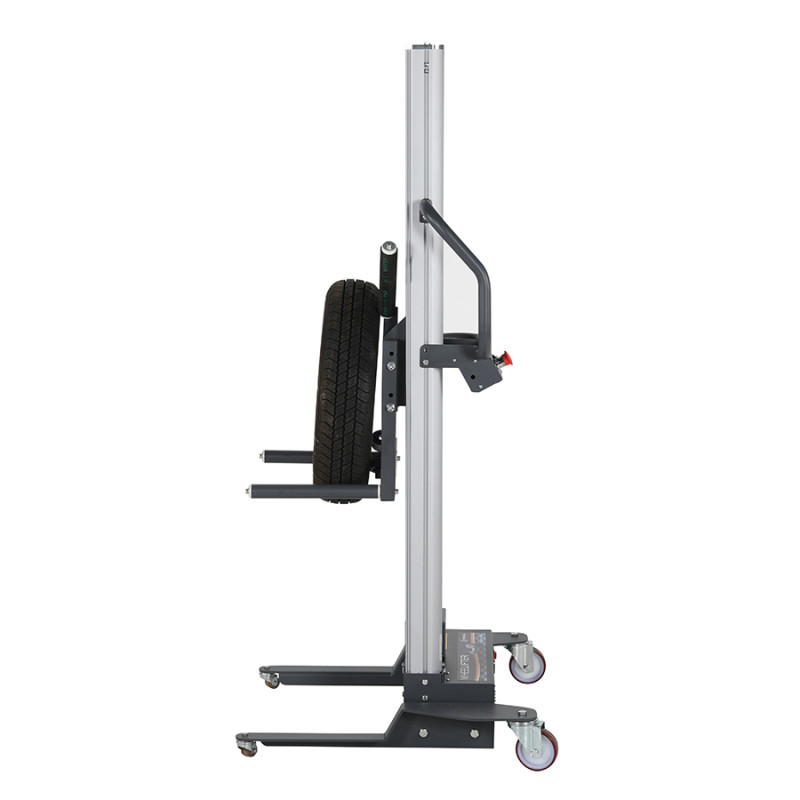

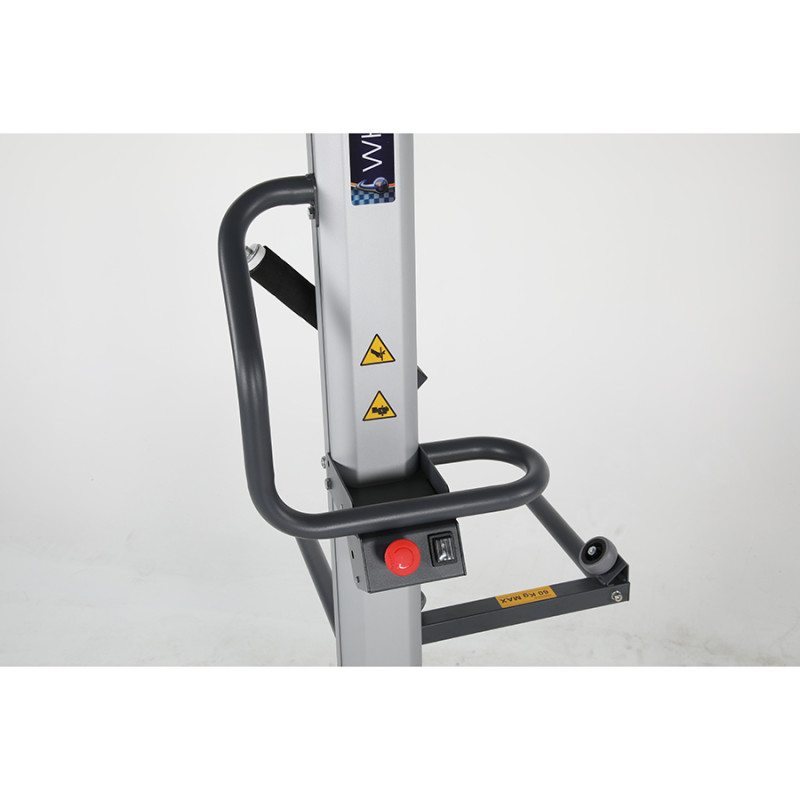

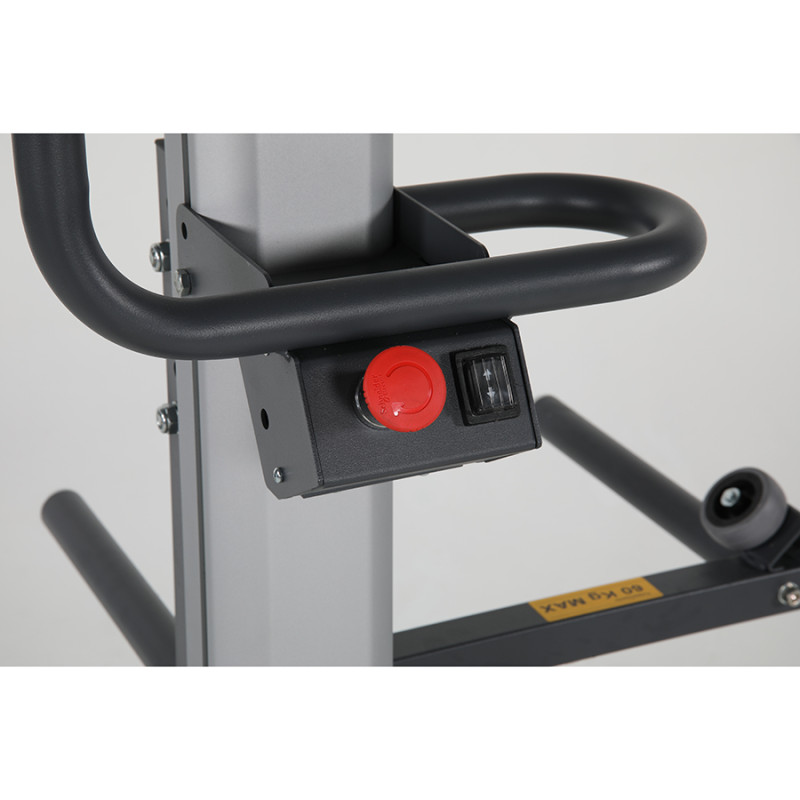

To move a tyre isn’t always a “light” job and wheel lifter raises the operator from all loads for the operation of mounting and dismounting of medium and small size tyres. The vertical movement is obtained through a translation mechanism which is realized by a screw lifting through a powerful motor controlled by a pushbutton on the handle which can be operated with one hand. The trolley can be easily moved thanks to four swivel wheels. Power supplied by two batteries 12 V - 12 Ah. The particular shape of the handle ensures the minimum interference during the mounting/ dismounting operation of the tyres, and, at the same time, the efficacy and a convenient point of grip during the trolley handle. The lowering of the brackets allows an easy loading of the wheel thanks to the rolling on the lifter side.

Capacity
50 kg (60 for sporadic use)
Total width
755 mm
Steering wheel diameter
100 mm
Lowering speed with/without cargo
100 mm/s
Net weight incl. battery
55 kg
Lift speed with / without load
100 mm/s
Battery voltage / nominal capacity
12 / 12 V/Ah
Fork roller material
Polyurethane (PU)
Fork roller diameter
35 mm
Chassis RAL color
Aluminium (RAL 9006) / Grey
Height
1710 mm
Type of product
Lifter
Max lifting height
1100 mm
Body material
Aluminium / Steel
Operating temperature
-5 to +45 °C
Length / Depth
730 mm
  • NEW

    • Wheel-Lifter Electric

    Light way to move a tyre

    • Capacity - 50 kg (60 for sporadic use)
    • 1100 mm maximum lift height
    • Lift and lowering speed: approx. 0.1 m/s

    €2,089.00
    Tax excluded
    844050
    Status: On Backorder
