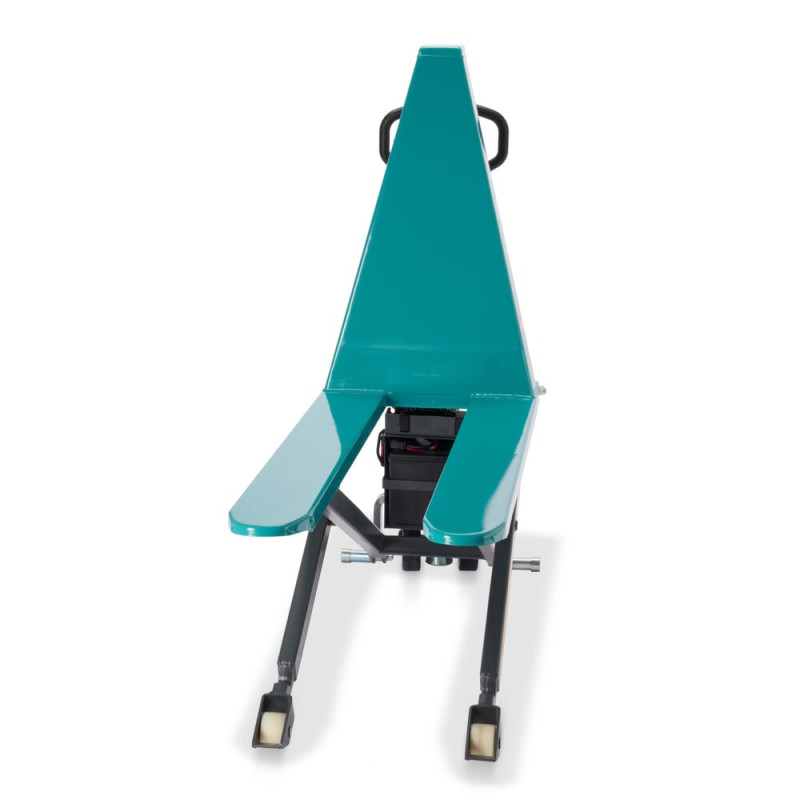

Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic
1000 kg
1000 kg
1170 mm
1170 mm
85 - 800 mm
85 - 800 mm

Description

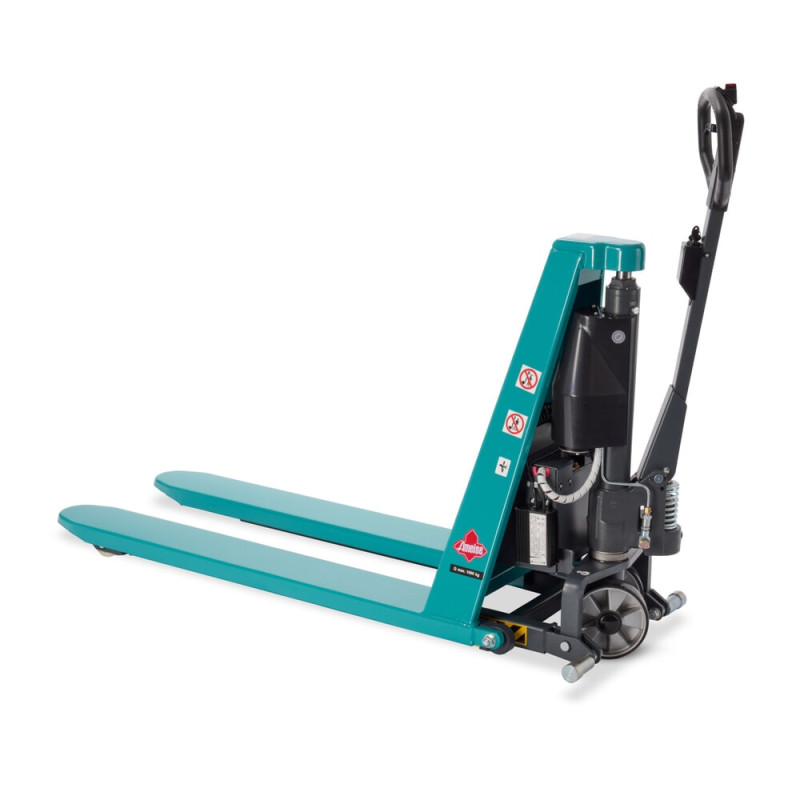

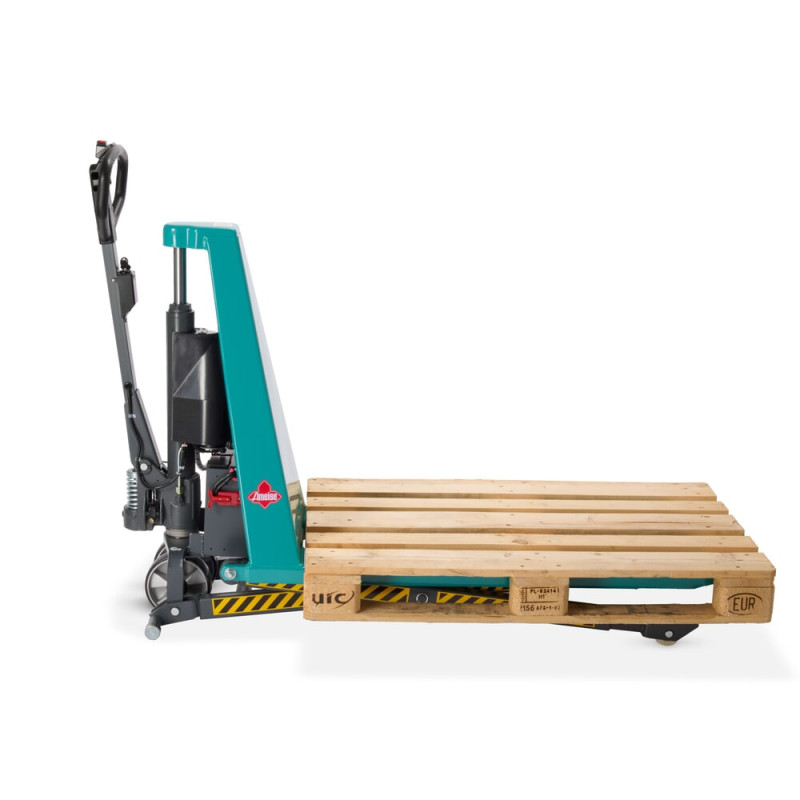

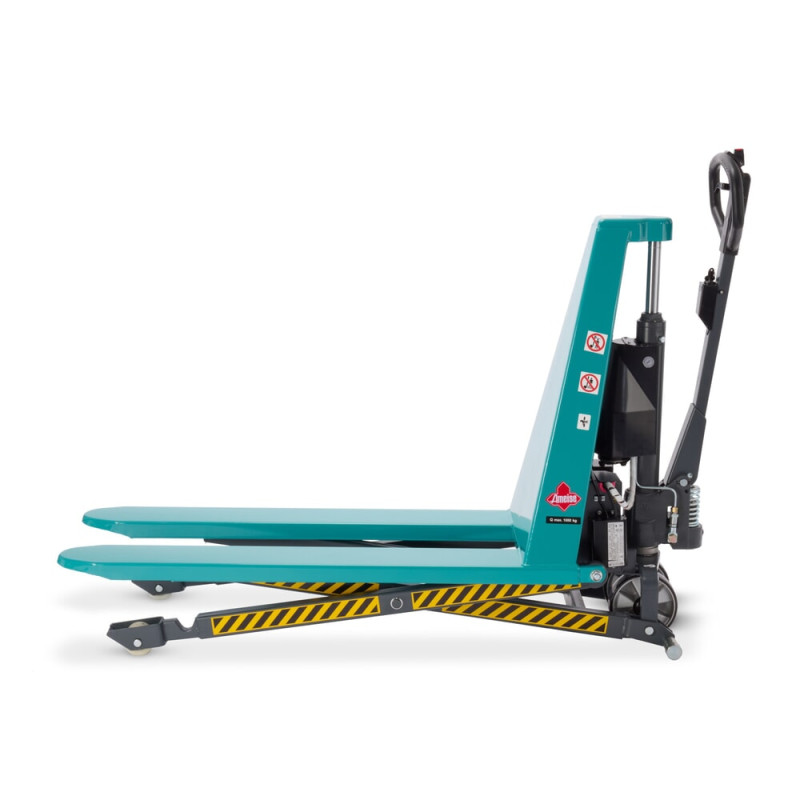

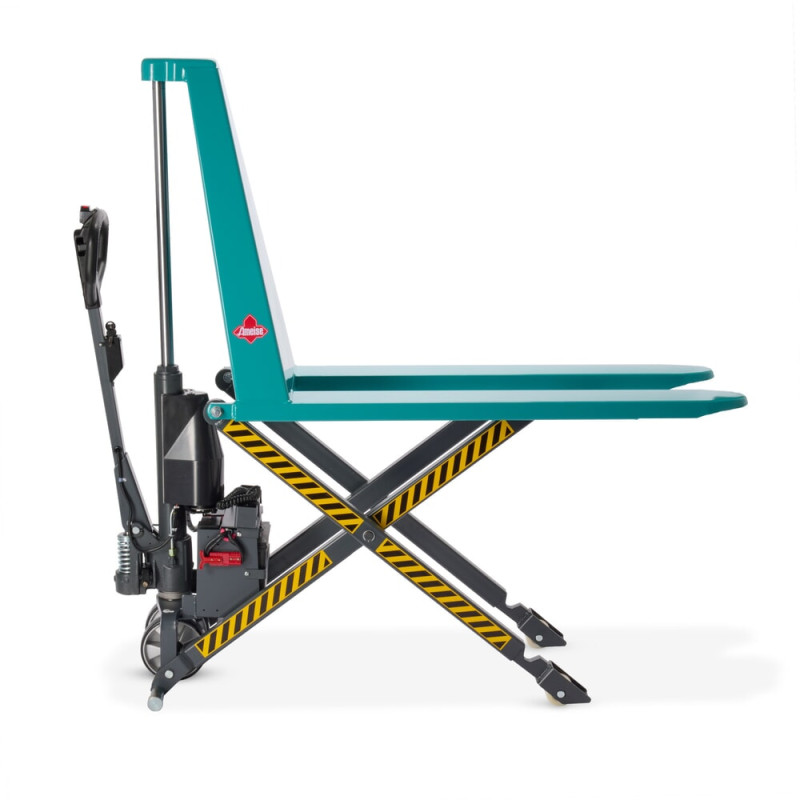

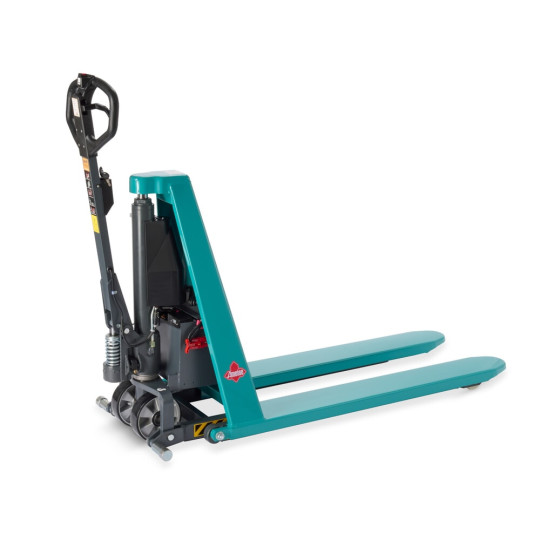

The electro-hydraulic Ameise scissor lift pallet truck delivers reliable Ameise quality and enables ergonomic working. Thanks to the 0.58 kW lift motor, you can raise loads of up to 1000 kg quickly and effortlessly – all at the touch of a button. The scissor lift pallet truck is a real all-rounder and can be used as a hand pallet truck, lift table, provisioning table or workbench. You can also call upon the manual lift function with separate quick lift facility.

  • 0.58 kW lift motor for electric lifting
  • 800 mm lift height for ergonomic working
  • Robust single-cylinder telescopic hydraulic system
  • Maintenance-free 12 V / 60 Ah battery
  • On-board charger for simple charging
  • Switch working heights at the touch of button

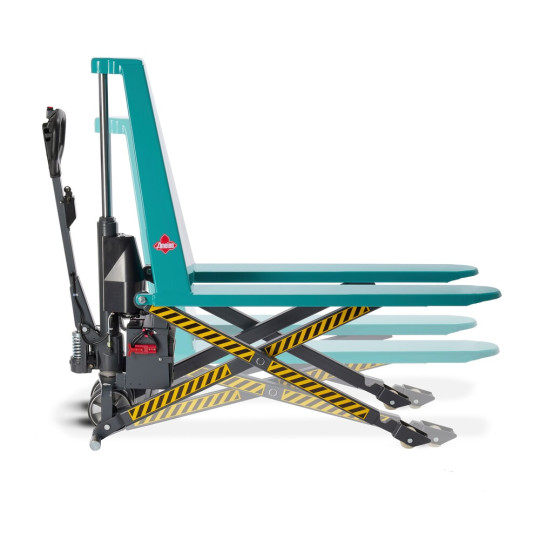

This scissor lift pallet truck offers robust Ameise quality for daily use in a wide range of applications. As a combination between a pallet truck and lift table, it can be used as a tool for lifting, moving and provisioning your transported goods. With the electric lift, you can easily raise loads weighing up to 1000 kg to an optimum height, allowing you to work in an ergonomic, fatigue-free manner. You can adjust your perfect working height up to a maximum of 800 mm.

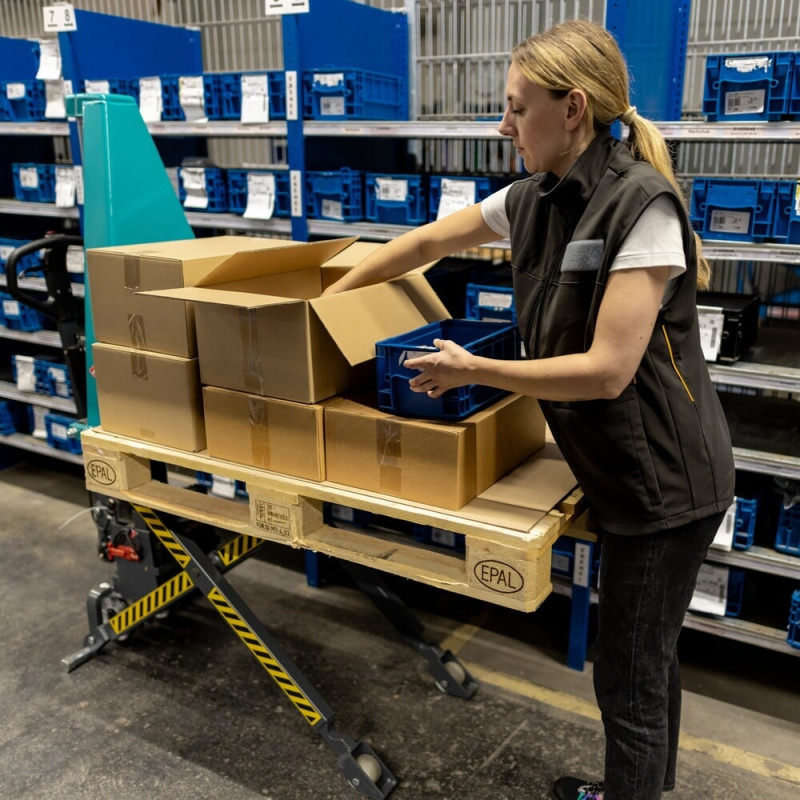

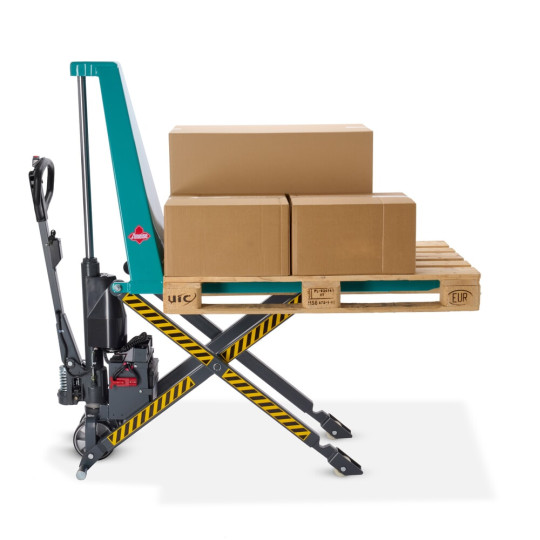

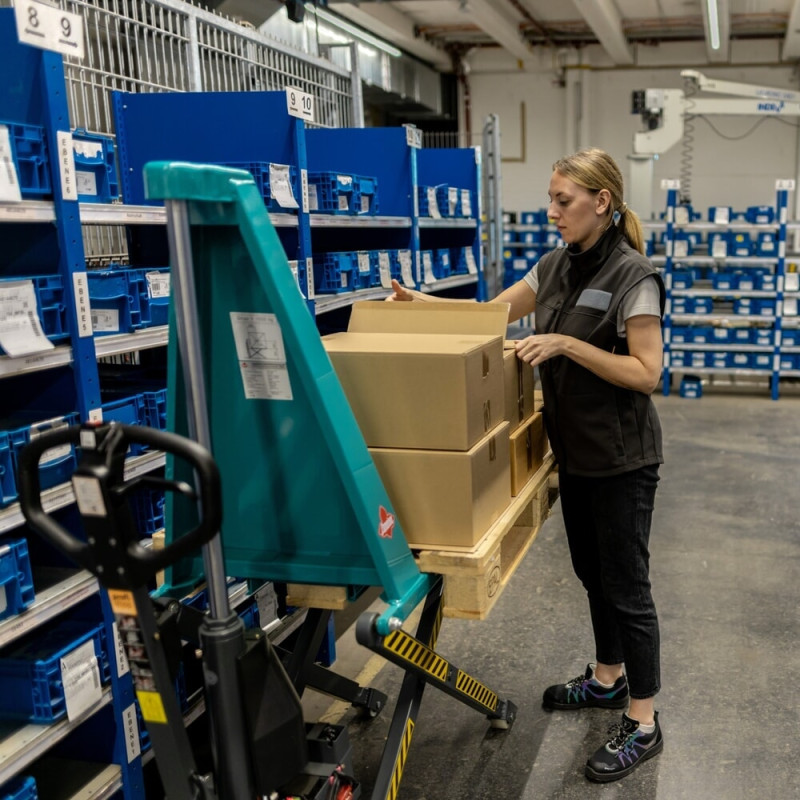

The truck can be moved up to a lift height of 400 mm. At greater heights, side-mounted support feet secure the scissor lift pallet truck to ensure maximum stability and safety. You can then use the scissor lift pallet truck as a workbench to replenish machines or stack and retrieve stored materials.

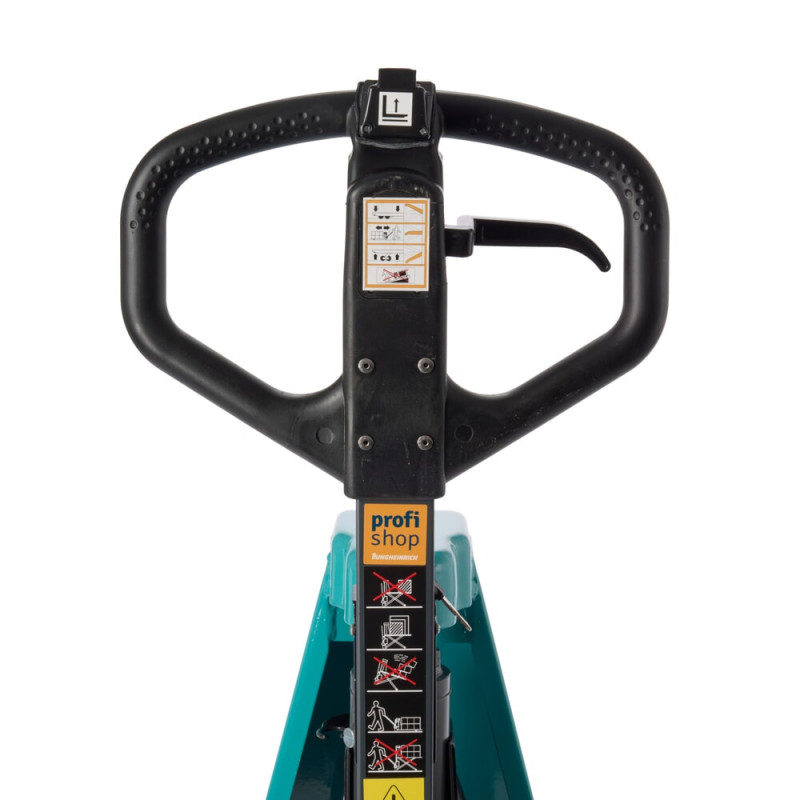

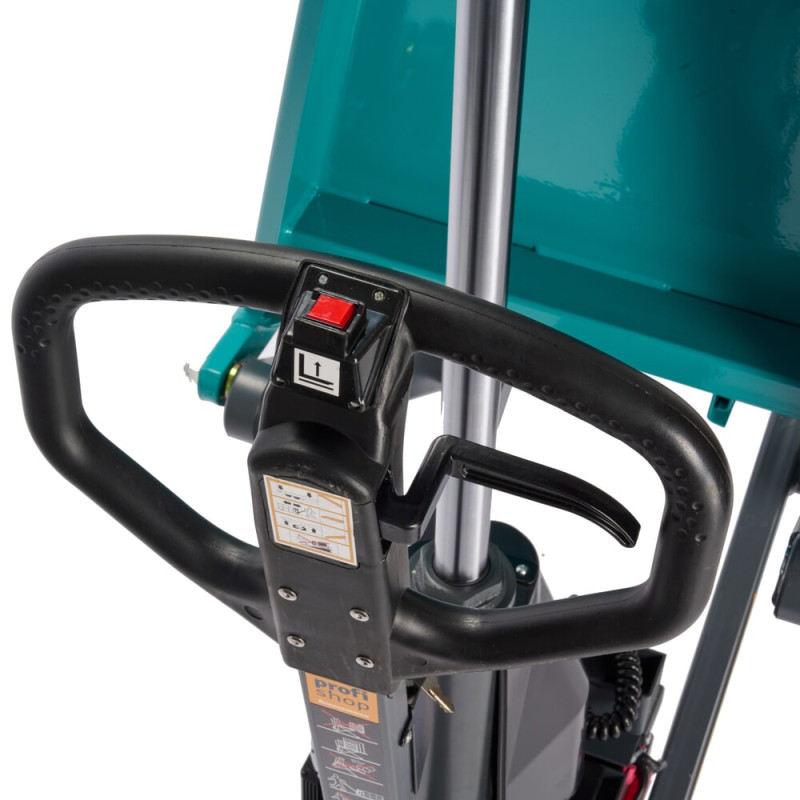

All functions are easily operated via the control lever or the ergonomic plastic tiller handle. The load is lowered at an adjustable speed, allowing you to deposit sensitive goods with utmost control and precision.

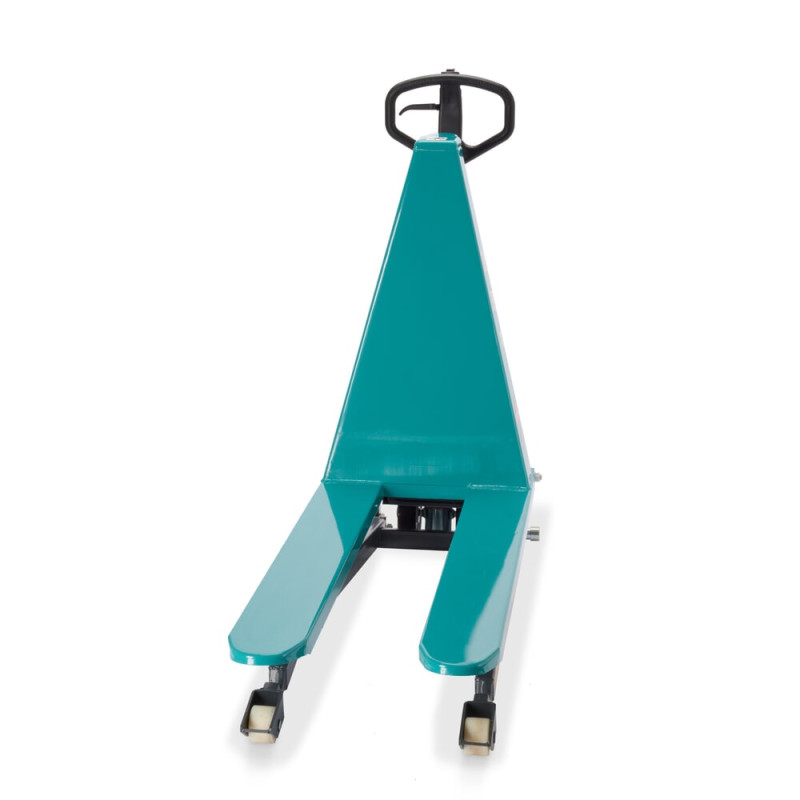

The welded sectional steel frame and forks are torsion-free and extremely hard-wearing. As a result, the scissor lift pallet truck retains its shape even when carrying loads of up to 1000 kg. The single-cylinder telescopic hydraulic system is particularly durable and maintenance-free. The overload valve protects the hydraulic system against excess loads.

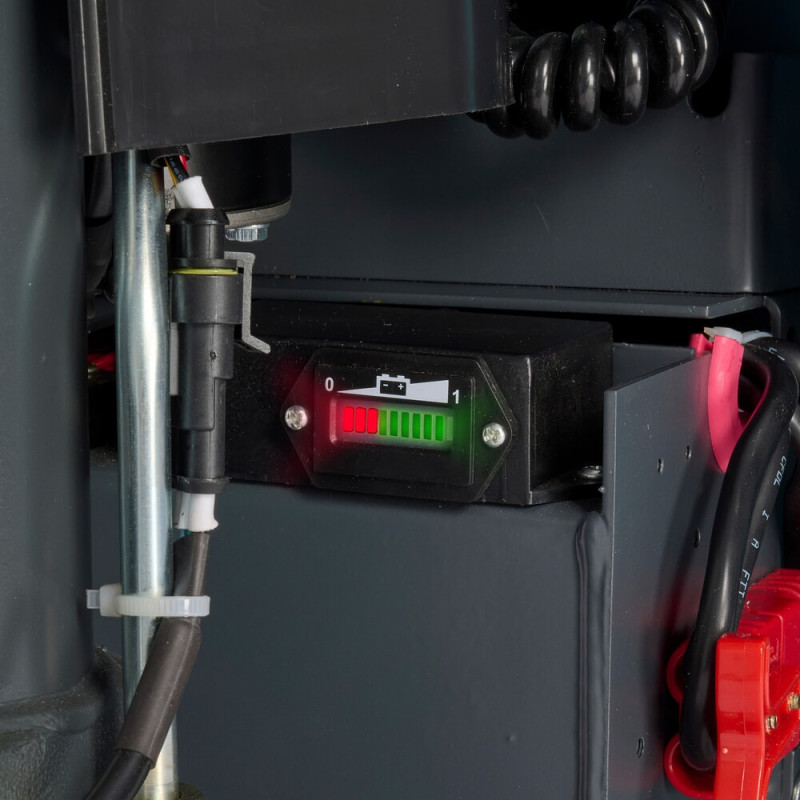

Thanks to the on-board charger, you can charge the maintenance-free 12 V / 60 Ah battery at any 230 V socket. And if you do not have access to a power source, you can still use the manual lift function with separate quick lift facility.

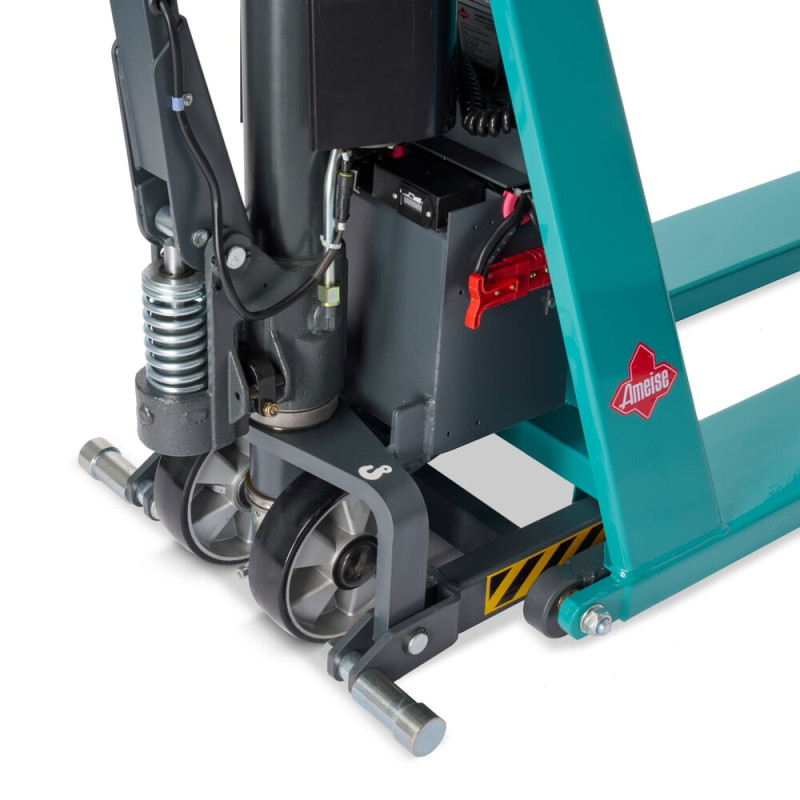

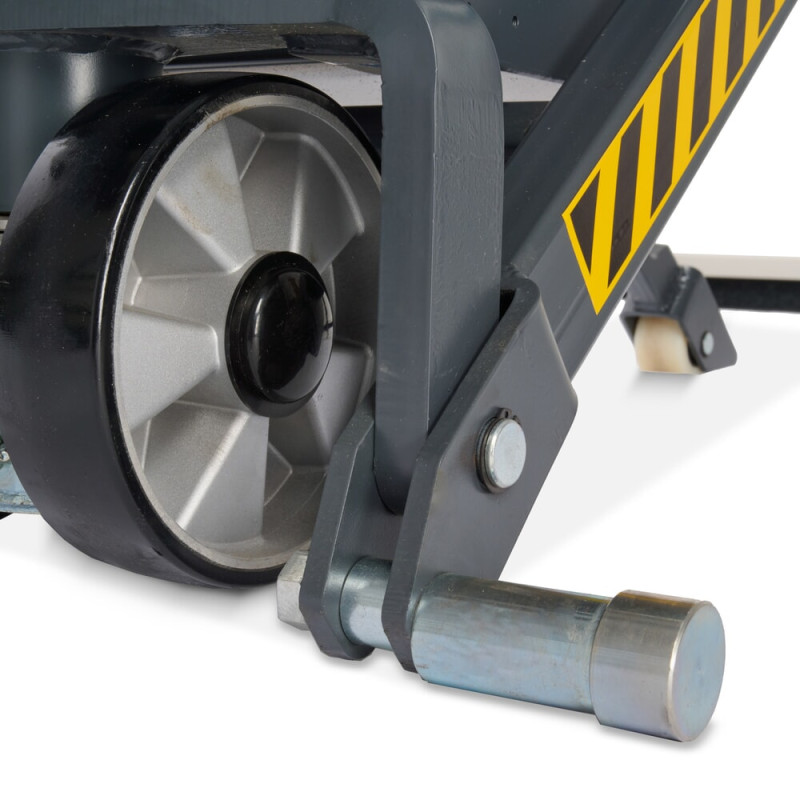

The truck features polyurethane steering castors for high-quality, comfortable and low-noise travel, while also offering maximum capacity and a long service life. The single fork rollers are made from nylon and are thus very smooth running and wear-resistant.

Enjoy ergonomic working by ordering the versatile Ameise scissor lift pallet truck with electro-hydraulic lift from our shop.

Capacity
1000 kg
Manufacturer
Ameise
Model
ACX 10E
Fork length
1170 mm
Turning radius
1564 mm
Steering wheel diameter
180 mm
Aisle width
2021 mm
Steering wheel width
50 mm
Control panel
Right-handed
Fork width
160 mm
Charger
Built-in
Drive
Manual
Overall length
1662 mm
Overall width
540 mm
Battery voltage / nominal capacity
12 / 60 V/Ah
Fork height
51 mm
Operation mode
Hand
Fork roller material
Nylon
Steering wheel material
Polyurethane (PU)
Fork roller equipment
Single
Load centre
610 mm
Lift
715 mm
Face of forks length
492 mm
Lift range
85 - 800 mm
Battery type
Lead gel battery
Tiller RAL colour
RAL 7016 anthracite grey
Lift motor output
0.8 kW
Fork roller diameter
75 mm
Fork roller width
50 mm
Tiller surface
Painted
Tiller Height
1254 mm
Chassis surface
painted
Route
Short distance
Pallet truck material
Steel
Ground clearance
20 mm
Chassis RAL color
RAL 5018 turquoise blue
Lift type
Scissor lift trucks
Fork support width
540 mm
Lift height per pump stroke
9,5 mm
Forks material
Steel
Pump strokes to maximum lift height
78
Min lifting height
85 mm
Max lifting height
400 mm
  • Performance
  • Scissor lift pallet truck Ameise PTM 1.0, electro-hydraulic

    Rapid, effortless lifting at the touch of a button

    • 0,58 kW lift motor for electric lifting
    • 800 mm lift height for ergonomic working
    • Robust single-cylinder telescopic hydraulic system

    €1,699.00
    Tax excluded
    197328-GA
    Status: On Backorder

    Delivery: within 2-4 weeks
