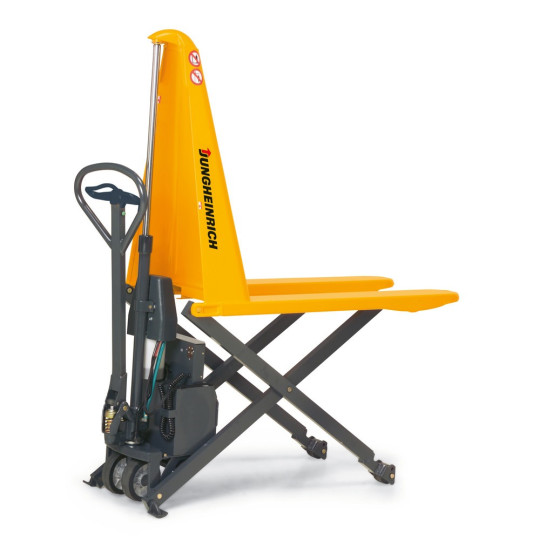

Jungheinrich AMX 10e scissor lift pallet truck, load capacity 1000 kg, fork length 1150 mm, polyurethane
Jungheinrich AMX 10e scissor lift pallet truck, load capacity 1000 kg, fork length 1150 mm, polyurethane
Jungheinrich AMX 10e scissor lift pallet truck, load capacity 1000 kg, fork length 1150 mm, polyurethane
Jungheinrich AMX 10e scissor lift pallet truck, load capacity 1000 kg, fork length 1150 mm, polyurethane
Jungheinrich AMX 10e scissor lift pallet truck, load capacity 1000 kg, fork length 1150 mm, polyurethane
Jungheinrich AMX 10e scissor lift pallet truck, load capacity 1000 kg, fork length 1150 mm, polyurethane
Jungheinrich AMX 10e scissor lift pallet truck, load capacity 1000 kg, fork length 1150 mm, polyurethane
Jungheinrich AMX 10e scissor lift pallet truck, load capacity 1000 kg, fork length 1150 mm, polyurethane
Jungheinrich AMX 10e scissor lift pallet truck, load capacity 1000 kg, fork length 1150 mm, polyurethane
Jungheinrich AMX 10e scissor lift pallet truck, load capacity 1000 kg, fork length 1150 mm, polyurethane
1000 kg
1000 kg
1150 mm
1150 mm
86 - 800 mm
86 - 800 mm

Description

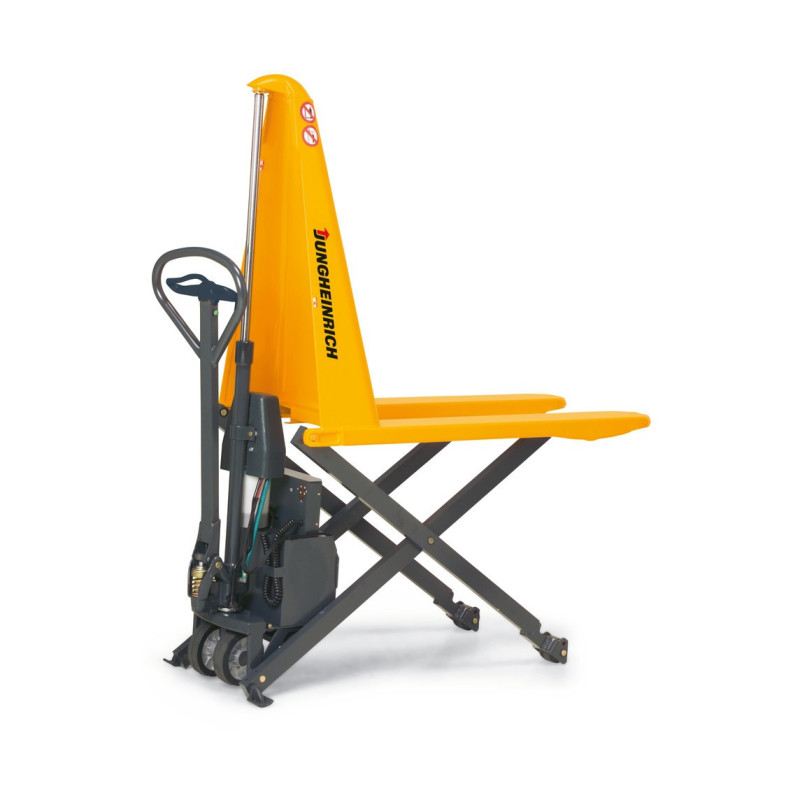

The AMX 10e scissor lift pallet truck delivers premium Jungheinrich quality in a highly versatile package. You can use it as a hand pallet truck, lift table, provisioning table or workbench. At the touch of a button, the 0.5 kW lift motor easily raises loads of up to 1000 kg to a comfortable, fatigue-free working height. The on-board charger enables straightforward charging at any 230 V socket.

  • 0.5 kW motor for electro-hydraulic lifting
  • Maintenance-free 12 V / 70 Ah battery
  • Flexible application, can also be used as a lift table or workbench
  • Ergonomic tiller handle that can be operated with either hand
  • Pressure relief valve protects against overload
  • Simple charging via on-board charger
  • Available with optional lateral support rollers

Switch working heights at the touch of button

The AMX 10e scissor lift pallet truck is a premium Jungheinrich product offering durable and reliable quality. As a combination between a pallet truck and lift table, the scissor lift pallet truck is extremely flexible and versatile.

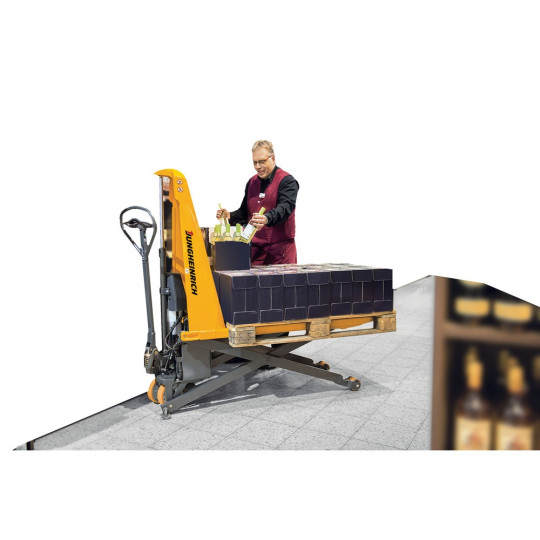

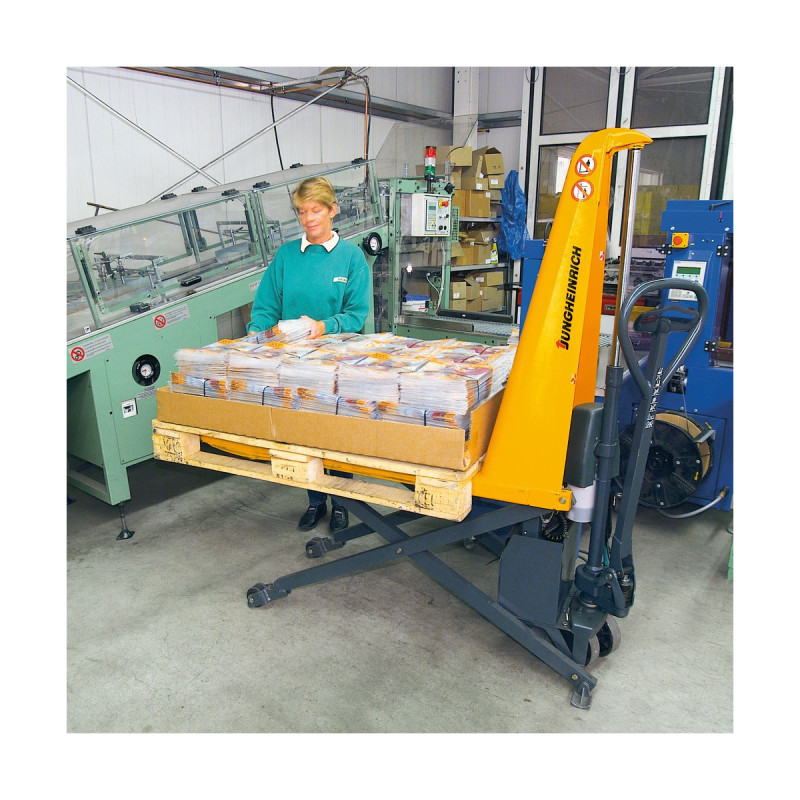

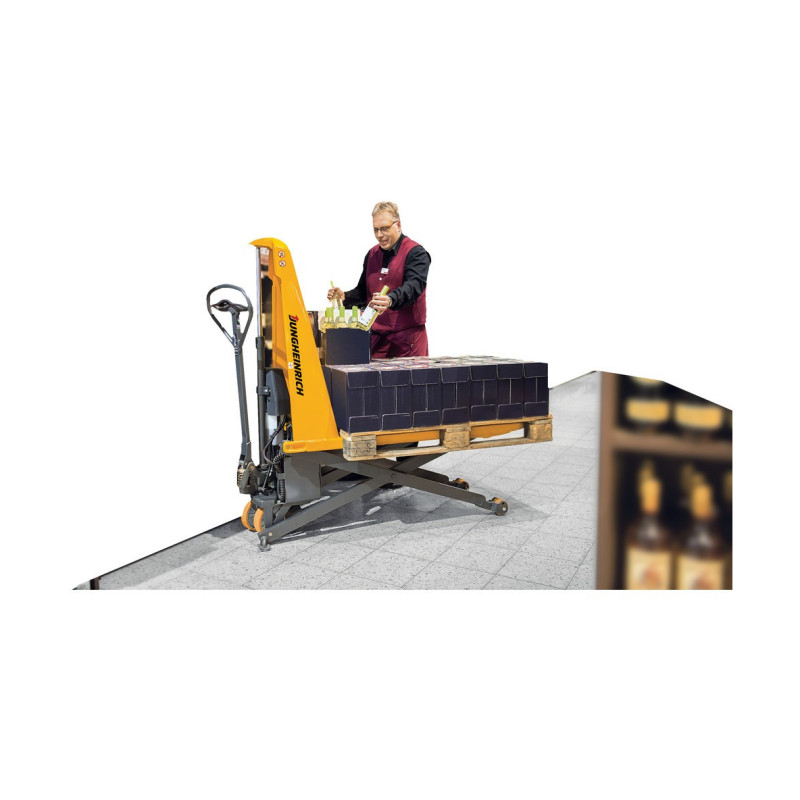

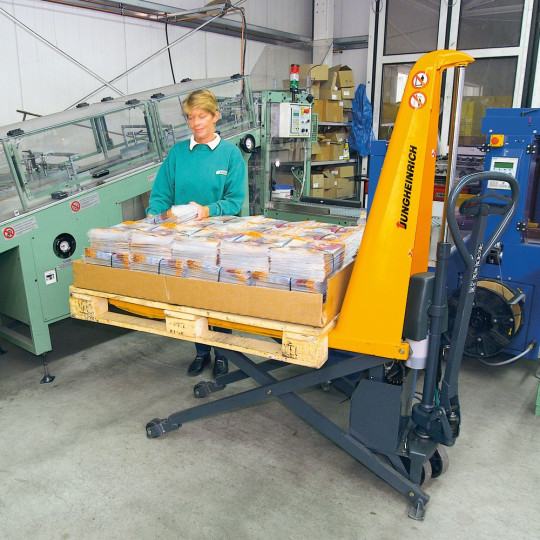

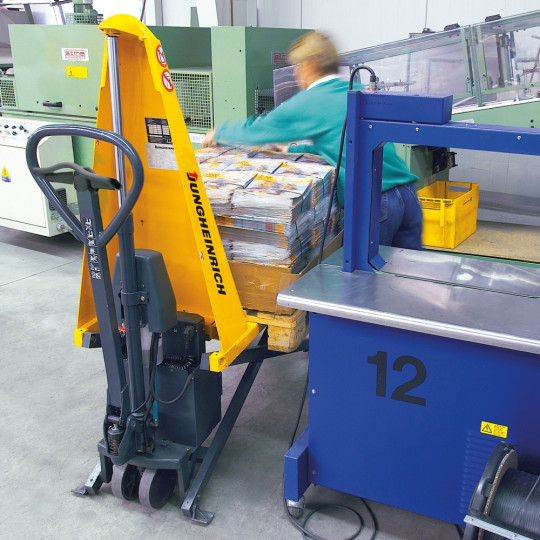

Thanks to the 0.5 kW lift motor, you can easily raise loads weighing up to 1000 kg to an optimum height, allowing you to work in an ergonomic, fatigue-free manner. In the case of frequently changing working heights, you can easily make adjustments at the touch of a button. The truck thus serves as an invaluable aid when working with pallets or pallet cages since you do not have to bend down and pick up heavy loads. It goes without saying that you can also use the AMX 10e as a hand pallet truck to transport your goods.

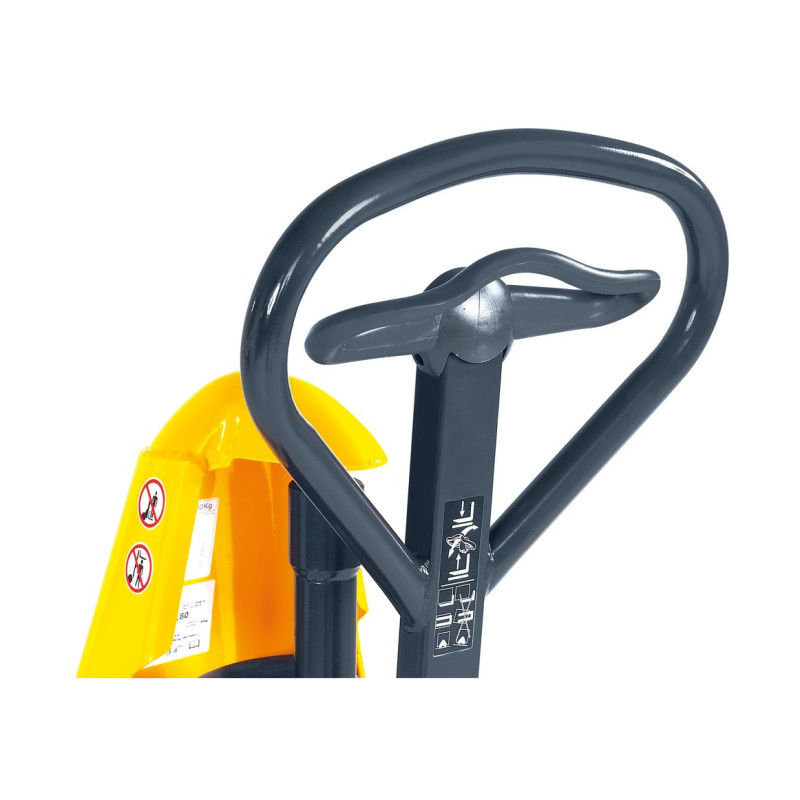

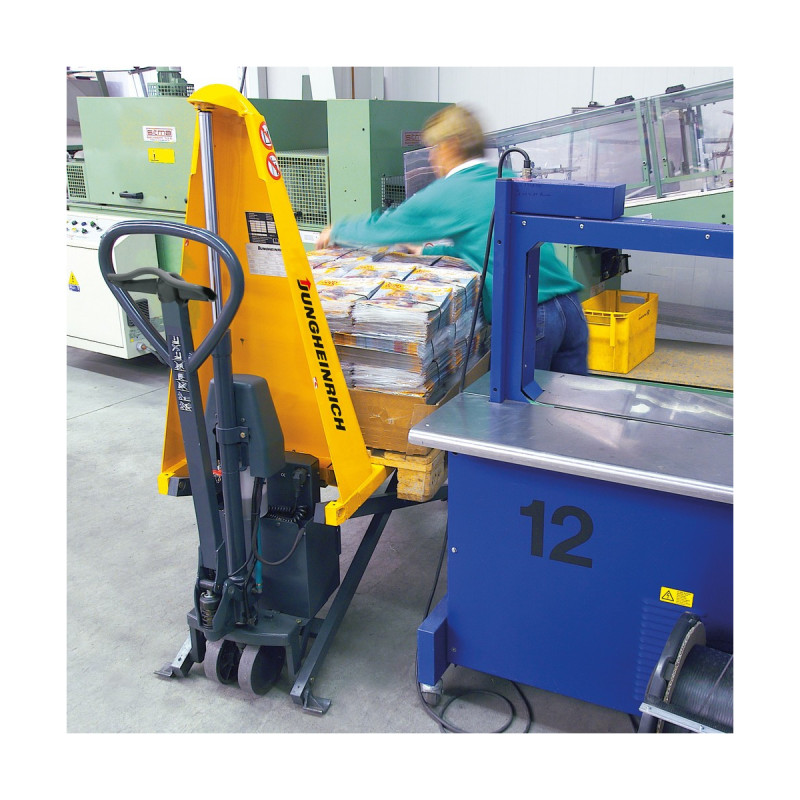

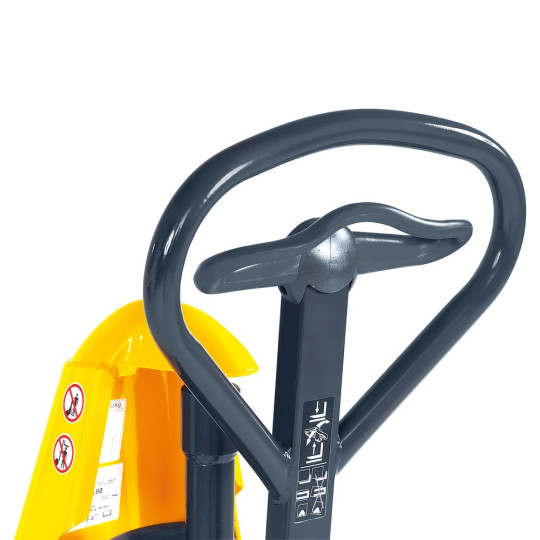

The lift/travel/lower functions are controlled via the ergonomic tiller handle, which can be easily operated with either hand. Thanks to the special lowering valve, sensitive loads can be set down with utmost control and precision. You can adjust the working height of the AMX 10e up to a height of 800 mm. As of a lift height of around 400 mm, side-mounted support feet provide additional stability. They secure the pallet truck, which can then no longer move and thus serves as a useful work table. You also have the option of equipping the scissor lift pallet truck with lateral support rollers so that you can also move it when raised.

The fork arms with their closed fork tips and welded construction are torsion-free and highly durable. As a result, the scissor lift pallet truck retains its shape even under the heaviest loads. The single-stage lift cylinder makes the AMX 10e particularly resilient and minimises the risk of leaks. The pressure relief valve protects the hydraulic system against overload. Thanks to the on-board charger, you can easily charge the maintenance-free 70 Ah battery at any 230 V socket.

Depending on the ground conditions and specific application, you can choose between a range of wheel and roller materials. Benefit from an ergonomic working aid by ordering the electro-hydraulic scissor lift pallet truck from our shop in your chosen configuration.

Capacity
1000 kg
Manufacturer
Jungheinrich
Model
AMX 10E
Fork length
1150 mm
Turning radius
1635 mm
Steering wheel diameter
170 mm
Aisle width
2005 mm
Steering wheel width
50 mm
Control panel
Two-handed
Fork width
150 mm
Charger
Built-in
Lowering speed with/without cargo
0,13 / 0,05 m/s
Drive
Manual
Overall length
1650 mm
Overall width
560 mm
Lift speed with / without load
0.03 / 0.05 m/s
Battery voltage / nominal capacity
12 / 70 V/Ah
Battery weight
24 kg
Fork height
53 mm
Fork roller material
Polyurethane (PU)
Steering wheel material
Polyurethane (PU)
Fork roller equipment
Single
Lift
714 mm
Face of forks length
500 mm
Lift range
86 - 800 mm
Battery type
Lead gel battery
Tiller RAL colour
RAL 7016 anthracite grey
Lift motor output
0.5 kW
Fork roller diameter
82 mm
Fork roller width
62 mm
Tiller surface
Power-coated
Tiller Height
1299 mm
Chassis surface
painted
Route
Short distance
Pallet truck material
Steel
Ground clearance
30 mm
Lift type
Scissor lift trucks
Fork support width
560 mm
Rapid lift
Yes (up to 120 kg)
  • Professional

    • Jungheinrich AMX 10e scissor lift pallet truck, V/GV

    With electric lift to raise the load to an ergonomic working height

    • 0.5 kW motor for electro-hydraulic lifting
    • Maintenance-free 12 V / 70 Ah battery
    • Flexible application, can also be used as a lift table or workbench

    €3,223.00
    €3,061.85 You Save 5%
    Tax excluded
    Limited offer until: 2026/06/01 Days remaining: 15
    50441585
    Status: On Backorder

    Delivery: within 2-4 weeks

    SECURE Payment options

    Products in the same category

    Jungheinrich AM G20 Galvinox hand pallet truck
    Jungheinrich AM G20 Galvinox hand pallet truck
    Jungheinrich AM G20 Galvinox hand pallet truck
    Jungheinrich AM G20 Galvinox hand pallet truck
    1000 kg
    1000 kg
    1150 mm
    1150 mm
    86 - 800 mm
    86 - 800 mm

    Jungheinrich AM G20 Galvinox hand pallet truck, N/GN

    • Corrosion protection thanks to hot-dip galvanised surfaces
    • Design and control elements of the classic AM22
    • Maintenance-free pump hydraulics and lifetime lubrication of all connections
    Regular price €1,242.00 Price €1,179.90
    Tax excluded
    Details
    • Professional

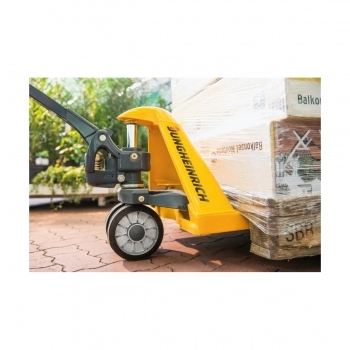

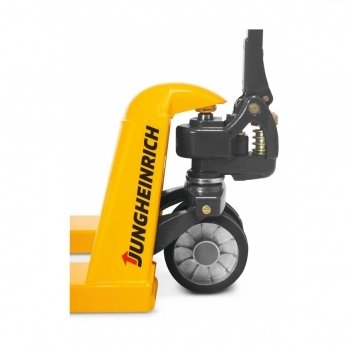

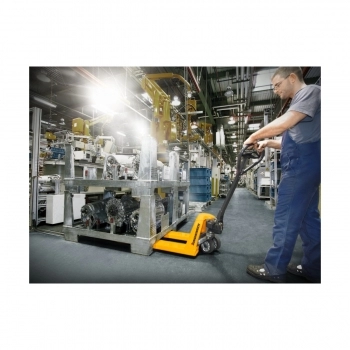

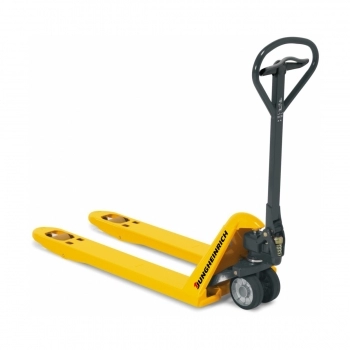

    Jungheinrich AM 22 hand pallet truck, nylon wheels.
    Jungheinrich AM 22 hand pallet truck, nylon wheels.
    Jungheinrich AM 22 hand pallet truck, nylon wheels.
    Jungheinrich AM 22 hand pallet truck, nylon wheels.
    Jungheinrich AM 22 hand pallet truck, nylon wheels.
    Jungheinrich AM 22 hand pallet truck, nylon wheels.
    1000 kg
    1000 kg
    1150 mm
    1150 mm
    86 - 800 mm
    86 - 800 mm

    Jungheinrich AM22 hand pallet truck, N/GN

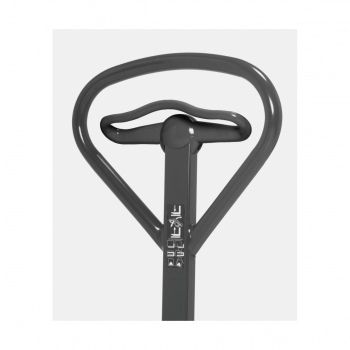

    • Ergonomic control element can be operated with either hand
