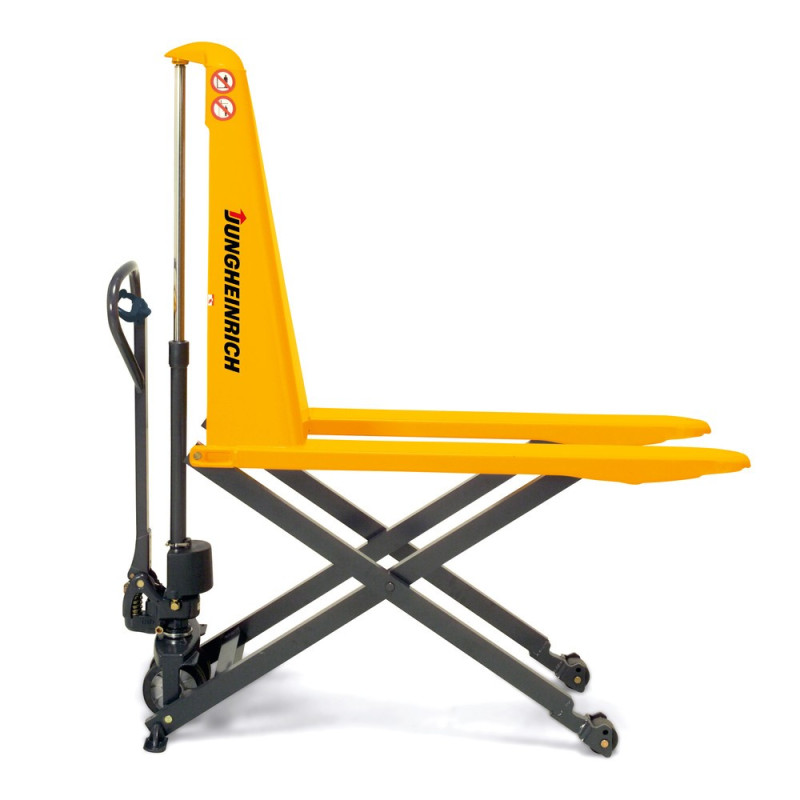

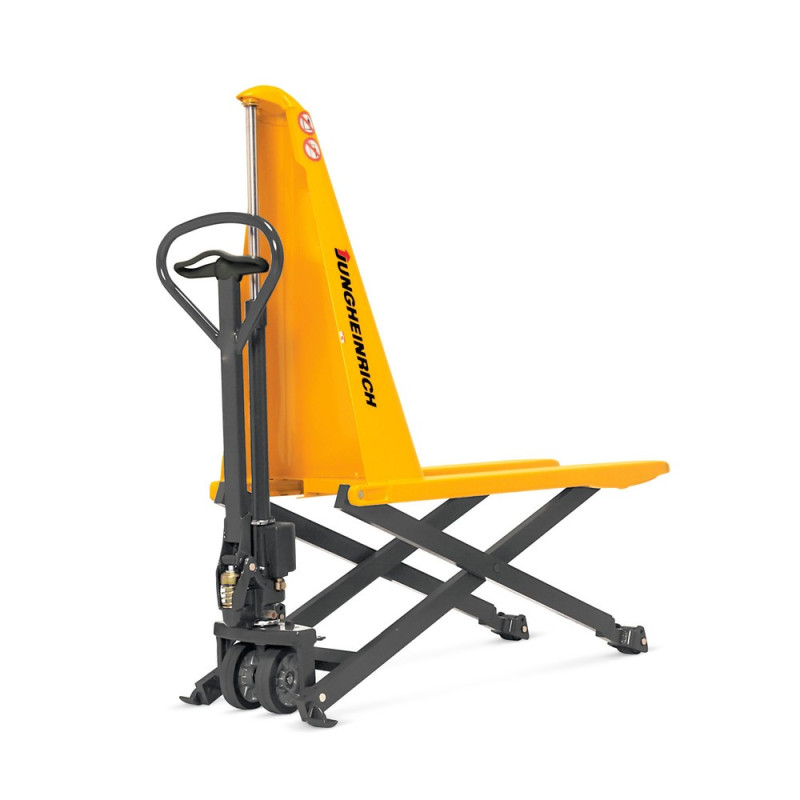

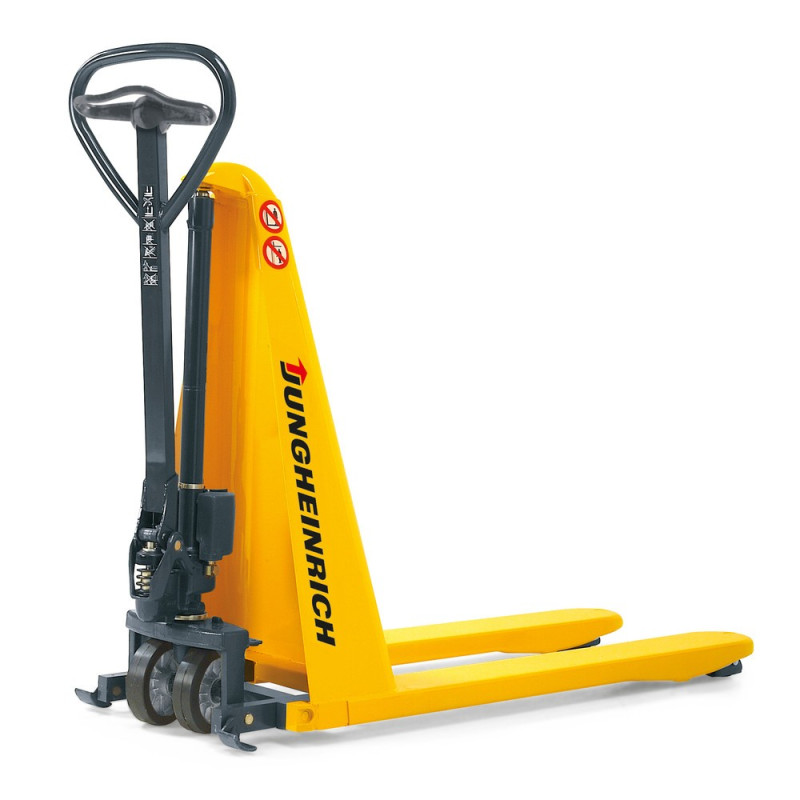

Jungheinrich AMX 10 scissor lift pallet truck
Jungheinrich AMX 10 scissor lift pallet truck
Jungheinrich AMX 10 scissor lift pallet truck
Jungheinrich AMX 10 scissor lift pallet truck
Jungheinrich AMX 10 scissor lift pallet truck
Jungheinrich AMX 10 scissor lift pallet truck
Jungheinrich AMX 10 scissor lift pallet truck
Jungheinrich AMX 10 scissor lift pallet truck
Jungheinrich AMX 10 scissor lift pallet truck
Jungheinrich AMX 10 scissor lift pallet truck
1000 kg
1000 kg
1150 mm
1150 mm

Description

Just a few tiller strokes raise the load to a comfortable, ergonomic height

The AMX 10 scissor lift pallet truck is a premium Jungheinrich product offering durable and reliable quality. As a combination between a pallet truck and lift table, the scissor lift pallet truck is extremely flexible and versatile.

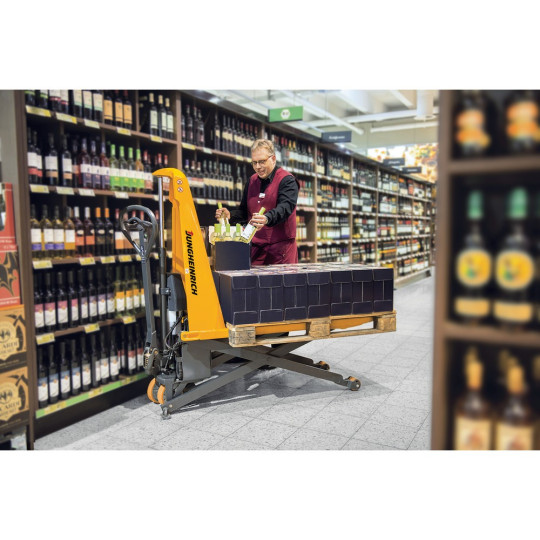

Activities involving frequent bending and heavy lifting can quickly have an effect on employee health. Supported by the automatic quick lift up to 120 kg, loads weighing up to 1000 kg can be raised to an optimum ergonomic height with just a few pumps of the tiller. The truck thus serves as an invaluable aid when working with pallets or pallet cages. It goes without saying that you can also use the AMX 10 as a hand pallet truck to transport your goods.

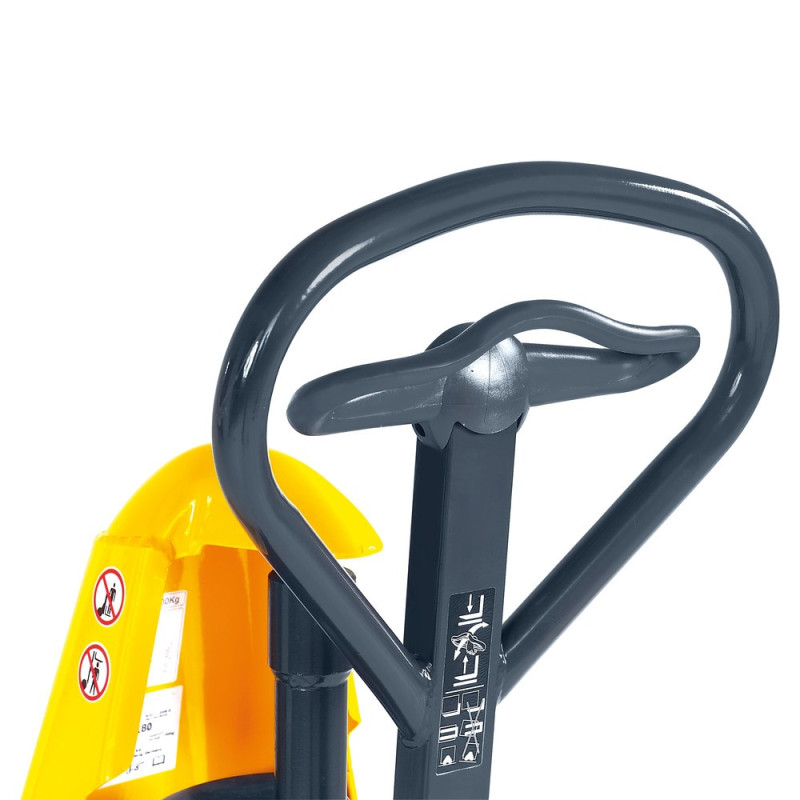

The lift/travel/lower functions are controlled via the ergonomic tiller handle, which can be easily operated with either hand. Thanks to the special lowering valve, loads can be set down with utmost control and precision. You can adjust the working height of the AMX 10 up to a height of 800 mm. As of a lift height of around 400 mm, side-mounted support feet provide additional stability. They secure the pallet truck, which can then no longer move and thus serves as a useful work table. You also have the option of equipping the scissor lift pallet truck with lateral support rollers so that you can also move it when raised.

The fork arms with their closed fork tips and welded construction are torsion-free and highly durable. As a result, the scissor lift pallet truck retains its shape even under the heaviest loads. The single-stage lift cylinder makes the AMX 10 particularly resilient and minimises the risk of leaks. The overload valve protects against excess loads.

Depending on the ground conditions and specific application, you can choose between a range of wheel and roller materials. Order the versatile Jungheinrich scissor lift pallet truck from our shop in your chosen configuration.

Capacity
1000 kg
Manufacturer
Jungheinrich
Model
AMX 10
Fork length
1150 mm
Aisle width
2005 mm
Steering wheel width
50 mm
Lowering speed with/without cargo
0,11 / 0,04 m/s
Overall length
1650 mm
Overall width
560 mm
Fork roller material
Polyurethane (PU)
Steering wheel material
Polyurethane (PU)
Fork roller equipment
Single
Lift
714 mm
Tiller RAL colour
RAL 7016 anthracite grey
Fork roller diameter
82 mm
Fork roller width
62 mm
Tiller surface
Power-coated
Chassis surface
Power-coated
Ground clearance
30 mm
Lift type
Scissor lift trucks
Min lifting height
85 mm
Max lifting height
800 mm
Scissor lift handle
Collapsible
  • Professional

    • Jungheinrich AMX 10 scissor lift pallet truck, V/GV

    Manually raises loads to an ergonomic working height

    • Flexible application, can also be used as a lift table or workbench
    • Automatic quick lift up to 120 kg
    • 800 mm lift height for ergonomic working

    €1,488.00
    Tax excluded
    50441572
    Status: On Backorder

    Delivery: within 2-4 weeks

    SECURE Payment options
