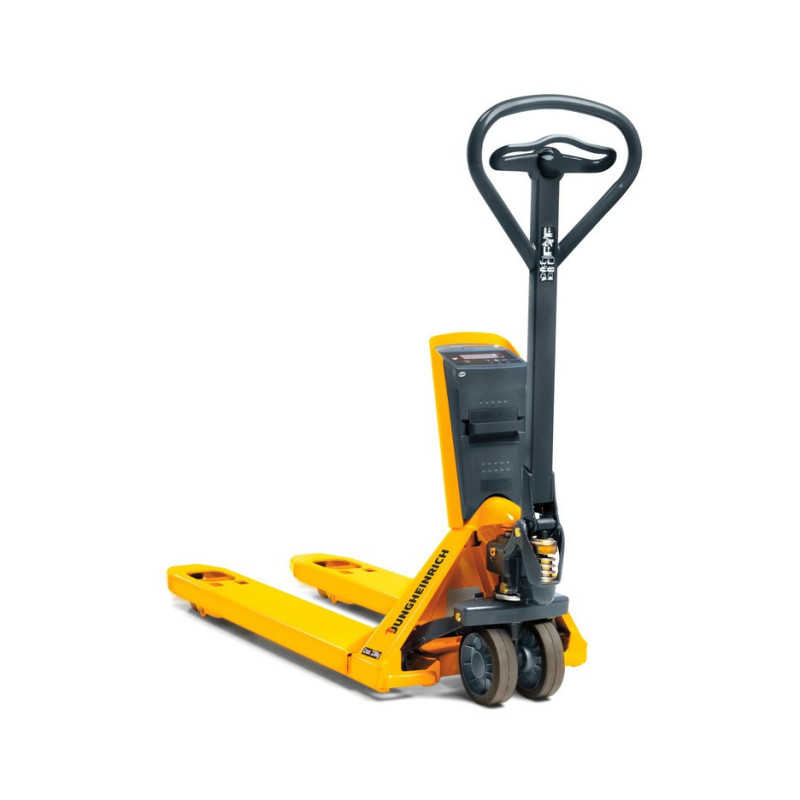

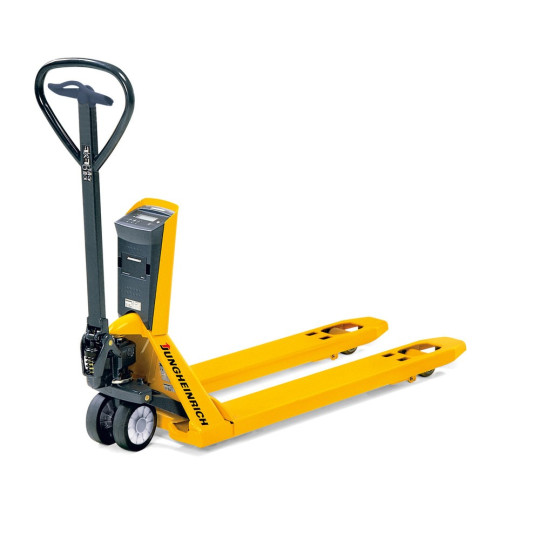

Jungheinrich AMW 22p pallet truck with scale and comfort display, load capacity 2200 kg, solid rubber / polyurethane
Jungheinrich AMW 22p pallet truck with scale and comfort display, load capacity 2200 kg, solid rubber / polyurethane
Jungheinrich AMW 22p pallet truck with scale and comfort display, load capacity 2200 kg, solid rubber / polyurethane
Jungheinrich AMW 22p pallet truck with scale and comfort display, load capacity 2200 kg, solid rubber / polyurethane
Jungheinrich AMW 22p pallet truck with scale and comfort display, load capacity 2200 kg, solid rubber / polyurethane
Jungheinrich AMW 22p pallet truck with scale and comfort display, load capacity 2200 kg, solid rubber / polyurethane
Jungheinrich AMW 22p pallet truck with scale and comfort display, load capacity 2200 kg, solid rubber / polyurethane
Jungheinrich AMW 22p pallet truck with scale and comfort display, load capacity 2200 kg, solid rubber / polyurethane
Jungheinrich AMW 22p pallet truck with scale and comfort display, load capacity 2200 kg, solid rubber / polyurethane
Jungheinrich AMW 22p pallet truck with scale and comfort display, load capacity 2200 kg, solid rubber / polyurethane
2200 kg
2200 kg
1150 mm
1150 mm

Description

Professional premium weighing system with a multitude of intelligent weighing functions

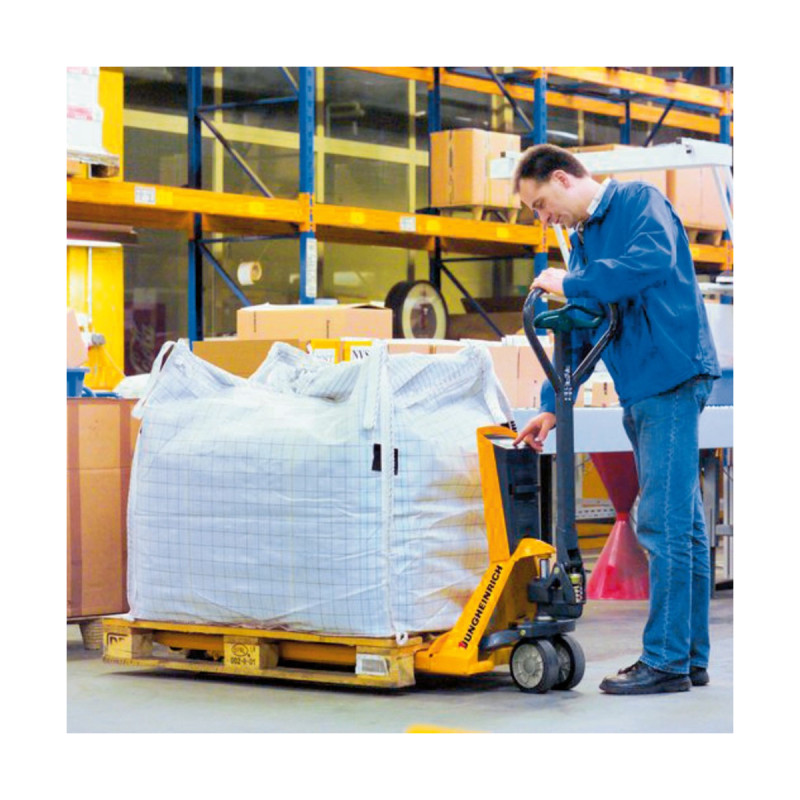

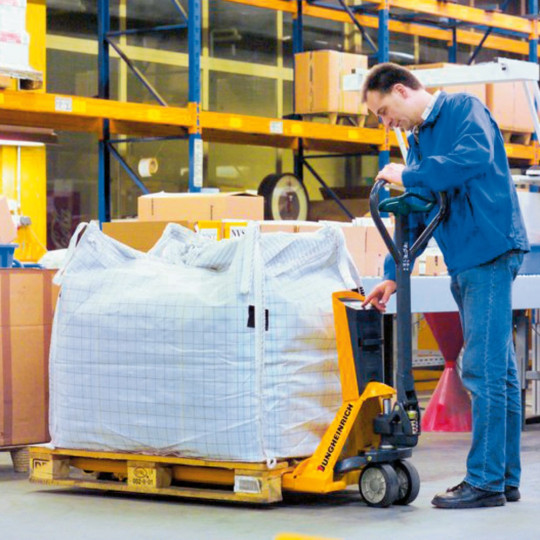

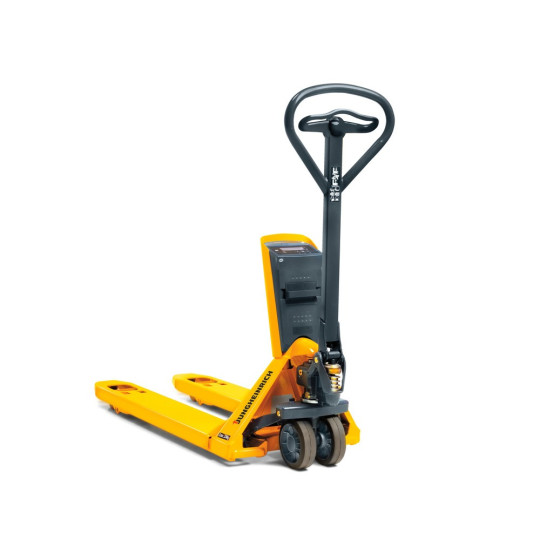

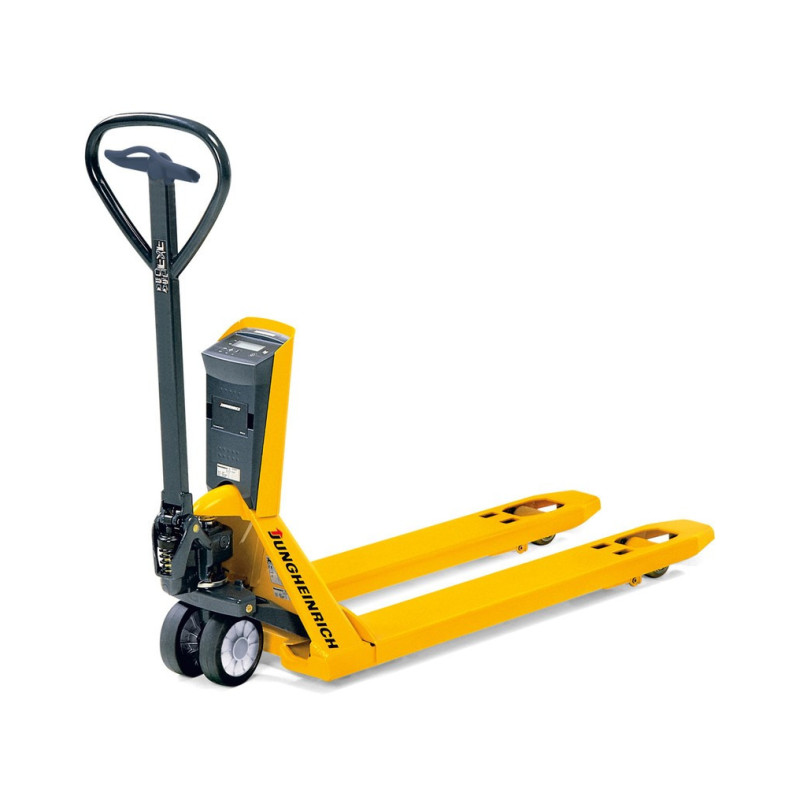

The Jungheinrich AMW 22p weighing scale pallet truck provides you with a professional weighing system suitable for all manner of applications thanks to a multitude of intelligent functions. With its convenient multi-range display, outstanding weighing accuracy (min. 99.9% of the measured weight), wide range of special equipment and sophisticated battery change module, the AMW 22p is a device of the highest calibre.

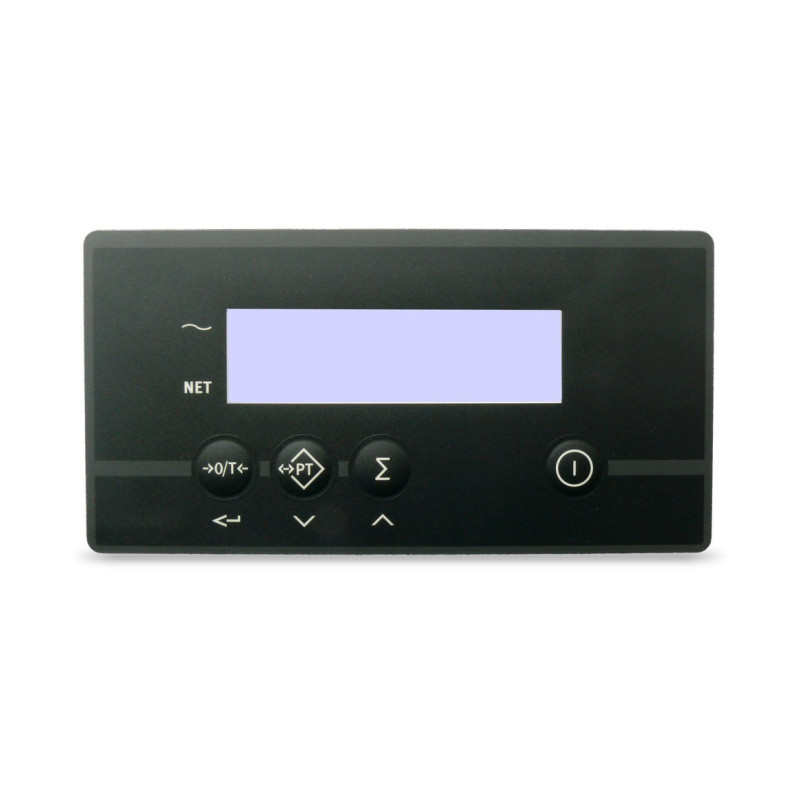

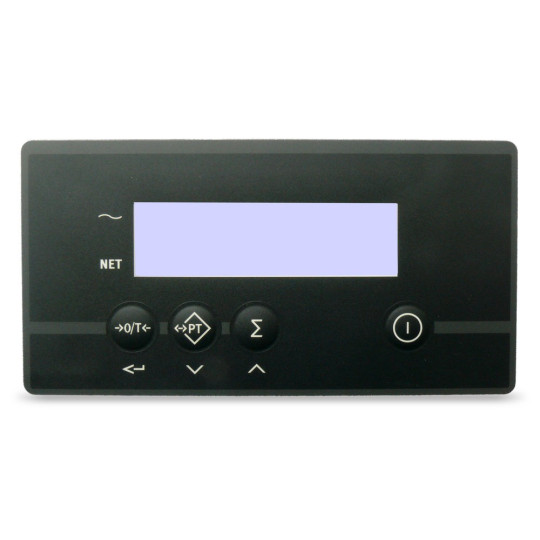

The weighing cells are positioned at the four end points of the forks to ensure highly accurate weight measurement – even on inclines of up to 2 degrees. As well as all functions of the basic display, the AMW 22p offers a date and time function as well as an automatic multi-range display with different measurement intervals: 0.2 - 200 kg, 0.5 - 500 kg, 1 – 2,200 kg. The optional thermal printer allows you to document and analyse your weighing operations.

The plug-in battery change module (12 V / 1.2 Ah) with charger can be easily recharged at any 230 V socket. The battery life is approx. 60 hours. The scales switch off automatically when not used for 30 minutes. The electronics and display feature IP 65 protection against moisture and dust.

You benefit from all the equipment features of the classic AM 22. This includes the ergonomic, user-friendly control element. The special lowering valve allows sensitive loads to be set down with utmost control and precision. Thanks to the standard quick lift function (up to 120 kg), Euro pallets can be lifted clear of the ground with just three pump strokes. The maximum lift height is reached after five strokes. This saves you both time and effort.

The AMW 22p weighing scale pallet truck with 2,200 kg capacity and comfort display is available with different wheel configurations. Depending on the ground conditions and specific application, you can choose between a range of tyre materials. You can also opt for single or tandem fork rollers.

Depending on your requirements, you can equip the AMW 22p with range of additional functions:

  • - Optional special functions
  • - Calibrated versions according to class III (EU type approval no. T2782)
  • - Additional battery change module
  • - Integrated printer
  • - Special fork dimensions
  • - Travel and parking brake, foot brake
  • - Antistatic steering castor
  • - Finer multi-range display: 0.1 – 200 kg, 0.2 – 400 kg, 0.5 – 2,000 kg
Capacity
2200 kg
Manufacturer
Jungheinrich
Model
AMW 22p
Fork length
1150 mm
Steering wheel diameter
170 mm
Aisle width
1813 mm
Steering wheel width
50 mm
Control panel
Two-handed
Charger
External
Lowering speed with/without cargo
0,09/0,02 m/s
Overall length
1546 mm
Overall width
540 mm
Battery voltage / nominal capacity
12 / 1.2 V/Ah
Fork roller material
Polyurethane (PU)
Steering wheel material
Solid rubber
Fork roller equipment
Single
Face of forks length
396 mm
Tiller RAL colour
RAL 7016 anthracite grey
Fork roller diameter
82 mm
Fork roller width
96 mm
Tiller surface
Power-coated
Tiller Height
1234 mm
Chassis surface
Power-coated
Route
Short distance
Ground clearance
24 mm
Automatic shut-off without insert
30 min
Lift type
Hand pallet truck with weighing scale
Fork support width
540 mm
Lift height per pump stroke
25/10 mm
Scale type
Digital
Measuring tolerance
0.1 %
IP protection type measuring cells
IP 65
With weight scales
Yes
Pump strokes to maximum lift height
5/12
Rapid lift
Yes (up to 120 kg)
  • Professional

    • Jungheinrich AMW 22P hand pallet truck with weighing scale, C/GV

    Functional and professional weighing technology with premium Jungheinrich quality

    • 0–2200 kg measuring range
    • Automatic multi-range display: 0.2-200 kg, 0.5-500 kg, 1–2200 kg
    • Max. 0.1% deviation from measured weight

    €2,317.00
    Tax excluded
    51060955
    Status: On Backorder

    Delivery: within 2-4 weeks
