Description

The Jungheinrich AM 22 hand pallet truck with a capacity of 2200 kg is a robust and reliable premium product for daily pallet handling. It impresses in continuous daily use thanks to its easy handling, maintenance-free design and outstanding durability.

  • Ergonomic control element can be operated with either hand
  • Optimised hydraulics for reduced effort
  • Durable thanks to robust materials and solid construction
  • Maintenance-free design with all connections lubricated for life
  • Special lowering valve for precision lowering

AM 22 - the classic in the Jungheinrich pallet truck range

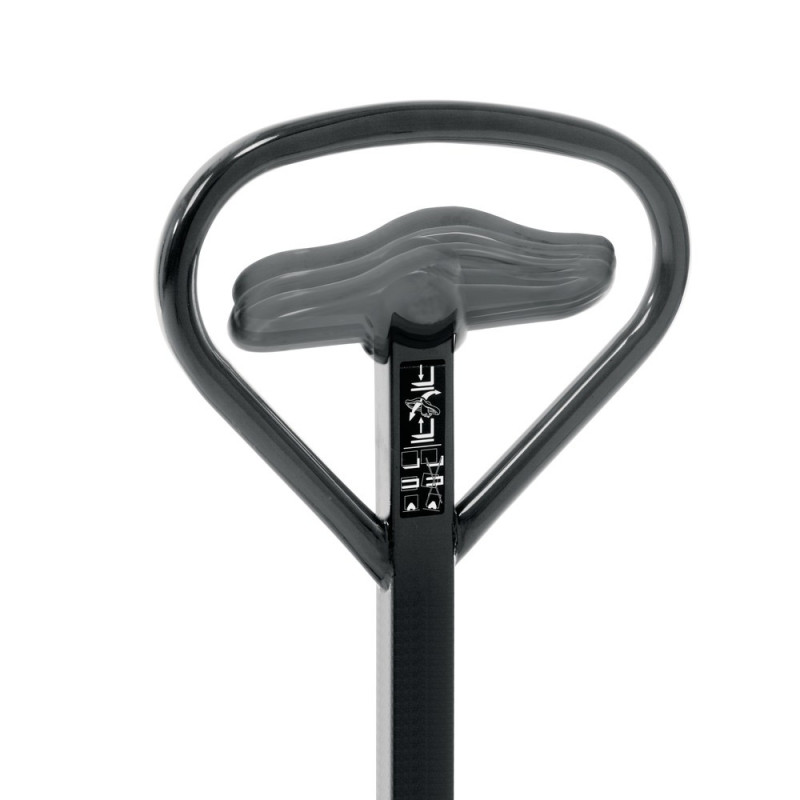

The Jungheinrich AM 22 hand pallet truck with a capacity of 2200 kg is a high-quality product. The patented, ergonomic Jungheinrich operating concept allows the tiller to be controlled from any position and is equally well suited to right or left-handed users. All functions can be easily operated with one hand. Thanks to the special lowering valve, sensitive loads can be set down with utmost control and precision.

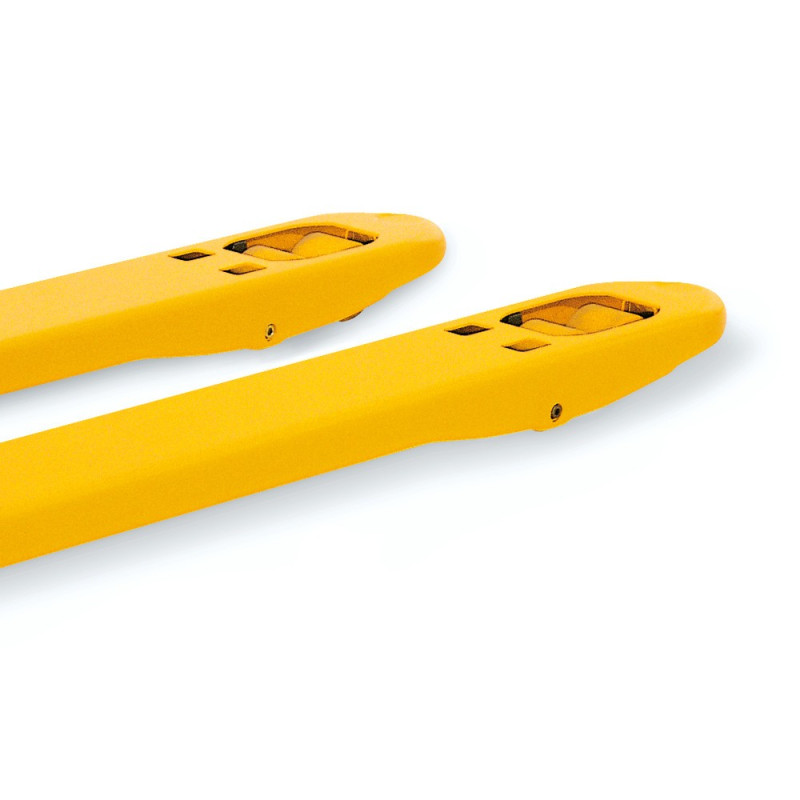

The hand pallet truck does not require any servicing as the connections are lubricated for life and the pump hydraulics are maintenance-free. The outstanding stability and durability of the product is ensured by heavy-duty steel, a sophisticated design and a welded tiller mount. The covered entry rollers and rounded fork tips make insertion and retraction from the pallet particularly easy.

The Jungheinrich AM 22 hand pallet truck with 1150 mm fork length and 2200 kg capacity is available in different wheel configurations. Depending on the ground conditions and specific application, you can choose between a range of roller materials. You can also opt for single or tandem fork rollers.

Durable, reliable and proven in continuous daily use - the Jungheinrich AM 22 hand pallet truck with a capacity of 2200 kg and standard fork length is the ideal partner for your everyday pallet transport. Order this classic product from the pallet truck range in our shop in your chosen configuration.

Capacity
2200 kg
Manufacturer
Jungheinrich
Model
AM 22
Fork length
1150 mm
Turning radius
1274 mm
Steering wheel diameter
170 mm
Aisle width
1784 mm
Steering wheel width
50 mm
Control panel
Two-handed
Fork width
150 mm
Lowering speed with/without cargo
0,09/0,02 m/s
Drive
Manual
Overall length
1520 mm
Overall width
520 mm
Fork height
53 mm
Operation mode
Hand
Fork roller material
Nylon
Steering wheel material
Nylon
Fork roller equipment
Single
Load centre
600 mm
Lift
122 mm
Face of forks length
373 mm
Lift range
83 - 205 mm
Tiller RAL colour
RAL 7016 anthracite grey
Fork roller diameter
82 mm
Fork roller width
96 mm
Tiller surface
Power-coated
Tiller Height
1234 mm
Chassis surface
Power-coated
Route
Short distance
Pallet truck material
Steel
Ground clearance
30 mm
Chassis RAL color
Jungheinrich yellow
Lift type
Hand pallet trucks
Fork support width
520 mm
Lift height per pump stroke
10 mm
Forks material
Steel
Pump strokes to maximum lift height
12
Rapid lift
No
Freight distance
890 mm
Front wheel size
Ø 170x50 mm
Rear Wheel Size
Ø 82x96 mm
Front crossbar
109 mm
Working width with palette 1000x1200 crossed
1734 mm
Working width with palette 800 x 1200 longways
1784 mm
  • Professional

    • Jungheinrich AM22 hand pallet truck, N/GN

    A high-quality classic from the Jungheinrich range

    • Ergonomic control element can be operated with either hand
    • Optimised hydraulics for reduced effort
    • Durable thanks to robust materials and solid construction

    €496.00
    Tax excluded
    50432353
    Status: On Backorder

    Delivery: within 2-4 weeks
