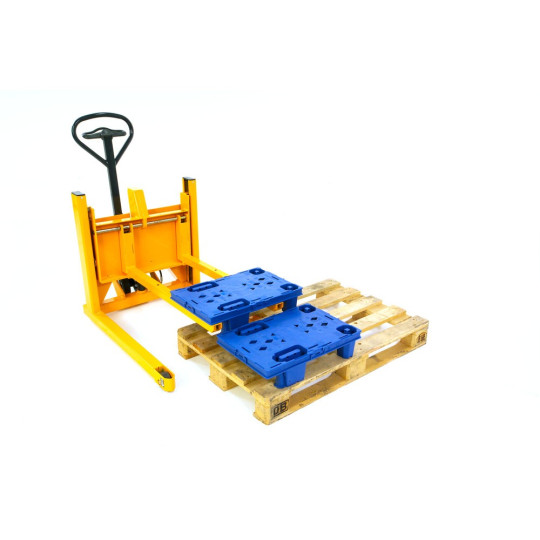

Jungheinrich AM V05 hand pallet truck, with wide track for display pallets
Jungheinrich AM V05 hand pallet truck, with wide track for display pallets
Jungheinrich AM V05 hand pallet truck, with wide track for display pallets
Jungheinrich AM V05 hand pallet truck, with wide track for display pallets
Jungheinrich AM V05 hand pallet truck, with wide track for display pallets
Jungheinrich AM V05 hand pallet truck, with wide track for display pallets
Jungheinrich AM V05 hand pallet truck, with wide track for display pallets
Jungheinrich AM V05 hand pallet truck, with wide track for display pallets
Jungheinrich AM V05 hand pallet truck, with wide track for display pallets
Jungheinrich AM V05 hand pallet truck, with wide track for display pallets
500 kg
500 kg
955 mm
955 mm
85 - 390 mm
85 - 390 mm

Description

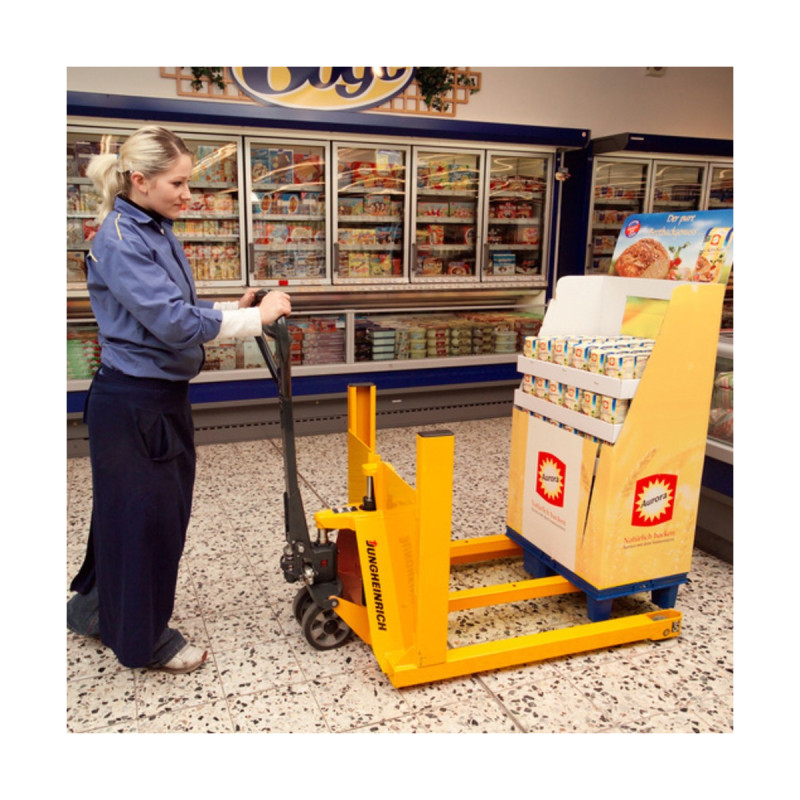

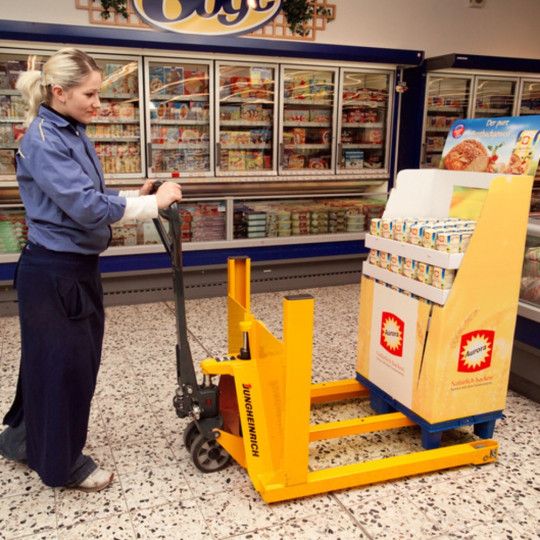

This Jungheinrich hand pallet truck is ideal for picking up and transporting smaller pallet formats, such as display pallets weighing up to 500 kg, both safely and securely. The fork spacing can be easily adjusted between 140 and 585 mm.

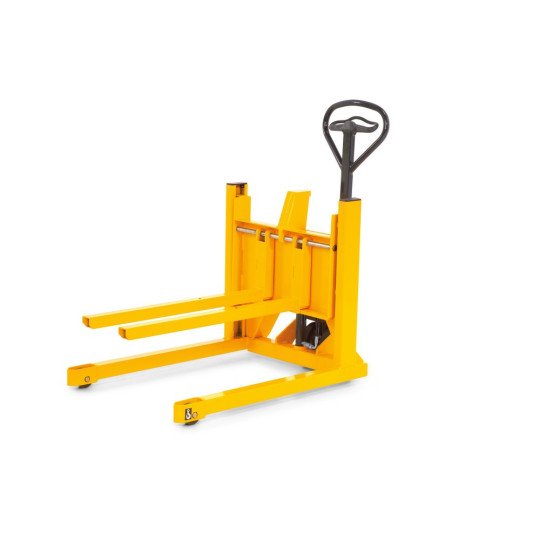

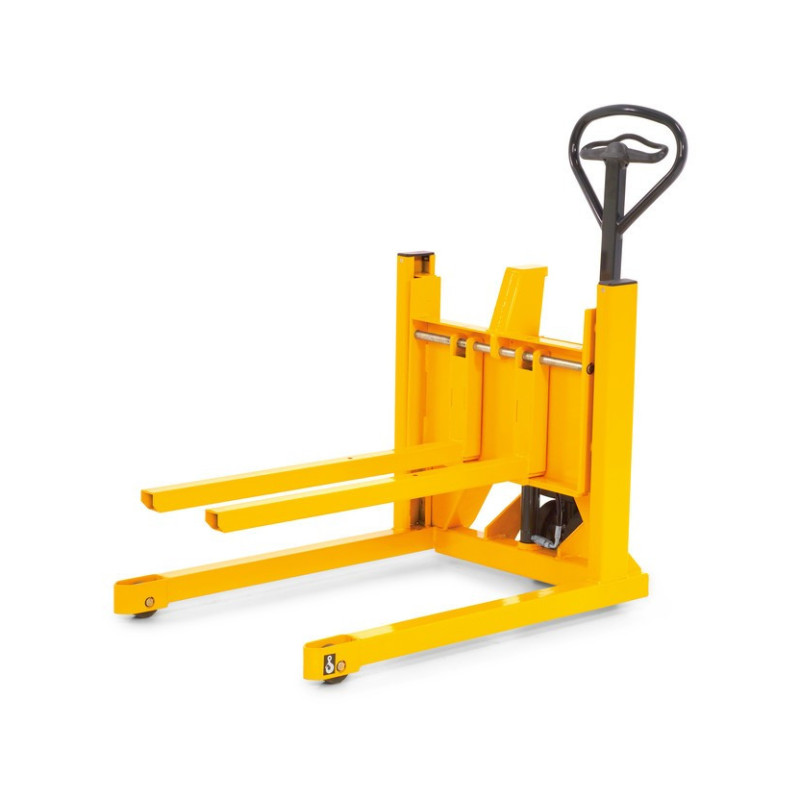

  • Manually adjustable fork spacing (140-585 mm)
  • Extremely quiet operation
  • Quick lift up to 120 kg for quick and easy goods transport
  • Precision Jungheinrich pump hydraulics and special lowering valve

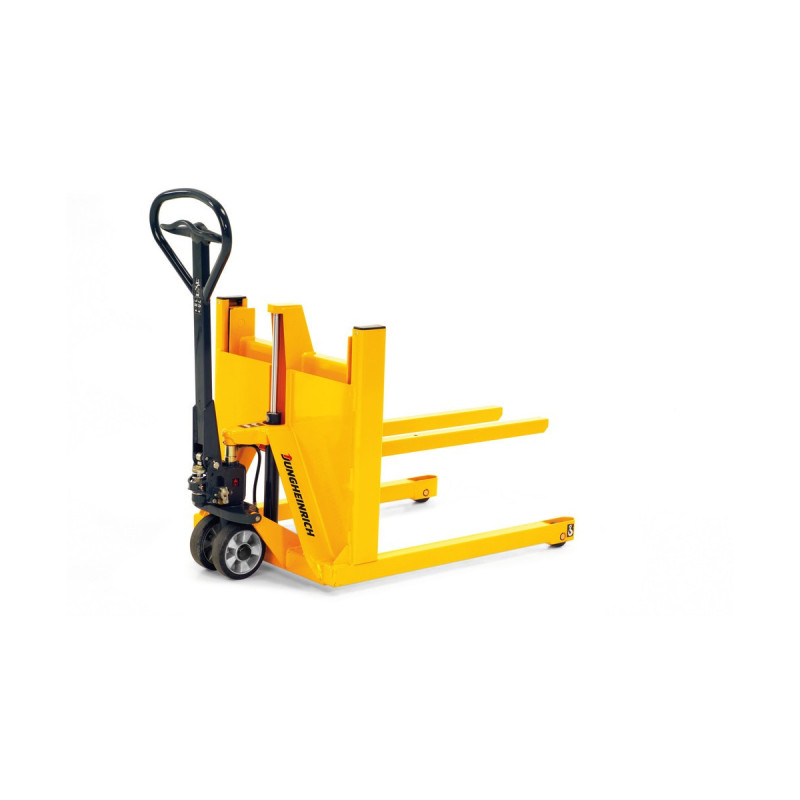

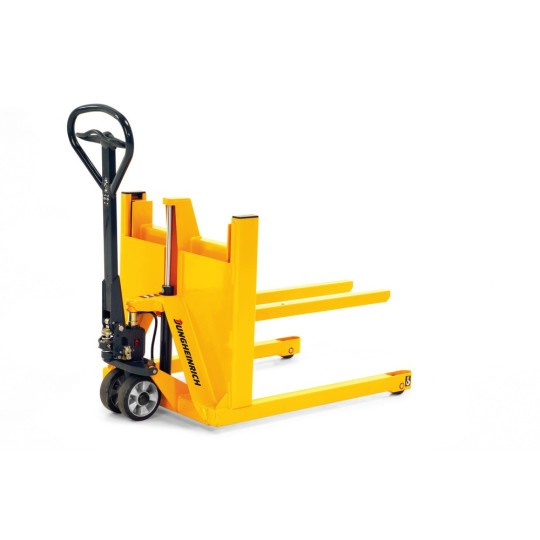

  • Ergonomic tiller suitable for both right and left-handed users
  • The Jungheinrich wide-track hand pallet truck for pallets with special dimensions

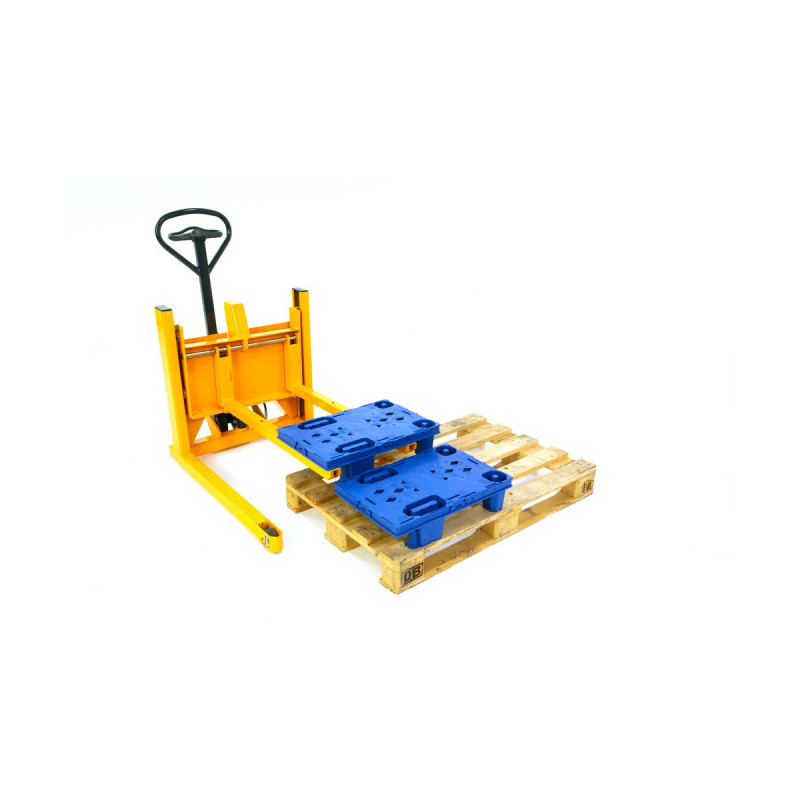

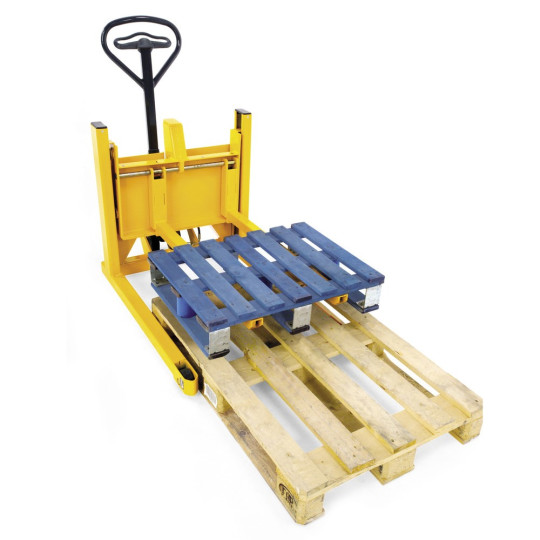

This wide-track display pallet truck with manually adjustable fork spacing of 140 to 585 mm is ideal for handling quarter, half and special pallets. Thanks to durable, tried-and-tested Jungheinrich quality, you can pick up, transport and lower your pallets with utmost confidence. The hand pallet truck is very easy to operate using the ergonomic tiller. The quick lift function up to 120 kg allows you to lift the pallet clear of the ground with just three pumps. The maximum lift height of 390 mm is reached after just five pump strokes. Thanks to the special lowering valve, loads can be set down with utmost control and precision. Robust, solid rubber steering castors ensure extremely quiet operation. The single fork rollers are made from wear-resistant, smooth-running nylon. The powder coating protects the steel construction against corrosion.

Transport your display pallets safely and efficiently by ordering the Jungheinrich AM V05 wide-track hand pallet truck from our shop.

Capacity
500 kg
Model
AM V05
Fork length
955 mm
Turning radius
1425 mm
Steering wheel diameter
180 mm
Aisle width
2005 mm
Steering wheel width
50 mm
Control panel
Two-handed
Fork width
50 mm
Lowering speed with/without cargo
0,09 / 0,05 m/s
Drive
Manual
Overall length
1405 mm
Overall width
750 mm
760 mm
Fork height
50 mm
Fork roller material
Nylon
Steering wheel material
Solid rubber
Fork roller equipment
Single
Load centre
400 mm
Lift
305 mm
Face of forks length
450 mm
Lift range
85 - 390 mm
Tiller RAL colour
RAL 7016 anthracite grey
Fork roller diameter
82 mm
Fork roller width
40 mm
Tiller surface
Power-coated
Tiller Height
1210 mm
Chassis surface
Power-coated
Route
Short distance
Pallet truck material
Steel
Ground clearance
30 mm
Chassis RAL color
RAL 1028 melon yellow
Fork support width
140 mm
Lift height per pump stroke
25/10 mm
Weight
153 kg

Jungheinrich AM V05 hand pallet truck, with wide track for display pallets

With adjustable fork spacing for transporting display pallets

  • Manually adjustable fork spacing (140-585 mm)
  • Extremely quiet operation
  • Quick lift up to 120 kg for quick and easy goods transport

€1,317.00
Tax excluded
50455799
Status: On Backorder

Delivery: within 2-4 weeks
