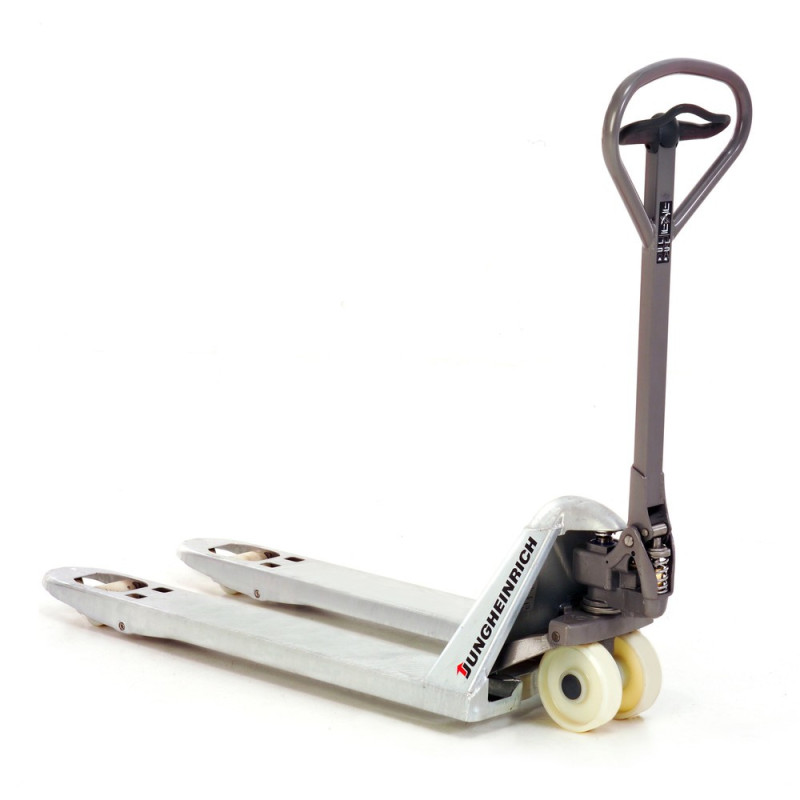

Jungheinrich AM G20 Galvinox hand pallet truck
Jungheinrich AM G20 Galvinox hand pallet truck
Jungheinrich AM G20 Galvinox hand pallet truck
Jungheinrich AM G20 Galvinox hand pallet truck
Jungheinrich AM G20 Galvinox hand pallet truck
Jungheinrich AM G20 Galvinox hand pallet truck
Jungheinrich AM G20 Galvinox hand pallet truck
Jungheinrich AM G20 Galvinox hand pallet truck
2000 kg
2000 kg
1150 mm
1150 mm
83 - 205 mm
83 - 205 mm

Description

Galvanised for durability – the hand pallet truck for damp environments

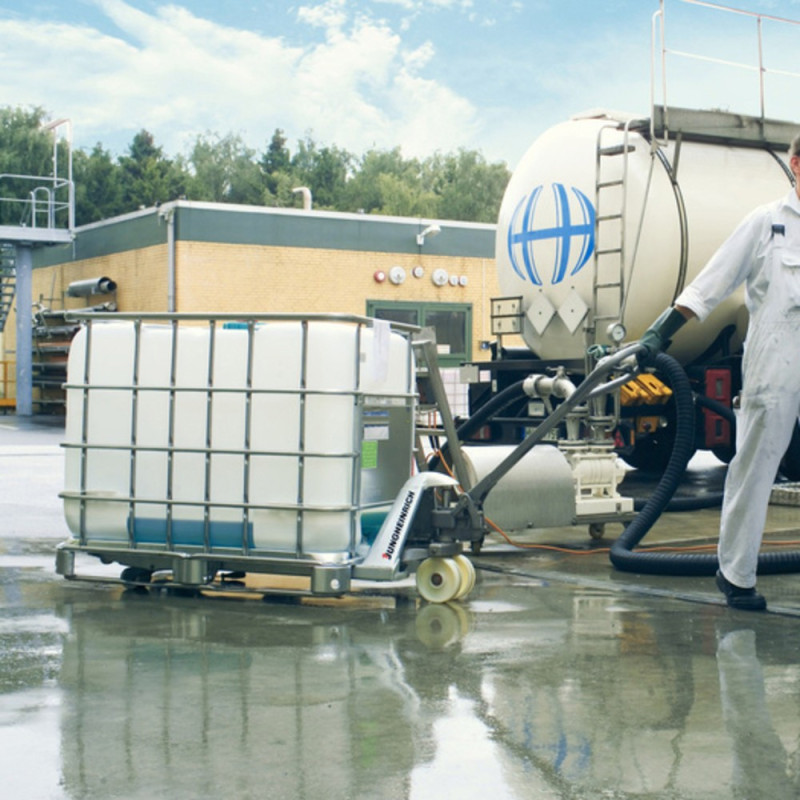

The Jungheinrich AM G20 Galvinox hand pallet truck with 1,150 mm fork length is the perfect solution for outdoor use and loading work conducted in areas where high levels of moisture can arise, e.g. in warehouses, wholesale markets etc. Individual steel parts of the chassis feature a protective layer to prevent corrosion.

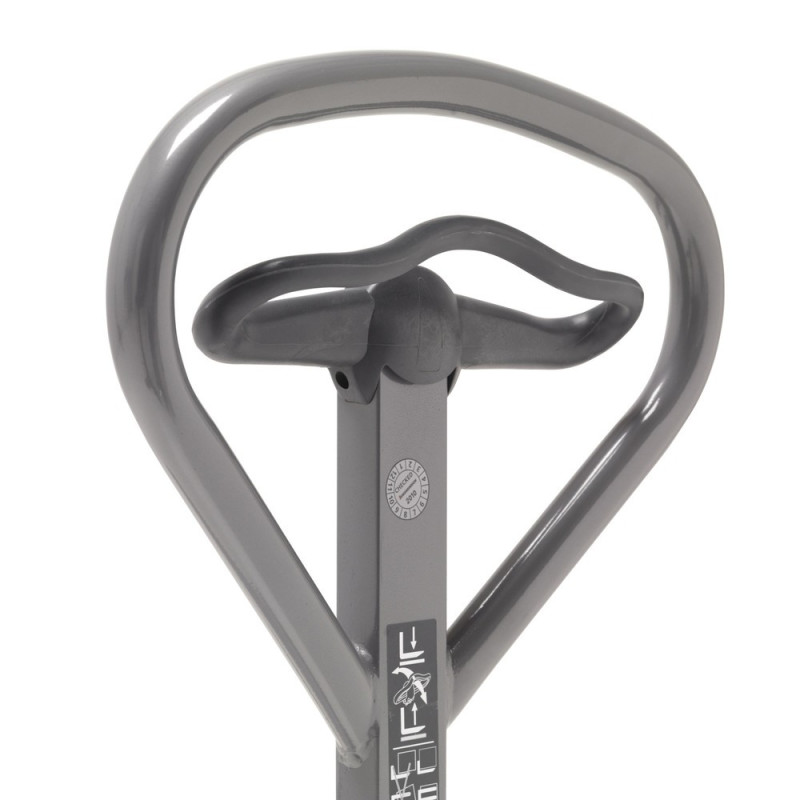

With the AM G20, you benefit from tried-and-tested, premium Jungheinrich quality. Harder steel, more robust forks, a sophisticated design and welded tiller mount ensure maximum stability and durability. The optimised, maintenance-free pump hydraulics allow you to lift your goods with minimal effort. The hand pallet truck is operated via an ergonomic tiller, which is equally well suited to both left and right-handed users. Thanks to the special lowering valve, loads can be set down with utmost control and precision.

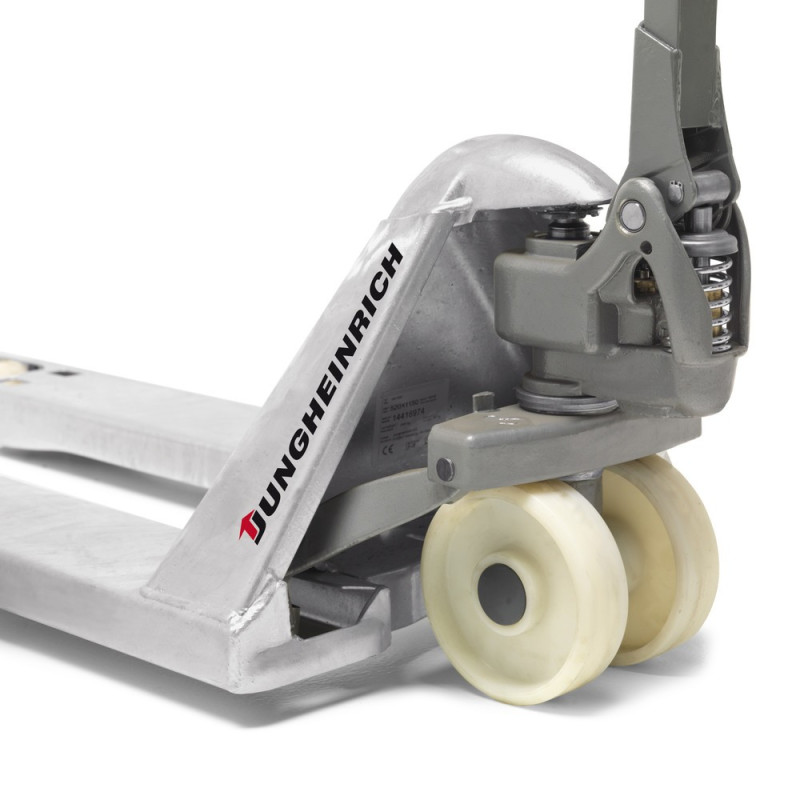

The wheel bushings and joints are chromated for maximum durability and quiet operation. The covered entry rollers and rounded fork tips make insertion and retraction from the pallet particularly easy. The short headlength enables safe, effortless use in even the tightest of spaces.
Depending on the ground conditions and specific application, you can choose between a range of tyre materials for the steering castors and fork rollers. You can also opt for single or tandem fork rollers.

Benefit from a user-friendly product with reliable corrosion protection and minimal maintenance requirements by ordering the Jungheinrich AM G20 Galvinox hand pallet truck with 1,150 mm fork length and 2,000 kg capacity from our shop.

Capacity
2000 kg
Manufacturer
Jungheinrich
Model
AM G20
Fork length
1150 mm
Turning radius
1274 mm
Steering wheel diameter
170 mm
Aisle width
1784 mm
Steering wheel width
50 mm
Control panel
Two-handed
Fork width
150 mm
Lowering speed with/without cargo
0,09/0,02 m/s
Drive
Manual
Overall length
1520 mm
Overall width
520 mm
Fork height
53 mm
Fork roller material
Nylon
Steering wheel material
Nylon
Fork roller equipment
Single
Load centre
600 mm
Lift
122 mm
Face of forks length
373 mm
Lift range
83 - 205 mm
Fork roller diameter
82 mm
Fork roller width
96 mm
Tiller surface
Galvanised
Tiller Height
1234 mm
Chassis surface
Galvanised
Route
Short distance
Pallet truck material
Steel
Ground clearance
30 mm
Lift type
Galvinox hand pallet trucks
Fork support width
520 mm
Lift height per pump stroke
10 mm
Weight
60.8 kg
  • Professional

    • Jungheinrich AM G20 Galvinox hand pallet truck, N/GN

    Optimised corrosion protection for use in damp environments

    • Corrosion protection thanks to hot-dip galvanised surfaces
    • Design and control elements of the classic AM22
    • Maintenance-free pump hydraulics and lifetime lubrication of all connections

    €1,211.00
    Tax excluded
    50432895
    Status: On Backorder
