2200 kg
2200 kg
950 mm
950 mm
83 - 205 mm
83 - 205 mm

Description

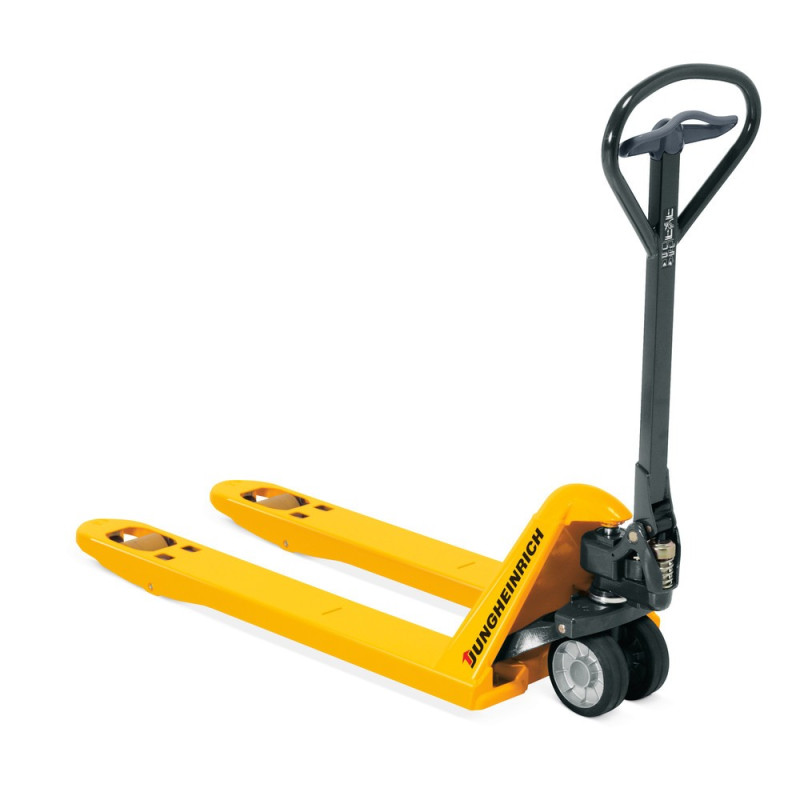

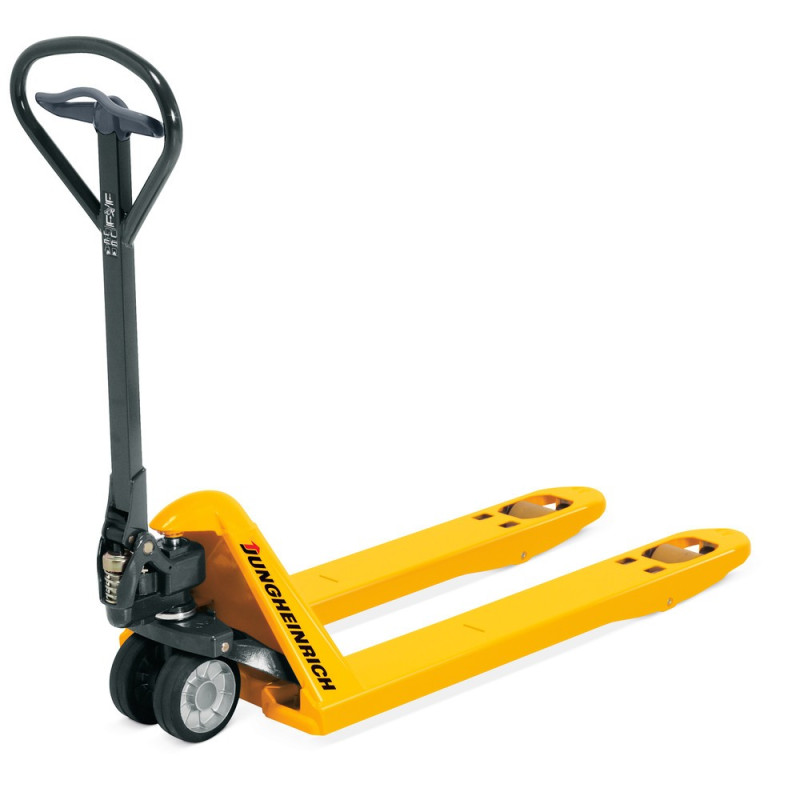

The Jungheinrich AM 22 hand pallet truck with short forks is a robust and reliable premium product for daily pallet handling in confined spaces. Be it on lorries or in narrow aisles – the pallet truck with short forks is always there to help when things get tight.

  • Ideal for transport in trucks
  • High manoeuvrability thanks to short fork length
  • Ergonomic control element
  • Durability thanks to robust materials and sturdy construction
  • Maintenance-free design with all connections lubricated for life

AM 22 - the Jungheinrich classic with short forks for special applications

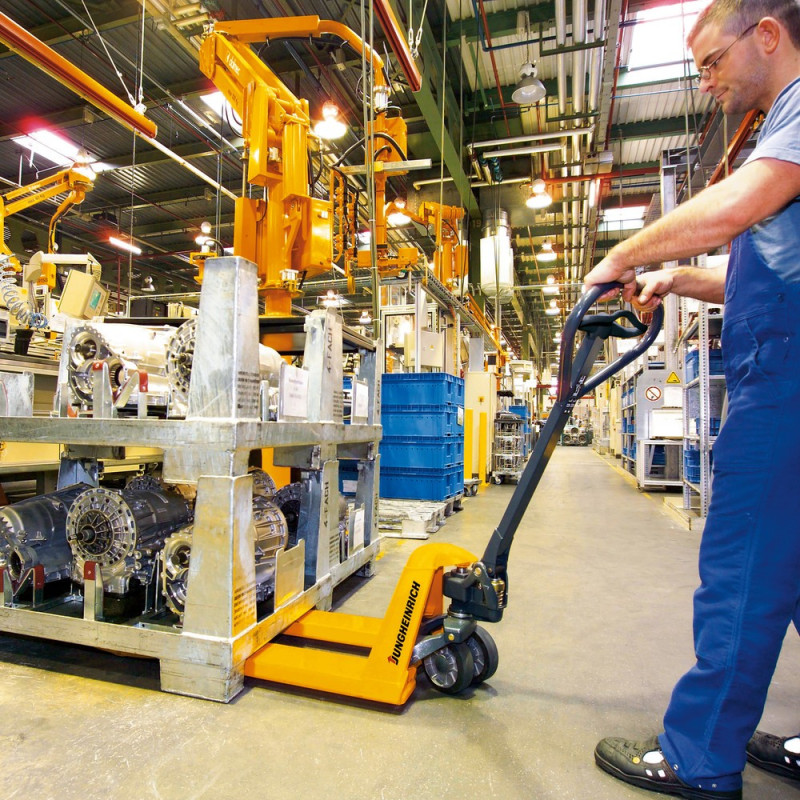

The Jungheinrich AM 22 hand pallet truck with short forks and a capacity of 2200 kg is a high quality solution for working in small spaces. Its short fork length makes it ideal for transport in trucks or vans. Thanks to its small turning circle and short fork length, it offers impressive agility and manoeuvrability in narrow aisles. It can also be used to transport special pallets.

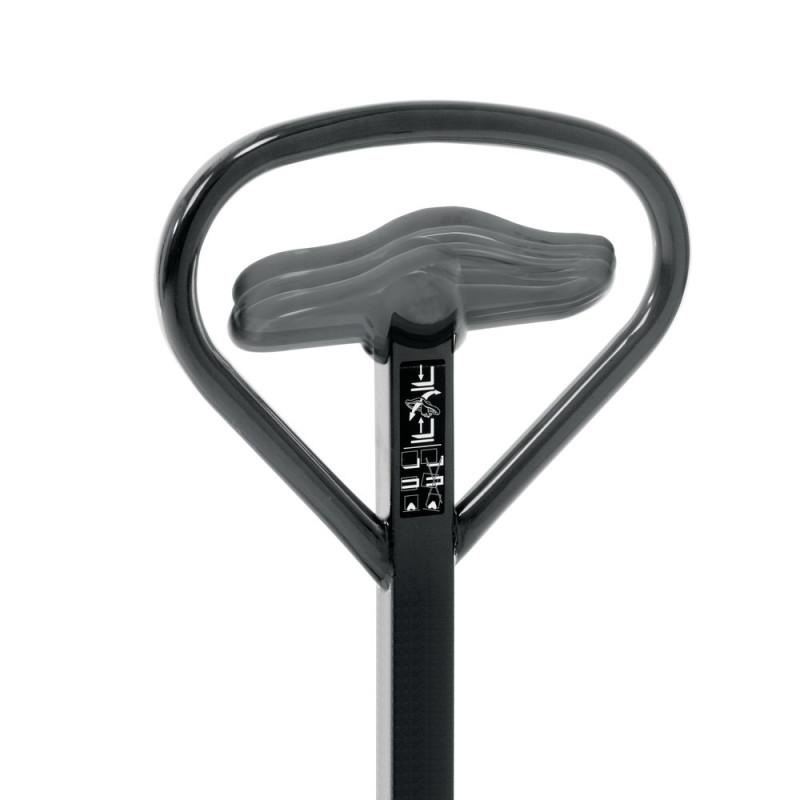

The patented, ergonomic Jungheinrich operating concept allows the tiller to be controlled from any position and is equally well suited to right and left-handed users. All functions can be easily reached with one hand. Thanks to the special lowering valve, sensitive loads can be set down with utmost control and precision.

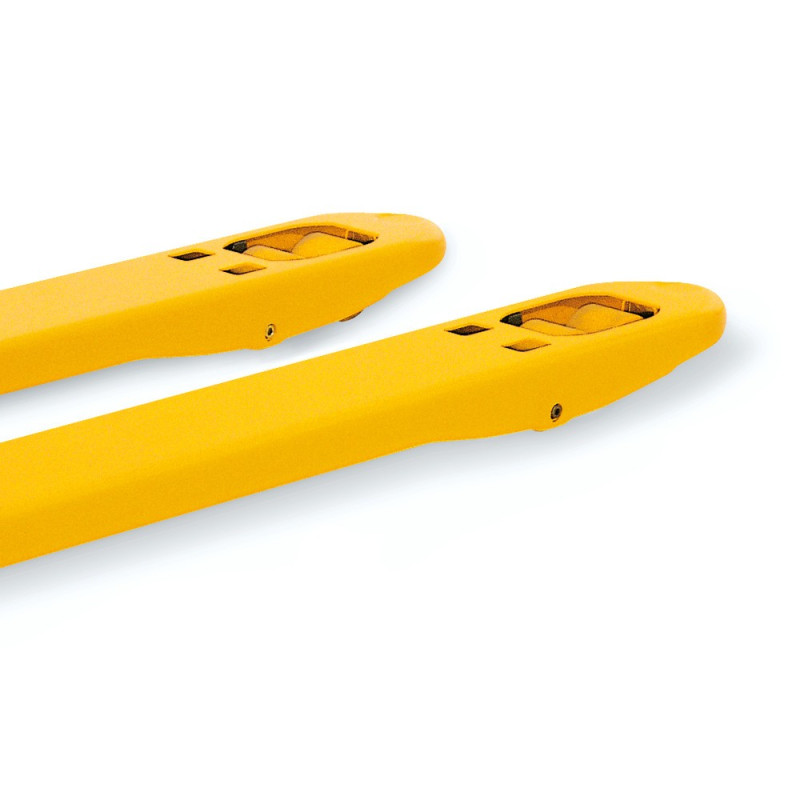

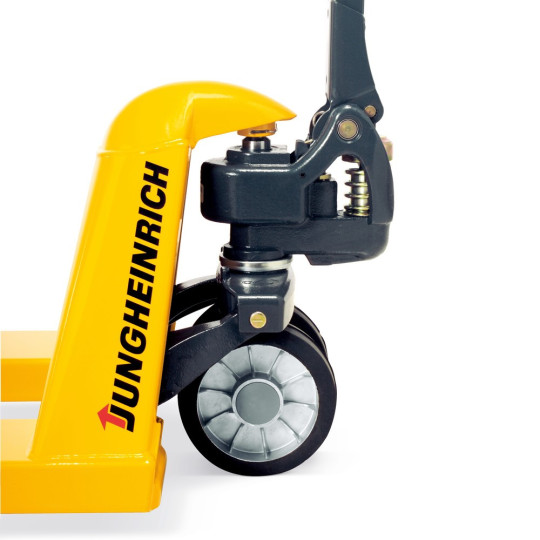

The hand pallet truck does not require any servicing as the connections are lubricated for life and the pump hydraulics are maintenance-free. The outstanding stability and durability of the product is ensured by heavy-duty steel, a sophisticated design and a welded tiller mount. The entry rollers and rounded fork tips facilitate insertion and retraction from the pallet.

The Jungheinrich AM 22 hand pallet truck with a capacity of 2200 kg is offered in short fork lengths ranging from 600 to 950 mm. Depending on the ground conditions and specific application, you can choose between a range of roller materials. You can also opt for single or tandem fork rollers.

Durable, reliable and proven in continuous daily use - the Jungheinrich AM 22 hand pallet truck with short forks and a capacity of 2200 kg is the ideal partner for your everyday pallet transport – even when things get tight. Order the hand pallet truck from our shop in your chosen configuration.

Capacity
2200 kg
Manufacturer
Jungheinrich
Model
AM 22
Fork length
950 mm
Turning radius
1074 mm
Steering wheel diameter
170 mm
Aisle width
1784 mm
Steering wheel width
50 mm
Control panel
Two-handed
Fork width
150 mm
Lowering speed with/without cargo
0,09/0,02 m/s
Drive
Manual
Overall length
1165 mm
Overall width
520 mm
Fork height
53 mm
Operation mode
Hand
Fork roller material
Polyurethane (PU)
Steering wheel material
Solid rubber
Fork roller equipment
Single
Load centre
400 mm
Lift
122 mm
Face of forks length
373 mm
Lift range
83 - 205 mm
Tiller RAL colour
RAL 7016 anthracite grey
Fork roller diameter
82 mm
Fork roller width
62 mm
Tiller surface
Power-coated
Tiller Height
1234 mm
Chassis surface
Power-coated
Route
Short distance
Pallet truck material
Steel
Ground clearance
30 mm
Lift type
Hand pallet trucks
Fork support width
520 mm
Lift height per pump stroke
10 mm
Pump strokes to maximum lift height
12
Rapid lift
No
Freight distance
890 mm
Front wheel size
Ø 170x50 mm
Rear Wheel Size
Ø 82x96 mm
Front crossbar
109 mm
Working width with palette 1000x1200 crossed
1734 mm
Working width with palette 800 x 1200 longways
1784 mm
