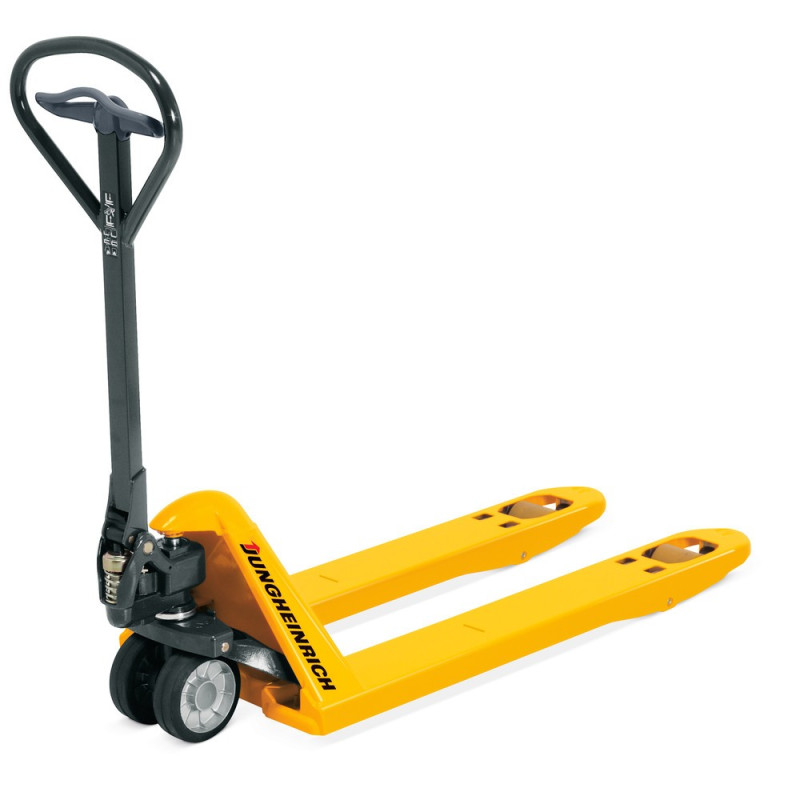

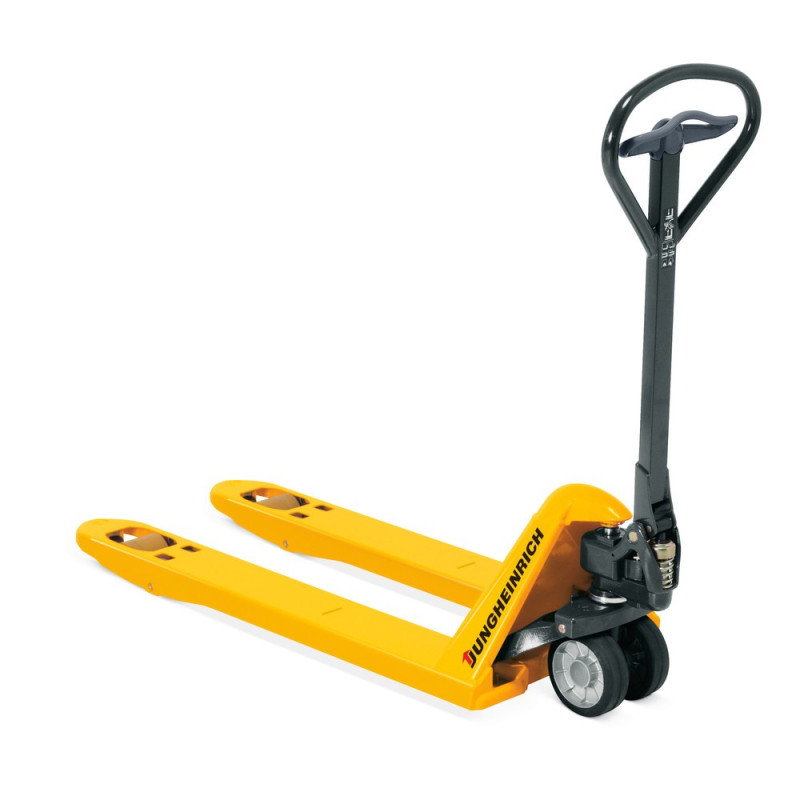

Jungheinrich AM 22 hand pallet truck with quick lift, load capacity 2200 kg, fork length 795 mm, polyurethane.
Jungheinrich AM 22 hand pallet truck with quick lift, load capacity 2200 kg, fork length 795 mm, polyurethane.
Jungheinrich AM 22 hand pallet truck with quick lift, load capacity 2200 kg, fork length 795 mm, polyurethane.
Jungheinrich AM 22 hand pallet truck with quick lift, load capacity 2200 kg, fork length 795 mm, polyurethane.
Jungheinrich AM 22 hand pallet truck with quick lift, load capacity 2200 kg, fork length 795 mm, polyurethane.
Jungheinrich AM 22 hand pallet truck with quick lift, load capacity 2200 kg, fork length 795 mm, polyurethane.
Jungheinrich AM 22 hand pallet truck with quick lift, load capacity 2200 kg, fork length 795 mm, polyurethane.
Jungheinrich AM 22 hand pallet truck with quick lift, load capacity 2200 kg, fork length 795 mm, polyurethane.
Jungheinrich AM 22 hand pallet truck with quick lift, load capacity 2200 kg, fork length 795 mm, polyurethane.
Jungheinrich AM 22 hand pallet truck with quick lift, load capacity 2200 kg, fork length 795 mm, polyurethane.
Jungheinrich AM 22 hand pallet truck with quick lift, load capacity 2200 kg, fork length 795 mm, polyurethane.
Jungheinrich AM 22 hand pallet truck with quick lift, load capacity 2200 kg, fork length 795 mm, polyurethane.
2200 kg
2200 kg
795 mm
795 mm
83 - 205 mm
83 - 205 mm

Description

The Jungheinrich AM 22 hand fork lift with a load capacity of 2200 kg is a robust and reliable premium product for daily pallet handling. It is easy to handle, maintains its service life and is durable.

. Ergonomic and two-handed operation
. Optimized hydraulics for less effort
. Durable thanks to robust materials and stable processing
. Maintenance-free through permanently lubricated connections
. Special lowering valve for particularly sensitive lowering

The Jungheinrich AM 22 hand fork lift with a lifting capacity of 2200 kg is a branded product with proven quality and high-quality equipment.

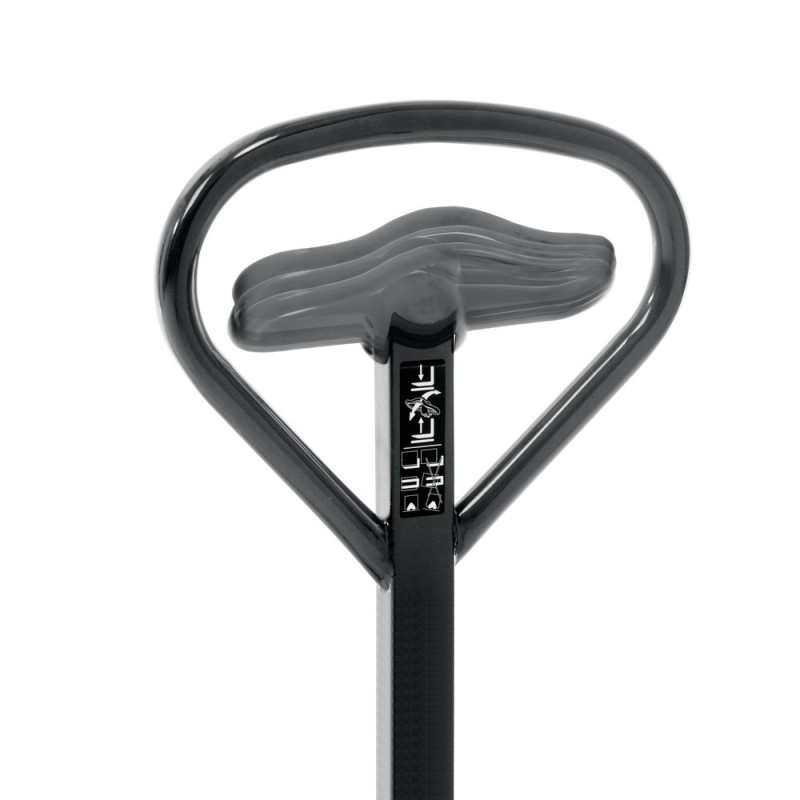

The patented and ergonomic Jungheinrich operating concept allows the drawbar to be operated from any position and is equally suitable for right-handed and left-handers. All functions are easy to operate with one hand. Thanks to the special lowering valve, sensitive loads can be set off in a particularly controlled and sensitive manner.

You can use the hand fork lift truck maintenance-free - thanks to permanently lubricated connections and maintenance-free pump hydraulics.
The maximum stability and longevity is ensured by high-performance steel, recessed shapes and a welded drawbar support.

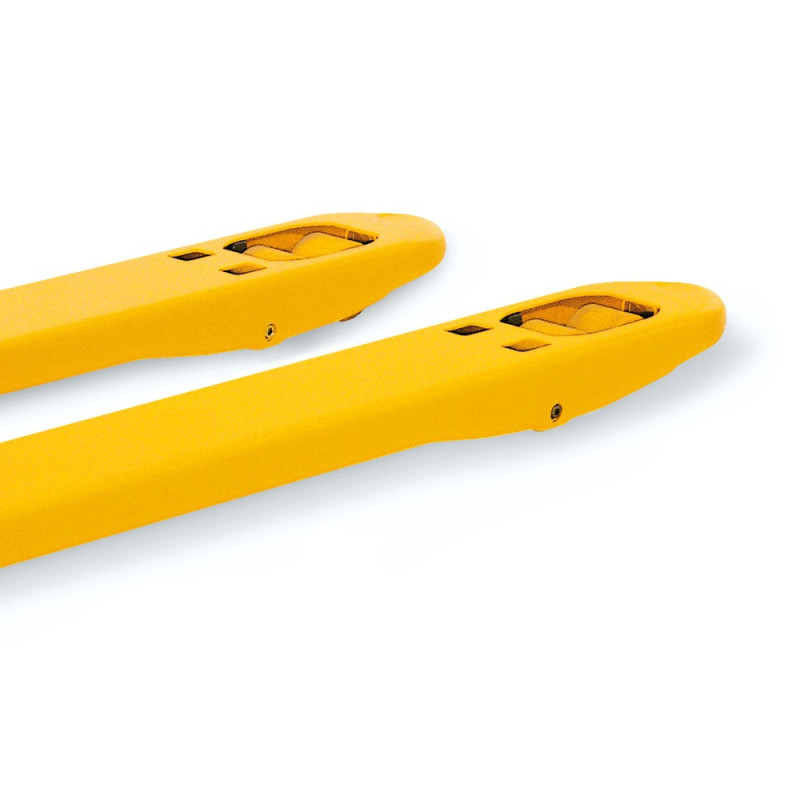

The protected inlet rollers and the rounded fork tips make entry and exit into the pallet particularly easy and comfortable.

The handheld Jungheinrich AM 22 hand truck with 1150 mm boom length and 2200 kg load capacity is offered in various wheel configurations. Depending on the soil conditions and application area, you can choose between different roll materials. In addition, the fork rollers are available in single or tandem configurations.

The Jungheinrich AM 22 hand-operated trolley with a load capacity of 2200 kg and standard fork length of 1150 mm is the ideal partner for daily pallet transport.

Capacity
2200 kg
Manufacturer
Jungheinrich
Model
AM 22
Fork length
795 mm
Turning radius
919 mm
Steering wheel diameter
170 mm
Aisle width
1784 mm
Steering wheel width
50 mm
Control panel
Two-handed
Fork width
150 mm
Lowering speed with/without cargo
0,09/0,02 m/s
Drive
Manual
Overall length
1165 mm
Overall width
520 mm
Fork height
53 mm
Operation mode
Hand
Fork roller material
Polyurethane (PU)
Steering wheel material
Polyurethane (PU)
Fork roller equipment
Single
Load centre
400 mm
Lift
122 mm
Face of forks length
373 mm
Lift range
83 - 205 mm
Tiller RAL colour
RAL 7016 anthracite grey
Fork roller diameter
82 mm
Fork roller width
62 mm
Tiller surface
Power-coated
Tiller Height
1234 mm
Chassis surface
Power-coated
Route
Short distance
Pallet truck material
Steel
Ground clearance
30 mm
Lift type
Hand pallet trucks
Fork support width
520 mm
Lift height per pump stroke
10 mm
Pump strokes to maximum lift height
12
Rapid lift
Yes (up to 120 kg)
Freight distance
890 mm
Front wheel size
Ø 170x50 mm
Rear Wheel Size
Ø 82x96 mm
Front crossbar
109 mm
Working width with palette 1000x1200 crossed
1734 mm
Working width with palette 800 x 1200 longways
1784 mm
  • Professional

    • Jungheinrich AM 22 hand pallet truck with short forks 795 mm, V/GV, SH

    • Ideal for transport in trucks
    • High manoeuvrability thanks to short fork length
    • Ergonomic control element

    €558.00
    Tax excluded
    50432974
    Status: On Backorder

    Delivery: within 2-3 weeks
