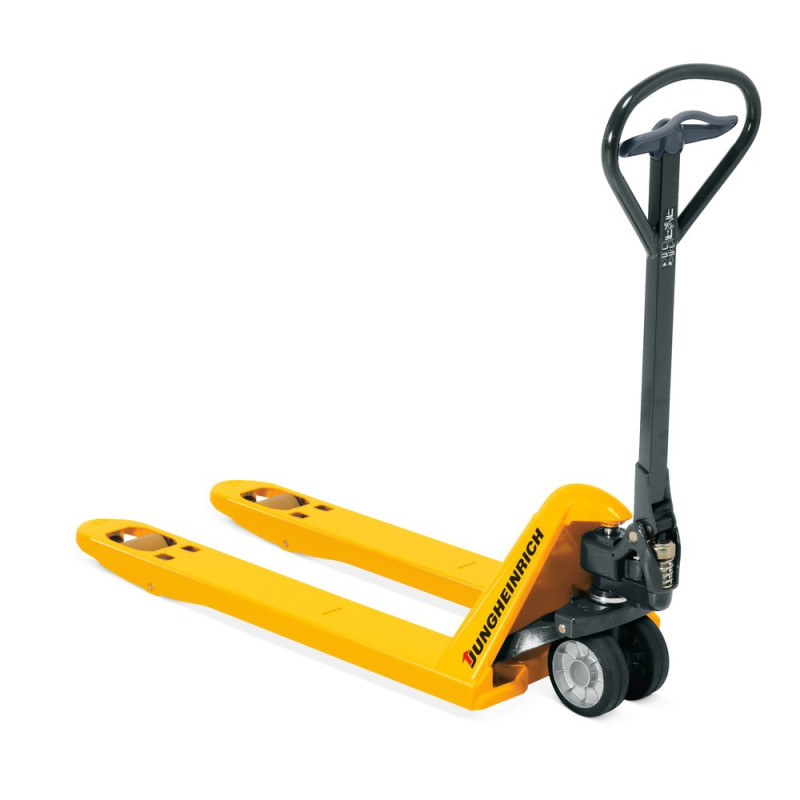

Jungheinrich AM 22 hand pallet truck, load capacity 2200 kg, fork length 795 mm, solid rubber / polyurethane
Jungheinrich AM 22 hand pallet truck, load capacity 2200 kg, fork length 795 mm, solid rubber / polyurethane
Jungheinrich AM 22 hand pallet truck, load capacity 2200 kg, fork length 795 mm, solid rubber / polyurethane
Jungheinrich AM 22 hand pallet truck, load capacity 2200 kg, fork length 795 mm, solid rubber / polyurethane
Jungheinrich AM 22 hand pallet truck, load capacity 2200 kg, fork length 795 mm, solid rubber / polyurethane
Jungheinrich AM 22 hand pallet truck, load capacity 2200 kg, fork length 795 mm, solid rubber / polyurethane
Jungheinrich AM 22 hand pallet truck, load capacity 2200 kg, fork length 795 mm, solid rubber / polyurethane
Jungheinrich AM 22 hand pallet truck, load capacity 2200 kg, fork length 795 mm, solid rubber / polyurethane
Jungheinrich AM 22 hand pallet truck, load capacity 2200 kg, fork length 795 mm, solid rubber / polyurethane
Jungheinrich AM 22 hand pallet truck, load capacity 2200 kg, fork length 795 mm, solid rubber / polyurethane
Jungheinrich AM 22 hand pallet truck, load capacity 2200 kg, fork length 795 mm, solid rubber / polyurethane
Jungheinrich AM 22 hand pallet truck, load capacity 2200 kg, fork length 795 mm, solid rubber / polyurethane
2200 kg
2200 kg
795 mm
795 mm
83 - 205 mm
83 - 205 mm

Description

The Jungheinrich AM 22 hand pallet truck with quick lift and short forks is a premium product for transporting such items as Euro, display, half and quarter pallets. It is characterised by its enhanced efficiency and manoeuvrability. Thanks to the quick lift function, you can increase your throughput while minimising the required effort.

  • The professional solution: long-lasting peak performance thanks to the use of high-quality materials
  • For continuous daily use and demanding transport tasks in retail, production, industry, warehouses and shipping
  • Quick lift (up to 120 kg)
  • Short and agile
  • Maintenance-free use: no regreasing required
  • Entry rollers for easy pallet pick-up and smooth travel over thresholds
  • Save time and energy with tried-and-tested Jungheinrich premium quality

The Jungheinrich AM 22 hand pallet truck with quick lift and short forks is well known for its outstanding quality, long service life and maintenance-free operation. It is an ideal tool for transporting Euro, display, half and quarter pallets. Thanks to the small turning circle, short headlength and 105° steering angle on both sides, the pallet truck offers maximum agility and manoeuvrability in narrow aisles. It is also ideal for use on trucks. Thanks to the quick lift function (up to 120 kg), Euro pallets can be lifted clear of the ground with just three pump strokes. The maximum lift height is reached after just five strokes. This allows you to optimise the workflows of your in-house goods transport.

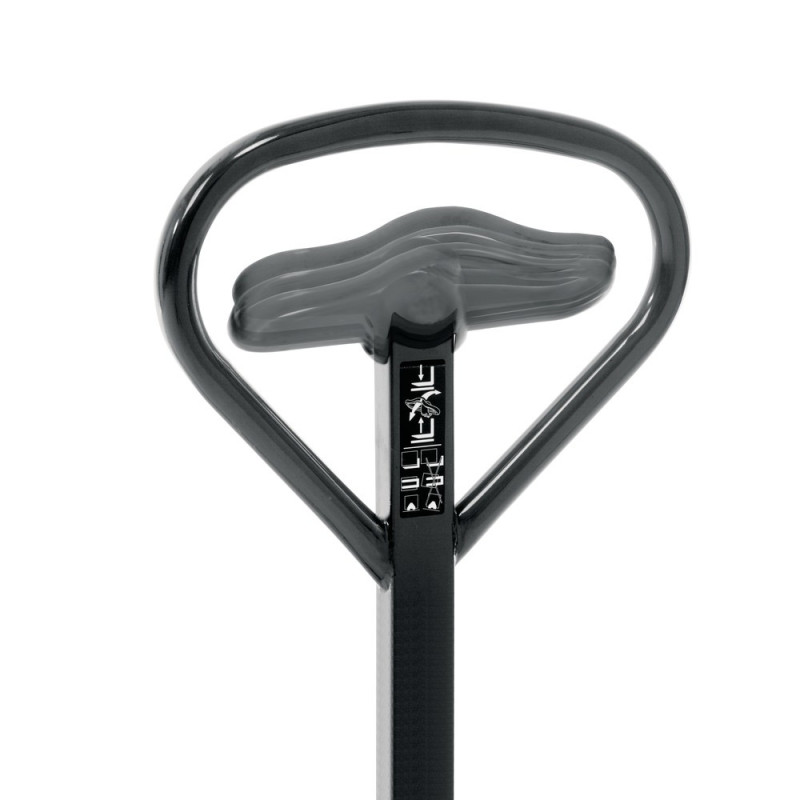

Thanks to the special lowering valve, loads can be set down with utmost control and precision. The hand pallet truck is operated via an ergonomic tiller that is equally well suited to right and left-handed users. The covered entry rollers and rounded fork tips make insertion and retraction from the pallet particularly easy.

The joints and connecting pieces feature lifetime lubrication, meaning that you do not have to perform any maintenance.

The durable hand pallet truck is made from extremely tough steel with a powder-coated surface and welded tiller mounting. In addition, the wheel bushings and joints are chromated to ensure quiet running and a long service life.

The Jungheinrich AM 22 hand pallet truck with quick lift, short forks and 2,200 kg capacity is available with different fork lengths. Depending on the ground conditions and specific application, you can choose between different steering castors and fork rollers. You can also opt for single or tandem fork rollers.

Benefit from a premium quality product by ordering the Jungheinrich AM 22 hand pallet truck with quick lift, short forks and a capacity of 2,200 kg from our shop.

Capacity
2200 kg
Manufacturer
Jungheinrich
Model
AM 22
Fork length
795 mm
Turning radius
919 mm
Steering wheel diameter
170 mm
Aisle width
1784 mm
Steering wheel width
50 mm
Control panel
Two-handed
Fork width
150 mm
Lowering speed with/without cargo
0,09/0,02 m/s
Drive
Manual
Overall length
1165 mm
Overall width
520 mm
Fork height
53 mm
Operation mode
Hand
Fork roller material
Polyurethane (PU)
Steering wheel material
Solid rubber
Fork roller equipment
Single
Load centre
400 mm
Lift
122 mm
Face of forks length
373 mm
Lift range
83 - 205 mm
Tiller RAL colour
RAL 7016 anthracite grey
Fork roller diameter
82 mm
Fork roller width
62 mm
Tiller surface
Power-coated
Tiller Height
1234 mm
Chassis surface
Power-coated
Route
Short distance
Pallet truck material
Steel
Ground clearance
30 mm
Lift type
Hand pallet trucks
Fork support width
520 mm
Lift height per pump stroke
10 mm
Pump strokes to maximum lift height
12
Rapid lift
No
Yes (up to 120 kg)
Freight distance
890 mm
Front wheel size
Ø 170x50 mm
Rear Wheel Size
Ø 82x96 mm
Front crossbar
109 mm
Working width with palette 1000x1200 crossed
1734 mm
Working width with palette 800 x 1200 longways
1784 mm
  • Professional

    • Jungheinrich AM 22 hand pallet truck with short forks 795 mm, C/GV, SH

    Efficient and agile

    • Ideal for transport in trucks
    • High manoeuvrability thanks to short fork length
    • Ergonomic control element

    €533.00
    €506.35 You Save 5%
    Tax excluded
    Limited offer until: 2026/03/01 Days remaining: 38
    50432377
    Status: On Backorder

    Delivery: within 2-3 weeks
