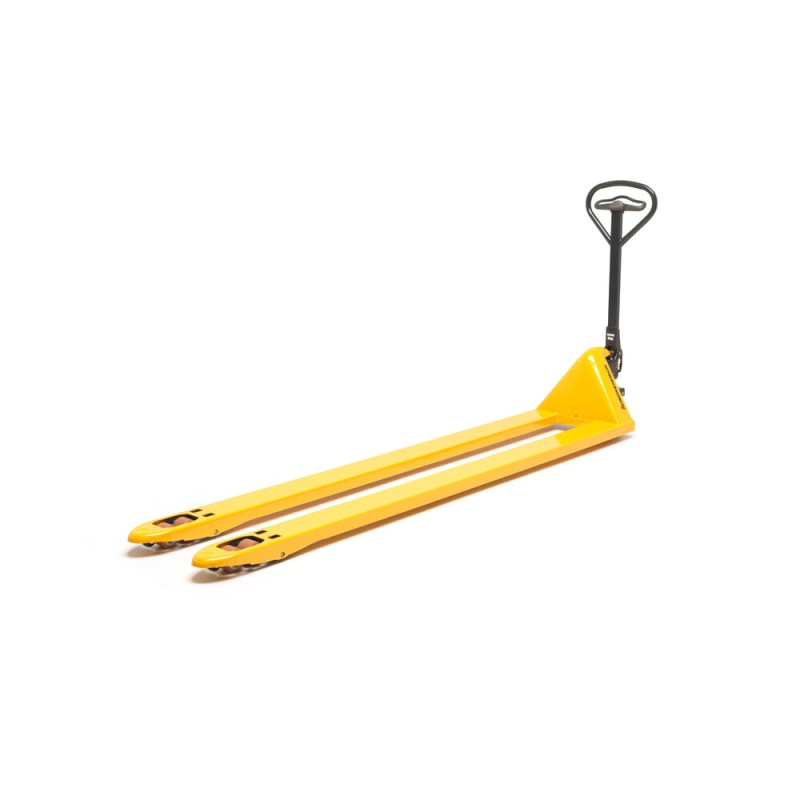

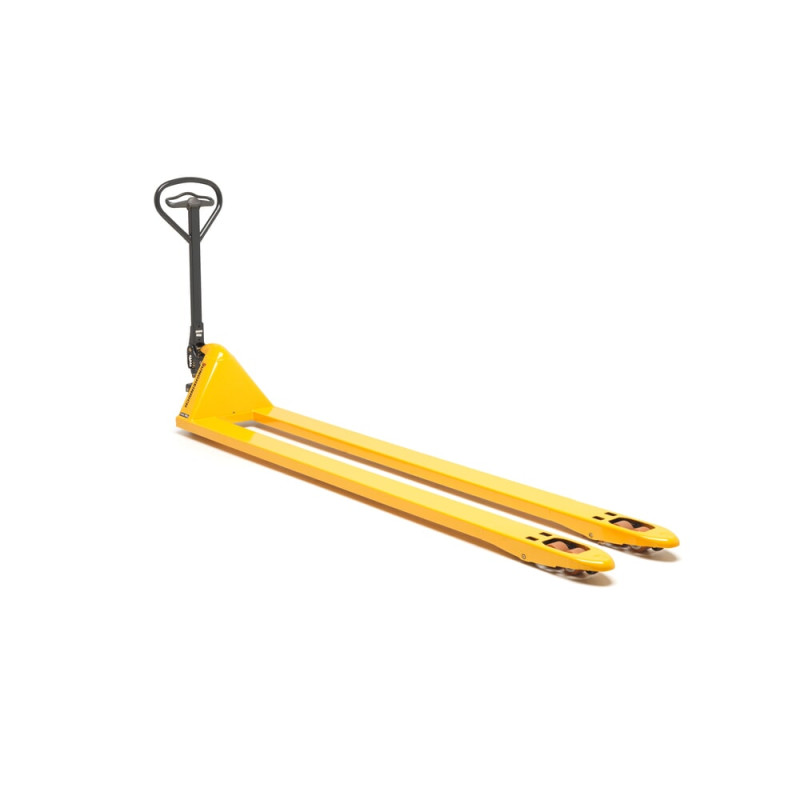

Jungheinrich AM 22 hand pallet truck with 1600 mm long forks
Jungheinrich AM 22 hand pallet truck with 1600 mm long forks
Jungheinrich AM 22 hand pallet truck with 1600 mm long forks
Jungheinrich AM 22 hand pallet truck with 1600 mm long forks
Jungheinrich AM 22 hand pallet truck with 1600 mm long forks
Jungheinrich AM 22 hand pallet truck with 1600 mm long forks
Jungheinrich AM 22 hand pallet truck with 1600 mm long forks
Jungheinrich AM 22 hand pallet truck with 1600 mm long forks
Jungheinrich AM 22 hand pallet truck with 1600 mm long forks
Jungheinrich AM 22 hand pallet truck with 1600 mm long forks
Jungheinrich AM 22 hand pallet truck with 1600 mm long forks
Jungheinrich AM 22 hand pallet truck with 1600 mm long forks
Jungheinrich AM 22 hand pallet truck with 1600 mm long forks
Jungheinrich AM 22 hand pallet truck with 1600 mm long forks
Jungheinrich AM 22 hand pallet truck with 1600 mm long forks
Jungheinrich AM 22 hand pallet truck with 1600 mm long forks
1700 kg
1700 kg
1600 mm
1600 mm
83 - 205 mm
83 - 205 mm

Description

The hand pallet truck for long goods is a premium product delivering proven Jungheinrich quality for continuous, regular use in your operation. Quiet operation and maintenance-free construction make it an ideal transport aid for custom-length goods.

  • The professional solution: long-lasting peak performance thanks to the use of high-quality materials
  • For continuous daily use and demanding transport tasks in retail, production, industry, warehouses and shipping
  • Extra-long forks in different lengths for all applications
  • Optimised hydraulics and smooth-running wheels for effortless use
  • Quiet operation and maximum stability thanks to tandem fork rollers
  • Ergonomic tiller suitable for both right and left-handed users
  • Entry rollers for easy pallet pick-up

Jungheinrich AM 22 hand pallet truck - premium quality for long goods transport

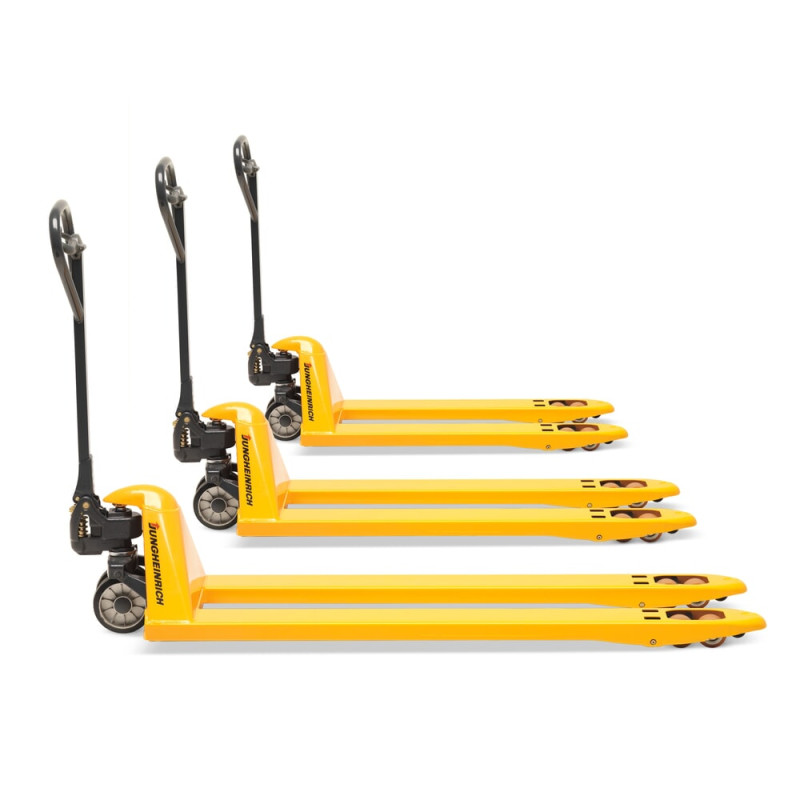

If you frequently transport long goods in your warehouse, the long fork pallet truck from Jungheinrich is the ideal tool for your needs. To allow you to transport particularly long goods or multiple pallets simultaneously, the long fork pallet trucks are available in different fork lengths and with varying capacities. Thanks to the short headlength, the hand pallet truck remains highly agile and manoeuvrable despite its long forks.

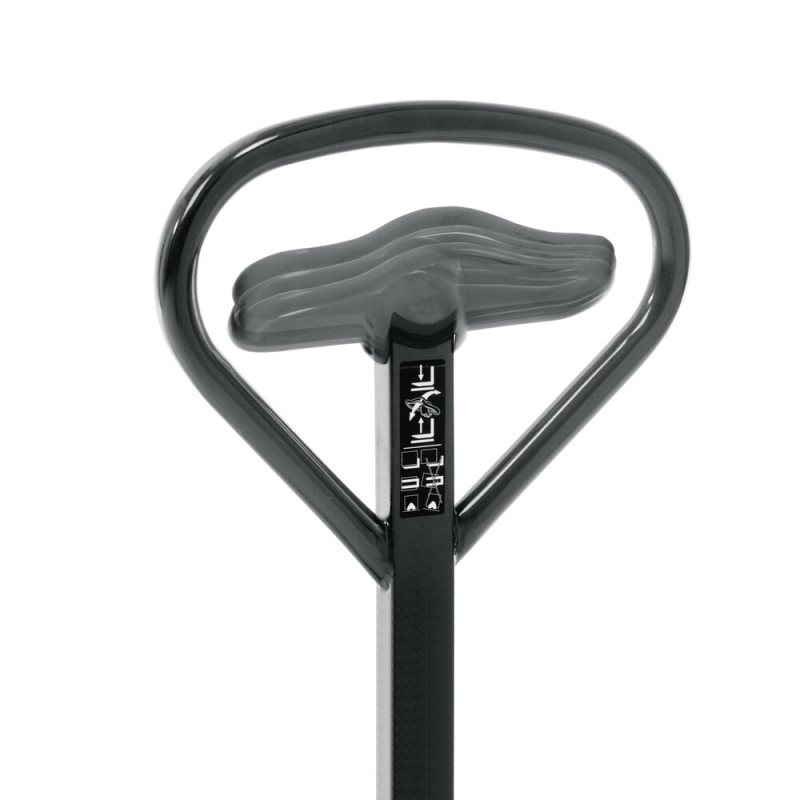

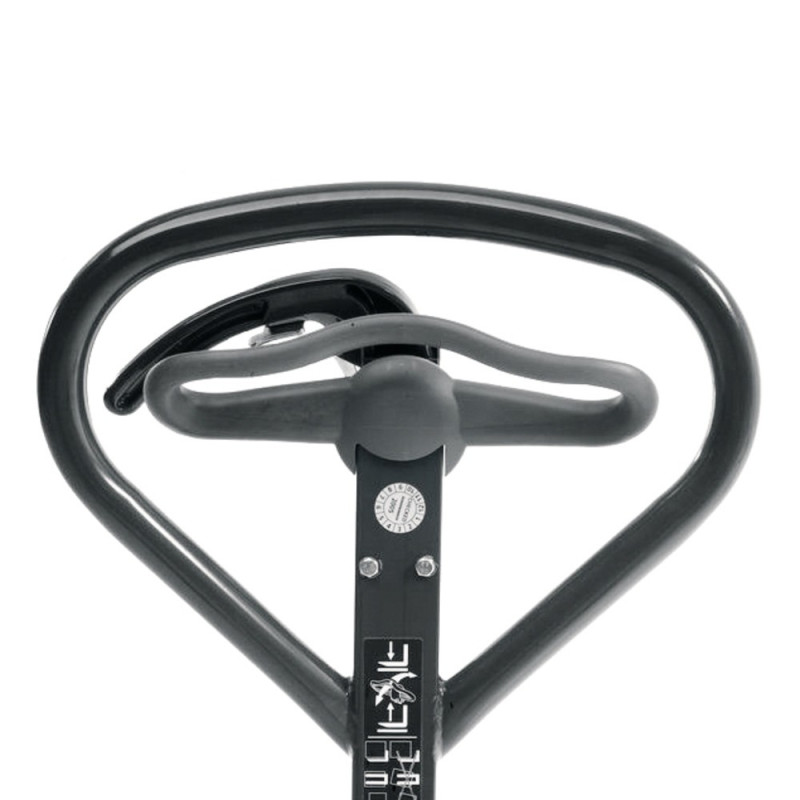

The patented, ergonomic Jungheinrich operating concept allows the tiller to be controlled from any position and is equally well suited to right and left-handed users. Thanks to the special lowering valve, loads can be set down with utmost control and precision.

The Jungheinrich AM 22 hand pallet truck impresses with its outstanding stability and long service life. This is ensured by thicker forks, a sophisticated design, welded tiller mounting and harder steel. The steel construction is torsion-free, extremely hard-wearing and retains its shape even under the heaviest loads. The wheel bushings are chromated and all connections are lubricated for life to ensure extremely quiet operation and maintenance-free use.

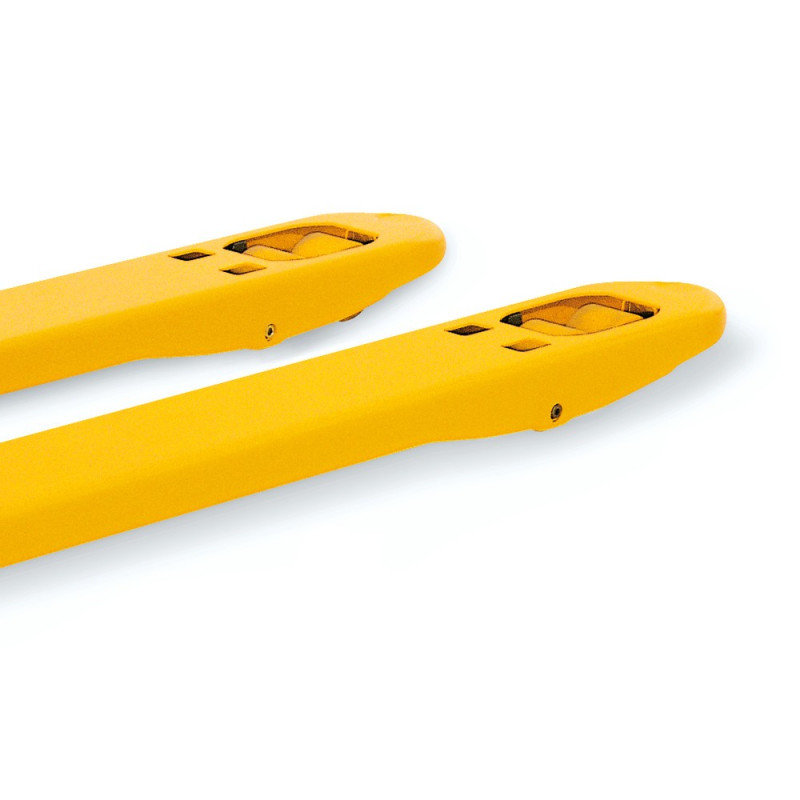

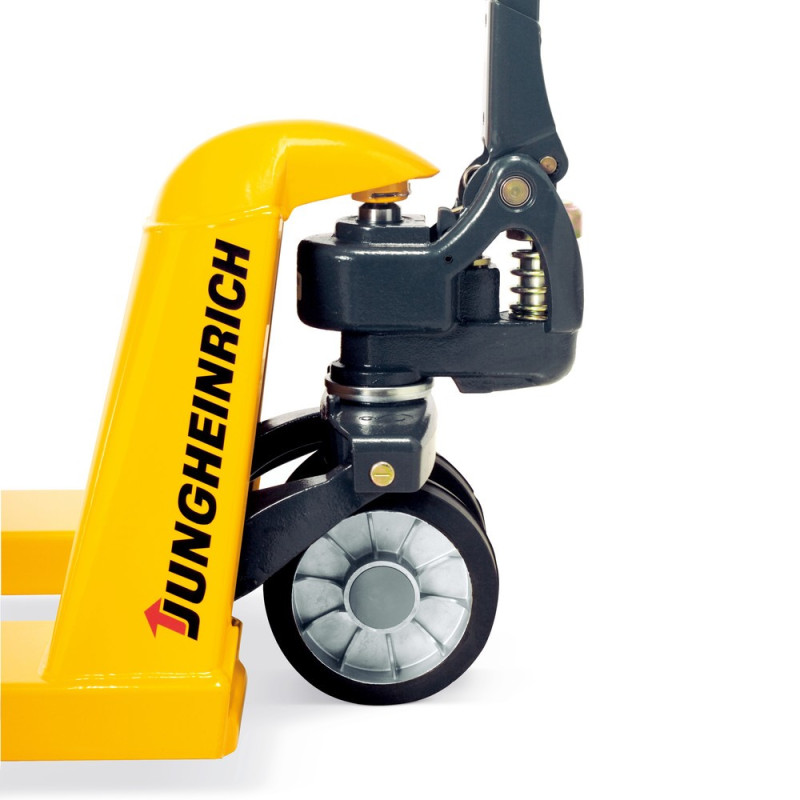

The solid rubber steering castors combined with tandem fork rollers made from polyurethane ensure high-quality, comfortable and low-noise travel. Tandem rollers offer utmost stability, especially on uneven floors, and minimise point loading. Rounded fork tips and entry rollers underneath the forks make for easy insertion into the pallets.

Whenever you are handling long goods, the AM 22 hand pallet truck with extra long forks is the ideal tool for continuous everyday use. Order the long fork pallet truck from our shop in your chosen configuration.

Capacity
1700 kg
Manufacturer
Jungheinrich
Model
AM 22
Fork length
1600 mm
Turning radius
1724 mm
Steering wheel diameter
170 mm
Steering wheel width
50 mm
Control panel
Two-handed
Fork width
150 mm
Lowering speed with/without cargo
0,09/0,02 m/s
Drive
Manual
Overall length
1973 mm
Overall width
520 mm
Fork height
53 mm
Fork roller material
Polyurethane (PU)
Steering wheel material
Solid rubber
Fork roller equipment
Tandem
Load centre
800 mm
Lift
122 mm
Face of forks length
373 mm
Lift range
83 - 205 mm
Tiller RAL colour
RAL 7016 anthracite grey
Fork roller diameter
82 mm
Fork roller width
62 mm
Tiller surface
Power-coated
Tiller Height
1234 mm
Chassis surface
Power-coated
Route
Short distance
Pallet truck material
Steel
Ground clearance
30 mm
Lift type
Hand pallet trucks
Fork support width
520 mm
Lift height per pump stroke
10 mm
Pump strokes to maximum lift height
12
Rapid lift
No
Temperature range
-10 - 40 °C
  • Professional

    • Jungheinrich AM 22 hand pallet truck with 1600 mm long forks

    The premium product with extra long forks for load carriers with special dimensions or simultaneous transport of multiple pallets

    • The professional solution: long-lasting peak performance thanks to the use of high-quality materials
    • For continuous daily use and demanding transport tasks in retail, production, industry, warehouses and shipping
    • 1600 mm long forks lengths for all applications

    €798.00
    Tax excluded
    51078162
    Status: On Backorder

    Delivery: within 2-4 weeks
