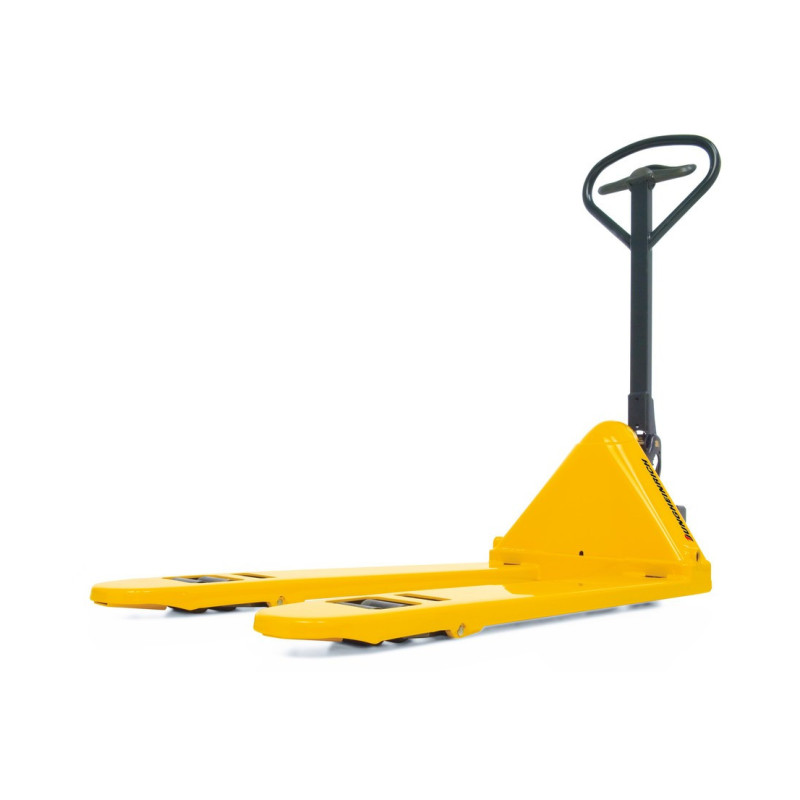

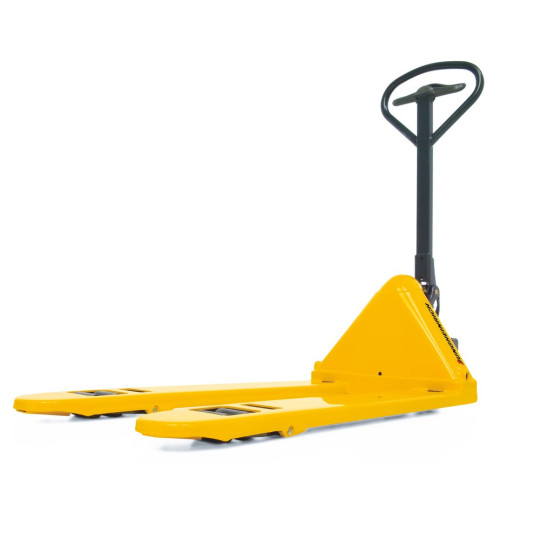

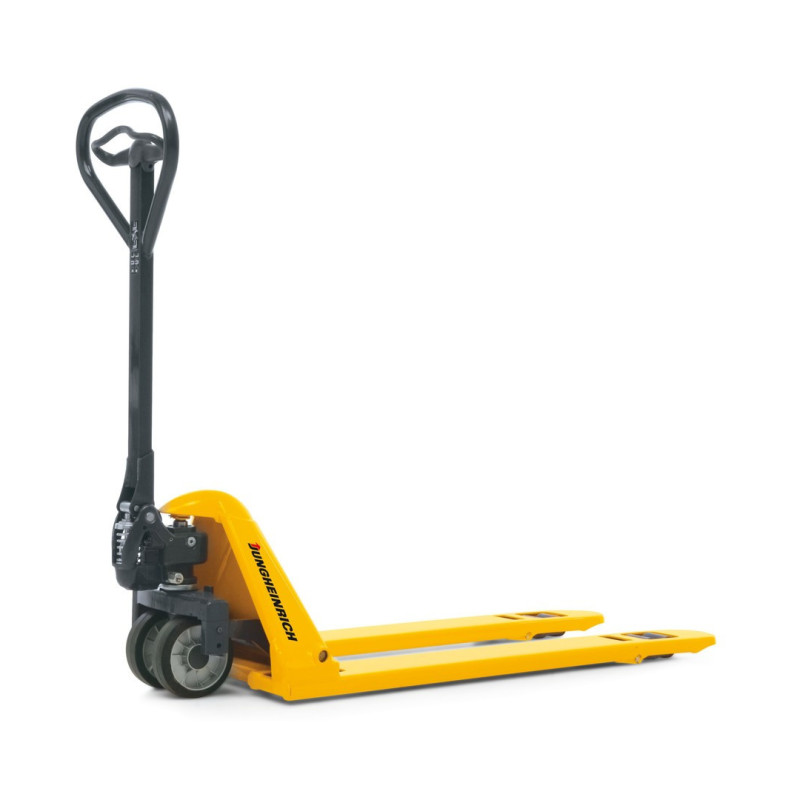

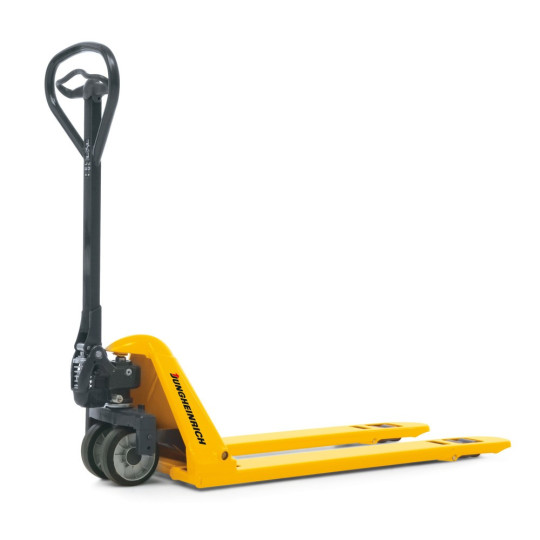

Jungheinrich AM 15l low-profile pallet truck
Jungheinrich AM 15l low-profile pallet truck
Jungheinrich AM 15l low-profile pallet truck
Jungheinrich AM 15l low-profile pallet truck
1500 kg
1500 kg
1150 mm
1150 mm
51 - 171 mm
51 - 171 mm

Description

The AM 15l low-profile pallet truck – Jungheinrich quality for low entry heights

The Jungheinrich AM 15l low-profile pallet truck with 1,150 mm fork length enables effortless lifting of one-way and display pallets as well as other special formats. Its low fork height of just 51 mm makes it ideal for all flat pallets with a low entry height.
The short 380 mm headlength, excellent steering properties and extremely quiet operation enable safe and straightforward use for a variety of applications. The AM 15l can be easily manoeuvred in narrow spaces and winding aisles. The pallet truck is operated via an ergonomic tiller, which is characterised by its smooth operation and accurate steering ability. The control element is equally well suited to both left and right-handed users. Thanks to the special lowering valve, loads weighing up to 1,500 kg can be set down with utmost control and precision. The quick lift function up to 120 kg saves valuable time and energy as the pallet can be lifted clear of the ground with just a few pump strokes. The steering castors are made from solid rubber, which is gentle on the floor and ensures quiet running, while the tandem fork rollers are made from robust nylon. Loads can be picked up with ease thanks to the convenient entry rollers. The finish of the Jungheinrich hand pallet truck satisfies the highest quality standards. The forks are made from extremely tough steel, which is powder-coated for lasting corrosion protection. The tiller mounting is welded for maximum durability.

When it comes to transporting pallets with a low entry height, you can count on this durable, high-quality product from Jungheinrich. Order the Jungheinrich AM 15l hand pallet truck with flat forks and 1,500 kg capacity from our shop.

Capacity
1500 kg
Manufacturer
Jungheinrich
Model
AM 15l
Fork length
1150 mm
Turning radius
1274 mm
Steering wheel diameter
170 mm
Aisle width
1784 mm
Steering wheel width
50 mm
Control panel
Two-handed
Fork width
150 mm
Lowering speed with/without cargo
0,09/0,02 m/s
Drive
Manual
Overall length
1530 mm
Overall width
520 mm
Fork height
38 mm
Operation mode
Hand
Fork roller material
Nylon
Fork roller equipment
Tandem
Load centre
600 mm
Lift
120 mm
Face of forks length
380 mm
Lift range
51 - 171 mm
Tiller RAL colour
RAL 7016 anthracite grey
Fork roller diameter
50 mm
Fork roller width
70 mm
Tiller surface
Power-coated
Tiller Height
1237 mm
Chassis surface
Power-coated
Route
Short distance
Pallet truck material
Steel
Ground clearance
13 mm
Chassis RAL color
Jungheinrich yellow
Lift type
Hand pallet trucks
Fork support width
520 mm
Lift height per pump stroke
10 mm
Rapid lift
Yes (up to 120 kg)
  • Professional

    • Jungheinrich AM 15l low-profile pallet truck

    Low fork height for transporting special pallets

    • Low entry height of just 51 mm
    • Quick lift (up to 120 kg)
    • Connections feature lifetime lubrication for maintenance-free use

    €881.00
    Tax excluded
    51059206
    Status: On Backorder

    Delivery: within 2-4 weeks
