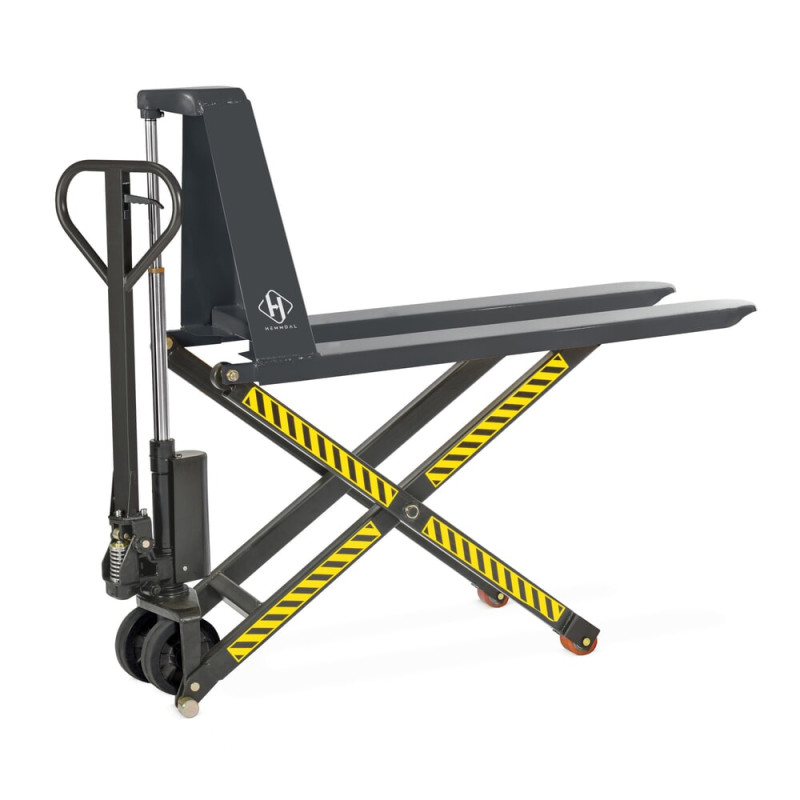

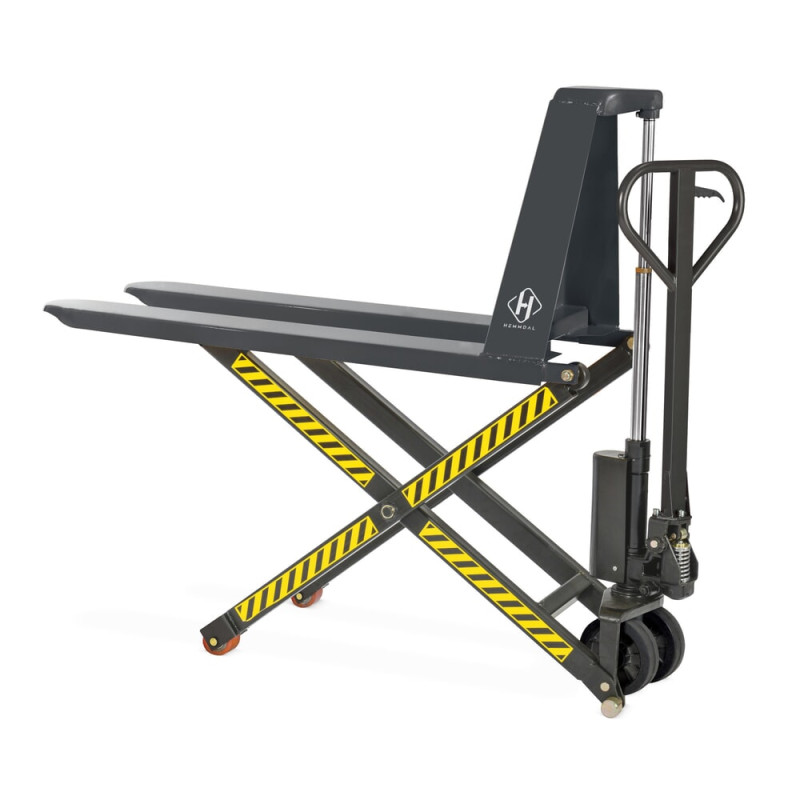

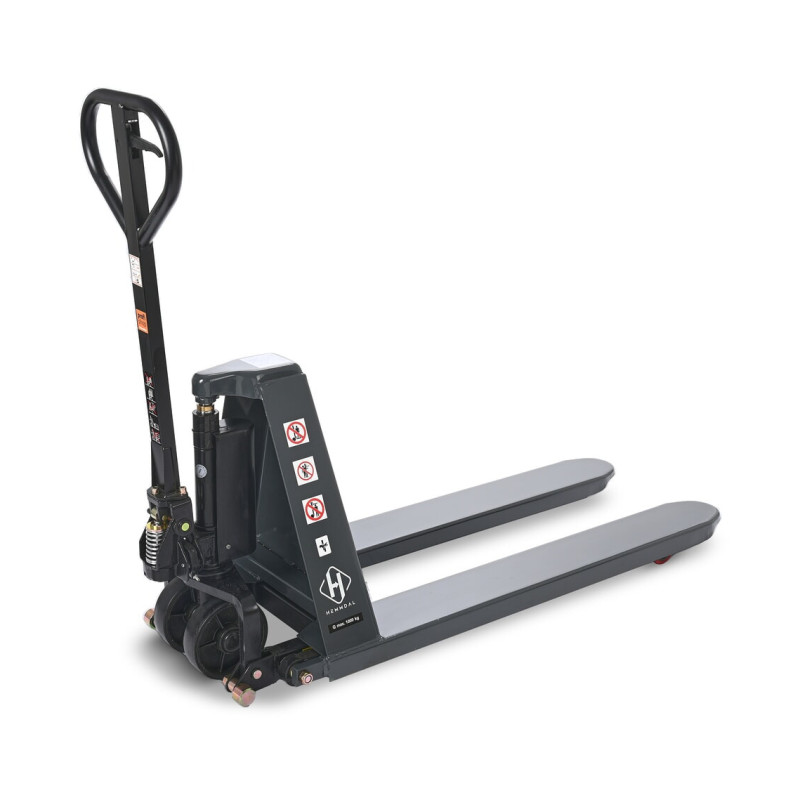

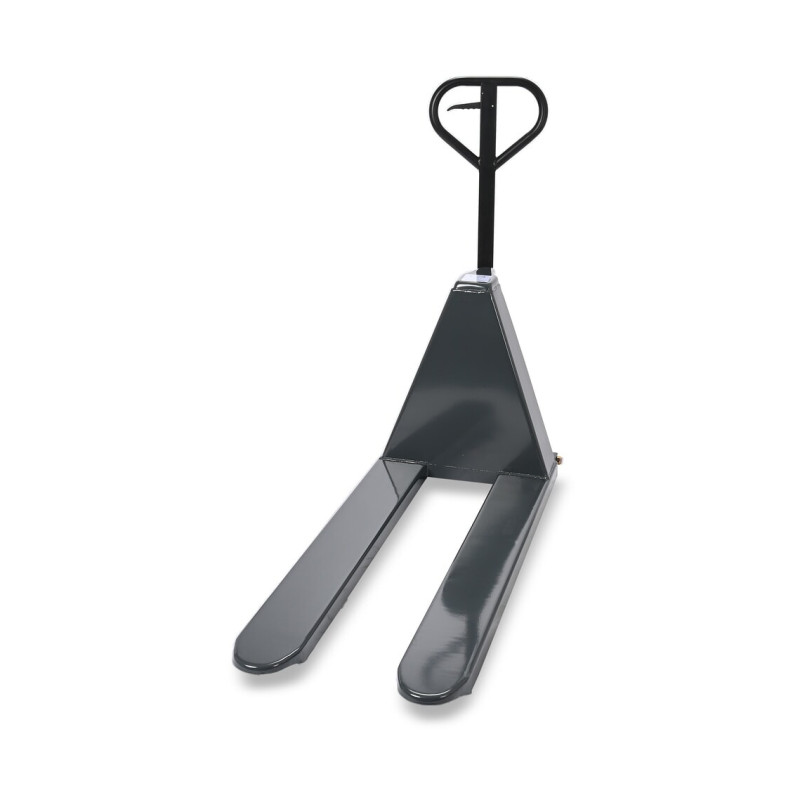

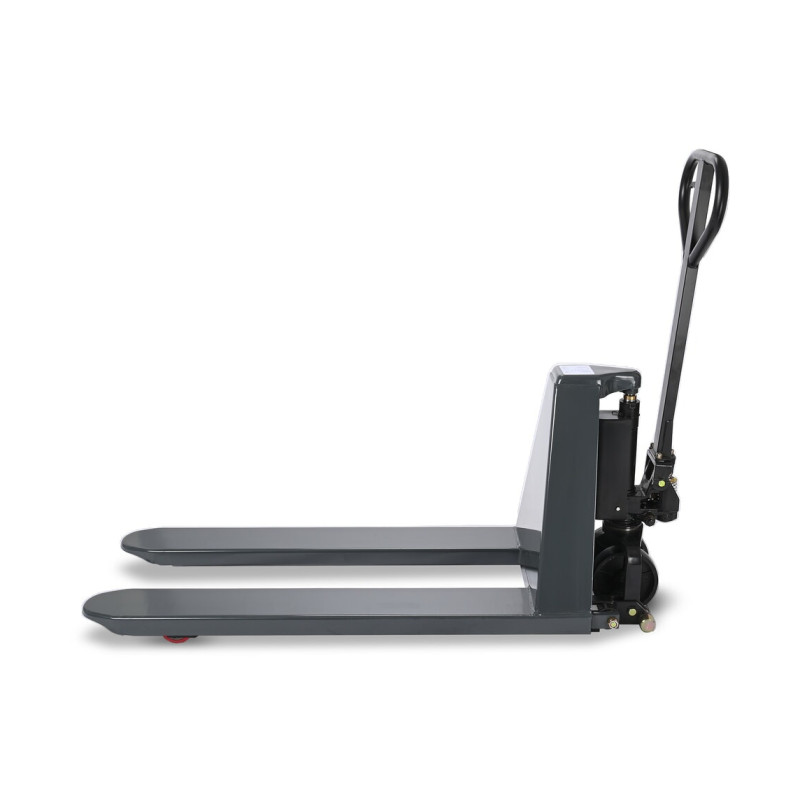

HEMMDAL PTM 1.0 Scissor pallet truck with scissor lift
HEMMDAL PTM 1.0 Scissor pallet truck with scissor lift
HEMMDAL PTM 1.0 Scissor pallet truck with scissor lift
HEMMDAL PTM 1.0 Scissor pallet truck with scissor lift
1000 kg
1000 kg
1150 mm
1150 mm
85 - 800 mm
85 - 800 mm

Description

The HEMMDAL PTM 1.0 Scissor pallet truck with scissor lift offers reliable quality at an affordable price. It enables manual lifting, moving and provisioning of loads weighing up to 1000 kg. The HEMMDAL scissor lift pallet truck can be used as a hand pallet truck, lift table, provisioning table or workbench, making it a highly versatile tool that supports ergonomic working at a fatigue-free height.

  • Load capacity: 1000 kg
  • Fork length: 1150 mm
  • Can be used as a hand pallet truck or lift table
  • 800 mm lift height for ergonomic working
  • Automatic fixation as of a lift height of 400 mm
  • Side supports for optimal stability
  • Two-cylinder telescopic hydraulics

Affordable entry-level model offering reliable quality for back-friendly working

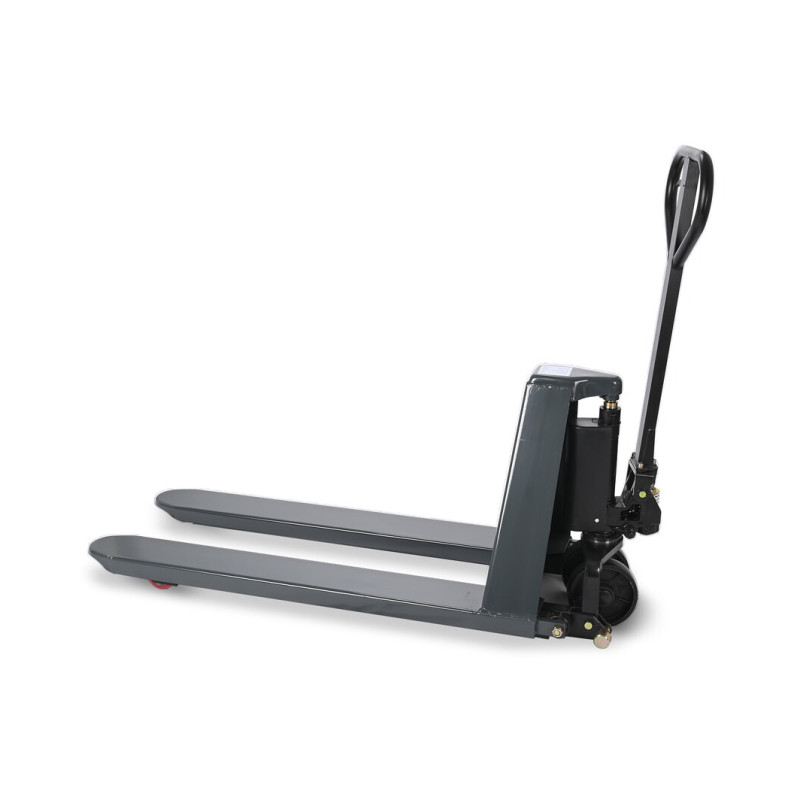

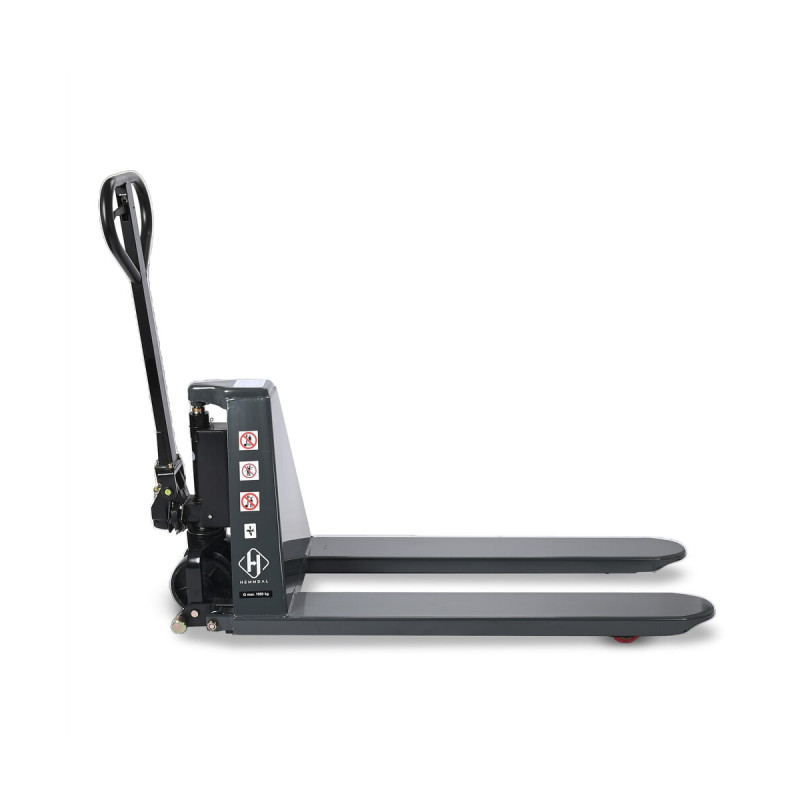

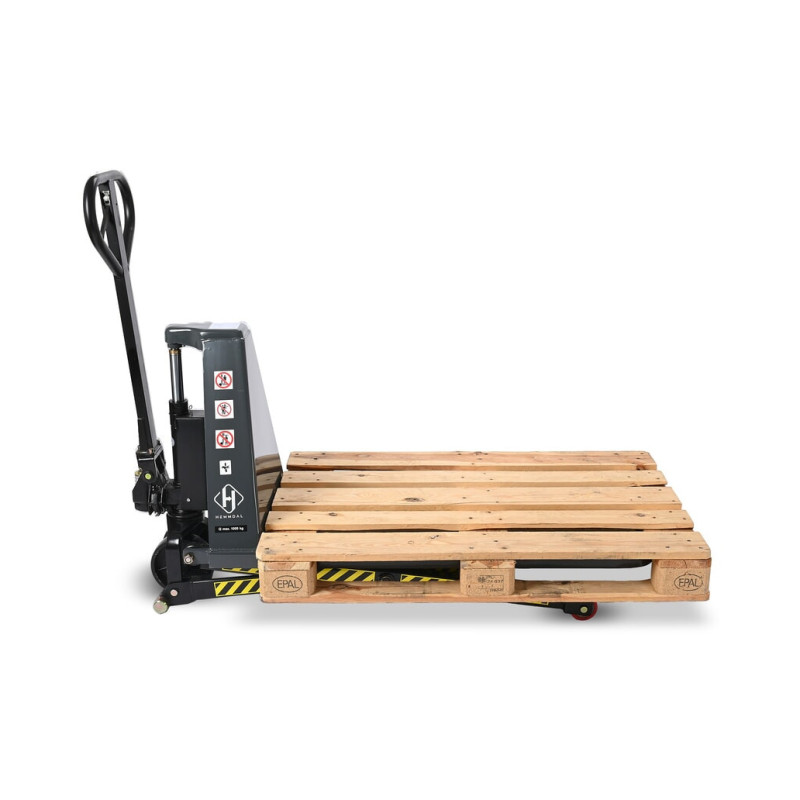

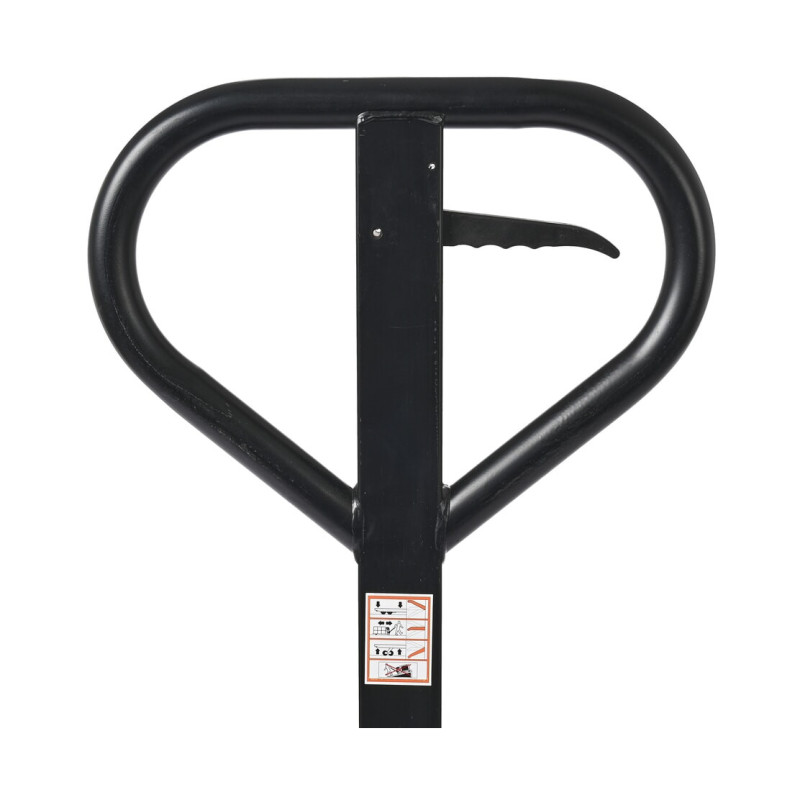

The HEMMDAL PTM 1.0 Scissor pallet truck with scissor lift impresses as an affordable entry-level model offering reliable quality. You manually lift and move loads weighing up to 1000 kg and lower them at the destination with fully variable precision via the hand lever. The HEMMDAL scissor lift pallet truck represents a versatile combination of hand pallet truck, lift table, workbench and provisioning table. Whether in warehouses or factories, the standard fork length of 1150 mm makes the PTM 1.0 Scissor ideal for the occasional transport of Euro pallets, mesh boxes and other load carriers.

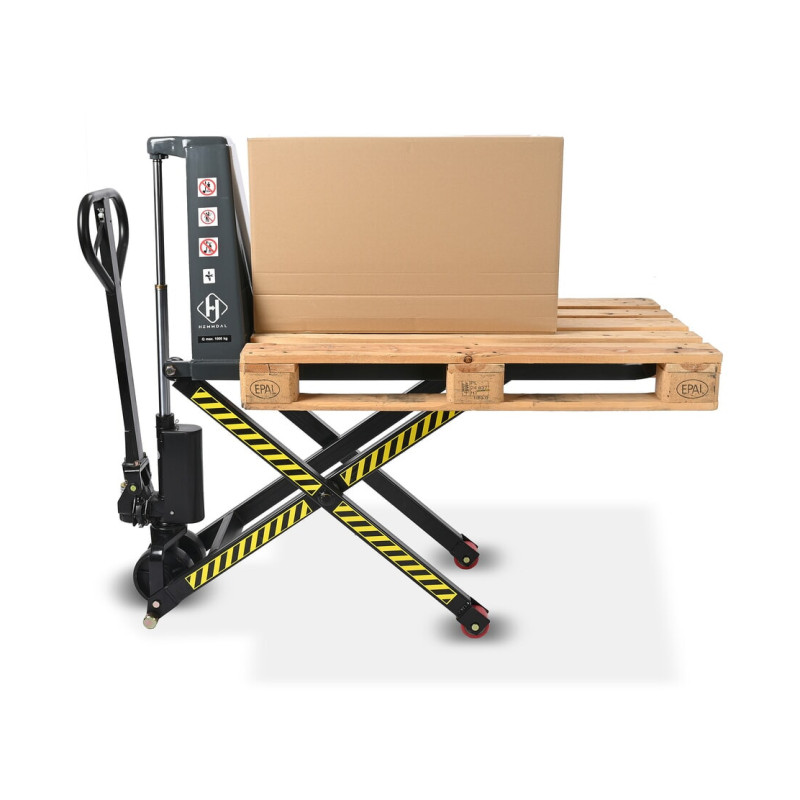

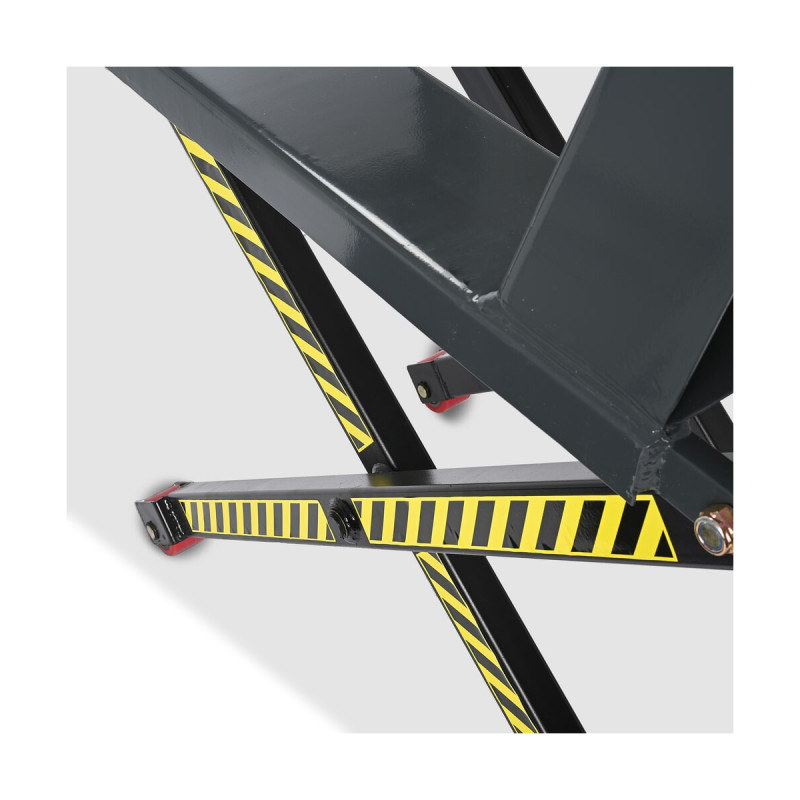

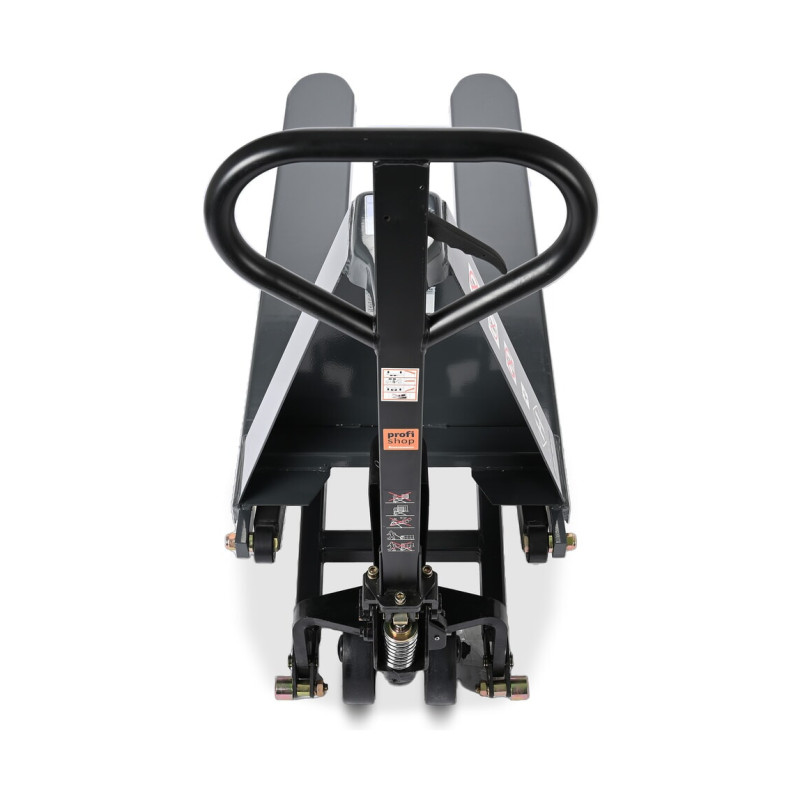

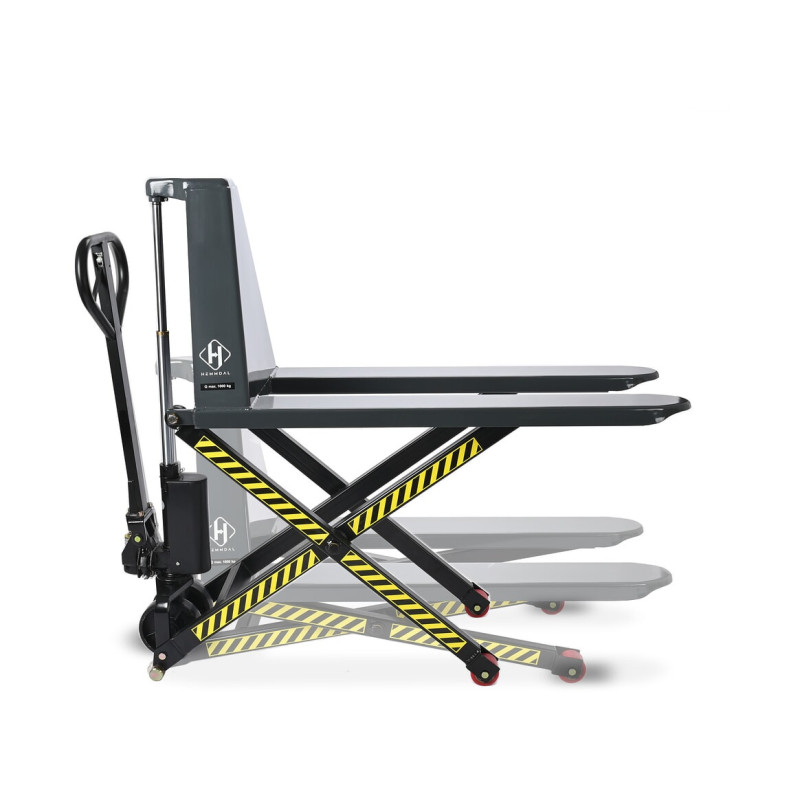

Using the tiller handle, you can easily manoeuvre the scissor lift pallet truck up to a lift height of 400 mm. At a lift height of 400 mm and above, the side-mounted supports secure the scissor lift pallet truck for optimum stability. With just a few strokes of the tiller, you can raise the pallet to your ergonomic working height, which is adjustable up to a lift height of 800 mm. The scissor lift pallet truck now functions as a lifting or provisioning table, thereby ensuring ergonomic working. Material storage and retrieval or machine loading can then be conducted at a comfortable, back-friendly working height.

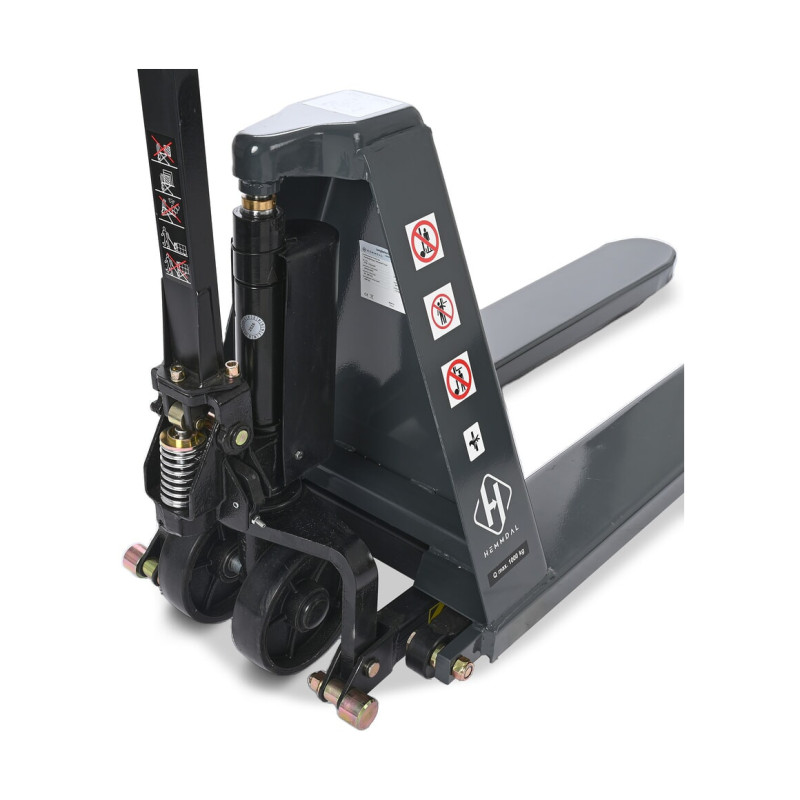

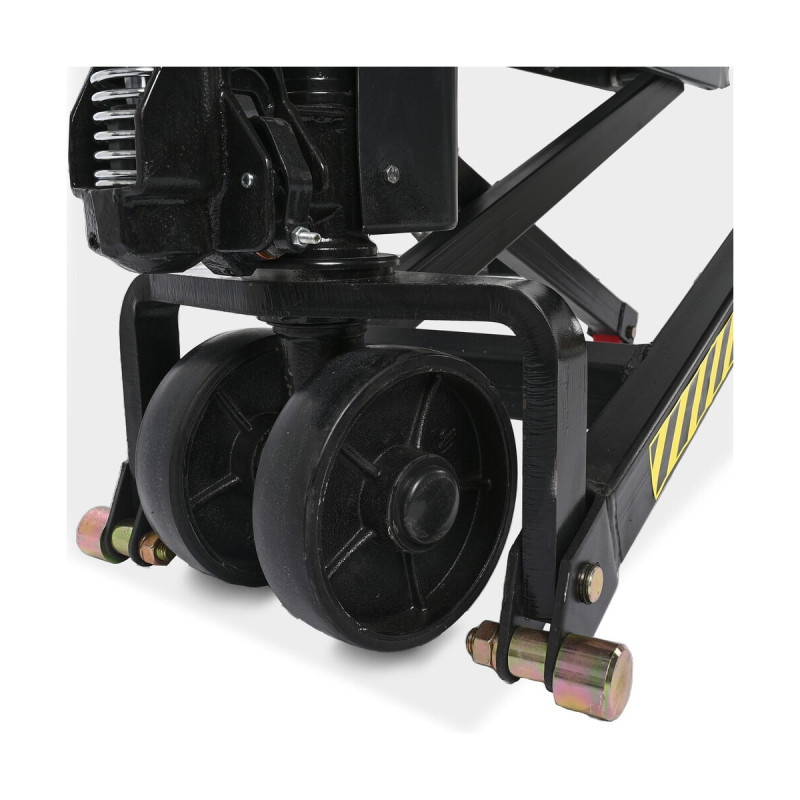

The polyurethane steering castors and fork rollers are ideal for both hard and delicate floors. They are characterised by their smooth operation and low rolling resistance, and are both shock-absorbing and durable. Overall, they offer high-quality, comfortable and quiet operation.

Experience the benefits for yourself by ordering the versatile HEMMDAL PTM 1.0 Scissor pallet truck with scissor lift and a load capacity of 1000 kg from our shop today.

Capacity
1000 kg
Manufacturer
HEMMDAL
Model
PTM 1.0
Fork length
1150 mm
Turning radius
1265 mm
Steering wheel diameter
180 mm
Aisle width
1800 mm
Steering wheel width
50 mm
Control panel
Right-handed
Fork width
160 mm
Lowering speed with/without cargo
0,031 / 0,031 m/s
Net weight incl. battery
110 kg
Overall length
1580 mm
Overall width
540 mm
Fork height
50 mm
Fork roller material
Polyurethane (PU)
Steering wheel material
Polyurethane (PU)
Fork roller equipment
Single
Load centre
600 mm
Lift
715 mm
Face of forks length
430 mm
Lift range
85 - 800 mm
Tiller RAL colour
RAL 7016 anthracite grey
Fork roller diameter
80 mm
Fork roller width
50 mm
Tiller surface
Power-coated
Tiller Height
1220 mm
Chassis surface
Power-coated
Route
Short distance
Pallet truck material
Steel
Ground clearance
85 mm
Chassis RAL color
RAL 2002 blood orange
Lift type
Scissor lift trucks
Fork support width
540 mm
Lift height per pump stroke
24 mm
Grease nipple
yes
Pump strokes to maximum lift height
30
  • Starter

    • HEMMDAL PTM 1.0 Scissor pallet truck with scissor lift

    For ergonomic working at a fatigue-free height

    • Load capacity: 1000 kg
    • Fork length: 1150 mm
    • Can be used as a hand pallet truck or lift table

    €689.00
    Tax excluded
    600912
    Status: On Backorder

    Delivery: within 2-3 weeks
