2000 kg
2000 kg
1150 mm
1150 mm
85 - 200 mm
85 - 200 mm

Description

The robust HEMMDAL PTM 2.0 Scale handles goods of up to 2000 kg and offers integrated weighing for straightforward weight determination. Thanks to its simple operation, it's the ideal entry-level model for goods-in control, determining shipping weights, or preventing lorry overloading.

  • Integrated scale with 5 kg display increments up to 500 kg and 20 kg increments from 500 kg onwards
  • Easy operation with tare function and manual zero correction
  • Battery supports up to 3,000 weighing operations
  • Load capacity of 2,000 kg
  • IP 65 protection rating against dust and moisture for electronics and display
  • Glare-free LCD display
  • Torsion-resistant profile steel frame with a robust welded construction
  • Steering wheels made from solid rubber; fork rollers made from polyurethane

The advantages of the HEMMDAL PTM 2.0 Scale Pallet Truck with Scale

  • Simple weight control: The weighing function of the pallet truck with scale with 2,000 kg capacity enables measurements with defined tolerances (up to 500 kg ±15 kg, up to 1,000 kg ±20 kg, up to 1,500 kg ±30 kg, up to 2,000 kg ±40 kg).

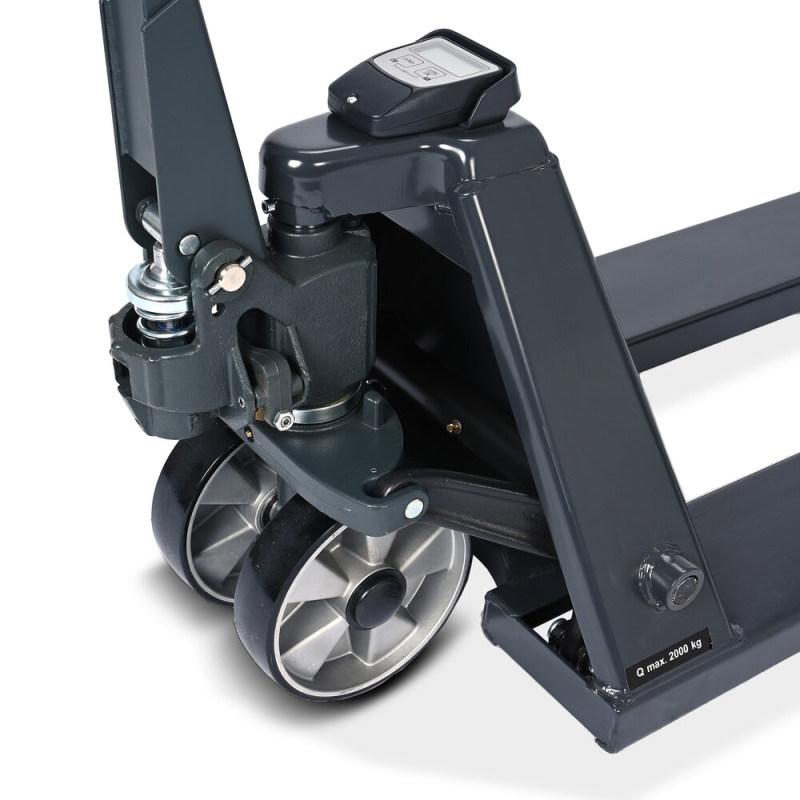

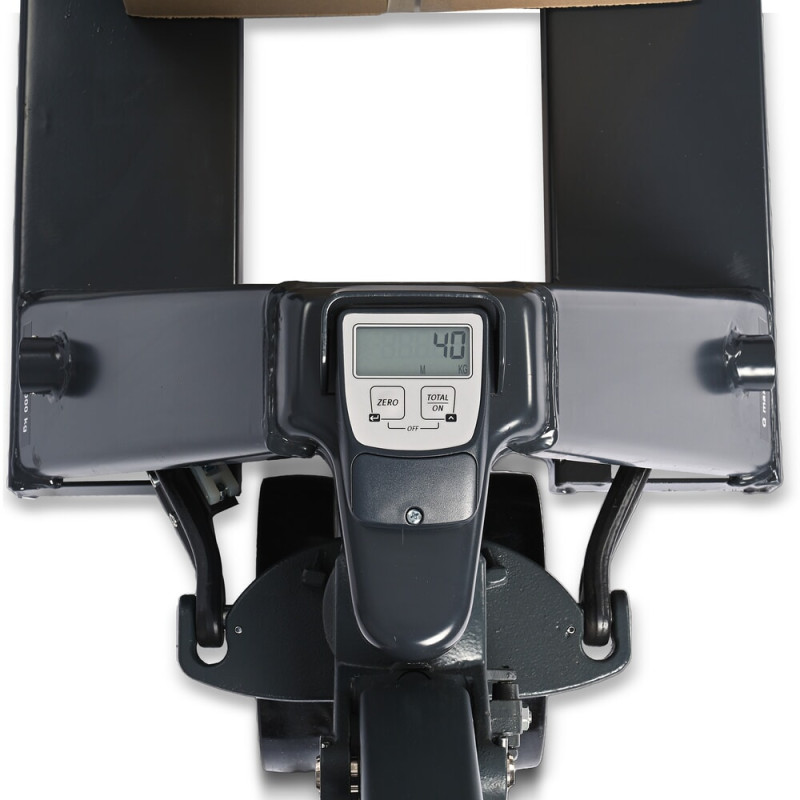

  • User-friendly display: The LCD display with its 18 mm digit height is positioned at the front and can be read glare-free from all sides for comfortable and efficient working.
  • Energy-efficient and long-lasting: With two 1.5 V AA batteries, there are 3,000 different possible weighing operations. It automatically switches off after approximately 2 minutes of non-use to save energy.

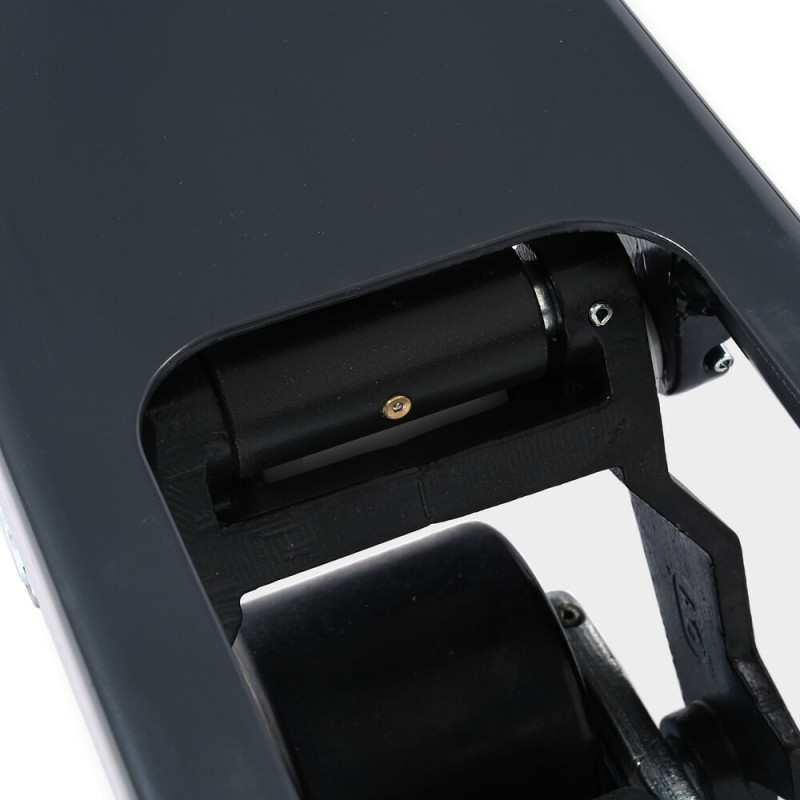

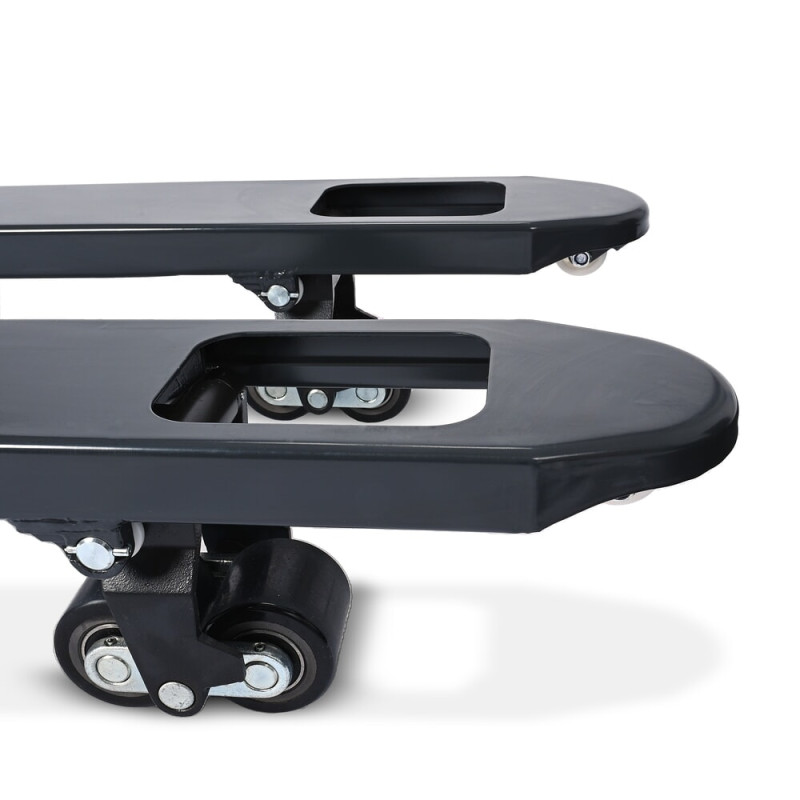

  • Easy to manoeuvre: The entry rollers facilitate driving under a pallet. The combination of the solid rubber steering wheels and the polyurethane fork rollers also ensures optimal ground grip and quiet running. The fork rollers are available as either single or tandem rollers.

Delivery

  • Included in delivery: HEMMDAL PTM 2.0 Scale pallet truck with scale, 2 x 1.5 V AA batteries (already inserted) including operating instructions
  • The HEMMDAL PTM 2.0 Scale pallet truck with scale is ready for operation upon delivery.
Capacity
2000 kg
Manufacturer
HEMMDAL
Model
PTM 2.0
Fork length
1150 mm
Turning radius
1275 mm
Steering wheel diameter
180 mm
Aisle width
1792 mm
Steering wheel width
50 mm
Control panel
Two-handed
Fork width
160 mm
Drive
Manual
Net weight incl. battery
70 kg
Overall length
1545 mm
Overall width
540 mm
Battery voltage / nominal capacity
1.5 V/per unit
Fork height
48 mm
Operation mode
Hand
Fork roller material
Polyurethane (PU)
Steering wheel material
Solid rubber
Fork roller equipment
Tandem
Load centre
600 mm
Lift
115 mm
Face of forks length
390 mm
Lift range
85 - 200 mm
Tiller RAL colour
RAL 7016 anthracite grey
Fork roller diameter
74 mm
Fork roller width
93 mm
Tiller surface
Power-coated

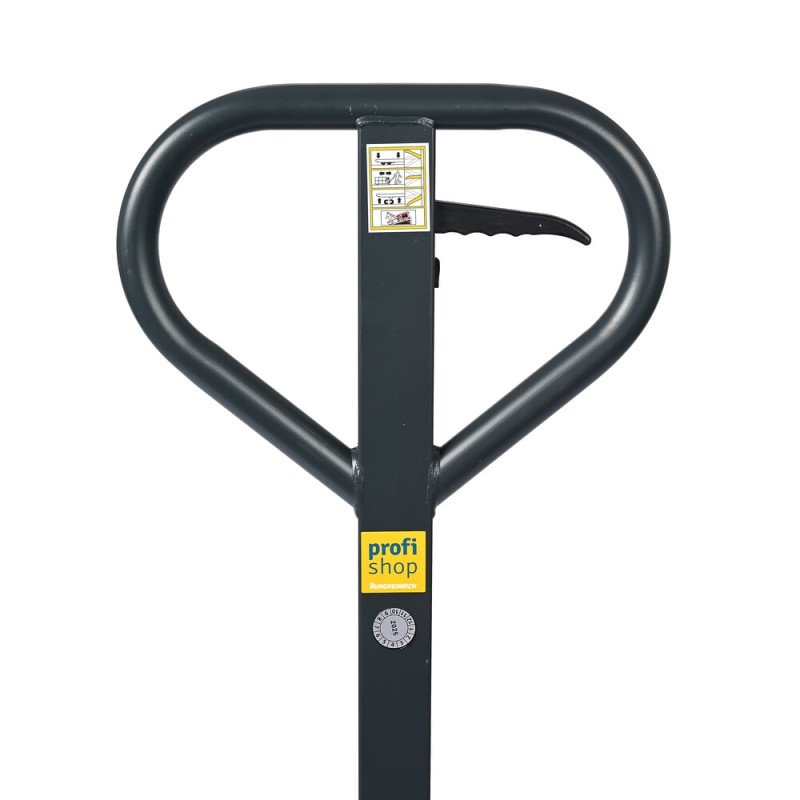

Tiller Height
1230 mm
Chassis surface
Power-coated
Route
Short distance
Pallet truck material
Steel
Ground clearance
15 mm
Chassis RAL color
RAL 2002 blood orange
Automatic shut-off without insert
2 min
Lift type
Hand pallet truck with weighing scale
Fork support width
540 mm
Lift height per pump stroke
7,5 mm

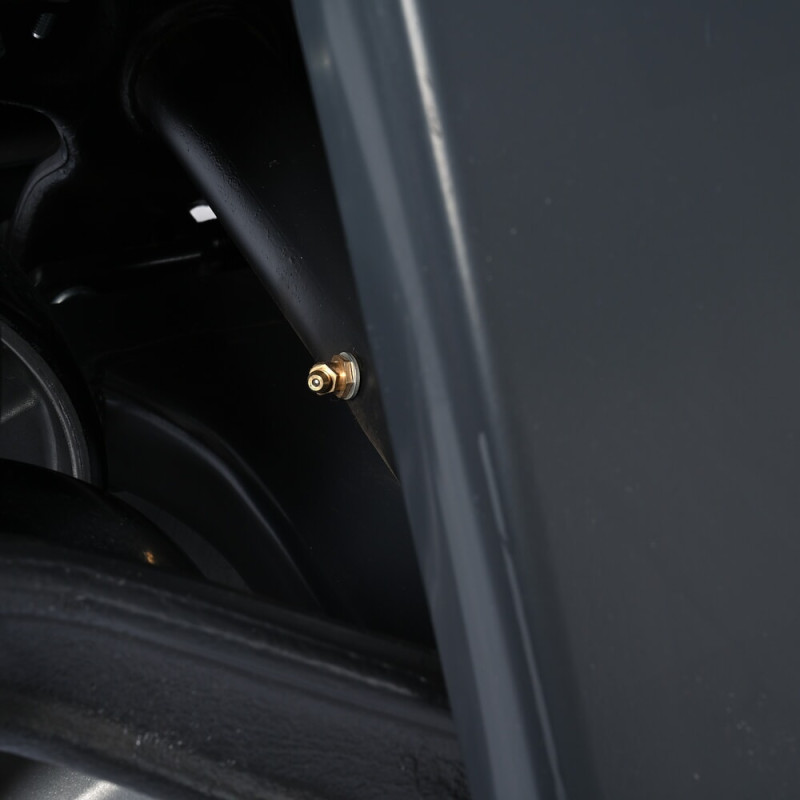

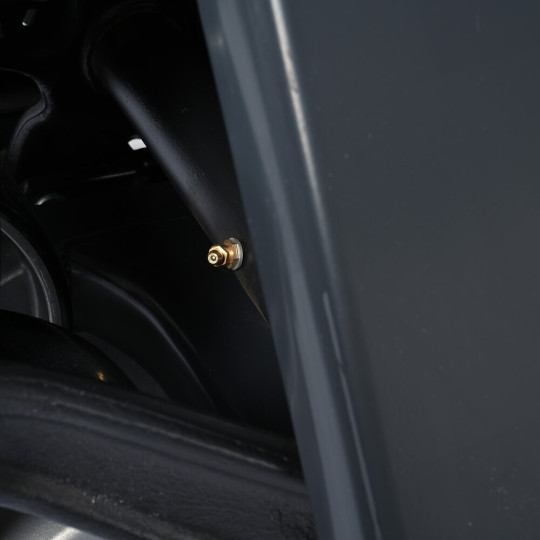

Grease nipple
yes
Scale type
Digital
IP protection type measuring cells
IP 65
With weight scales
Yes
Rapid lift
No
  • Starter

    • HEMMDAL PTM 2.0 Scale pallet truck with scale, C/BV

    • Integrated scale with 5 kg display increments up to 500 kg and 20 kg increments from 500 kg onwards
    • Easy operation with tare function and manual zero correction
    • Battery supports up to 3,000 weighing operations

    €590.00
    Tax excluded
    601070
    Status: On Backorder

    Delivery: within 2-3 weeks
