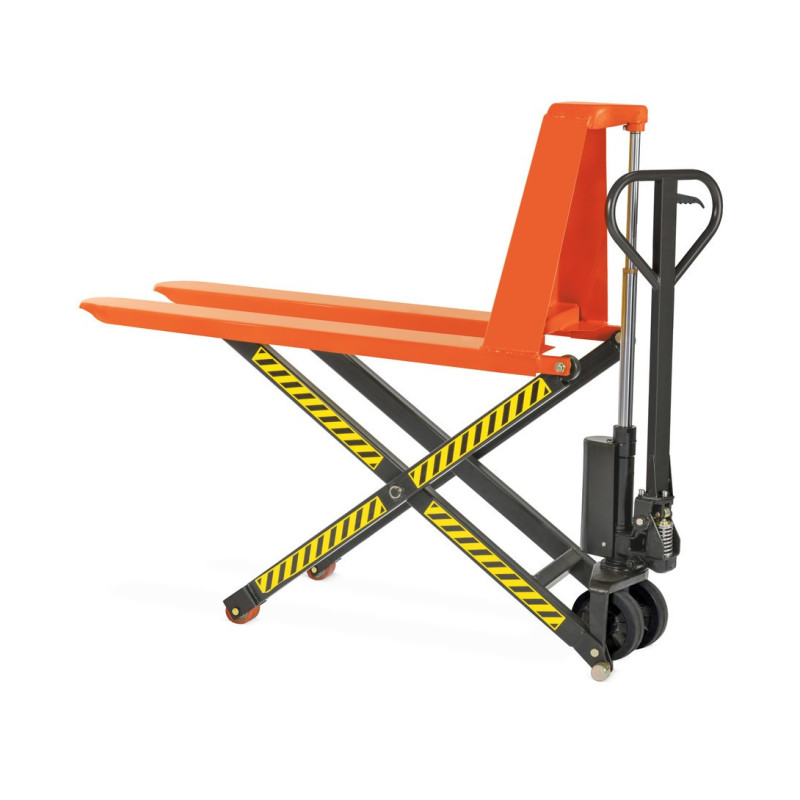

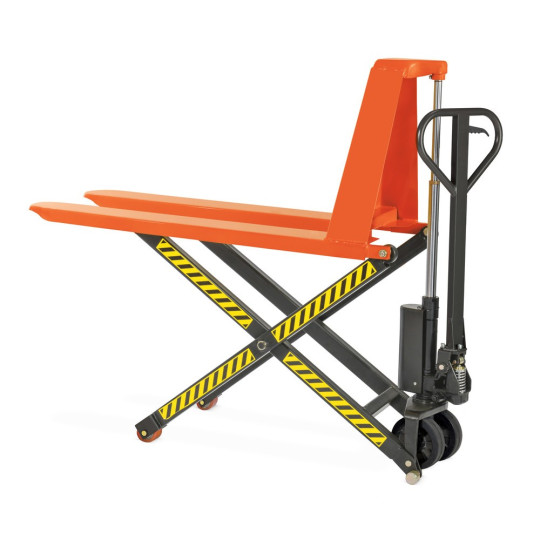

Basic scissor lift pallet truck
Basic scissor lift pallet truck
1000 kg
1000 kg
1150 mm
1150 mm
85 - 800 mm
85 - 800 mm

Description

BASIC scissor lift pallet truck for ergonomic working at a fatigue-free height

The scissor lift pallet truck can be used as a hand pallet truck, lift platform, supply platform or workbench. With the BASIC manual scissor lift pallet truck, you can transport pallets weighing up to 1000 kg and raise them to a comfortable working height with just a few movements of the tiller. This allows you to stack and retrieve materials or replenish machines in a fatigue-free manner.

You can individually adjust the work height according to your needs up to a height of 800 mm. From a lift height of 400 mm, the side support feet lock into place on the BASIC scissor lift pallet truck, enabling you to also use the stable pallet truck as a workbench.

The device features polyurethane steering castors and fork rollers for high-quality, comfortable and low-noise travel, while also offering maximum capacity and a long service life.

The BASIC scissor lift pallet truck with a capacity of 1,000 kg is a versatile tool that facilitates ergonomic working. Order the cost-effective entry-level model from us today.

Capacity
1000 kg
Manufacturer
Basic
Model
PSL 1000
Fork length
1150 mm
Turning radius
1265 mm
Steering wheel diameter
180 mm
Aisle width
1800 mm
Steering wheel width
50 mm
Control panel
Right-handed
Fork width
160 mm
Lowering speed with/without cargo
0,031 / 0,031 m/s
Net weight incl. battery
110 kg
Overall length
1580 mm
Overall width
540 mm
Fork height
50 mm
Fork roller material
Polyurethane (PU)
Steering wheel material
Polyurethane (PU)
Fork roller equipment
Single
Load centre
600 mm
Lift
714 mm
Face of forks length
430 mm
Lift range
85 - 800 mm
Tiller RAL colour
RAL 7016 anthracite grey
Fork roller diameter
80 mm
Fork roller width
50 mm
Tiller surface
Power-coated
Tiller Height
1220 mm
Chassis surface
Power-coated
Route
Short distance
Pallet truck material
Steel
Ground clearance
85 mm
Chassis RAL color
RAL 2002 blood orange
Lift type
Scissor lift trucks
Fork support width
540 mm
Lift height per pump stroke
24 mm
Grease nipple
yes
Pump strokes to maximum lift height
30
  • Starter

    • Basic scissor lift pallet truck

    Simplifies work processes and ensures fatigue-free operation

    • 800 mm lift height for ergonomic working
    • Automatic fixation as of a lift height of 400 mm
    • Two-cylinder telescopic hydraulics

    €689.00
    Tax excluded
    163247-GA
    Status: On Backorder

    Delivery: within 2-3 weeks
