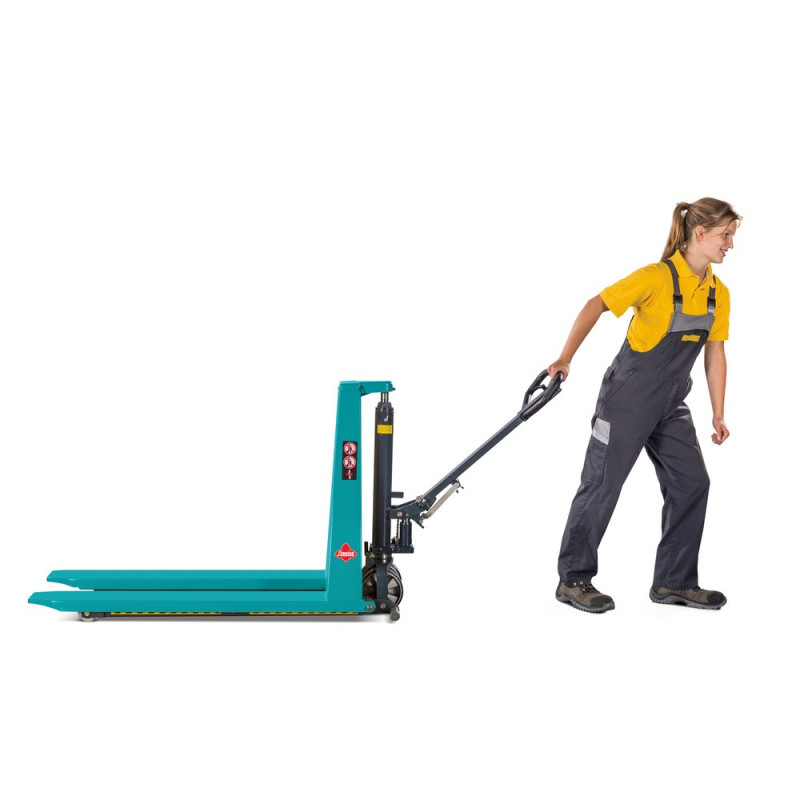

Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift

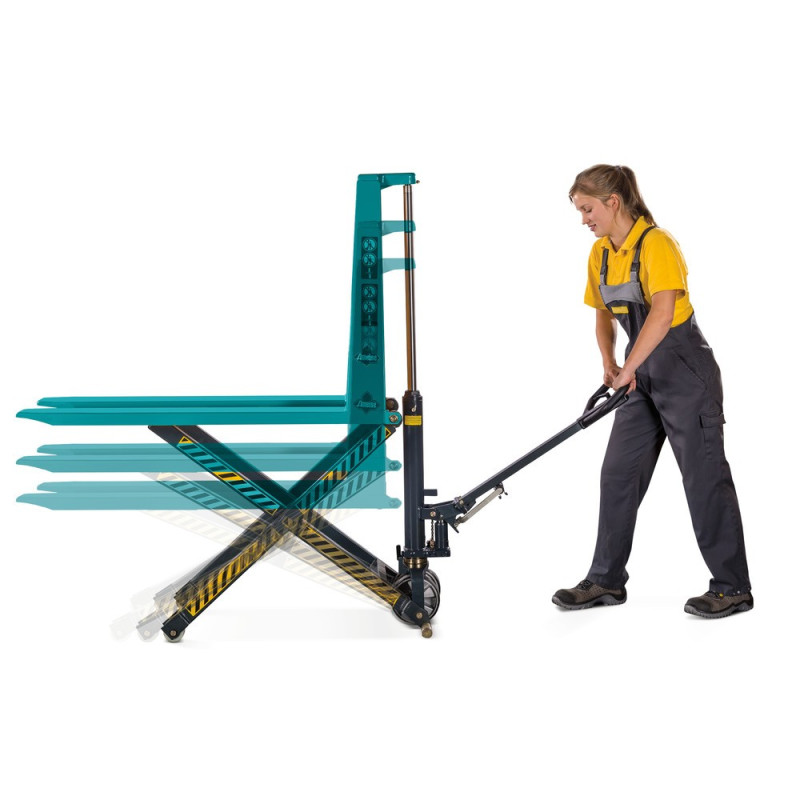

Ameise scissor lift pallet truck with quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
Ameise scissor lift pallet truck with quick lift
Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift
1000 kg
1000 kg
1150 mm
1150 mm
85 - 800 mm
85 - 800 mm

Description

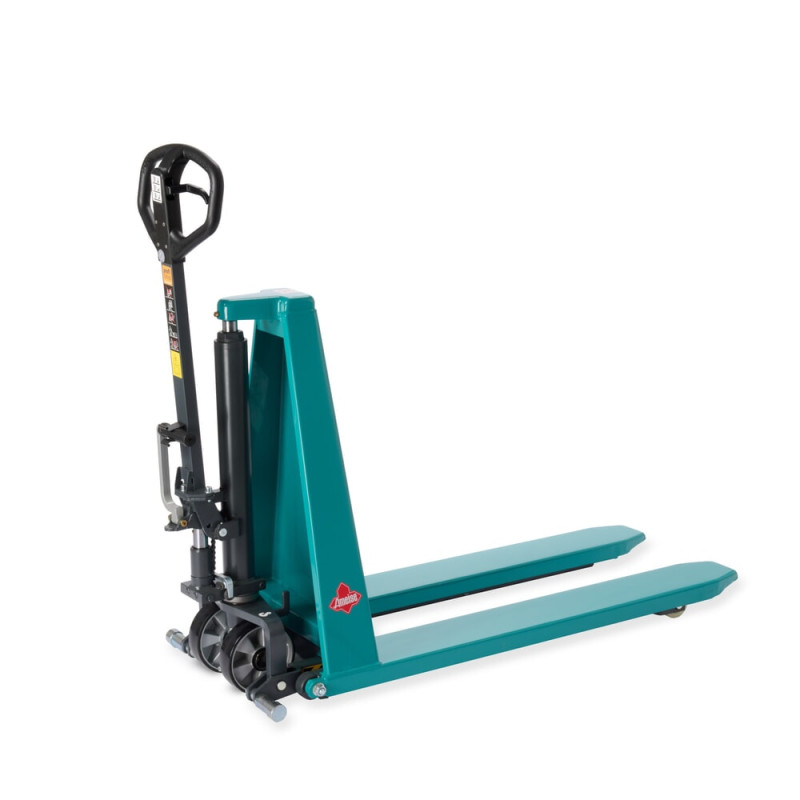

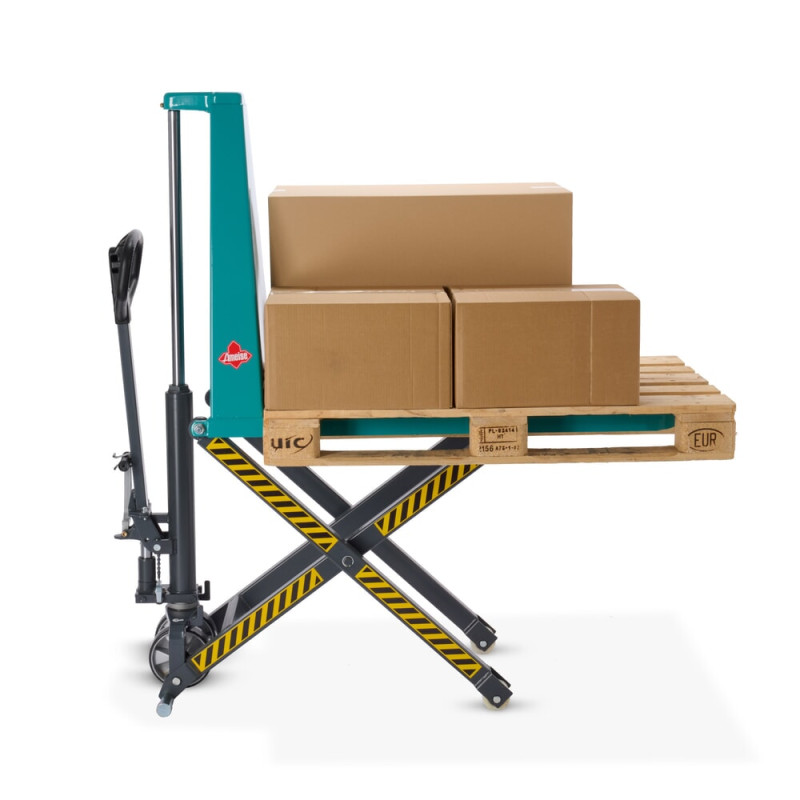

The Ameise scissor lift pallet truck with quick lift delivers reliable Ameise quality and enables ergonomic working. It can be used as a hand pallet truck, lift table, provisioning table or workbench, making it a particularly versatile tool. Loads weighing up to 1000 kg can be raised to a fatigue-free working height using the tiller or foot pedal. The quick lift function can be activated manually on the tiller handle.

  • Versatile use as a lift table or workbench
  • Quick lift function with manual activation
  • Side-mounted support feet for stability

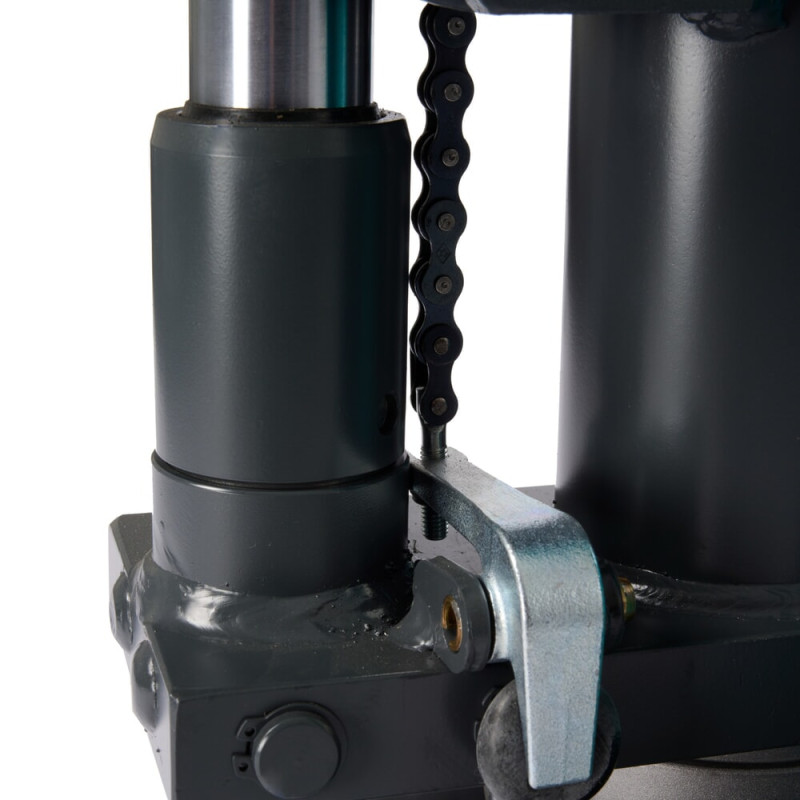

  • Robust single-cylinder telescopic hydraulic system
  • Overload valve protects against excess loads
  • Also available with electric lift

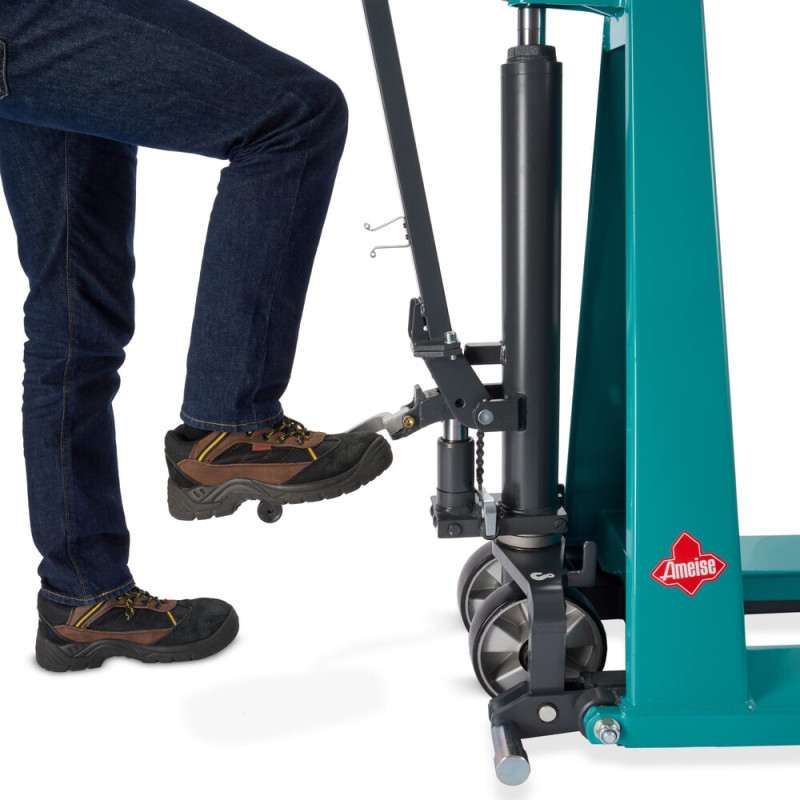

  • Raise loads to an ergonomic height via the tiller or foot pedal

This scissor lift pallet truck offers robust Ameise® quality for daily use in a wide range of applications. As a combination between a pallet truck and lift table, it can be used as a tool for lifting, moving and provisioning your transported goods. You can raise loads to a comfortable, ergonomic height with just a few strokes of the tiller or using the foot pedal. This then allows you to replenish machines or stack and retrieve stored materials. The scissor lift pallet truck thus eliminates the need for bending and heavy lifting, thereby protecting the health of your employees.

Depending on your requirements, you can choose between two lift speeds. A manual quick lift function for light loads (up to approx. 200 kg) can be activated on the tiller handle. The normal lift is ideal for raising heavier loads with reduced effort.

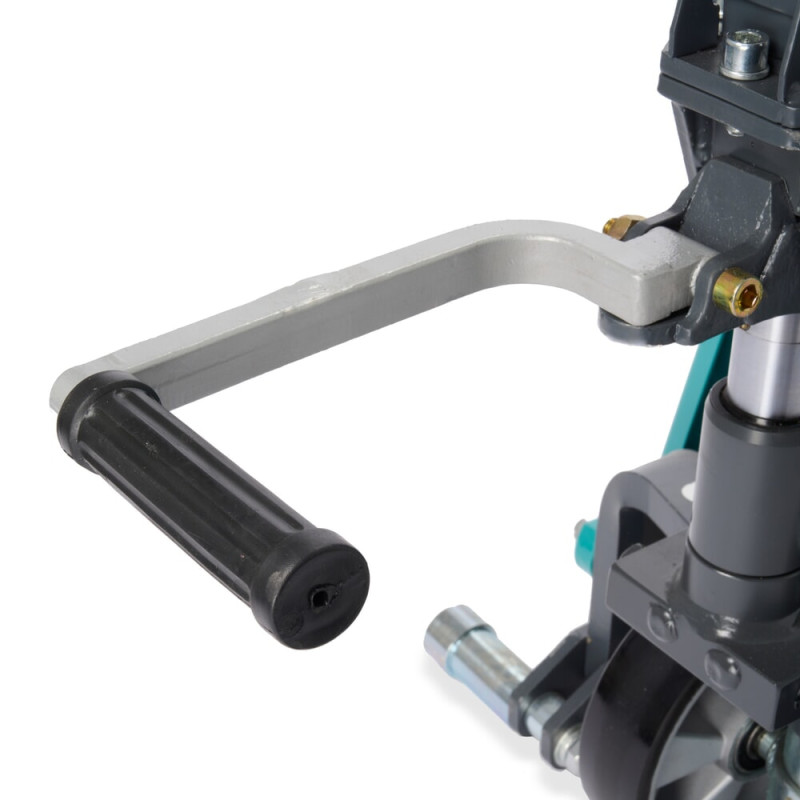

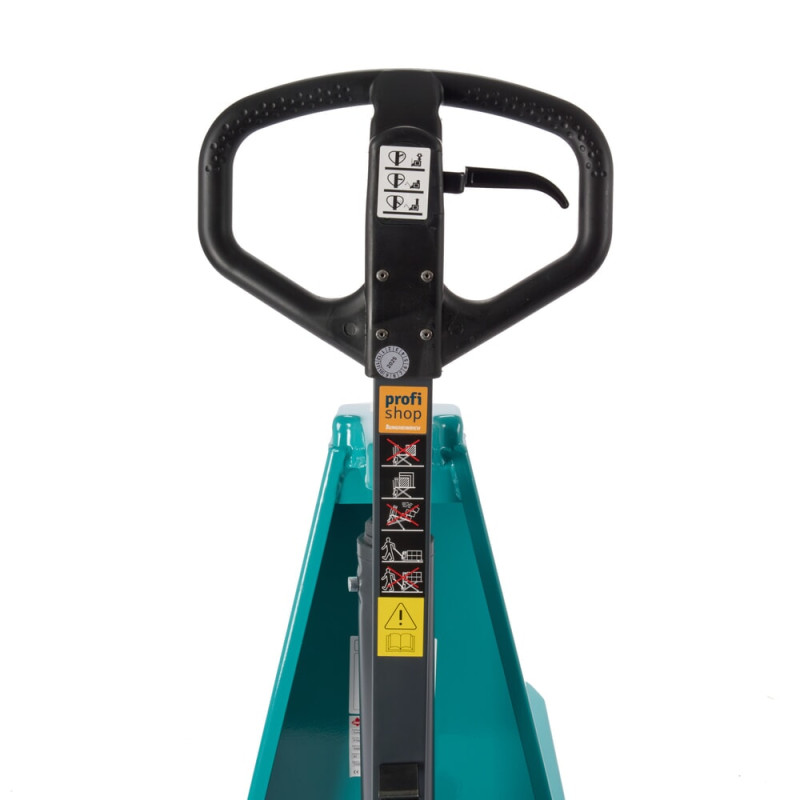

All functions are easily operated via the control lever or the ergonomic plastic tiller handle. The load is lowered at an adjustable speed, allowing you to deposit sensitive goods with utmost control and precision.

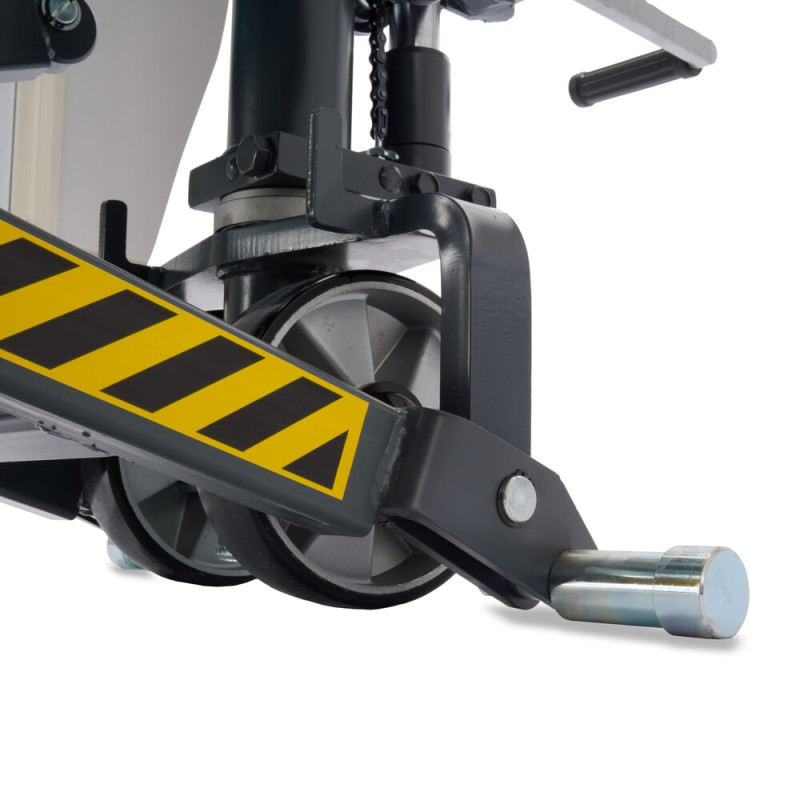

As of a lift height of 400 mm, side-mounted support feet secure the scissor lift pallet truck to ensure maximum stability and safety.

The welded sectional steel frame and forks are torsion-free and extremely hard-wearing. As a result, the scissor lift pallet truck retains its shape even when carrying loads of up to 1000 kg. The single-cylinder telescopic hydraulic system is particularly durable and maintenance-free. The overload valve protects the hydraulic system against excess loads.

The truck features polyurethane steering castors for high-quality, comfortable and low-noise travel, while also offering maximum capacity and a long service life. The single fork rollers are made from nylon and are thus very smooth running and wear-resistant.

Order the versatile Ameise® scissor lift pallet truck with quick lift function from our shop today.

Capacity
1000 kg
Manufacturer
Ameise
Model
PTM 1.0
In stock
Yes
Fork length
1150 mm
Turning radius
1415 mm
Steering wheel diameter
180 mm
Aisle width
1907 mm
Steering wheel width
50 mm
Control panel
Right-handed
Fork width
162 mm
Charger
Built-in
Drive
Manual
Overall length
1527 mm
Overall width
540 mm
Fork height
49 mm
Operation mode
Hand
Fork roller material
Nylon
Steering wheel material
Polyurethane (PU)
Fork roller equipment
Single
Load centre
430 mm
Lift
715 mm
Face of forks length
275 mm
Lift range
85 - 800 mm
Tiller RAL colour
RAL 7016 anthracite grey
Fork roller diameter
75 mm
Fork roller width
50 mm
Tiller surface
Painted
Tiller Height
1337 mm
Chassis surface
painted
Route
Short distance
Pallet truck material
Steel
Ground clearance
20 mm
Chassis RAL color
RAL 5018 turquoise blue
Lift type
Scissor lift trucks
Fork support width
540 mm
Lift height per pump stroke
28,5/9 mm
Grease nipple
yes
Pump strokes to maximum lift height
26/83
Rapid lift
Yes (up to 120 kg)
Min lifting height
85 mm
Max lifting height
800 mm
  • Performance

    • Ameise PTM 1.0 Scissor pallet truck with scissor function and quick lift

    Raises loads to an ergonomic height via the tiller or foot pedal

    • Versatile use as a lift table or workbench
    • Quick lift function with manual activation
    • Side-mounted support feet for stability

    €799.00
    Tax excluded
    197360-GA
    Status: In stock

    Delivery: within 2-3 working days
