1000 kg

Description

Electric tow tractor for towing and pulling different types of trolleys and other wheeled goods. Four different connections is included with the tractor.

Axle loading, unladen front/rear: 46/16 kg
Hight of tiller in driving position min/max: 750/1250 mm
Center of gravity separation: 600
Max. Drawbar Pull unladen: 450 N
Battery: 24Ah
Tire Size rear: Polyurethane 75x80 mm

Product Details

Capacity: 1000 kg
Total width: 490 mm
Model: TE 10
Total length: 810 mm
Turning radius: 475 mm
Steering wheel diameter: 250 mm
Steering wheel width: 80 mm
Charger: External
Net weight incl. battery: 62 kg
Brake: Electromagnetic
Battery weight: 14 kg
Steering wheel material: Solid rubber
Load centre: 600 mm
Tiller Height: 1250 mm
Ground clearance: 38 mm
Drive motor power: 0.3 kW
Pedestrian trucks type: Tow Tractor
Travel speed with / without load: 4.2 / 4.5 km/h
Drawbar pull, loaded/unloaded: 200 /– N

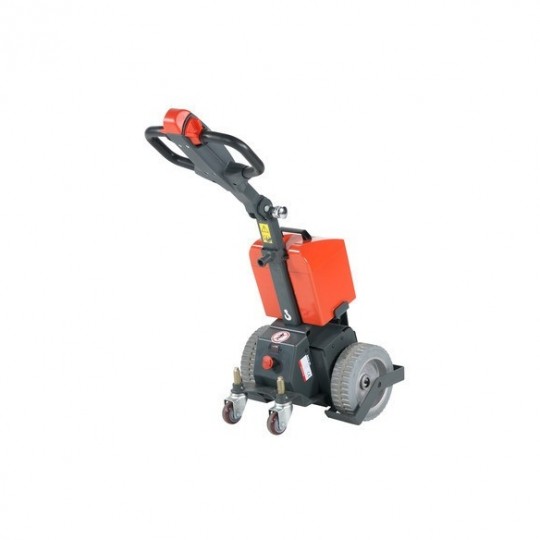

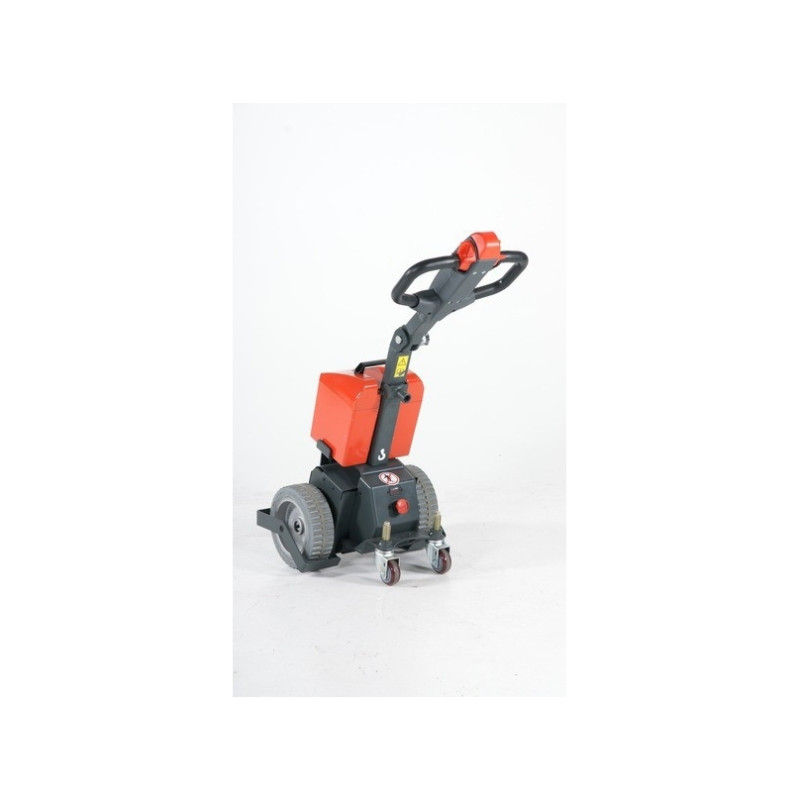

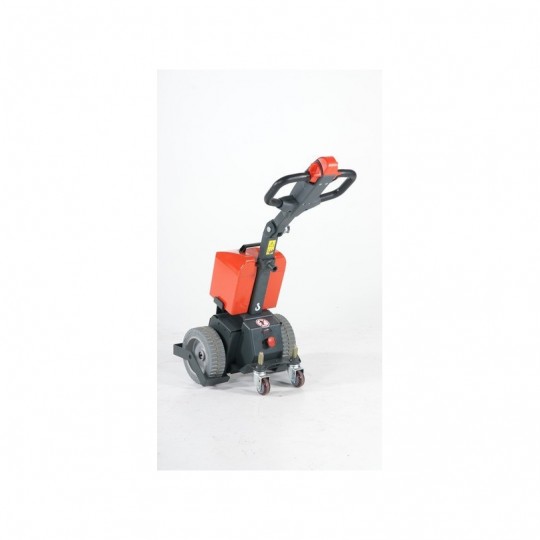

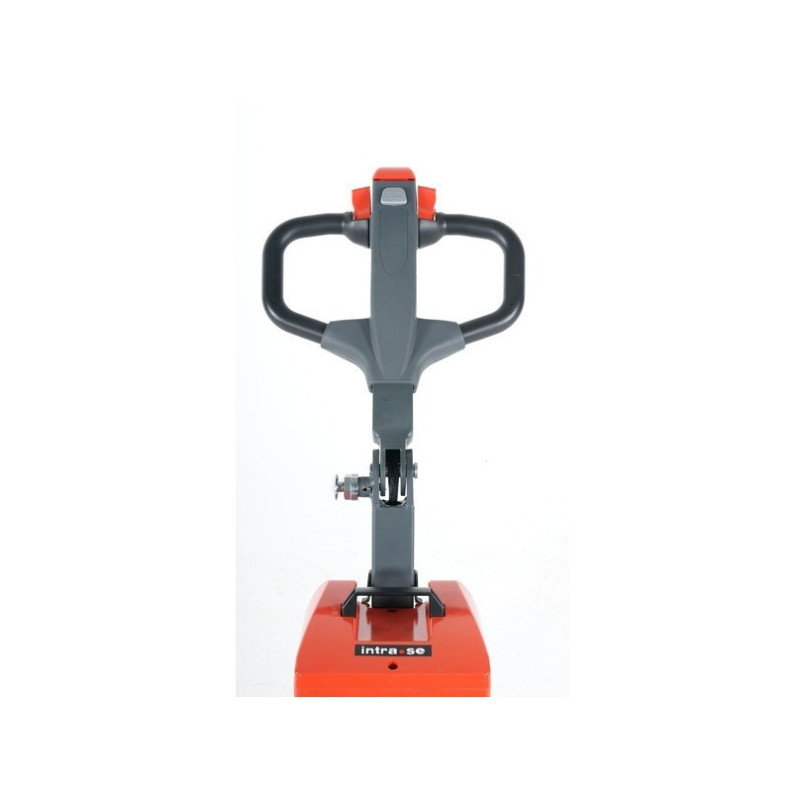

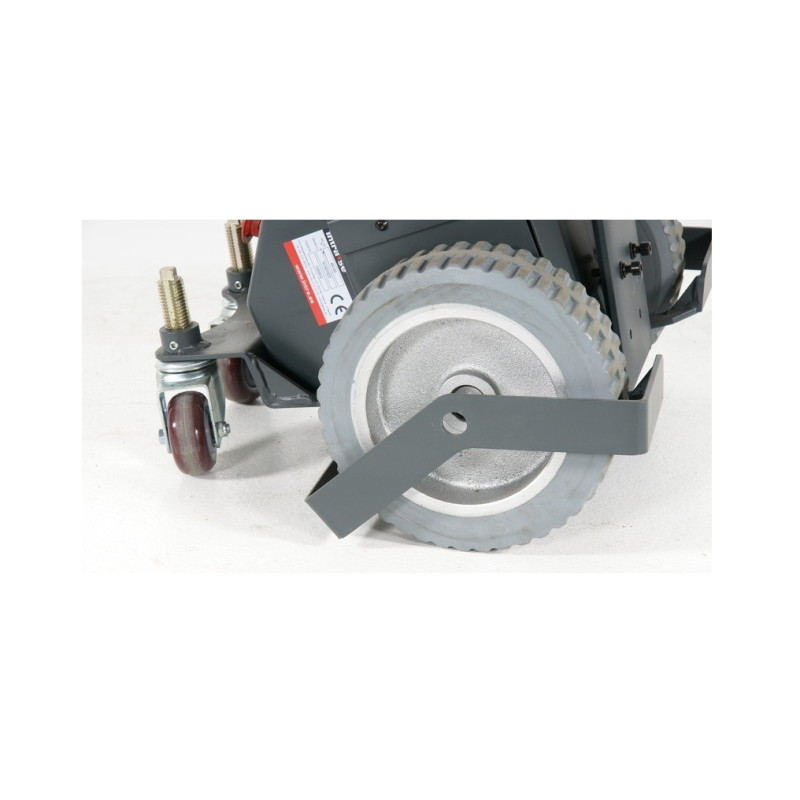

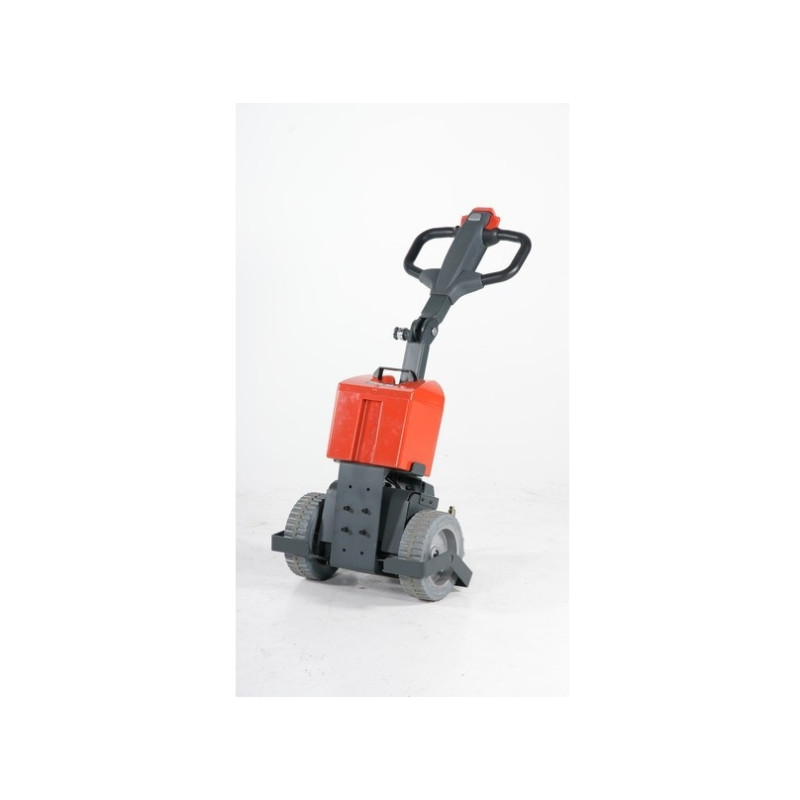

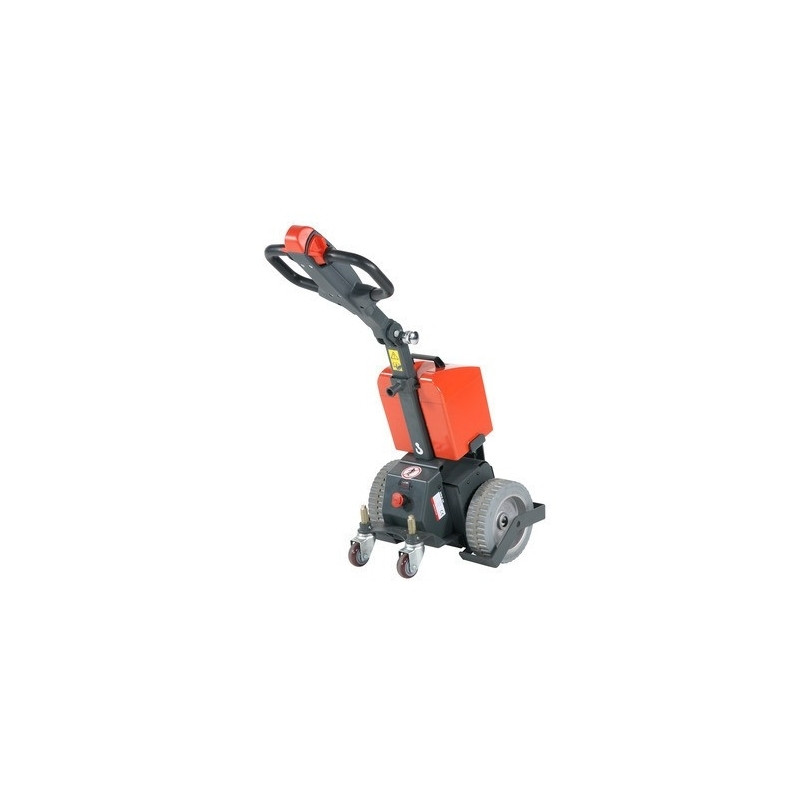

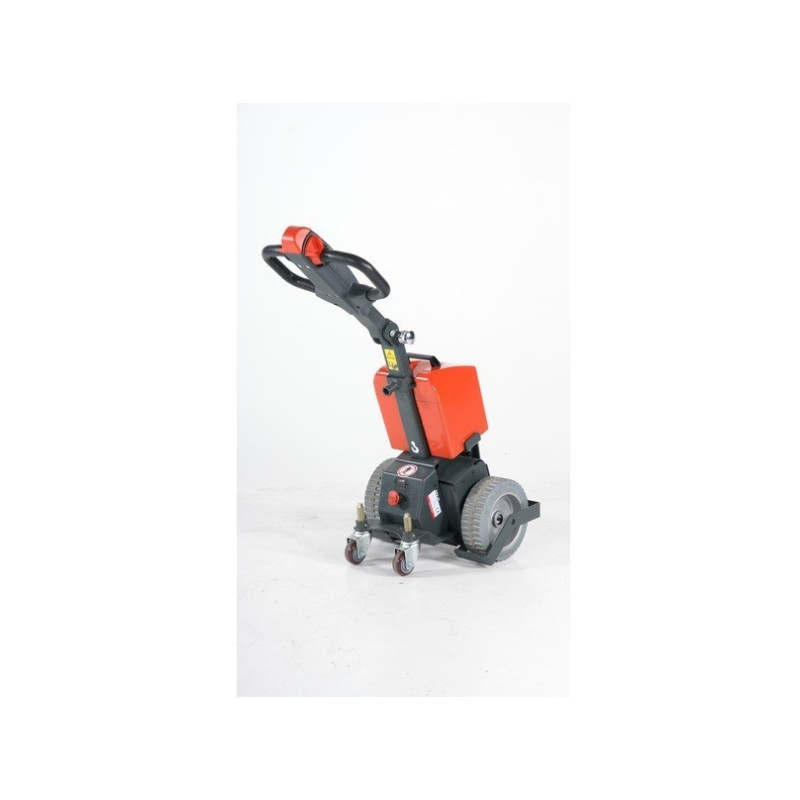

Electric Tow Tractor TE10

Designed to provide the best ergonomics in handling different types of wheelchairs.

Capacity towing 1000 kg
Handling and pulling of trolleys

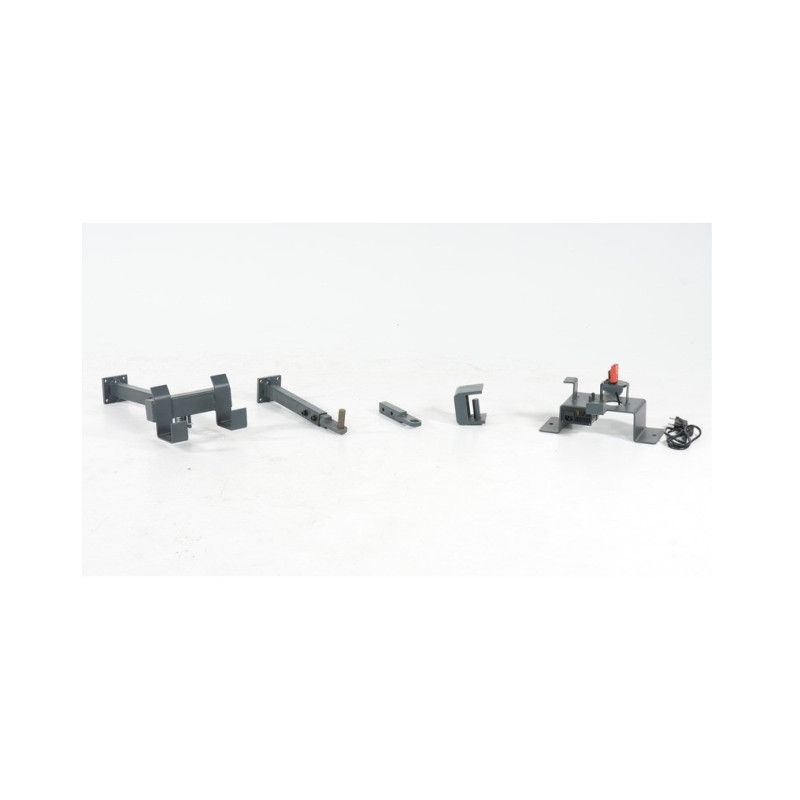

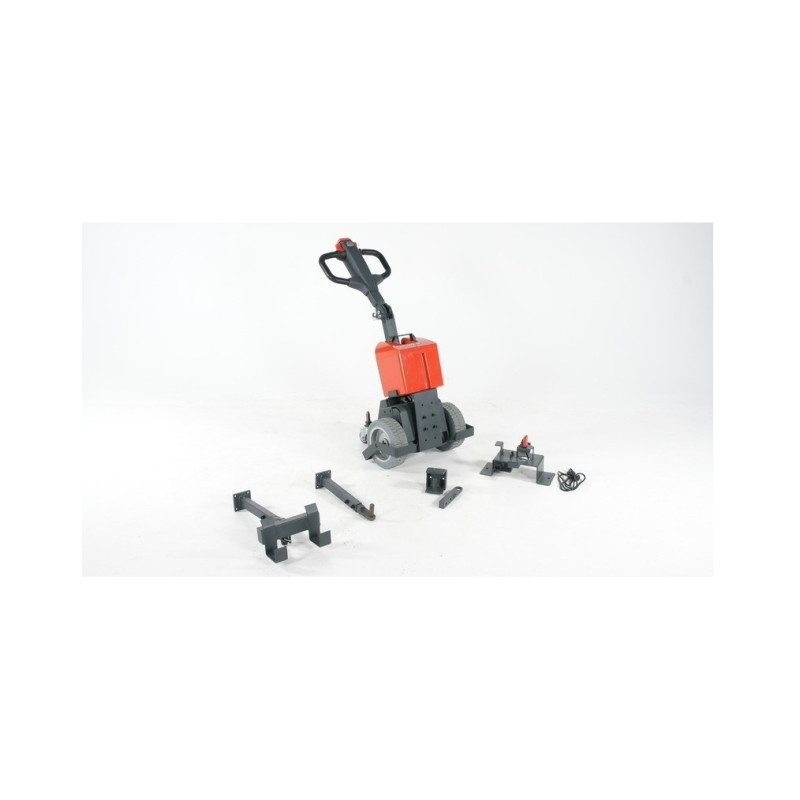

Different connections follows each delivery

€4,119.00

Tax excluded

Reference: 848100

Status: On Backorder
