- The perfect addition for various transport jobs with different fork widths.
- Equipment options for special requirements: stabilising wheels for more safety over uneven ground. Second battery socket for greater availability.
- Compact design – ideal for use on HGVs and precise manoeuvring in confined spaces.
- Easy to use and handle – suitable for all staff.
- External charger for rapid booster charging.

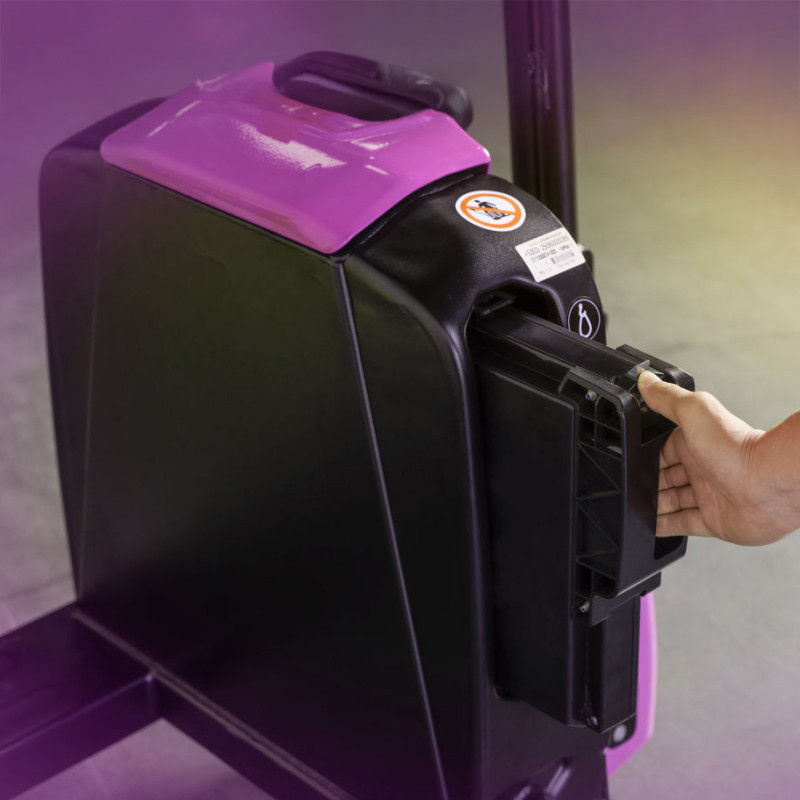

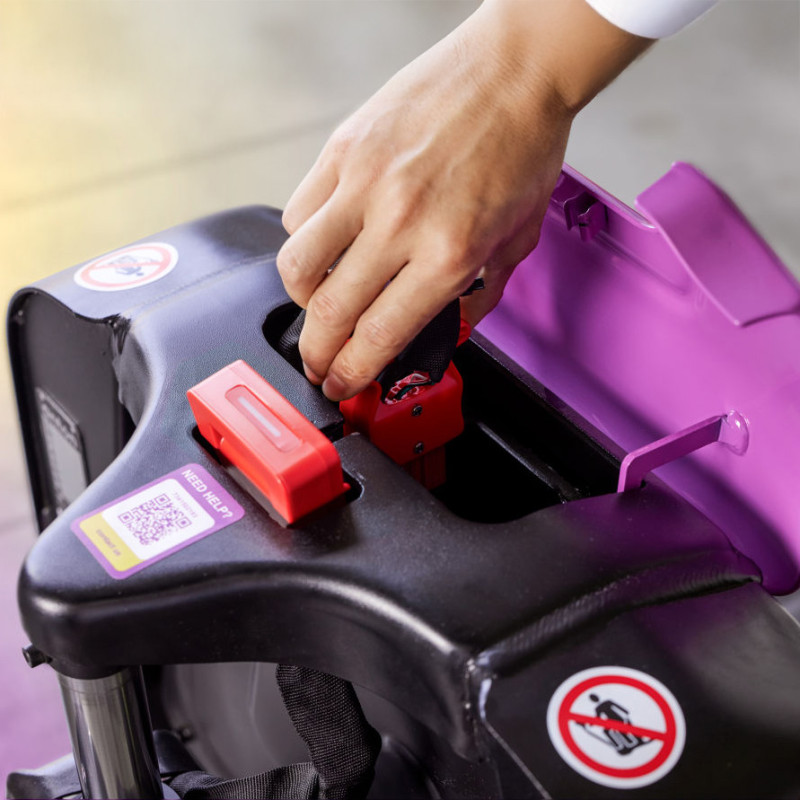

- Effortless battery exchange thanks to practical plug-in system.
- Simple self-service with video guides.
- Cost-effective to buy and operate.
- Enduring power with up to 2 x 24 V to 20 Ah removeable lithiumion batteries.
- Reduces physical strain on the operator and improves workplace efficiency.
- Robust and durable technology ensures reliable operation.
- One truck. Many applications.
- Manufacturer
- AntOn by Jungheinrich
- Model
- PTL 1.5
- Fork length
- 1150 mm
- Turning radius
- 1360 mm
- Steering wheel diameter
- 210 mm
- Steering wheel width
- 70 mm
- Fork width
- 550 mm
560 mm - Lowering speed with/without cargo
- 0,06 / 0,04 m/s
- Drive
- Electric
- Net weight incl. battery
- 117 kg
- Overall width
- 695 mm
- Brake
- Electromagnetic
- Battery voltage / nominal capacity
- 24 / 20 V/Ah
- Battery weight
- 5 kg
- Fork height
- 82 mm
- Fork roller material
- Polyurethane (PU)
- Steering wheel material
- Polyurethane (PU)
- Fork roller equipment
- Tandem
- Load centre
- 600 mm
- Face of forks length
- 400 mm
- Lift range
- 82 - 187 mm
- Battery type
- Lithium-ion
- Fork roller diameter
- 80 mm
- Fork roller width
- 61 mm
- Tiller Height
- 645 / 1145 mm
- Noise level as per EN 12053 (operator's ear)
- 74 dB(A)
- Ground clearance
- 27 mm
- Drive motor power
- 0.75 kW
- Fork support width
- 560 mm
- Pedestrian trucks type
- Lithium-Ion pallet truck
- Max. gradeability laden/unladen
- 6 / 16 %
- Travel speed with / without load
- 4 / 4.5 km/h
-
- Lithium-ion technology for fast charging and consistent performance.
- High spare parts availability provides reduced downtime.
- Always robust, reliable and flexible.
- Quickly available to meet urgent demand.
- Load capacity of 1800 kg
- Especially maneuverable and compact for tight work areas
- Robust steel construction with protected support wheels
- Out of stock
- Maintenance-free 24 V / 36 Ah replacement / spare battery with lithium-ion technology
- For more flexibility and long usage times
- Quick and easy battery replacement
-
- Maintenance-free 24 V / 36 Ah replacement / spare battery with lithium-ion technology
- For more flexibility and long usage times
- Quick and easy battery replacement
- LI-ION
- Load capacity of 1800 kg
- Especially maneuverable and compact for tight work areas
- Robust steel construction with protected support wheels
- NEW
- Lithium-ion technology for fast charging and consistent performance.
- High spare parts availability provides reduced downtime.
- Always robust, reliable and flexible.
- Quickly available to meet urgent demand.
-

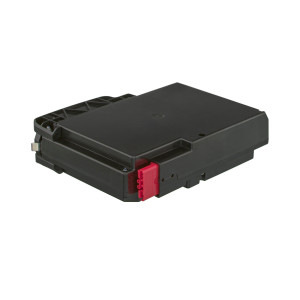

- Maintenance-free 24 V / 20 Ah replacement / spare battery with lithium-ion technology
- For more flexibility and long usage times
- Quick and easy battery replacement
- LI-ION
- Load capacity of 1800 kg
- Especially maneuverable and compact for tight work areas
- Robust steel construction with protected support wheels
- NEW
- 0Maintenance-free 48 V replacement / spare battery with lithium-ion technology
- For more flexibility and long usage times
- Quick and easy battery replacement
- LI-ION
- Load capacity of 1500 kg
- Especially manoeuvrable and compact for tight work area
- Robust steel construction with protected support wheels
- NEW
- Fully electric travel and lift function
- Light, short and agile, ideal for HGV transport
- PIN code access, curveCONTROL, integrated diagnostic system
- LI-ION
- Load capacity of 1500 kg
- Especially manoeuvrable and compact for tight work area
- Robust steel construction with protected support wheels
- Out of stock
- Maintenance-free 48 V replacement / spare battery with lithium-ion technology
- For more flexibility and long usage times
- Quick and easy battery replacement
-
- Load capacity of 1500 kg
- Especially manoeuvrable and compact for tight work area
- Robust steel construction with protected support wheels
- NEW
Description

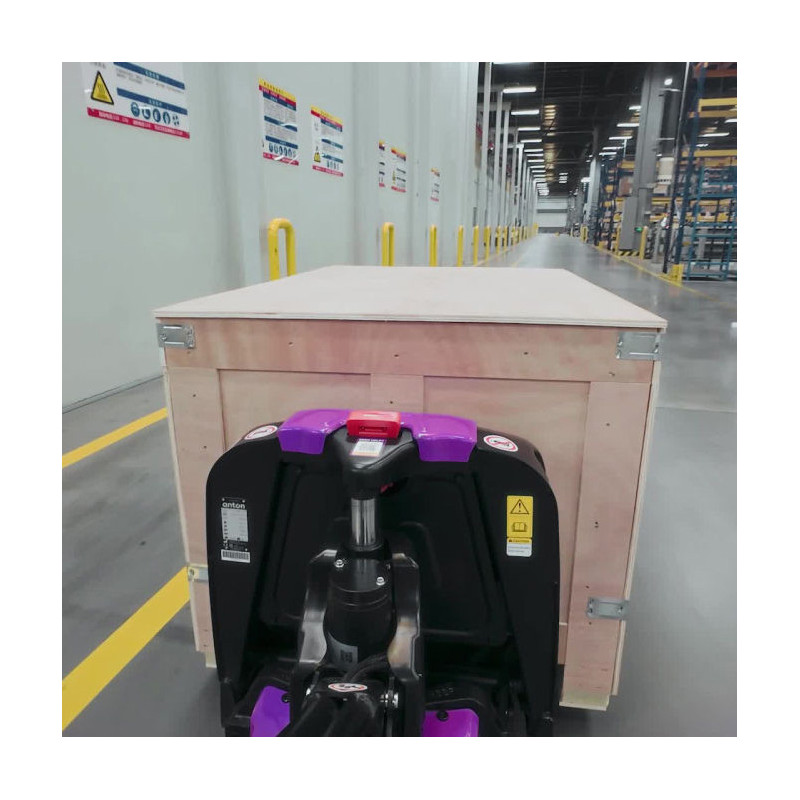

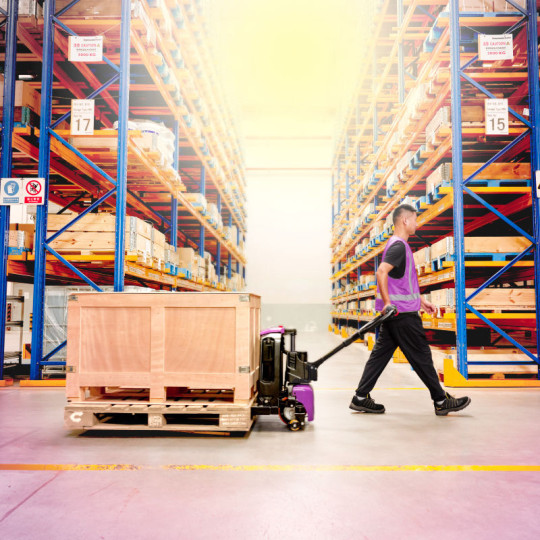

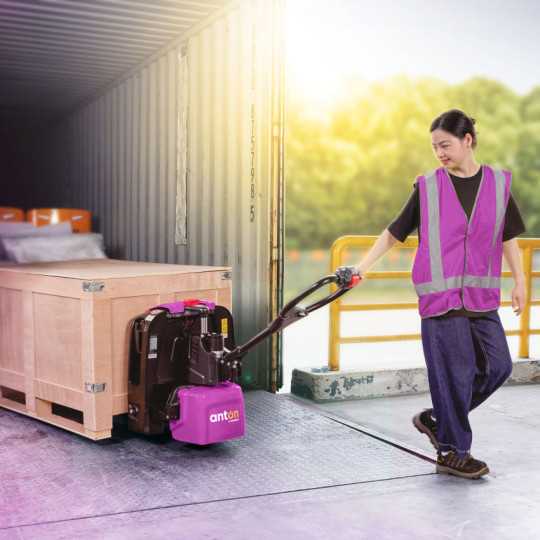

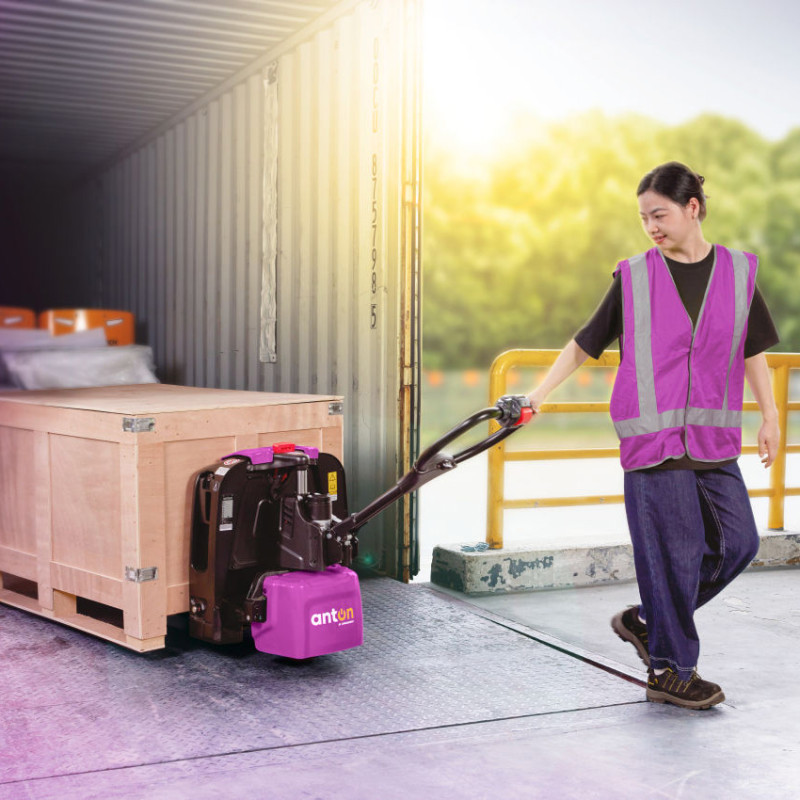

Ideal for use in warehouses, outdoors or on HGVs.

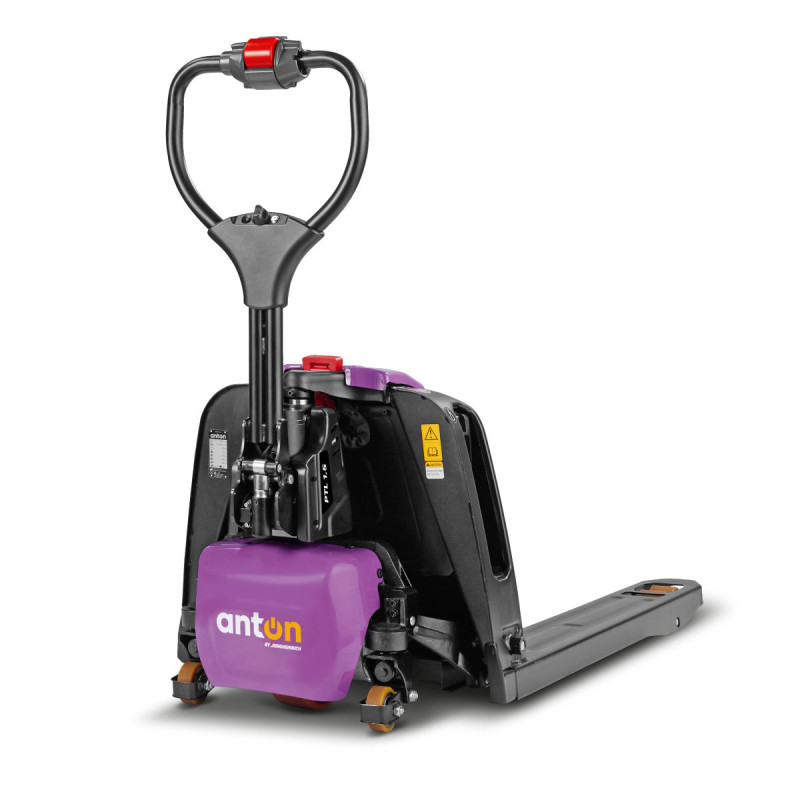

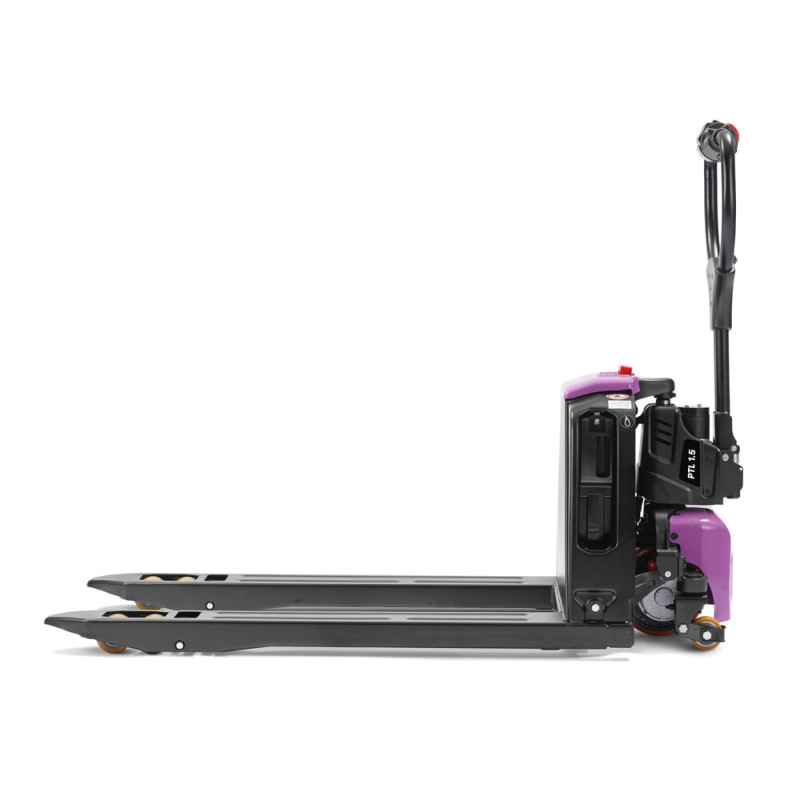

The AntOn by Jungheinrich PTL 1.5 is an entry-level model that has everything you need for your daily work – the electric pallet truck is compact and easy to operate. In the warehouse, at the shop or on the HGV: the PTL 1.5 adapts flexibly to a wide range of tasks – doing exactly what you expect of it.
Equipped with modern lithium-ion technology, well-thought-out functions and selectable fork lengths, it will swiftly become a reliable all-rounder. If you require longer operating times, the PTL 1.5 can be equipped with a second removable battery for additional power.
Designed for robust and reliable daily operation, it impresses with both its performance and its short delivery times. And all this at a price that makes it a smart choice for every situation – whether for newcomers or as an addition to your existing fleet.
Versatile One truck for every task – maximum flexibility.
Straightforward Built for function and simplicity.
Cost-effective Strong performance at a smart price.
For technical support, please visit the AntOn by Jungheinrich Service & Support page: www.jungheinrich.lv/anton-service or www.jungheinrich.lt/anton-service.
Product Details
Accessories
To add an item to the cart, select the desired quantity.AntOn by Jungheinrich Electric pedestrian pallet truck PTL 1.5 with support wheels, 560x1150 mm
Always robust, reliable and flexible
