2500 kg
2500 kg
1150 mm
1150 mm

Description

Built for use in changing environments.

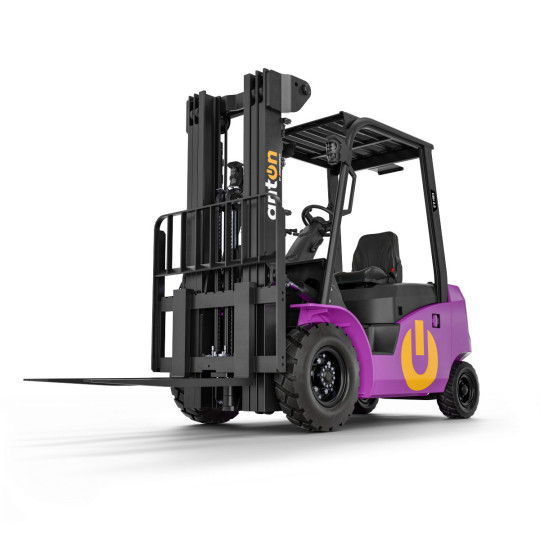

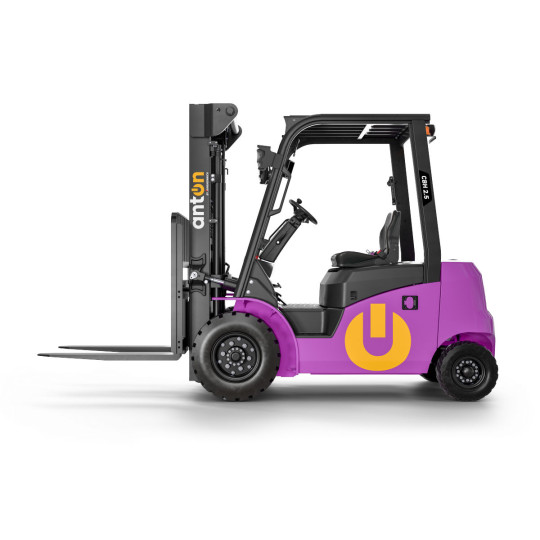

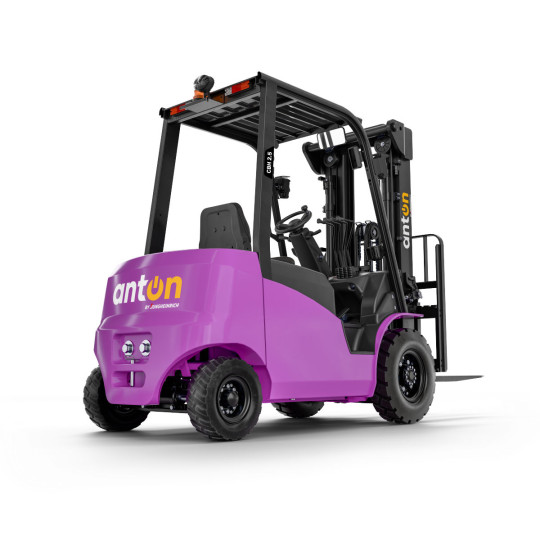

The AntOn by Jungheinrich CBH electric forklift truck combines what counts for daily operation: robust technology, easy handling and reliable performance. Whether in the warehouse, outdoors or at the loading ramp: the CBH is versatile and delivers exactly where it is needed. This electric forklift truck will always make your job easier – from internal transport, manoeuvrable applications in confined spaces and the rapid loading and unloading of HGVs. It excels not only in daily use but also through its fast availability and a price/performance ratio that makes transitioning to electromobility particularly appealing. With three carefully designed equipment variants and advanced lithium-ion power, the CBH offers exactly the flexibility your company needs today, making the choice easy – a forklift truck that simply works.

Versatile Functional power for every job.

  • Two capacity options, each available in three equipment variants to match different applications, needs and budgets.
  • Compact and highly manoeuvrable – even in tight spaces.
  • Large tyres and high ground clearance for outdoor use on uneven ground.
  • Flexible charging options via an external or built-in charger, depending on the model.
  • Travel speeds up to 17 km/h for more efficient working.

Straightforward Intuitive technology that makes work easier.

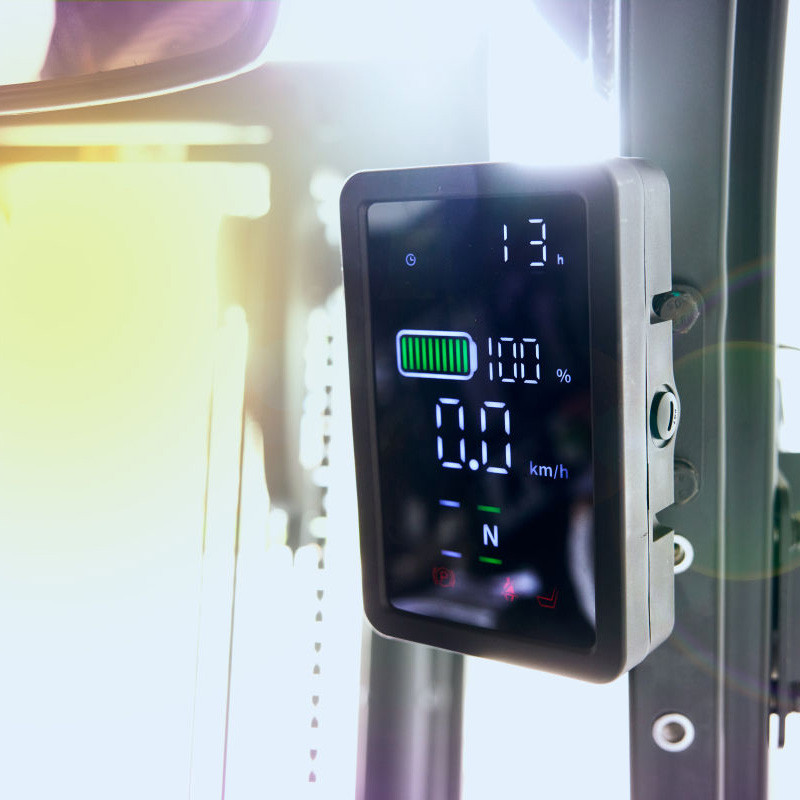

  • LED display with all key info at a glance.

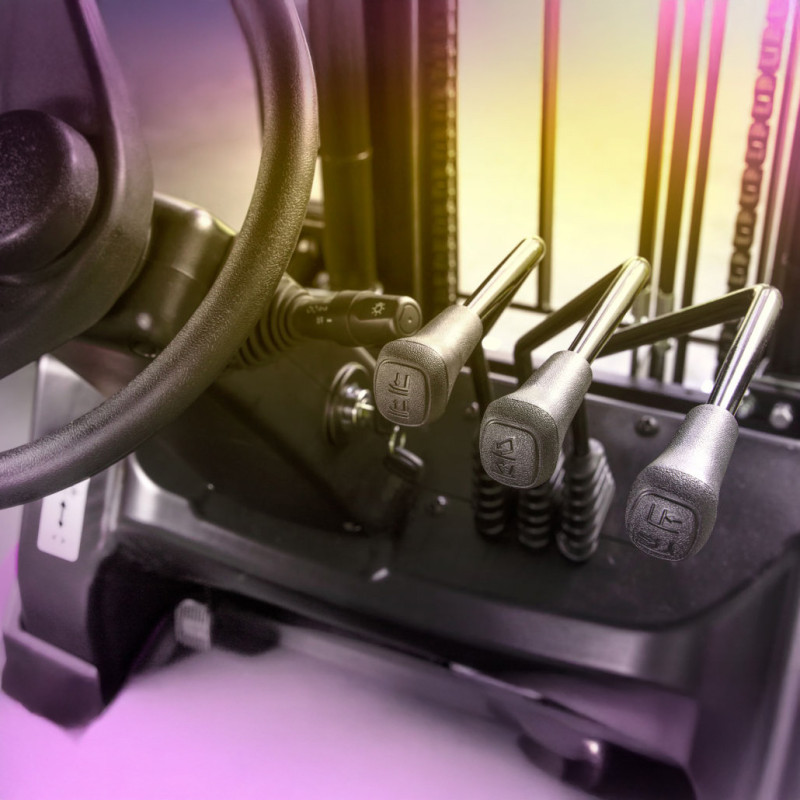

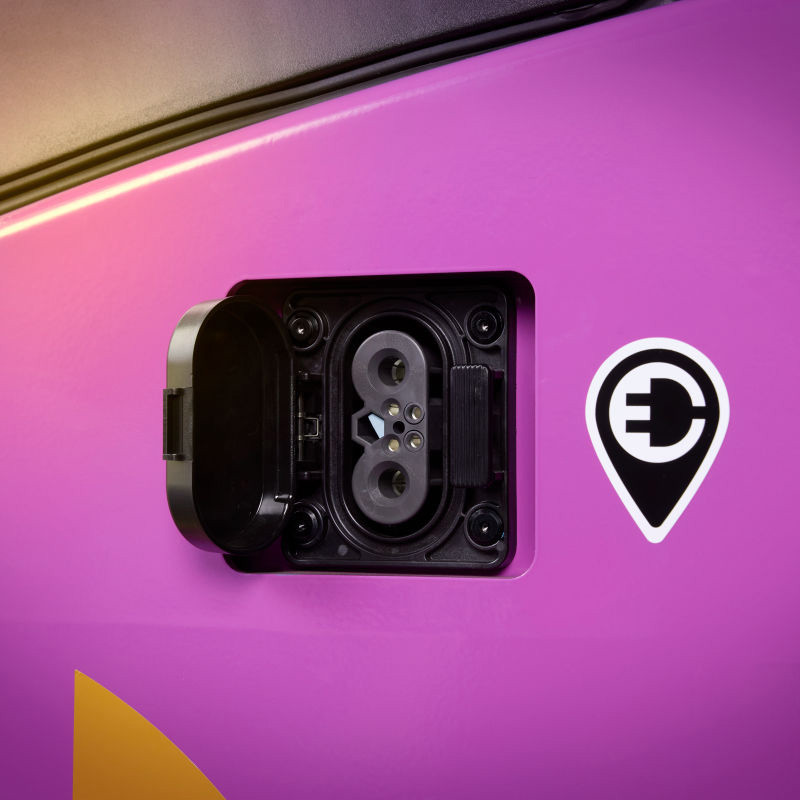

  • Simple control elements – from the control panel and comfortable pedal to the water-resistant charging port.
  • Optimum visibility for safer daily operation.
  • Ergonomic operator position with adjustable steering wheel and, depending on the variant, comfort seat andgenerous legroom.

Cost-effective Solutions for every task and every budget.

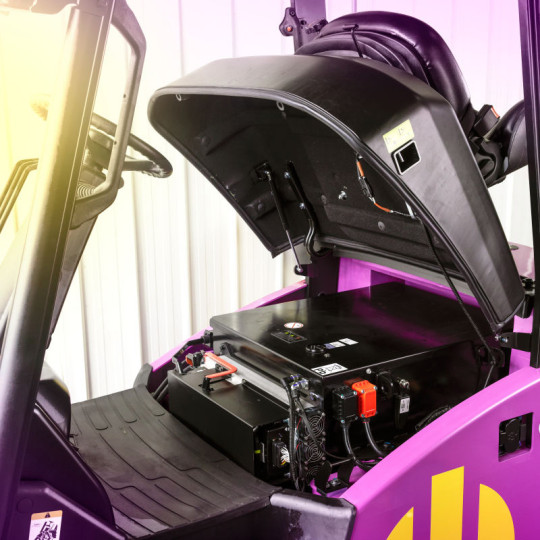

  • Maintenance-free 80-V lithium-ion battery for long service life and short charging pauses.
  • Rapid lift speeds save time with every application.
  • High availability and cost-efficient acquisition.
  • Fast spare parts supply keeps your operations running smoothly.

For technical support, please visit the AntOn by Jungheinrich Service & Support page: www.jungheinrich.lv/anton-service or www.jungheinrich.lt/anton-service.

Capacity
2500 kg
Manufacturer
AntOn by Jungheinrich
Model
CBH 2.5
Fork length
1150 mm
Turning radius
2300 mm
Aisle width
4195 mm
Lowering speed with/without cargo
0,54 / 0,56 m/s
Drive
Electric
Overall length
3695 mm
Overall width
1154 mm
Lift speed with / without load
0,5 / 0,56 m/s
Battery voltage / nominal capacity
80 / 230 V/Ah, 18400 Wh
Load centre
500 mm
Battery type
Lithium-ion
Lift motor output
26 kW
Height of mast (lowered)
2240 mm
Extended mast height
3330 mm
Noise level as per EN 12053 (operator's ear)
74 dB(A)
Ground clearance
170 mm
Drive motor power
17 kW
Max. gradeability laden/unladen
14 / 25 %
Mast type
Two-stage telescopic mast (ZT)
Travel speed with / without load
16 / 17 km/h
Fork carriage width
1040 mm
Load height guard
1025 mm
Load width guard
1040 mm
Battery indicator
With time
B-pillar handle with horn button
Yes
Seatbelt logic switch
No
Seat type
Standard seat
Build-in side shifter
Yes
Electrostatic chain
Earthing strip, antistatic
Traction pin
Trailer coupling
Front lamp
Working light (LED)
Rear lamp
No
Warning lamp
Strobe light (LED)
Steering lamp
Combi light, rear
Review mirror
Rear-view mirror inside
Buzzer
Acoustic warning buzzer
OPS System
Seat belt lock control
USB interface
Yes
Proportional lift system
Manual lever

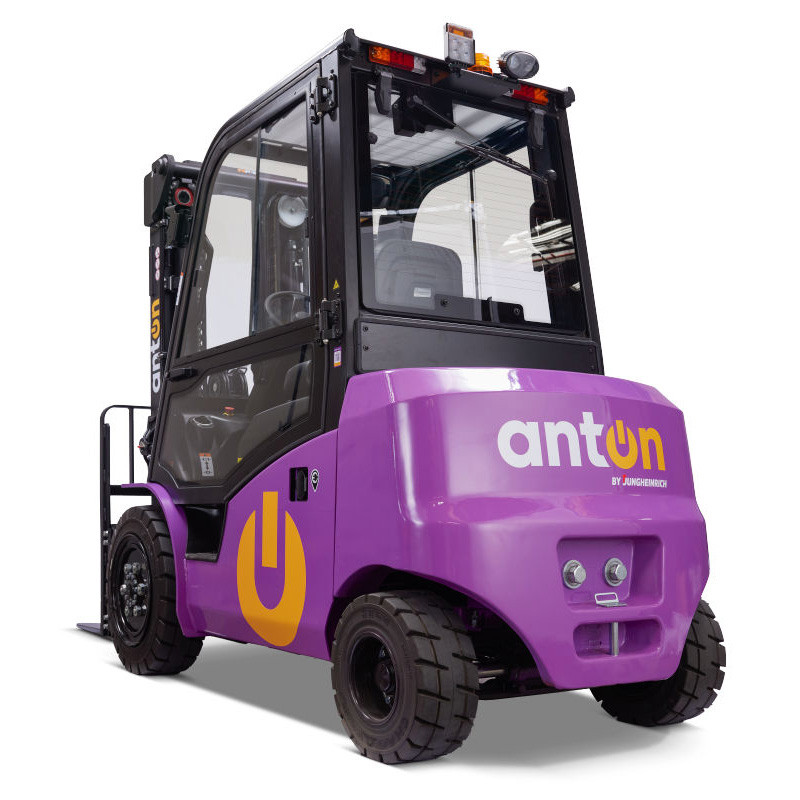

Cabin
Overheadguard without cabin
Heater
No: 1
Blue lamp
No
Area warning lamp
No
  • AntOn by Jungheinrich Electric forklift CBH 2.5 ZT 3300 mm, ISS, ZH1

    Reliable technology for everyday use

    • Simple operation for comfortable handling.
    • Lithium-ion technology for fast charging and consistent performance.
    • High availability for fast delivery.

    €22,895.00
    €21,840.00 You Save €1,055.00
    Tax excluded
    Limited offer until: 2026/03/01 Days remaining: 38
