Electric pedestrian trucks

Electric pallet trucks for transporting and moving goods

The transport of heavy loads is considerably simplified with electric pallet trucks. Industrial trucks not only save energy and relieve strain on the back and joints, but also offer high flexibility in small spaces. Find the right pallet truck for your needs with our buying guide.

1. What are the main features of an electric pallet truck?

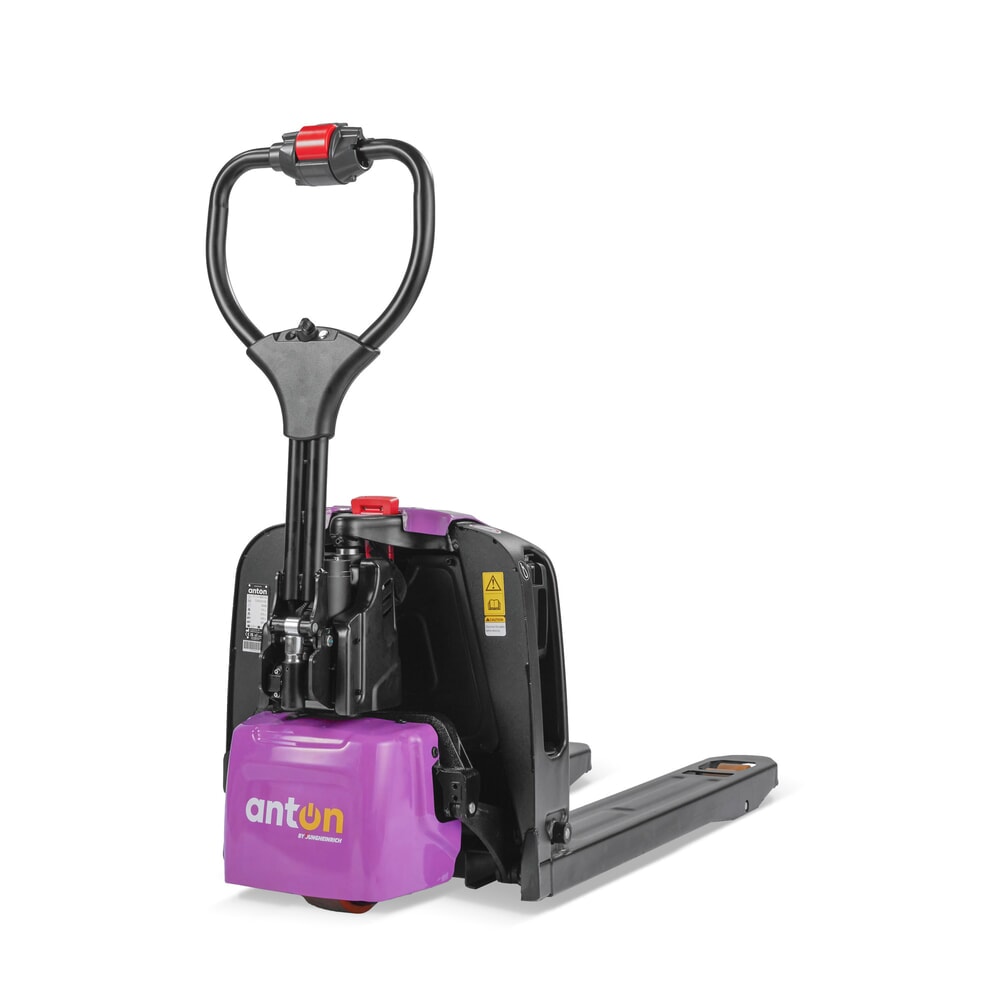

AntOn by Jungheinrich Electric pedestrian pallet truck PTL 1.5, 560x1150 mm

With an electrically powered pallet truck, you can move heavy loads ergonomically and effortlessly in your business, pick them up and transfer them to low lifting heights. For this purpose, two basic versions of electric pallet trucks are available to buy in our online shop:

Electric hand pallet trucks with semi-electric operation: Here the driving of the pallet truck is done by a drive motor. The lifting and lowering of the loads are done manually. These pallet trucks are also known as semi-electric low-lift pallet trucks, electric pallet jacks or electric pump trucks.

Jungheinrich EJE 114/116/118/120 electric pallet truck

Electric hand pallet trucks with fully electric operation: Here, both the lifting and travel, as well as the lowering function, are operated by an electric motor. These functions are conveniently controlled via operating elements on the ergonomically shaped tiller. Fully electric pallet lifting trucks are generally more compact, heavier, and more robust than semi-electric models.

In the same way that hand pallet trucks are designed, the centre of gravity of electric pallet jacks is in the middle of the wheelbase. For this reason, industrial trucks do not need a counterweight, as is the case with front forklift trucks. Pallet trucks are also comparatively narrow, which is particularly advantageous when there is little space available and only a few turning options.

Depending on the model, the electric pallet lift trucks at Jungheinrich website are available with a drive via a DC or three-phase motor and are powered either by powerful lead-acid, maintenance-free lead-gel batteries or innovative lithium-ion batteries. Many electric pallet truck models – such as our efficient lithium-ion pallet trucks – have an integrated charger for charging the battery. In companies where lifting and transport work is carried out regularly, it also makes sense to purchase an exchangeable battery for the electric pallet truck—one battery is in operation, the other is charging. With the appropriate device, the batteries can be easily exchanged.

To ensure that you work safely with our electric industrial trucks, many models are equipped with various safety features:

  • long, low-set towbar ensures safe distance between operator and vehicle
  • a steel cover on the drive wheel prevents foot injuries
  • collision safety button
  • emergency stop button
  • crawl speed button for safe manoeuvring of the vehicle with the tiller raised

2. How to find the right electric pallet truck for your needs

Electric pallet trucks are extremely versatile and they can be used as floor trucks in warehouses and sales rooms and, depending on the model, for loading and unloading trucks as well as for delivering goods to the front door. A benefit and function analysis will help you find the right type of pallet truck for your needs:

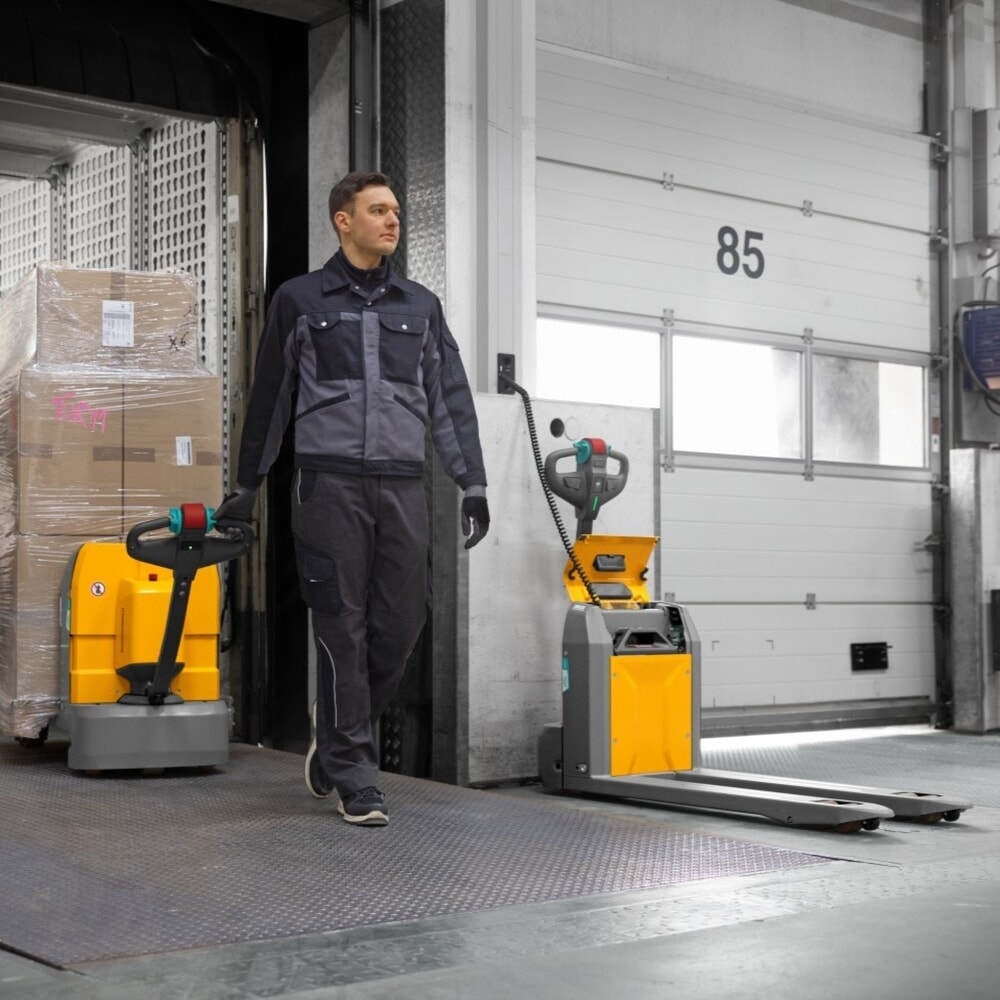

Jungheinrich AME 18 electric pallet truck, load capacity 1800 kg, fork length 1150 mm
  • Where will the electrically powered pallet truck be used?
  • Is a semi- or fully electric model required?
  • What is the maximum load weight to be carried?
  • What fork length and width are required?
  • With what intensity should the electric pallet truck be used?
  • Are long distances to be covered with the truck and do you therefore need a model with passenger operation?
  • Which tyres are suitable for the surfaces that will be travelled on?
  • Are special functions such as a quick lift, crawl speed button or a weighing function needed to work more efficiently?

Place of Use

At Jungheinrich webiste you will find electric pallet jacks that meet different requirements for the place of use:

Place of use/Purpose Details Suitable electric pallet trucks
Dry indoor and outdoor areas
  • Indoor areas, e.g. in supermarkets, warehouses or sales areas
  • Dry, level outdoor areas, e.g. in outdoor warehouses or delivery zones
  • All electric pallet truck models
Indoor areas with limited turning and manoeuvring possibilities
  • Small warehouse environments, e.g. narrow storage rooms, overseas containers, narrow corridors
  • Models with extra short forks
Transport and simultaneous weighing of goods
  • In shipping, warehousing or logistics, e.g. for determining the shipping weight
  • Models with scales
Picking up pallets crossways
  • In shipping, warehousing or logistics, e.g. where space is limited
  • Models with special fork widths
Picking up non-standard pallets
  • In sales areas, e.g. for picking up CHEP, display or quarter pallets
  • Models with special fork widths
Transport of sensitive or fragile goods
  • In warehouses, e.g. for transferring glassware or electronic components
  • Models with lowering valves for particularly sensitive lowering

Drive

The electric pump trucks in our store are available as semi- or fully electric models, where the lifting is done either via an electro-hydraulic (full electric models) or hand-hydraulic lift (semi-electric models):

  • Semi-electric lift trucks use hydraulic cylinders to generate linear power, so you must implement several pump strokes with the tiller to lift heavy loads off the ground. However, the electric motor assists you again when the semi-electric hand pallet truck is moved from a standing position. E-lift trucks with this drive are optimal when longer transport distances must be covered in the warehouse.
  • The fully electric version allows you to carry out the lifting work by pressing a button. The lift motor moves the forks up or down – without the use of muscle power. So, with these models, effort-saving and ergonomic moving, lifting and lowering is possible. E-lift trucks with fully electric drive are therefore ideal for longer distances and frequent lifting work (depending on the model).

The drive motors on semi- and fully electric pallet trucks are divided into two types:

Motor Type Advantages Disadvantages

DC motor

  • Most commonly used in electric pallet trucks
  • Extremely robust and less prone to failure
  • Versions without carbon brushes are relatively low maintenance
  • Converts battery energy evenly and thus works more economically
  • High starting torque with strong start-up
  • Only moderate motor heating
  • DC motors with graphite brushes wear out faster and require continuous maintenance
  • Only half as efficient as three-phase motor

Three-phase motor

  • Drive energy is generated via three magnetic coils
  • Absolutely maintenance-free, as there are no wearing parts
  • Long service life
  • Also suitable for demanding transport routes (depending on gradient)
  • Higher purchase price than models with DC motors

Good to know: Jungheinrich's electric pallet trucks with three-phase motors recover energy via a regenerative brake. This sophisticated economic energy management also ensures a long battery life.

Load Capacity

The maximum load that an electric pallet truck can transport plays an important role in the purchase decision. The average weight of the loads to be transported regularly, as well as expected peak loads, should be considered when selecting a truck type. You can tell whether the model is suitable for the loads associated with your business by the load capacity or rated load (for electric low-lift pallet trucks) — these ratings indicate the maximum load a truck may be operated with.

We offer electric pallet trucks with a load capacity or rated load of up to 2000kg. To prevent truck from becoming overloaded, many of our models feature overload protection measures.

Fork lengths and widths

Electrically powered pallet trucks can be used to pick up and transport palletised goods, wire mesh boxes and other loads that contain suitable entry pockets for forks. Choose an industrial truck with the appropriate fork lengths and fork widths depending on the types of loads that require transporting. You will find the following versions in our range:

Load Example Dimensions of the forks
Standard
  • Euro pallets
  • Transport boxes
  • Standard fork length of 1150mm
  • Standard fork width of 520-540mm
Special sizes - small
  • General cargo such as cartons or boxes
  • Display pallets
  • Half pallets
  • Quarter pallets (CHEP pallets)
  • Short forks between 800 and 1000mm
Special sizes - large
  • Pick-up of several pallets at the same time
  • Transverse pick-up of Euro pallets
  • Extra-wide fork carrying width of 670-685mm

Good to know: Pallets are also referred to as two-way or four-way pallets. The number given first indicates the number of available under-run options for industrial trucks. The entry height is always 100mm.

Battery size and type

Regardless of whether they have semi- or fully electric equipment, our e-pallet trucks are powered by a rechargeable battery or a rechargeable battery pack. The batteries and packs can be recharged at a 230 V socket via integrated electric pallet truck chargers. The following battery and pack types are available from us:

Performance parameters/battery type Lithium-ion battery Lead-acid battery Lead-gel and lead-fleece battery
Intended use
  • Indoor
  • Power-intensive loading work
  • For repetitive lifting and lowering work
  • Can be used in cold operating areas
  • No power-intensive loading work
  • Indoor and outdoor areas
  • No power-intensive loading work
Intensity of use
  • Suitable for multi-shift systems
  • For 1-shift systems
  • For 1-shift systems
Life cycle
  • Long-lasting, as many charging cycles are possible
  • Approx. 1,200 charging cycles
  • Low (approx. 900 charging cycles)
Weight
  • Low deadweight
  • High deadweight
  • High deadweight
Temperature sensitivity
  • Sensitive to cold (from 5°C)
  • Limited insensitivity to cold
  • Insensitive to heat and cold
Energy efficiency
  • High efficiency
  • No memory effect
  • Capacity loss at 80% deep discharge
  • Slight memory effect
  • Capacity loss at 60% deep discharge
  • Slight memory effect
Maintenance
  • Maintenance-free
  • Correct storage necessary (avoid fire hazard)
  • Demineralised water must be refilled at least once a week
  • Sufficient ventilation necessary during charging
  • Maintenance-free
Charge time

Around 2 to 5 hours

Around 12 hours

Around 12 hours
Intermediate charging possible

possible at any time without memory effect

intermediate charges minimise service life

intermediate charges minimise service life
Battery change possible

battery change possible without tools

with appropriate tool

with appropriate tool

Intensity of Use

Depending on how often, how long and how intensively you want to use your electric pallet truck, it makes sense to purchase an industrial truck with a suitable performance range. Here, not only the installed battery type but also the maximum operating time is decisive for the purchase: This describes the time span over which a powered pallet truck can be used in one, two, or three-shift operation:

  • One-shift operation: corresponds to a light intensity of use covering approx. 500 to 1,000 operating hours per year.
  • Two-shift operation: corresponds to a medium operating intensity of approx. 1,000 to 1,700 operating hours per year.
  • Three-shift operation: corresponds to an intensive intensity of use comprising more than 1,700 operating hours per year.

Tyres

PU fork roller

Depending on the model, electric lift trucks have a 3-, 4- or 5-point chassis, which has a drive wheel, support wheels, and fork rollers. For particularly high loads, the fork rollers are also offered in a tandem version. These double castors distribute the weight better, which is why they are particularly suitable for use on uneven ground and when negotiating speed humps. This results in smooth running and stability when moving the load and also reduces wear on the individual castors. Smooth-running wheels and rollers, on the other hand, ensure effort-saving use; run-in rollers in the fork tip also make it easier to enter and exit the pallet.

3. Electric pallet lifting trucks make factory, warehouse and production work easier

At Jungheinrich webiste you can buy electric pallet trucks in various designs. In addition to durable models with semi- or fully electric equipment, you can also buy powerful premium devices for intensive continuous use from us.

Electric hand pallet truck

These lift truck models with semi- or fully electric equipment are solid entry-level models in pedestrian operation, which are only suitable for light-duty use over short distances indoors or, depending on the model, indoors and outdoors (if dry). In contrast to our all-electric premium units, these types of pallet lifters are less powerful and robust. This results in the following advantages and disadvantages this equipment type:

Advantages:

  • Can be used without a forklift licence
  • High handling speeds without operator fatigue
  • Low maintenance
  • Emission free

Disadvantages:

  • Not suitable for multi-shift operation or continuous use
  • Not designed for stacking operation

These manoeuvrable electric hand pallet truck models are on a par with the lighter manual pallet trucks. However, due to the electric drive, you hardly have to exert any muscle power to manoeuvre the loaded industrial truck — you simply set the electric pallet truck in motion via the control electronics in the tiller and also brake in this way. Some models offered at Jungheinrich website even have an LC display. This means you can see all the important information such as travel speed and battery charge status at a glance.

Parameters / E-hand pallet truck models E-lift truck with semi-electric drive E-lift truck with fully electric drive
Ameise PTE 1.5 electric hand pallet truck, fork length 1500 mm AntOn by Jungheinrich Electric pedestrian pallet truck PTL 1.5, 560x1150 mm
Drive type

Electric

Electric
Lift type

Hand-hydraulic

Electro-hydraulic
Load capacity

Up to 1,300kg

Up to 1,500kg
Fork lengths and fork carriage widths
  • Extra short fork lengths (800-1,000mm)
  • Standard fork lengths (1,150mm)
  • Only standard fork width available
  • Standard fork lengths (1,150mm)
  • Extra wide special fork carrying width 685 mm
Special equipment and accessories
  • No accessories available
  • Side support rollers for optimum driving and cornering stability

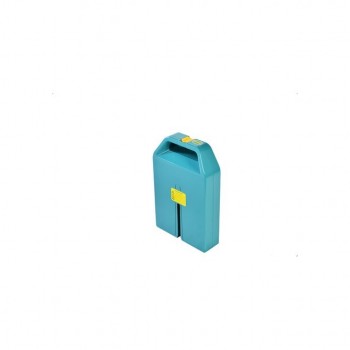

  • Spare battery (can be replaced without tools)
Application
  • Indoor operation
  • Recommended for short and medium transport distances
  • Particularly manoeuvrable and light
  • Overcomes thresholds, smaller obstacles, and slight inclines (less than 5%)
  • Load can be picked up from ground level, with some models also from a ramp
  • Indoor operation, some models also suitable for dry outdoor areas
  • Also suitable for longer transport distances
  • Overcomes thresholds, smaller obstacles, and slight inclines (less than 5%)
  • Can lift loads from ground level, some models can also be lifted from a ramp

Electric low-lift pallet truck

These powerful and robust electric pallet jacks with all-electric operation are available both as a variant for tiller-guided pedestrian operation and for pedestrian operation with side seat or driver's stand-on platform (on request). Depending on the model, these premium trucks are suitable for light indoor applications as well as for demanding indoor and outdoor applications and for mobile use when loaded within trucks.

Electric low-lift trucks always have a 5-point chassis to ensure the greatest possible driving and cornering stability. The drive wheel is located centrally under the towbar. The support rollers at the side of the drive wheel prevent the truck from rocking on uneven ground.

Compared to our electric hand pallet trucks, the all-electric low-lift trucks are more robust and generally more powerful. They also offer the following advantages and disadvantages:

Advantages:

  • Can be used without a forklift licence (for passenger models from 6 km/h and with a permanently installed driving platform, a forklift licence is mandatory)
  • High handling speeds without operator fatigue
  • Depending on the model, they can also be loaded into trucks
  • Low maintenance
  • Emission-free

Disadvantages:

  • Not designed for stacking operation
  • Models with lead-acid battery require a charging station and regular refilling of the battery with demineralised water (wet cell battery)

The performance parameters of our electric low-lift trucks at a glance:

Parameters / E-low lift truck models Electric low lift truck Jungheinrich EJE-M-series Electric low lift truck Jungheinrich Performance Series
Jungheinrich EJE M15 electric pallet truck Jungheinrich EJE 114/116/118/120 electric pallet truck - lithium-ion
Drive type

Electric

Electric
Lift type

Electro-hydraulic

Electro-hydraulic
Rated load

1,300 to 1,500kg

1,400 to 2,000kg
Fork lengths and fork carriage widths
  • Standard fork lengths (1,150mm)
  • Extra wide fork widths available (670mm)
  • Standard fork lengths (1,150mm)
Special equipment and accessories (depending on model)
  • Ramp lift for loading and unloading trucks
  • Crawl speed button for safe manoeuvring at low speed in confined spaces
  • Lift pulse control for speed regulation
  • Curve control for stable cornering
  • Refrigerated/frozen warehouse equipment available on request
Application
  • Transport and transfer of under-ride pallets, unit loads, goods and transport boxes with high load weight
  • Use on medium to long transport routes
  • Transport and transfer of pallets, unit loads, goods and transport boxes with high load weights that can be moved underneath the truck
  • Use on medium to long transport routes
  • Suitable for use in lorries
  • Can also be used in cold stores and freezers with additional equipment

We can also provide you with two special versions of the electric low-lift truck on request via our customer service:

Heavy duty electric low-lift pallet truck

These special electric pallet trucks for heavy loads are the heavyweights among the electric low-lift trucks, as they already weigh more than 400kg. With these models you can easily transport loads of up to 3.5 tonnes. The powerful drive technology, combined with an efficient lithium-ion battery, enables high dynamics even over longer distances, and even fully loaded, you can manoeuvre these electric low-lift trucks smoothly.

Jungheinrich electric pallet truck, special fork width 685 mm, fork length 1150 mm, load capacity 2000 kg
  • For lifting loads from 3,000 to 3,500kg
  • Interior operation
  • Recommended for short and medium transport distances
  • Overcomes thresholds, smaller obstacles, and slight inclines (less than 5%)
  • Heavy loads can be picked up from ground level, with some models also from a ramp

Advantages of heavy-duty electric low-lift truck Disadvantages of heavy-duty electric low-lift truck
  • Particularly energy-efficient due to the 24-volt three-phase motor
  • Safe and dynamic approach possible
  • High deadweight: vehicles not suitable for use on storage platforms or in trucks

Electric low-lift trucks in special sizes

With electric low-lift trucks in special sizes, loads with excess length, or load carriers that exceed the standard pallet dimensions of Euro pallets can be transported. With the extra-wide and long forks, these electric pallet trucks can even pick up loads crossways.

Jungheinrich electric pallet truck, special fork width 685 mm, fork length 1150 mm, load capacity 2000 kg
  • Offer fork lengths and widths in special sizes
  • Indoor operation
  • Recommended for short and medium transport distances
  • Overcomes thresholds, smaller obstacles, and slight inclines (less than 5%)
  • Wide or long loads can be picked up from ground level, with some models also from a ramp

Further advice on this topic:

Functional Cookies are disabled!

If you like to talk to a professional agent via chat you need to give us permission to enable functional cookies. We can enable for you if you press the button bellow or you can configure the cookies by chosing cookie settings bellow.

Cookies settings
